Dinex DXPR6CM Reflections 6-Pan Refrigerated Mobile Cold Food Unit

SKU: DXPR6CM
$9,749.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Dinex Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

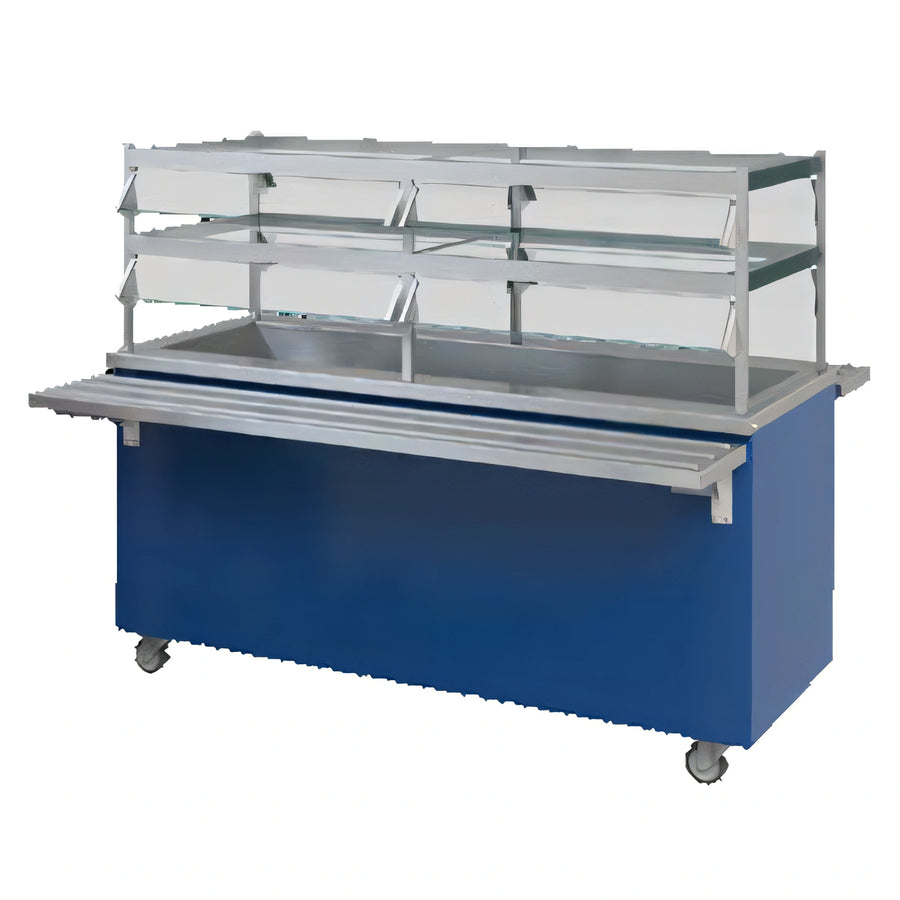

Dinex DXPR6CM Reflections 6-Pan Refrigerated Mobile Cold Food Unit

96" Length, Full-Size Pans, Self-Contained Refrigeration

Keep your cold foods perfectly chilled and readily accessible with this spacious and mobile 6-pan refrigerated food unit, ideal for cafeteria or buffet lines.

  • Holds up to six 12" x 20" full-size food pans for versatile serving options.
  • Equipped with a fully hermetic 1/3 HP fan-cooled condensing unit for reliable refrigeration.
  • Seamless, molded FRP body with a 14-gauge stainless steel top ensures durability and easy cleaning.
  • Mobile design with 4" diameter swivel plate casters, all with brakes, for effortless positioning.
  • Features an interlocking mechanism for secure connection with other Dinex Reflections units.
  • Fully insulated 5" deep cold pan with a concealed continuous refrigeration coil for consistent temperature maintenance.
  • Integrated 3/4" FPT drain ball valve simplifies cleaning and maintenance.
  • Available in multiple standard colors to match any decor.

Overall Dimensions:

96.0"W x 30.0"D x 36.0"H

Product Weight:

390.0 lb

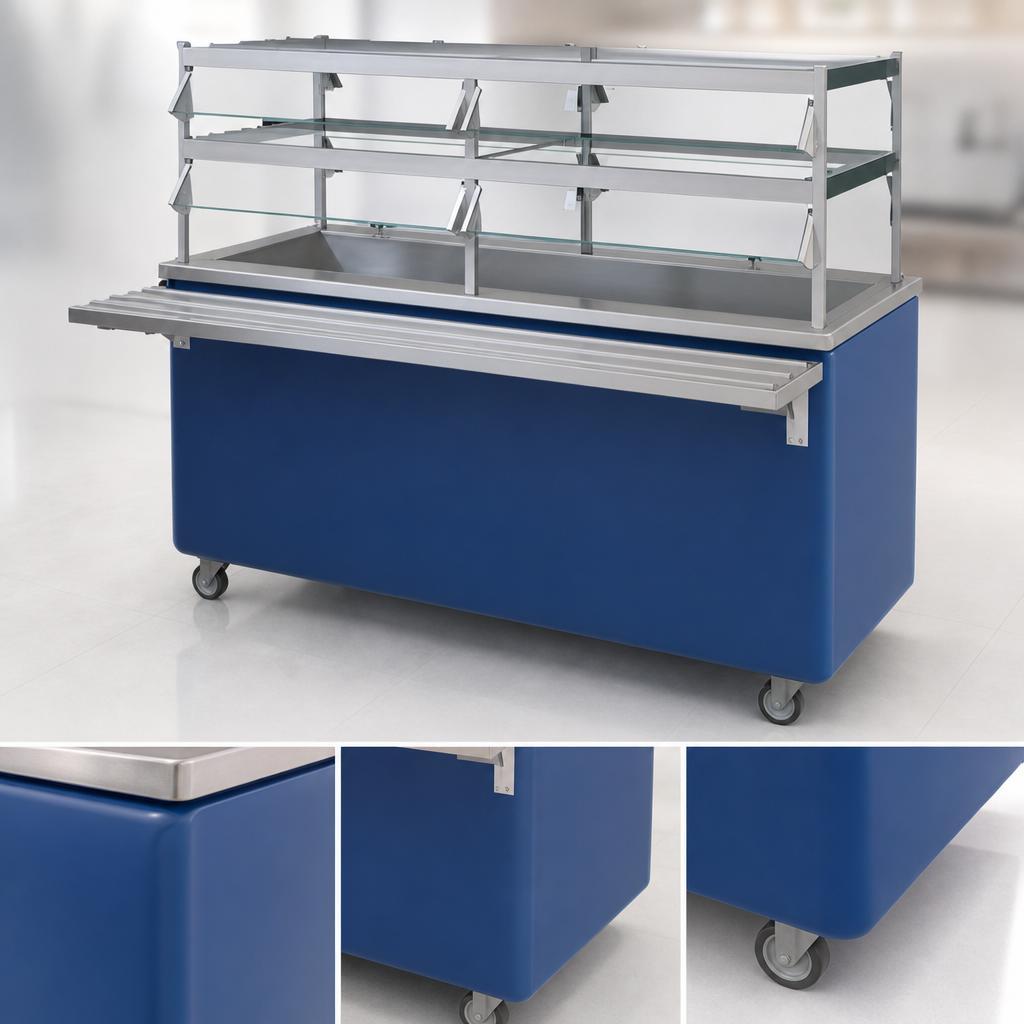

Seamless Molded FRP Body

Durable Fiber-Reinforced Polymer body features a smooth exterior and rounded corners for a clean appearance and easy maintenance.

Seamless Molded FRP Body

Stainless Steel Top

Robust 14-gauge stainless steel top with fully welded square turndowns on all sides ensures lasting strength and resistance to spills.

Enclosed Base

The unit features an enclosed base for a clean look and added protection of internal components.

Deep Stainless Steel Cold Pan

A 20-gauge stainless steel fully welded 5" deep cold pan is designed to hold six 12" x 20" full-size food pans.

Concealed Refrigeration Coil

The welded, watertight cold pan has a concealed continuous refrigeration coil bonded to its underside, fully insulated to maintain consistent cold temperatures.

Integrated Drain Ball Valve

A 3/4" FPT ball valve is located below the unit for convenient draining and cleaning of the cold pan.

Mobile Design with Locking Casters

Equipped with four 4" diameter swivel plate casters, all with brakes, allowing for easy maneuverability and secure placement.

Interlocking Mechanism

An interlocking mechanism is provided to securely connect this unit with other Dinex Reflections series units, creating a continuous serving line.

Self-Contained Refrigeration System

Features a 1/3 horsepower fully hermetic fan-cooled condensing unit with an expansion valve pressure control switch, mounted on slide-out rails behind removable louvered panels for easy access and cross-flow ventilation.

Copper Refrigerant Coils

Refrigerant coils are constructed of copper tubing and attached to the bottom of the well for efficient cooling.

Type Cold Food Unit
Style Mobile
Installation Type Floor Model
Pan Capacity 6 Full-Size Pans
Pan Size 12" x 20" (Full-Size)
Cold Pan Depth 5 Inches
Material Stainless Steel, FRP
Interior Finish Stainless Steel
Refrigeration Type Self-Contained
Compressor Horsepower 1/3 HP
Voltage 120 Volts
Amps 6.3 Amps
Plug Type NEMA 5-15P
Cord Length 7 Feet
Caster Size 4 Inches
Drain Connection Size 3/4" FPT
Shipping Width 96 Inches
Shipping Depth 30 Inches
Shipping Height 36 Inches
Shipping Weight 390 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The DXPR6CM unit is designed to hold six 12" x 20" full-size food pans.
No, the unit features an integrated 3/4" FPT drain ball valve located below the unit for convenient internal draining.
Yes, an interlocking mechanism is provided with the DXPR6CM unit to securely connect it with other Dinex Reflections mobile serving cart units, allowing for a customizable serving line setup.
The DXPR6CM utilizes a self-contained, fully hermetic 1/3 horsepower fan-cooled condensing unit with an expansion valve pressure control switch, which is located on slide-out rails behind removable louvered panels for easy maintenance.
Yes, the unit comes standard with four 4" diameter swivel plate casters, all equipped with brakes, for mobility and stability.
