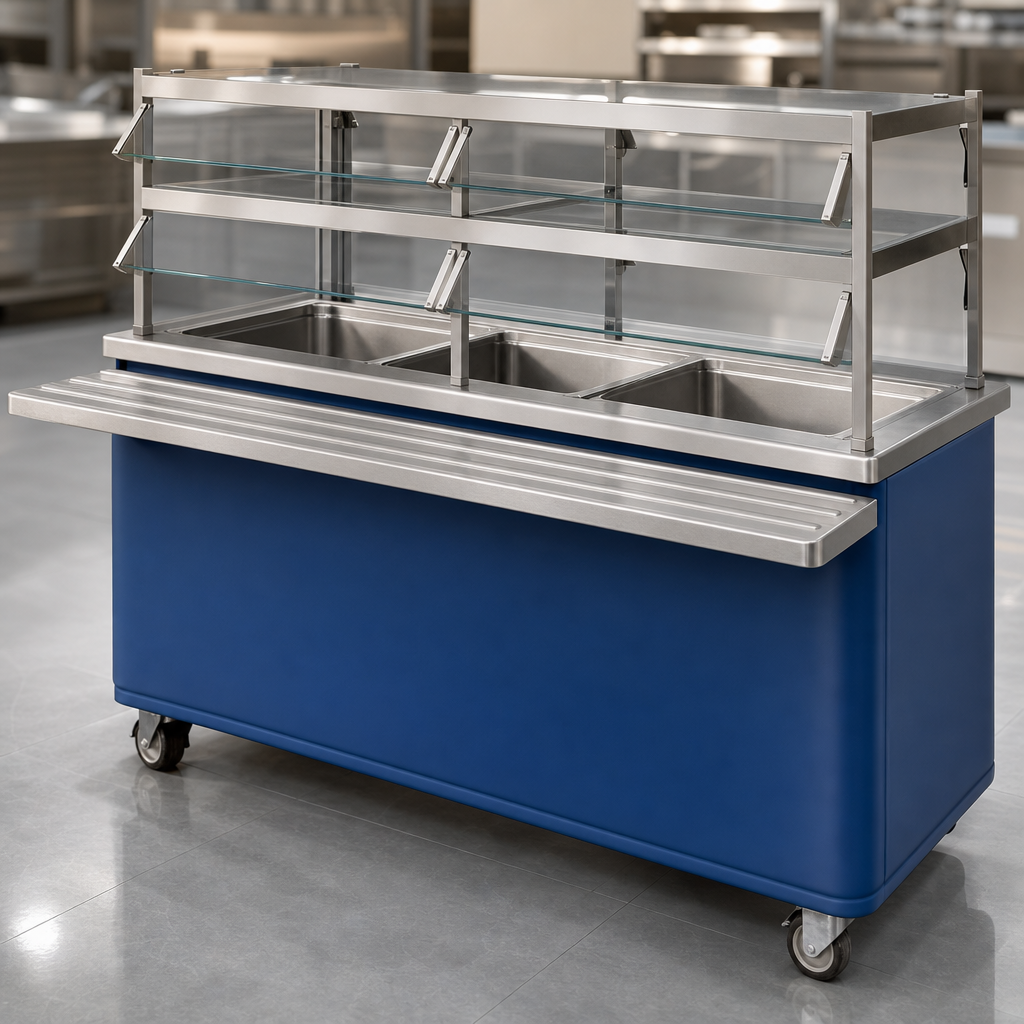

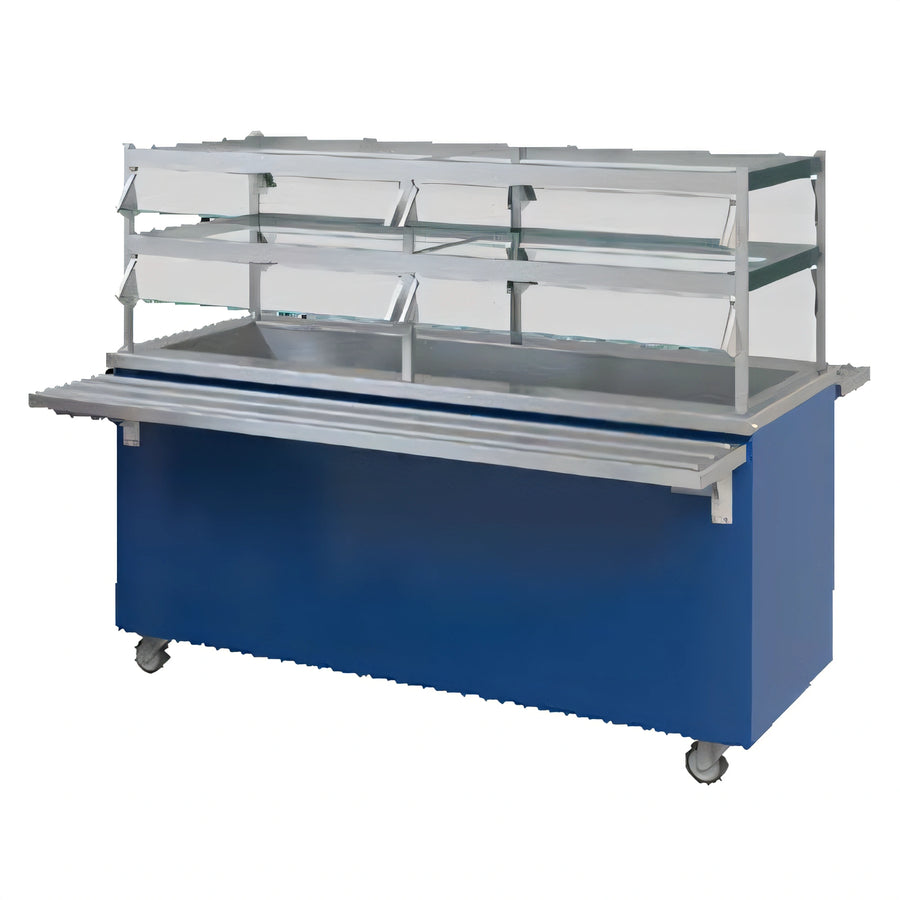

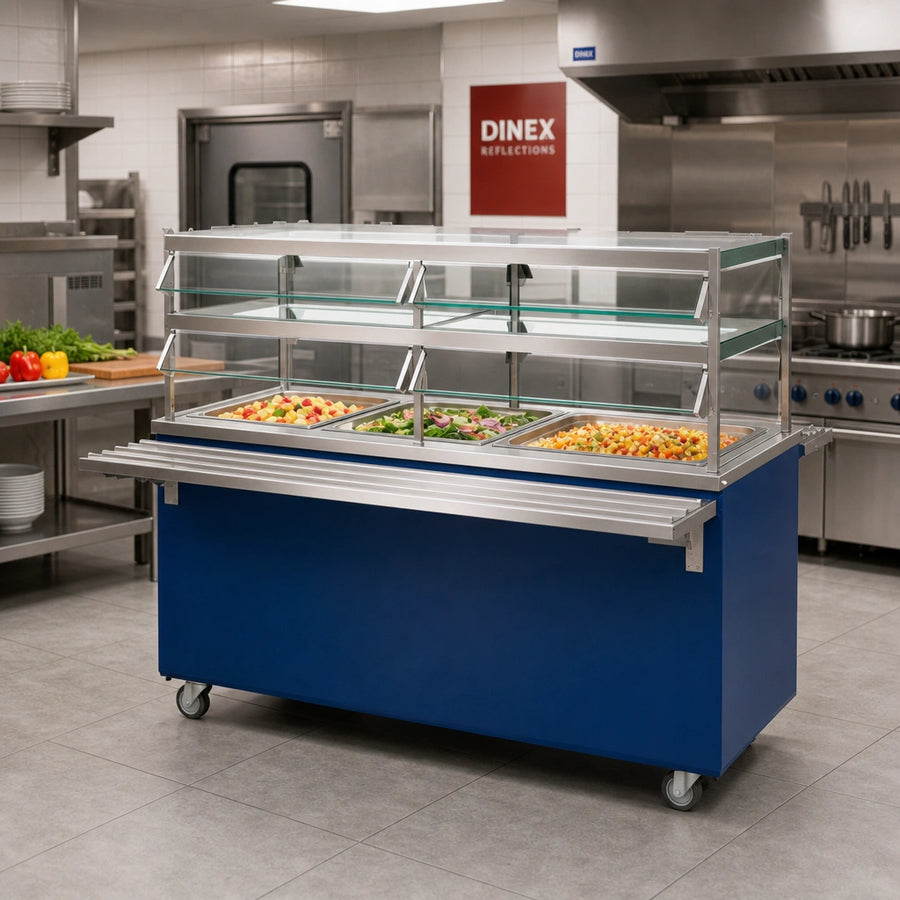

Dinex DXPR3CM Reflections Refrigerated Mobile 3-Pan Cold Food Unit
50-Inch Length, 120V, NEMA 5-15P
Keep your cold food items perfectly chilled and easily accessible with this versatile and durable mobile refrigerated food unit, ideal for buffets and serving lines.
- Modular design allows for seamless integration with other Reflections units via an interlocking mechanism.
- Equipped with a 5-inch deep 20-gauge stainless steel cold pan that holds three 12" x 20" pans.
- Features a concealed, continuous refrigeration coil and full insulation for superior temperature retention.
- Built with a seamless, molded FRP body and a 14-gauge stainless steel top for commercial durability.
- Highly mobile with four 4-inch swivel plate casters, all with brakes for secure positioning.
- Includes a fully hermetic, fan-cooled 1/3 HP condensing unit for reliable mechanical refrigeration.
Overall Dimensions:
50.0"W x 30.0"D x 36.0"HProduct Weight:
245.0 lbDurable Construction
Features a seamless, molded FRP (Fiber Reinforced Plastic) body with smooth exterior and rounded corners, paired with a 14-gauge stainless steel top with fully welded square turndowns on all sides.
Integrated Cold Pan
Equipped with a 20-gauge stainless steel, fully welded, 5-inch deep cold pan designed to hold three 12" x 20" full-size food pans.
Efficient Refrigeration
The welded, watertight well boasts a concealed continuous refrigeration coil bonded to the underside and is fully insulated. It features a 1/3 HP fully hermetic, fan-cooled condensing unit, located on slide-out rails for easy maintenance.
Convenient Drain System
The cold pan includes a 3/4" FPT (Female Pipe Thread) ball valve drain located below the unit for easy cleaning and water removal.
Mobile Design
Outfitted with four 4-inch diameter swivel plate casters, all equipped with brakes, allowing for easy repositioning and secure locking.
Interlocking Capability
An interlocking mechanism is provided, allowing this unit to connect securely with other Dinex Reflections mobile serving units, creating a continuous serving line.
Standard Electrical
Operates on 120 volts and includes a seven-foot electrical cord with a NEMA 5-15P plug for standard outlets.
Certifications & Compliance
Warranty & Protection
1-year parts and labor warranty.
