Dinex Heated Shielded Drop-In Plate Dispenser for 12-1/4-Inch Round Plates

120V, 500W, Adjustable 130°-170°F, Stainless Steel

Keep round dinnerware hot and ready with a self-leveling stainless steel dispenser built for clean drop-in installation.

  • Heated, shielded drop-in design for round plates up to approximately 12-1/4 inches in diameter.
  • Self-leveling carriage helps keep plates aligned for smooth dispensing.
  • Welded stainless steel construction is durable and easy to clean.
  • Adjustable thermostatic heat ranges from 130°F to 170°F with high-end shutoff.
  • 120V, 60 Hz, single-phase operation with a 5-foot cord and NEMA 5-15P plug.
  • Approximate capacity of up to 50 plates or 36 bowls.

Overall Dimensions:

15.88"W x 28.0"H

Product Weight:

97.0 lb

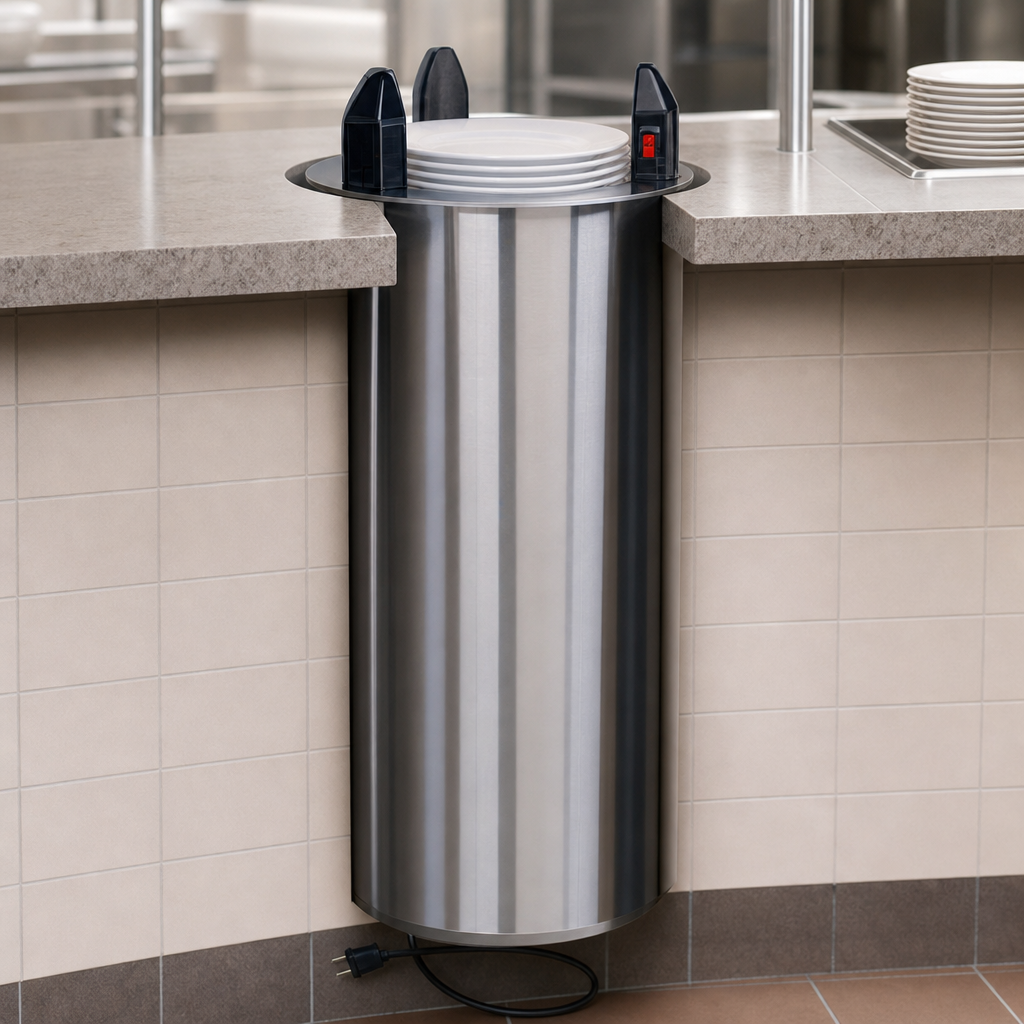

Shielded Drop-In Construction

Built to hang from the countertop opening with an enclosed shielded base for a clean built-in installation.

Shielded Drop-In Construction

Welded Stainless Steel Body

Durable stainless steel construction with flange ring and vertical side supports for long service life.

Self-Leveling Dish Carriage

The welded stainless steel carriage travels vertically in the tube with nylon guides for smooth operation.

Adjustable Heated Control

Thermostatic control is field adjustable from 130°F to 170°F and includes safe high-end shutoff.

Top-Mounted Operating Controls

On/off switch and power indicator light are mounted on the top flange for convenient access.

120V Power Package

Heated models include a 5-foot power cord and NEMA 5-15P plug for standard single-phase service.

Tool-Free Spring Adjustment

Detachable perimeter extension springs allow adjustment without tools.

Large Plate Capacity

Designed for round plates up to approximately 12-1/4 inches in diameter.

Type Plate Dispenser
Style Heated Shielded
Installation Type Drop-In
Capacity Up to 50 Plates / 36 Bowls
Material Stainless Steel
Controls Thermostatic
Temperature Range 130 to 170 Degrees F
Voltage 120 Volts
Watts 500 Watts
Amps 4.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 5 Feet
Shipping Width 16 Inches
Shipping Height 28 Inches
Shipping Weight 31 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

It is designed for round plates up to approximately 12-1/4 inches in diameter.
The heated model operates on 120V, 60 Hz, single-phase power and is listed at 500W and 4.2 amps with a 5-foot cord and NEMA 5-15P plug.
It uses thermostatic control in a tamper-protective location, adjustable from 130°F to 170°F, with a safe high-end shutoff.
It is constructed of welded stainless steel with nylon guides and a removable dish platform.
The cutsheet lists a one-year parts and labor warranty.
Yes. The catalog lists a DXPIACPHC1200 plate heater silo cover and a DXIADWB wrap-around bumper.
