Dinex Heated Drop-In Shielded Plate Dispenser for 10-1/8 Inch Round Plates

Enclosed Tubular Frame, Self-Leveling Carriage, 120V Single-Phase

Keep plates hot and ready at the service line with a durable self-leveling drop-in dispenser built for round dinnerware up to about 10-1/8 inches.

  • Heated drop-in design helps keep dinnerware warm at the serving station.
  • Shielded stainless steel construction offers a durable, easy-to-clean dispensing solution.
  • Self-leveling carriage with nylon guides helps plates dispense smoothly.
  • Field-adjustable thermostat provides a 130°F to 170°F holding range with high-end shut-off.
  • Fits round plates up to approximately 10-1/8 inches in diameter.
  • Approximate capacity of 50 plates or 36 bowls supports busy service areas.
  • 120V, 60 Hz, single-phase power with a 5-foot cord and locking plug.

Overall Dimensions:

13.38"W x 28.0"H

Product Weight:

93.0 lb

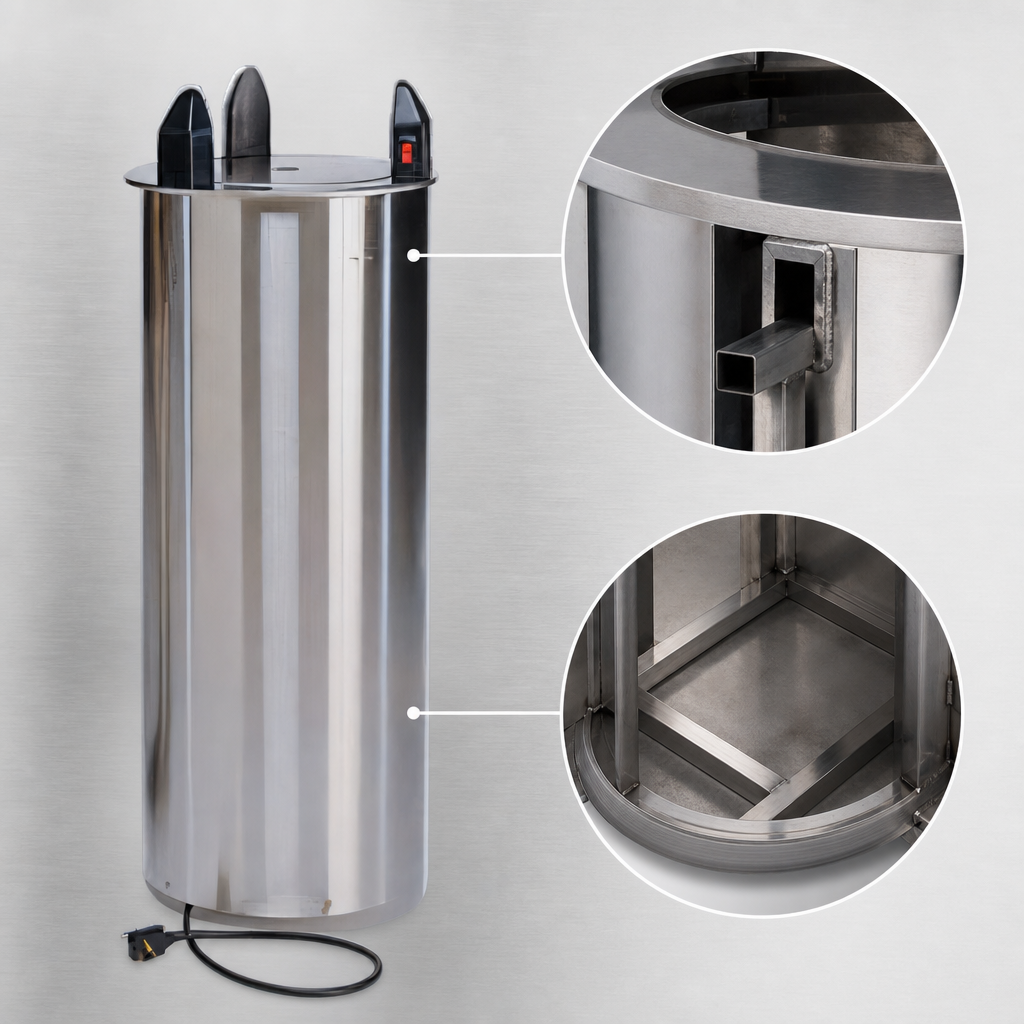

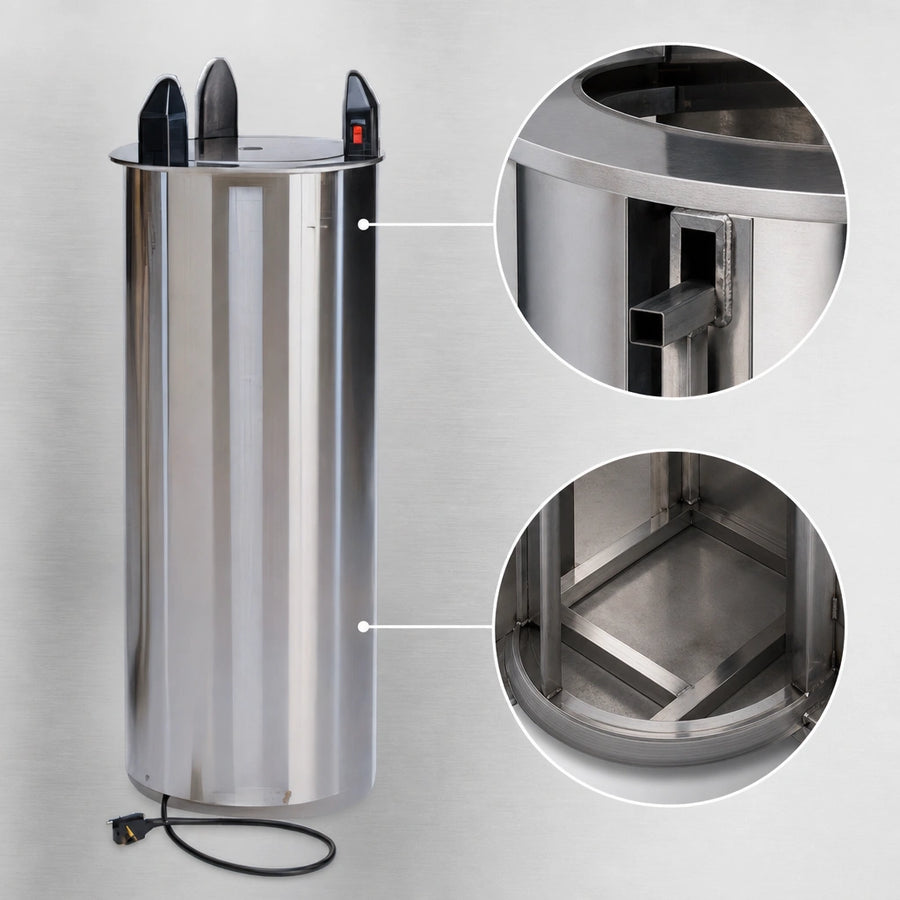

Enclosed Tubular Frame

Welded stainless steel frame construction provides a durable, shielded drop-in housing.

Enclosed Tubular Frame

Self-Leveling Dish Carriage

The carriage travels vertically in the dispenser tube to keep plates feeding smoothly as inventory is used.

Nylon Guides

Nylon guides support smooth carriage movement and help reduce sticking during dispensing.

Adjustable Thermostatic Control

Field-adjustable heat control ranges from 130°F to 170°F for flexible plate holding.

High-End Shut-Off

Built-in safe high-end shut-off helps protect the unit during operation.

Top-Flange Controls

On/off switch and power indicator light are mounted on the top flange for convenient monitoring.

Tool-Free Spring Adjustment

Detachable perimeter extension springs allow adjustment without tools.

Power Connection

Operates on 120V, 60 Hz, single-phase power and includes a 5-foot cord with a locking plug.

Round Plate Compatibility

Designed for round plates up to approximately 10-1/8 inches in diameter.

Type Heated Drop-In Plate Dispenser
Style Shielded
Installation Type Drop-In
Capacity 50 Plates / 36 Bowls (Approximate)
Material Stainless Steel
Controls Thermostatic
Temperature Range 130 Degrees F to 170 Degrees F
Voltage 120 Volts
Amps 3.8 Amps
Watts 450 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type L5-15P
Cord Length 5 Feet
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

It accommodates round plates up to approximately 10-1/8 inches in diameter.
Yes. The thermostat is field adjustable from 130°F to 170°F.
The unit operates on 120V, 60 Hz, single-phase power and includes a 5-foot cord with a locking plug.
Yes. It uses a self-leveling dish carriage with nylon guides for smooth dispensing.
The product includes a one-year parts and labor warranty.
