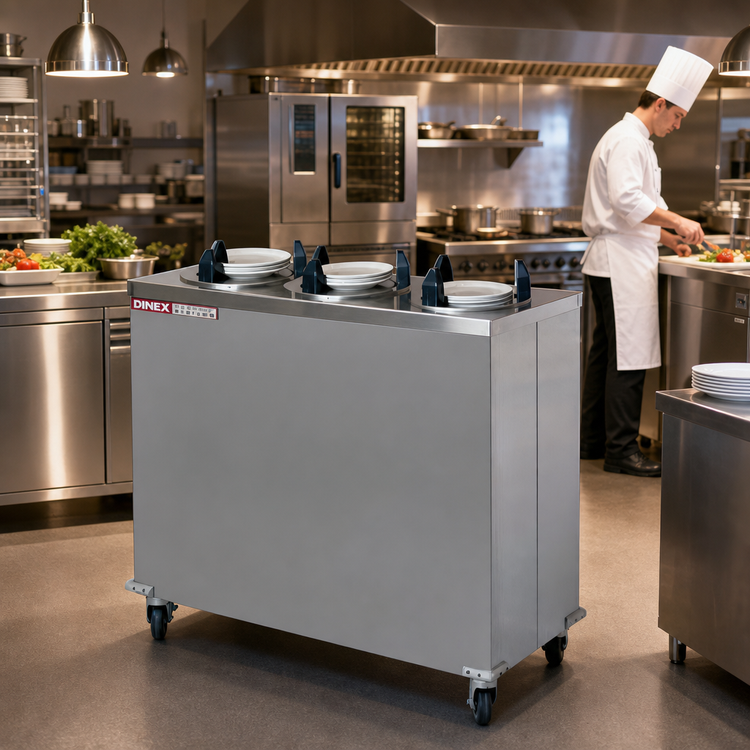

Dinex DXPIDPH3E1012 Heated Mobile Enclosed 3-Silo Plate Dispenser

Three Compartments, 10-1/8 Inch Maximum Plate Diameter, 150 Plate Capacity

Ensure your plates are always warm and ready for service with this robust, mobile, and self-leveling heated plate dispenser.

  • Equipped with three self-elevating tubes, each accommodating plates up to 10-1/8 inches in diameter.
  • Maintains optimal plate temperature between 100°F and 189°F with an adjustable thermostat.
  • Durable all-welded stainless steel construction ensures longevity and easy cleaning in commercial environments.
  • Mobile design with heavy-duty swivel casters (two with brakes) allows for easy transport and positioning.
  • Self-leveling mechanism with detachable extension springs offers smooth operation and tool-free tension adjustment.
  • Ideal for tray lines, front-of-house, or back-of-house applications where warm plates are essential.

Overall Dimensions:

17.25"W x 45.13"D x 39.88"H

Product Weight:

225.0 lb

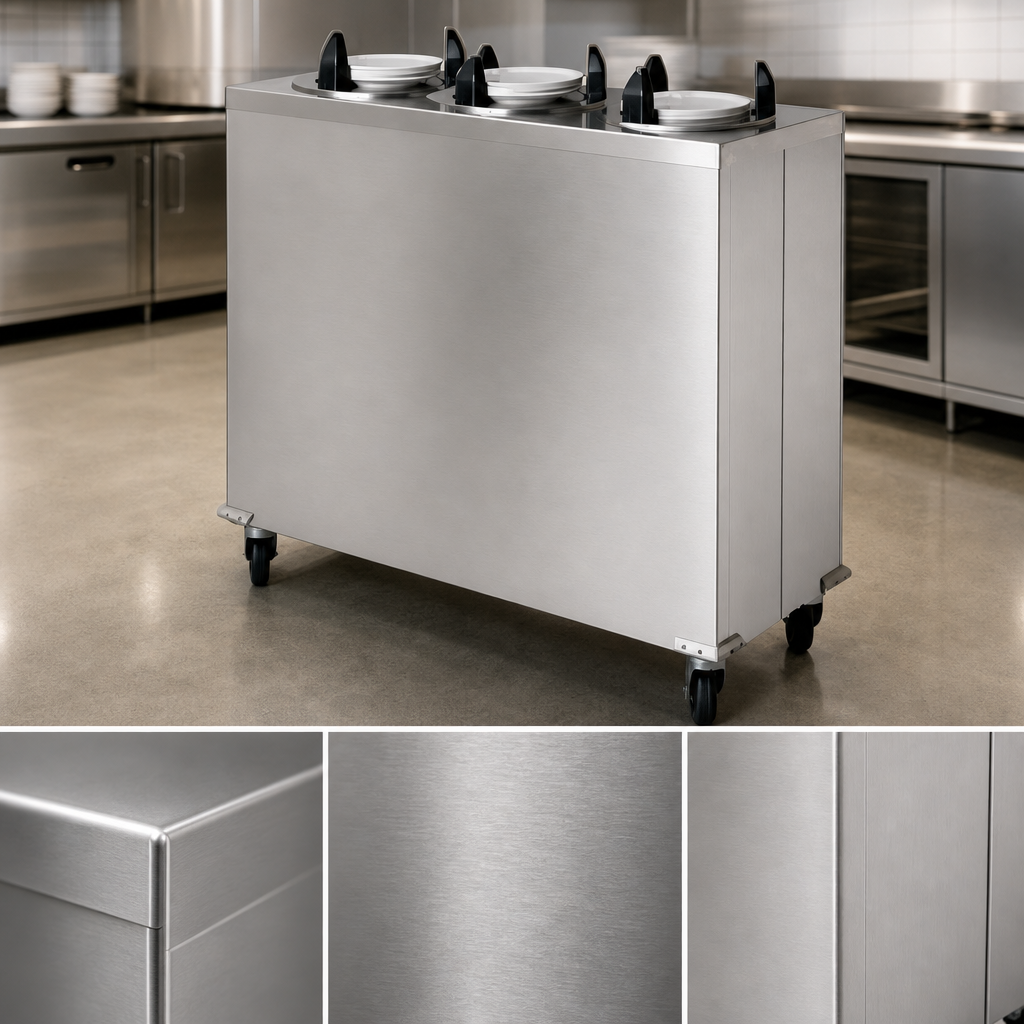

Durable Stainless Steel Construction

Constructed with all-welded stainless steel, featuring an 18-gauge top and 20-gauge side panels with a #3 polished finish for commercial durability and aesthetics.

Durable Stainless Steel Construction

Thermostatically Controlled Heating System

Features a tamper-protective, field-adjustable thermostat with a temperature range of 100°F to 189°F to keep plates consistently warm. Includes an on/off switch and power indicator light.

Mobile Design

Mounted on four 5-inch extra-load swivel casters, two of which have brakes, for easy maneuverability and secure placement.

Self-Leveling Dispensing Mechanism

Stainless steel dispensers travel vertically within the tubes on nylon guides for smooth, reliable operation. Flange-mounted perimeter extension springs are detachable for tool-free adjustment.

Enclosed Cabinet Design

The enclosed tubular frame design helps maintain plate temperature and provides a clean, professional appearance.

Easy Maintenance

Cabinet bottom includes a center clean-out hole for convenient cleaning and a perimeter bumper to protect against impacts.

Type Heated Plate Dispenser
Style Enclosed Tubular Frame
Installation Type Floor Model (Mobile)
Compartments 3
Pan Capacity 150 Plates (Approx)
Maximum Plate Size 10-1/8 Inches Diameter
Material Stainless Steel
Controls Adjustable Thermostat with On/Off Switch
Temperature Range 100°F - 189°F
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 1500 Watts
Amps 12.6 Amps
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 18 Inches
Shipping Depth 46 Inches
Shipping Height 40 Inches
Shipping Weight 225 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

This dispenser is designed to hold plates with a maximum diameter of 10-1/8 inches.
The three-silo unit can hold approximately 150 plates, depending on plate thickness.
The heating system is thermostatically controlled and can maintain plate temperatures between 100°F and 189°F (38°C to 87°C).
While the overall height is fixed, the self-leveling mechanism ensures that plates are always presented at an accessible height as plates are removed. The springs are also detachable for tool-free adjustment.
This unit requires a 120 Volt, 60 Hz, 1-phase electrical connection, drawing 12.6 Amps, and comes with a NEMA 5-15P plug.
No, silo covers are an optional accessory and are sold separately. They are recommended for best results in maintaining temperature.
