Dinex

Dinex Heated Enclosed 2-Silo Mobile Plate Dispenser for Up to 12-Inch Round Plates

SKU: DXPIDPH2E1200
$4,586.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Carts Dinex Dish & Tray Dispensers Dish Caddy & Dispenser Food Holding & Warming Equipment New Arrivals Storage & Transport

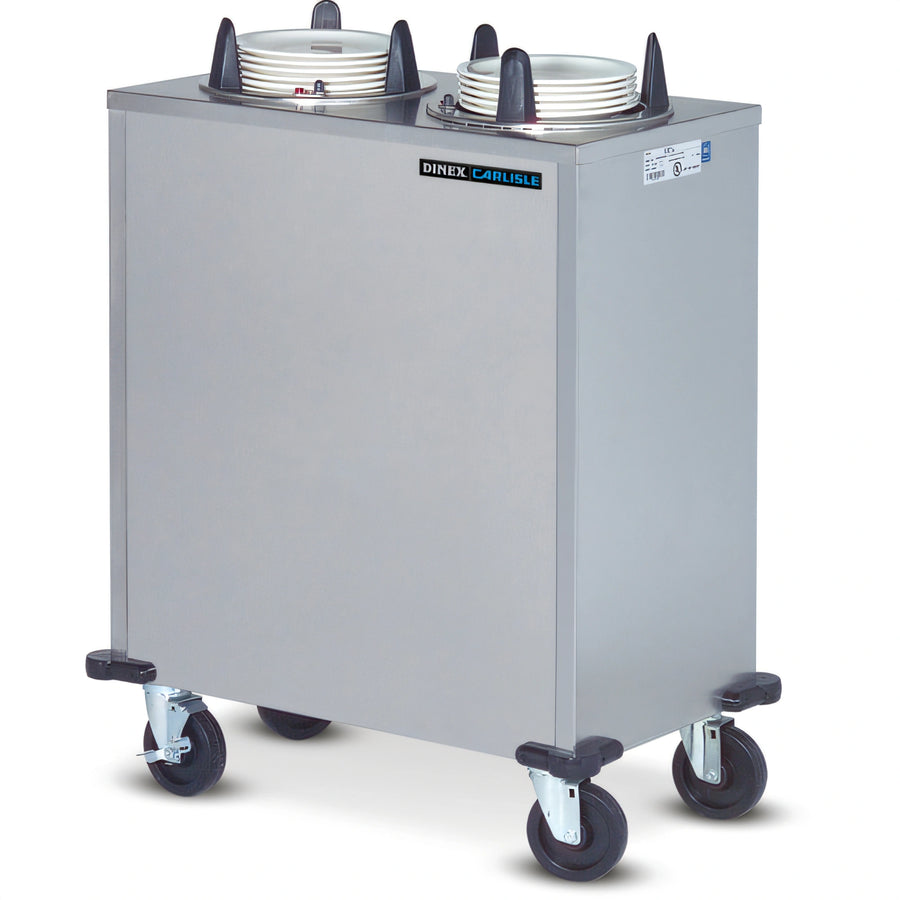

Dinex Heated Enclosed 2-Silo Mobile Plate Dispenser for Up to 12-Inch Round Plates

Self-Leveling Tubes, Stainless Steel, 120V Single-Phase

Keep two stacks of round plates warm, organized, and ready for service with a mobile, self-leveling heated dispenser.

  • Two self-elevating silos keep round plates easy to dispense and reload.
  • Heated, enclosed design helps maintain plate temperature during service.
  • All-welded stainless steel construction is built for commercial durability.
  • Mobile base with swivel casters makes repositioning simple; two casters lock in place.
  • Adjustable thermostatic heat gives you control over the warming range.
  • Standard 120V power with an 8-foot cord and NEMA 5-15P plug.

Overall Dimensions:

19.5"W x 35.13"D x 39.88"H

Product Weight:

203.0 lb

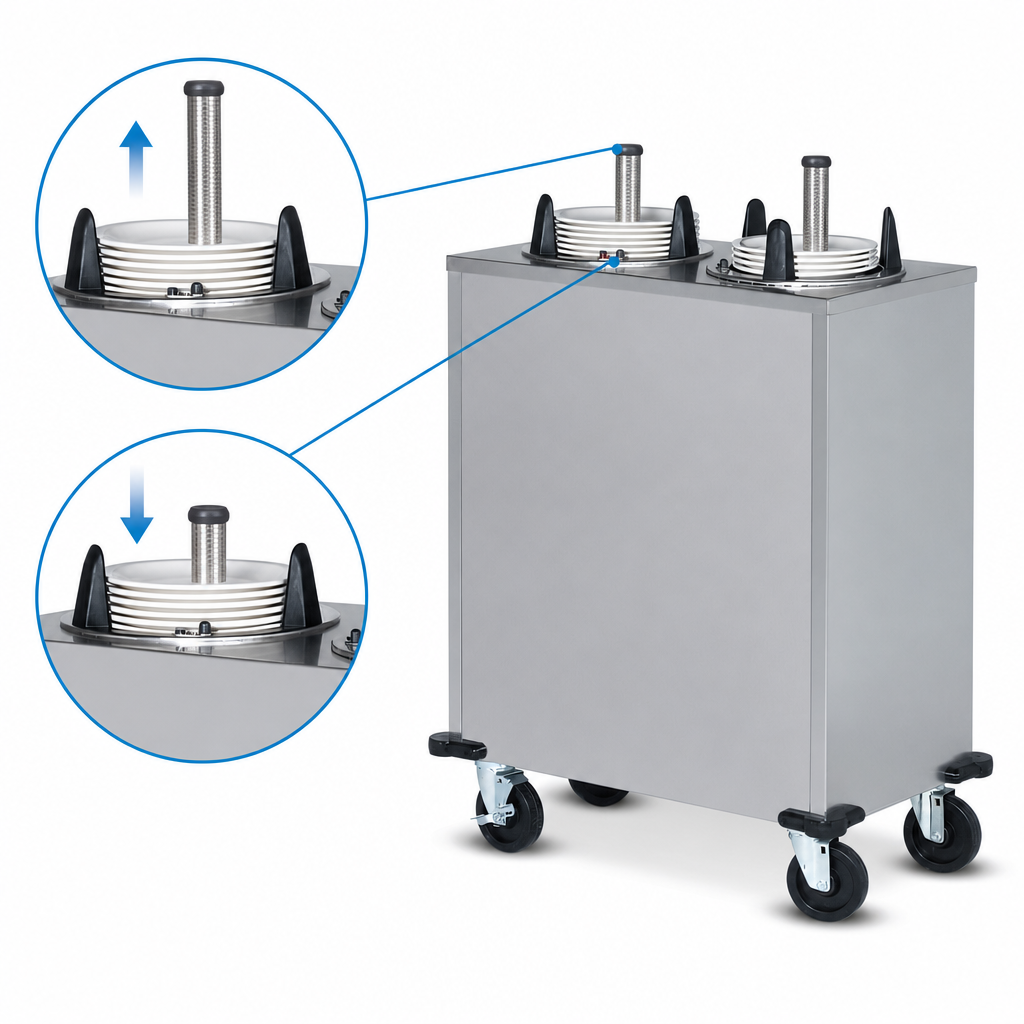

Self-Leveling Dispensing Tubes

Two self-elevating dispensing tubes keep the top plate at the proper height for smooth, one-at-a-time dispensing.

Self-Leveling Dispensing Tubes

Heated Enclosed Cabinet

Thermostatic heat helps keep plates warm in a closed, front-of-house-friendly cabinet.

Stainless Steel Construction

All-welded stainless steel construction with a polished finish is designed for daily commercial use.

Mobile Caster Base

Four swivel casters make the unit easy to move, and two casters include brakes for stability.

Adjustable Temperature Control

A field-adjustable thermostat provides a 100 to 189°F range, with an on/off switch and power indicator light mounted on the top flange.

Smooth Vertical Operation

Nylon guides and detachable extension springs support smooth travel in the dispenser tubes and tool-free adjustment.

Standard Power Connection

Operates on 120V, 60 Hz, single-phase power with an 8-foot cord and NEMA 5-15P plug.

Type Heated Plate Dispenser
Style Enclosed
Installation Type Floor Model
Compartments 2
Capacity Approximately 100 Plates / 72 Bowls
Material Stainless Steel
Finish #3 Polished
Voltage 120 Volts
Amps 11.0 Amps
Watts 1.3 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Temperature Range 100 to 189 Degrees F
Controls Thermostatic
Shipping Width 20 Inches
Shipping Depth 36 Inches
Shipping Height 40 Inches
Shipping Weight 203 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

It is designed for round plates up to approximately 12 inches in diameter.
This model has two self-leveling dispensing silos.
Yes. It is a heated model with a field-adjustable thermostat and a temperature range of 100 to 189°F.
It operates on 120V, 60 Hz, single-phase power and uses a NEMA 5-15P plug.
Yes. It is mounted on swivel casters, including two casters with brakes.
The unit includes a one-year parts and labor warranty. Spring and temperature adjustments are not covered under warranty.
