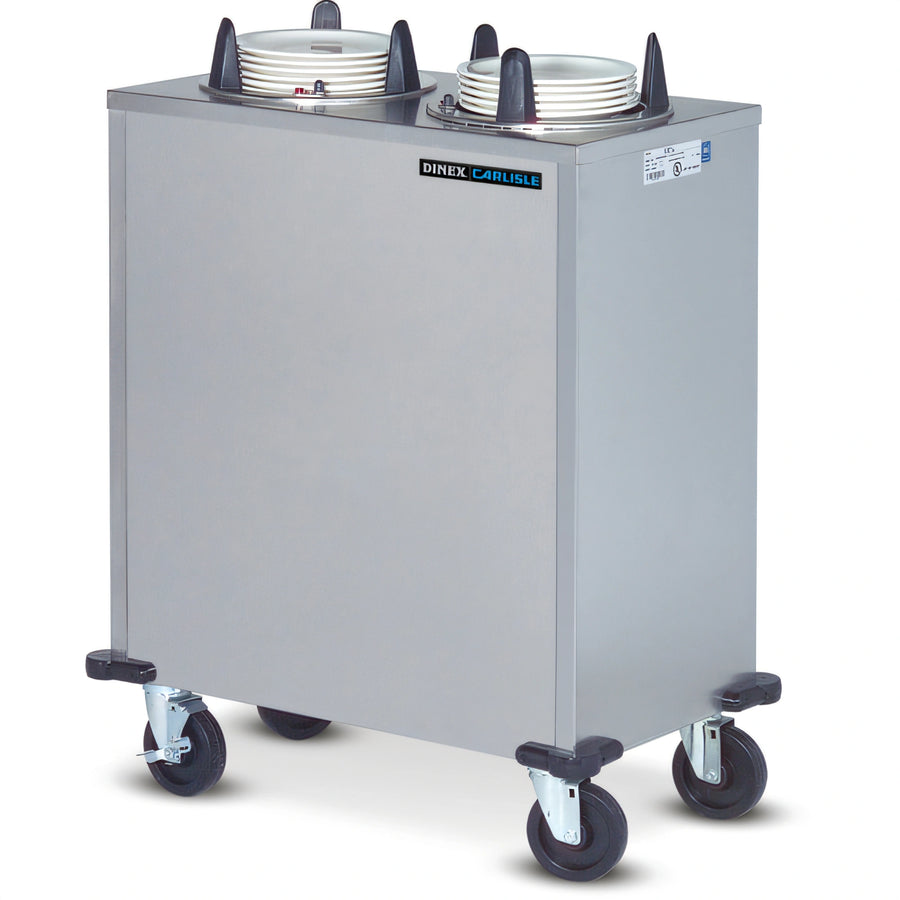

Dinex Heated Enclosed 2-Silo Mobile Plate Dispenser, 10-1/8 Inch Round Plate Capacity

120V, 1-Phase, 1000W, 8.4A, NEMA 5-15P

Keep round plates warm, organized, and ready to serve with a mobile enclosed dispenser built for smooth self-leveling operation.

  • Heated enclosed plate dispenser designed for mobile front-of-house service.
  • Two self-elevating dispensing tubes help maintain consistent plate height and easy access.
  • Accepts round plates up to 10-1/8 inches in diameter.
  • Thermostatic heat control helps keep plates at serving temperature.
  • Stainless steel construction and swivel casters provide durability and mobility.
  • Includes an 8-foot cord set with NEMA 5-15P plug for 120V operation.

Overall Dimensions:

17.25"W x 30.63"D x 39.88"H

Product Weight:

190.0 lb

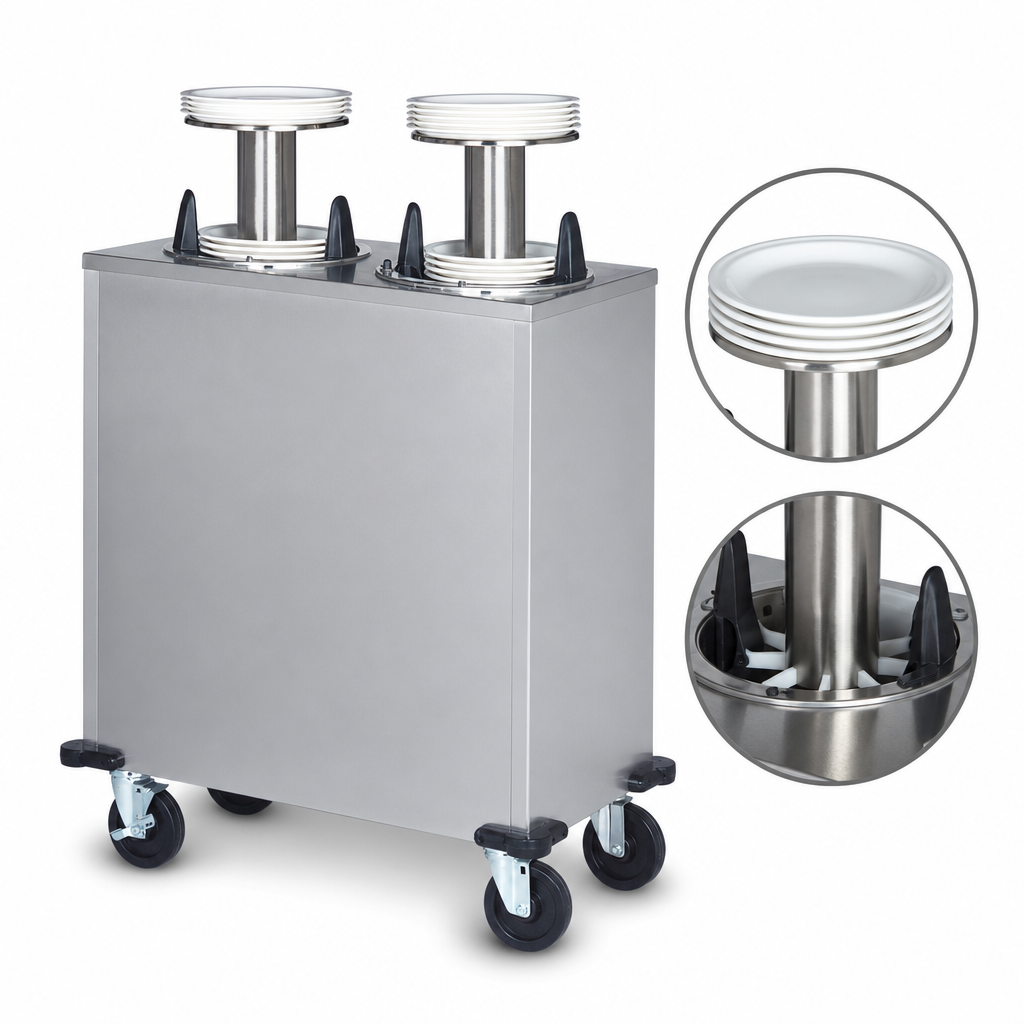

Two Self-Elevating Dispensing Tubes

Stainless steel dispensing tubes with nylon guides provide smooth, self-leveling plate delivery.

Two Self-Elevating Dispensing Tubes

Thermostatic Heating

Adjustable heat control ranges from 100°F to 189°F to help keep plates warm and ready for service.

Enclosed Stainless Steel Cabinet

All-welded stainless steel construction with a polished finish offers durability and a clean appearance.

Mobile Caster Base

Mounted on four extra-load swivel casters, with two brakes, for easy movement and positioning.

Electrical Package

120V, 60 Hz, single-phase operation with 1000W draw, 8.4 amps, an 8-foot cord, and NEMA 5-15P plug.

Round Plate Capacity

Designed for round plates up to 10-1/8 inches in diameter.

Front-of-House Ready

The enclosed mobile design is well suited for tray lines, serving areas, and other high-traffic service points.

Type Heated Plate Dispenser
Style Enclosed
Installation Type Floor Model
Material Stainless Steel
Finish #3 Polished
Compartments 2
Capacity Approximately 100 Plates
Controls Thermostatic
Temperature Range 100°F to 189°F
Voltage 120 Volts
Amps 8.4 Amps
Watts 1 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 18 Inches
Shipping Depth 31 Inches
Shipping Height 40 Inches
Shipping Weight 190 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

It is designed for round plates up to 10-1/8 inches in diameter.
Yes. It includes thermostatically controlled heat with an adjustable range from 100°F to 189°F.
It has two self-elevating dispensing tubes.
The unit operates on 120V, 60 Hz, single-phase power and draws 1000W at 8.4 amps.
Yes. It includes an 8-foot cord set with a NEMA 5-15P plug.
