Key specifications

Phase
1-Phase
Dimensions
54.25"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Enclosed Well
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Dinex SKU: DXP4CM

Dinex DineXpress DXP4CM 4-Pan Mechanically Cooled Cold Bar

$8,804.52
/each
Estimated to ship in 4–7 business days
Pan capacity
Height
Understorage
Finish
Mobility
Undershelf

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $814/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Enclosed Well
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Pan Capacity 4 Pans
Pan Size 12 x 20 Inches
Refrigeration Type Mechanically Cooled
Well Depth 5 Inches
Door Type Sliding
Shelf Type Undershelf
Compressor Horsepower 1/3 HP
Drain Size 1 Inch
Drain Valve Shut-Off Valve
Caster Diameter 5 Inches
Braked Casters 2
Voltage 120 Volts
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls On/Off Switch and Pilot Light
Selling Unit Each

Description

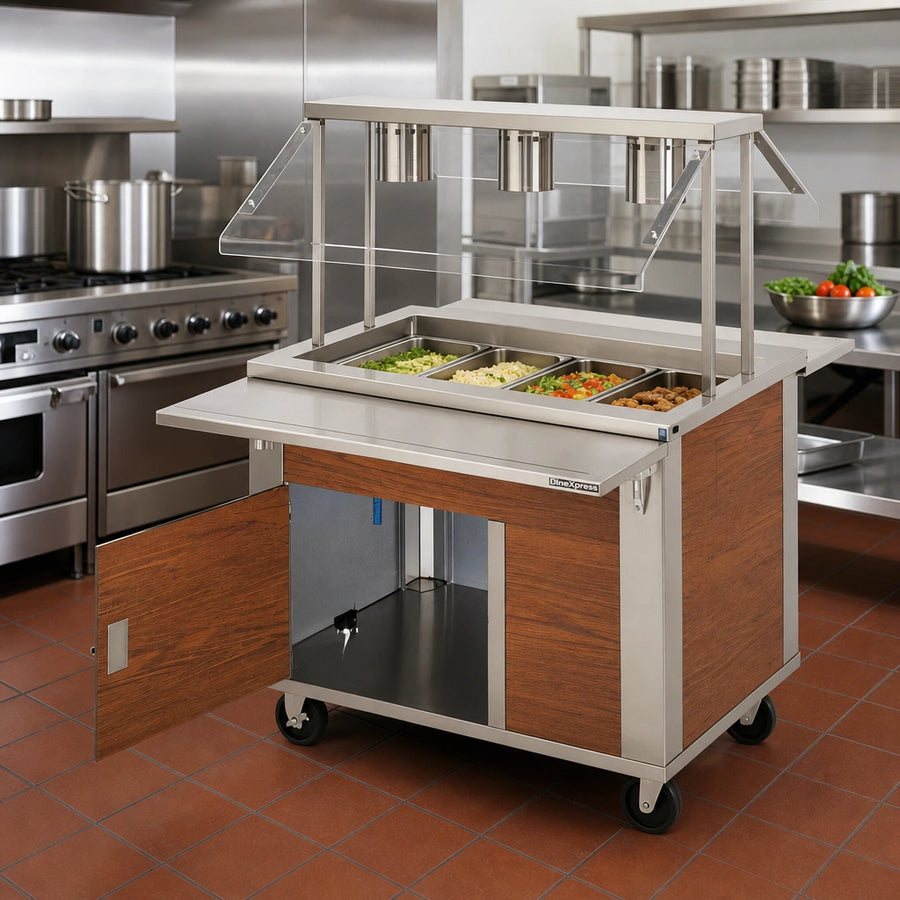

The DineXpress DXP4CM is a mobile, mechanically cooled cold food counter with an enclosed well sized for four 12 x 20 inch pans.

  • Stainless steel 14-gauge top with 20-gauge front and removable end panels.
  • Sliding doors, undershelf, louvered panel, drain, and mobile caster base are included features.
  • Electrical operation uses 120 Volts, single-phase power with an 8-foot cord and NEMA 5-15P plug.

Overall Dimensions:

54.25"W x 28.0"D x 36.0"H

Product Weight:

305.0 lb

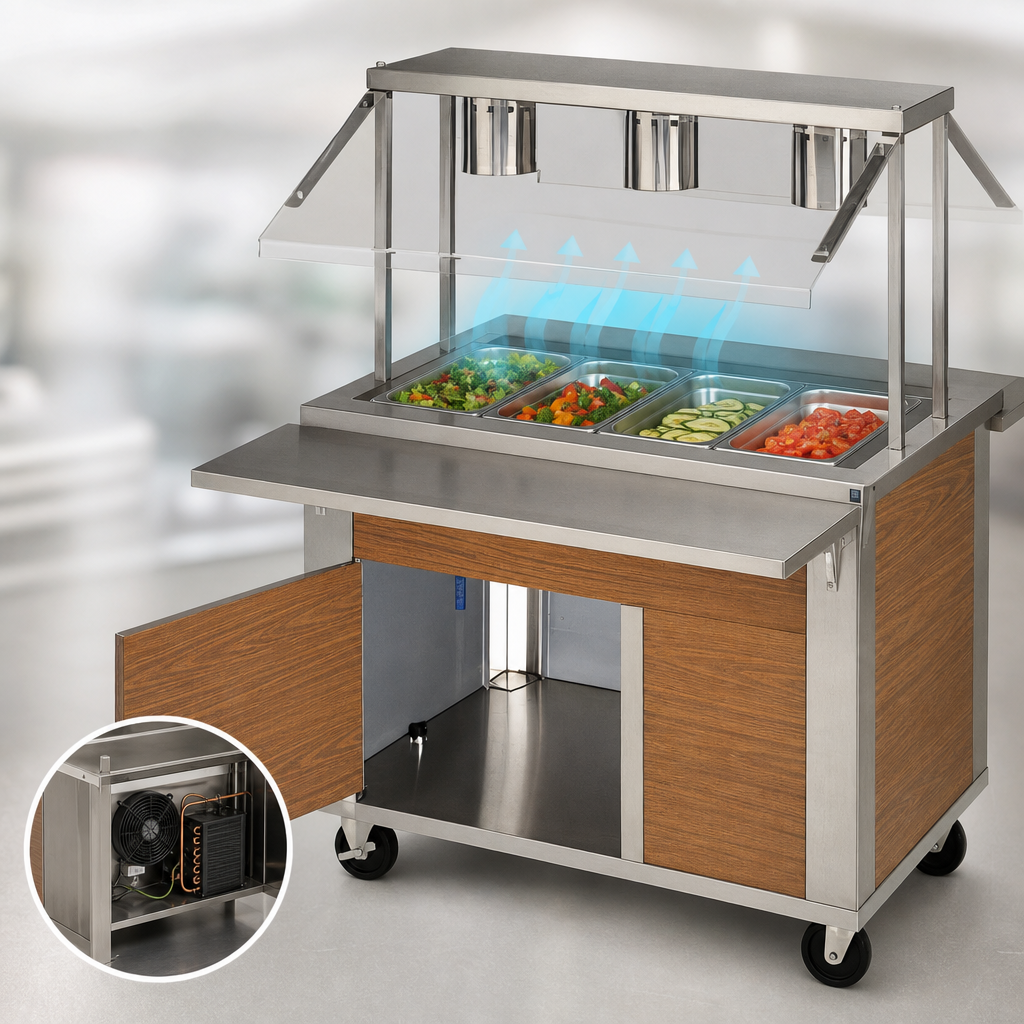

Mechanically Cooled

Fan-cooled condensing unit with a 1/3 HP compressor and valve pressure control switch.

Four-Pan Capacity

Accommodates four 12 x 20 inch pans.

Stainless Steel Construction

Includes a 14-gauge stainless steel top and 20-gauge stainless steel front and removable end panels.

Enclosed Well

The well is enclosed and includes a 1-inch drain with shut-off valve.

Sliding Doors

Sliding doors are standard on the mechanically cooled unit.

Mobile Base

Uses 5-inch swivel plate casters, including two casters with brakes.

Electrical Controls

Includes an on/off switch, pilot light, 8-foot electrical cord, and NEMA 5-15P plug.
