Dinex IESSB8 8-Foot Slat Belt Motorized Tray Make-Up Conveyor

8 ft. Section, Variable Speed, Dry Operation

Streamline your tray assembly operations with the durable and efficient Dinex IESSB8 slat belt motorized conveyor, designed for reliability in healthcare and catering environments.

  • Efficiently streamlines tray make-up for healthcare and catering operations.
  • Features a robust 18-gauge stainless steel drive housing and all-welded angle and channel framework.
  • Lexan plastic slat belt with adjustable speeds up to 40 FPM ensures smooth and controlled tray movement.
  • Equipped with a watertight NEMA 4 control panel including stop-start and dynamic braking.
  • Designed for dry operation and manual cleaning, with easily removable belt slats and scrap basket.
  • Built with heavy-duty construction for long life and easy maintenance.

Product Weight:

600.0 lb

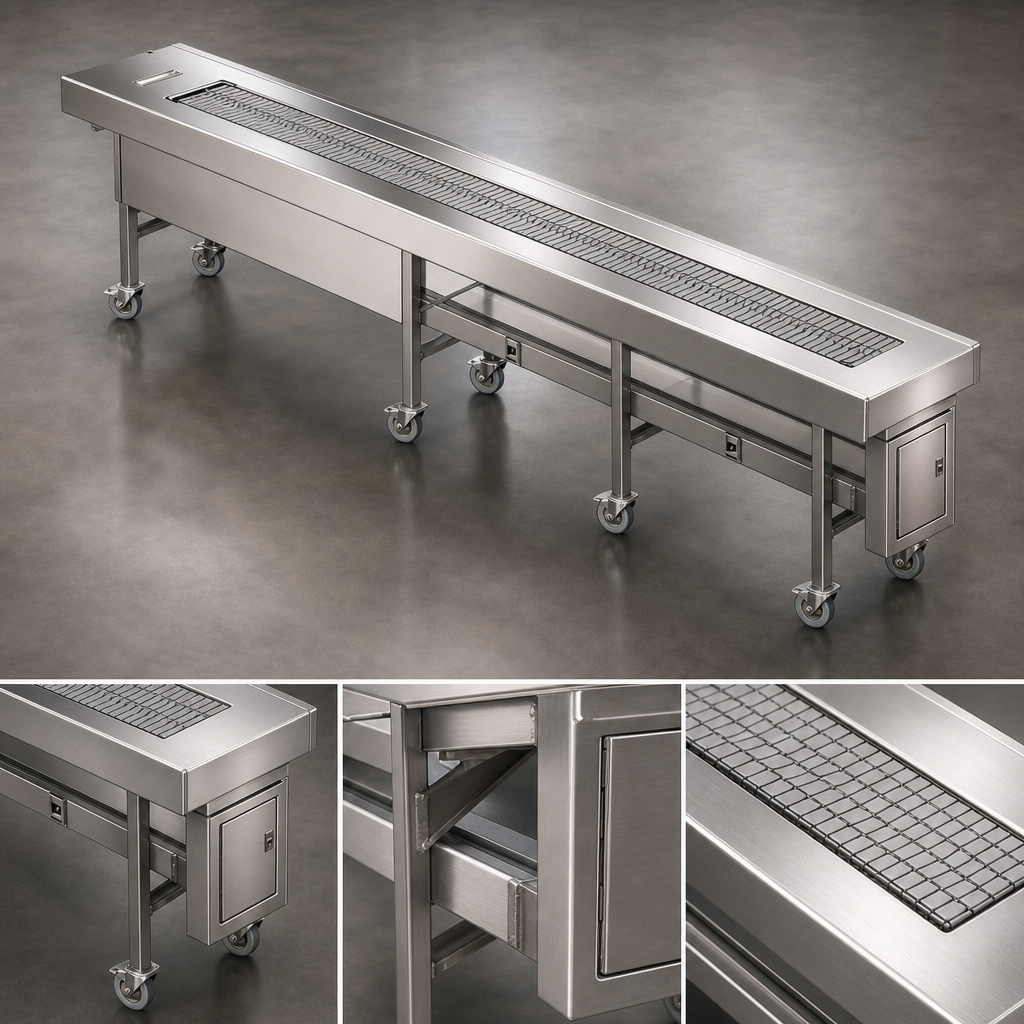

Heavy-Duty Construction

Drive housing made from 18-gauge stainless steel with a 2" x 2" x .1875" all-welded stainless steel angle and channel framework for exceptional durability.

Heavy-Duty Construction

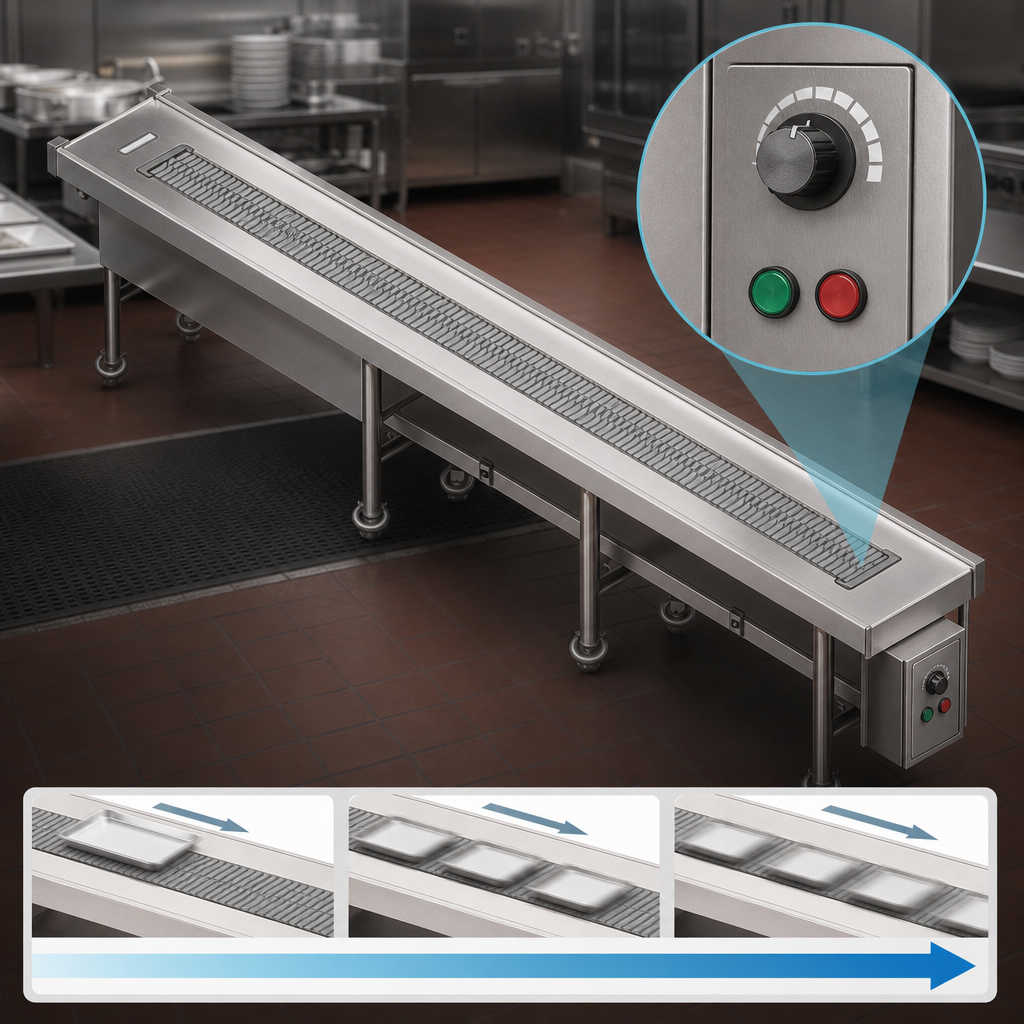

Variable Speed Control

Electronically adjustable belt speed from approximately 0 to 40 FPM, controlled by an SCR power transmission group with stop-start and dynamic braking.

Variable Speed Control

Durable Slat Belt

Lo-Friction Lexan plastic slat belt with tapered slats carried by stainless steel roller chain. Slats are snap-attached for tool-free removal and easy cleaning.

Watertight Control Panel

Main control panel is NEMA 4 watertight, ensuring protection in various operational environments.

Pan Limit Switch

Includes a pan limit switch as a standard feature for operational safety and control.

Easy Maintenance

Removable panels for easy access to internal components, replaceable wear strips, and removable scrap basket facilitate cleaning and servicing.

Stationary Design

Built as a stationary unit, ideal for fixed tray make-up lines.

Dry Operation

Designed for dry operation with manual cleaning, simplifying daily maintenance.

Flat Top Space

Belt terminates at the drive end to provide flat top space for one tray.

Type Tray Make-Up Conveyor
Style Slat Belt Motorized
Installation Type Stationary
Conveyor Base Length 8 ft.
Belt Material Lexan Plastic
Frame Material Stainless Steel
Speed Range 0-40 FPM
Controls Variable Speed, Stop-Start, Dynamic Braking
Control Panel Rating NEMA 4 Watertight
Shipping Weight 600 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

One year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

The Dinex IESSB8 conveyor is specifically designed for straight-line tray make-up operations, helping to streamline tray assembly in healthcare and catering facilities.
Yes, the belt speed is electronically adjustable in a range from approximately 0 to 40 FPM, controlled by an SCR power transmission group with stop-start and dynamic braking.
The conveyor features a heavy-duty, all-welded angle and channel framework made from 2" x 2" x .1875" stainless steel, with an 18-gauge stainless steel drive housing.
The DXIESSB8 is designed for dry operation and manual cleaning. Optional wash systems are available for some configurations.
The belt is made of Lo-Friction Lexan plastic with tapered slats carried by a stainless steel roller chain. The slats are snap-attached for easy, tool-free removal and cleaning.
