Dinex DXIESSB16 16-Foot Slat Belt Motorized Tray Make-Up Conveyor
Full-Size, Variable Speed, Stationary, Dry Operation
Streamline your tray assembly process with the Dinex DXIESSB16 motorized slat belt conveyor, designed for efficient and reliable make-up operations.
- 16-foot section ideal for high-volume tray make-up in healthcare and catering.
- Lexan plastic slat belt with variable speed control for precise tray movement.
- Durable, all-welded stainless steel angle and channel framework ensures long-lasting performance.
- Equipped with a pan limit switch and NEMA 4 watertight controls for safe and reliable operation.
- Designed for dry operation with manual cleaning, featuring removable panels for easy access.
- Built for stationary installation, providing a robust and stable work surface.

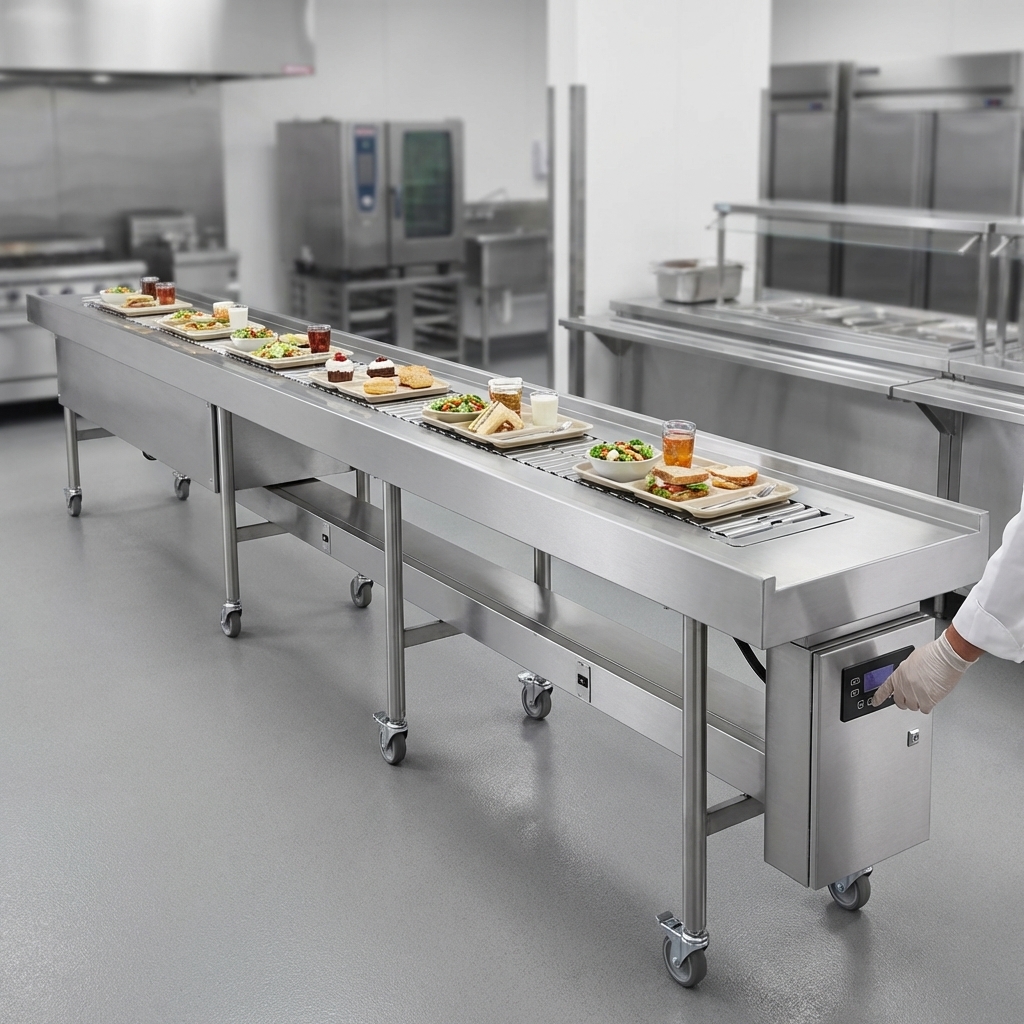

Variable Speed Control
Electronically adjustable belt speed from approximately 0 to 40 FPM allows for precise control over tray flow and assembly pace.

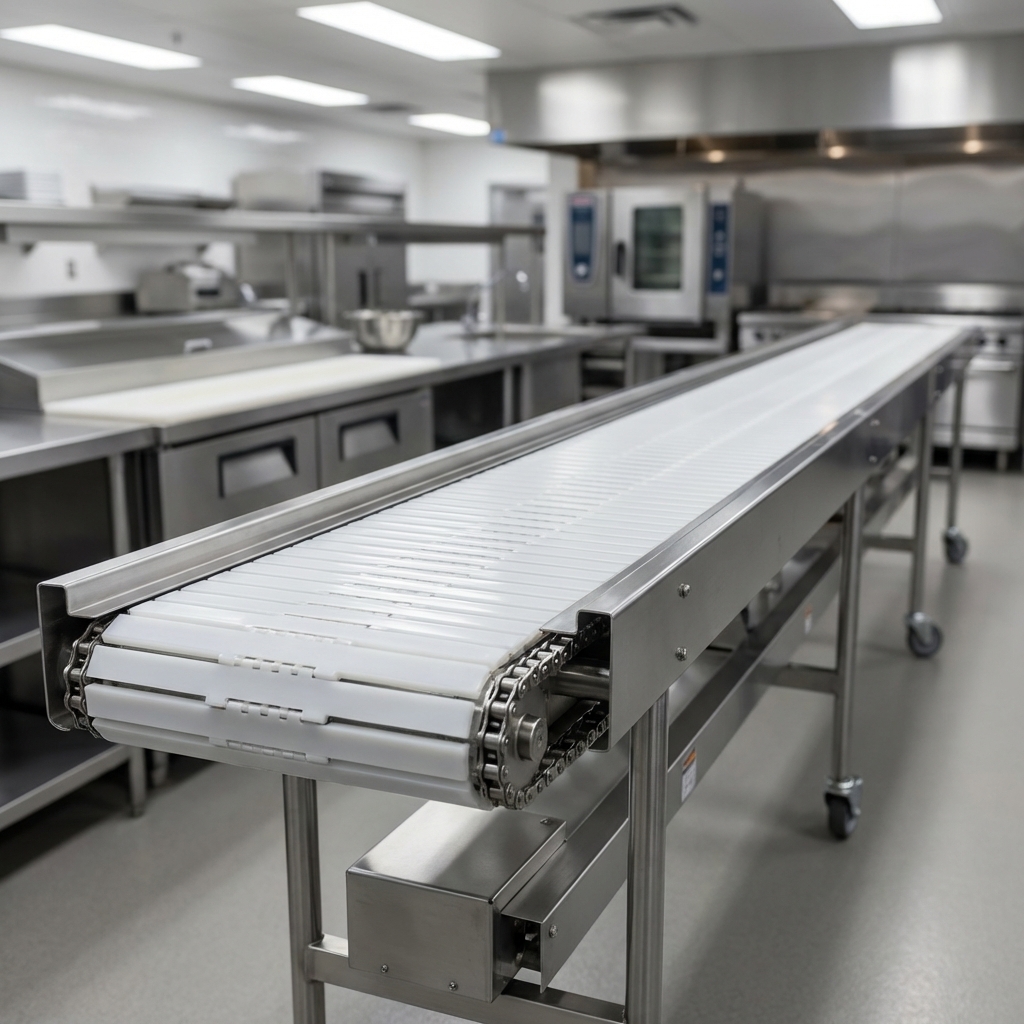

Durable Slat Belt
Features a lo-friction Lexan plastic belt with tapered slats carried by a robust stainless steel roller chain. Slats are snap-attached for easy removal without special tools.

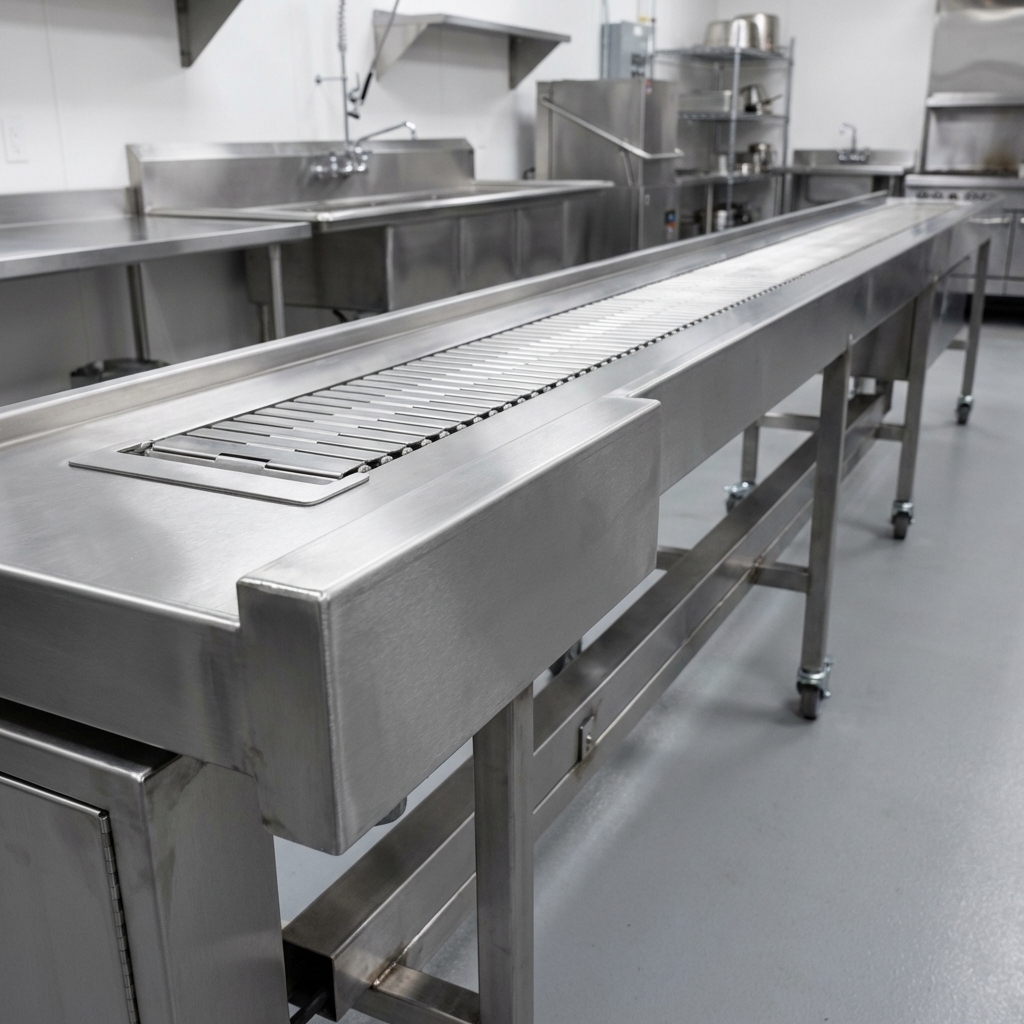

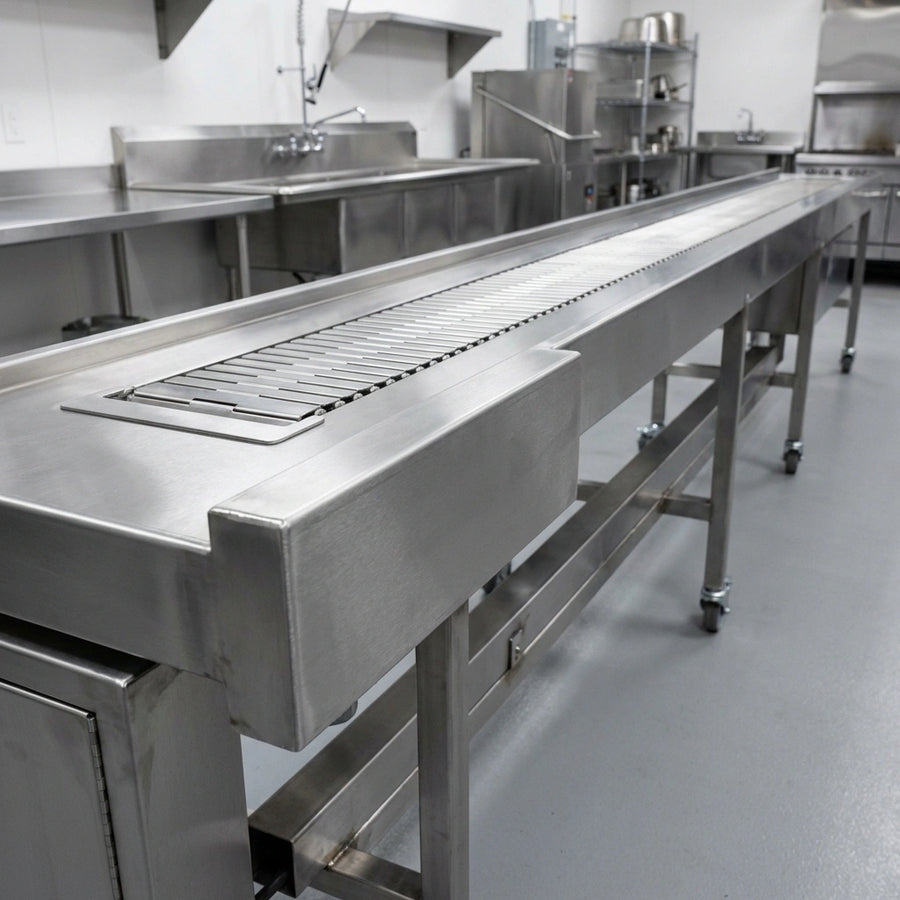

Heavy-Duty Stainless Steel Construction
Constructed with an 18-gauge stainless steel drive housing and 2" x 2" x .1875" all-welded angle and channel framework, ensuring durability and stability.
Watertight Control Panel
Main control panel is NEMA 4 watertight, housing speed control, stop-start functions, and dynamic braking for enhanced safety and operational integrity.
Easy Maintenance Access
Removable panels are provided on the drive housing for convenient access to internal components for maintenance and cleaning.
Self-Aligning Bearings
Utilizes self-aligning ball bearings that are sealed for life, minimizing maintenance requirements and ensuring smooth operation.
Pan Limit Switch
Includes a pan limit switch as a standard feature, enhancing operational safety and control during tray make-up.
Replaceable Belt Return Rails
The intermediate section includes full-length replaceable synthetic guide rails for smooth belt return, extending the life of the conveyor.
Dry Operation
Designed for dry operation with manual cleaning, simplifying sanitation procedures. Optional wash systems are available for enhanced cleaning.
Specifications
| Type | Tray Make-Up Conveyor |
|---|---|
| Style | Slat Belt |
| Installation Type | Stationary |
| Length | 16 Feet |
| Belt Material | Lexan Plastic |
| Frame Material | Stainless Steel |
| Interior Finish | Stainless Steel |
| Controls | Variable Speed, Pan Limit Switch |
| Belt Speed | 0 to 40 FPM |
| Operation | Dry |
| Shipping Weight | 1020 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Product Weight:
1020.0 lbWarranty & Protection
1-year parts and labor warranty
