Dinex DXIESSB14 14 ft. Lexan Slat Belt Motorized Tray Make-Up Conveyor
14 ft. Section, Variable Speed, Stationary, Dry Operation
Streamline your tray assembly operations with this heavy-duty, variable-speed slat belt conveyor designed for efficiency and long-lasting performance in commercial settings.
- Durable stainless steel construction with an all-welded angle and channel framework.
- Features a Lo-Friction Lexan plastic slat belt for smooth and efficient tray movement.
- Electronically adjustable belt speed from approximately 0 to 40 FPM for operational flexibility.
- Equipped with a pan limit switch and NEMA 4 watertight control panel for reliable dry operation.
- Designed for easy cleaning and maintenance with removable panels and snap-attached slats.
- Customizable with various options including electric raceways, receptacles, casters, and belt wash systems.
Product Weight:

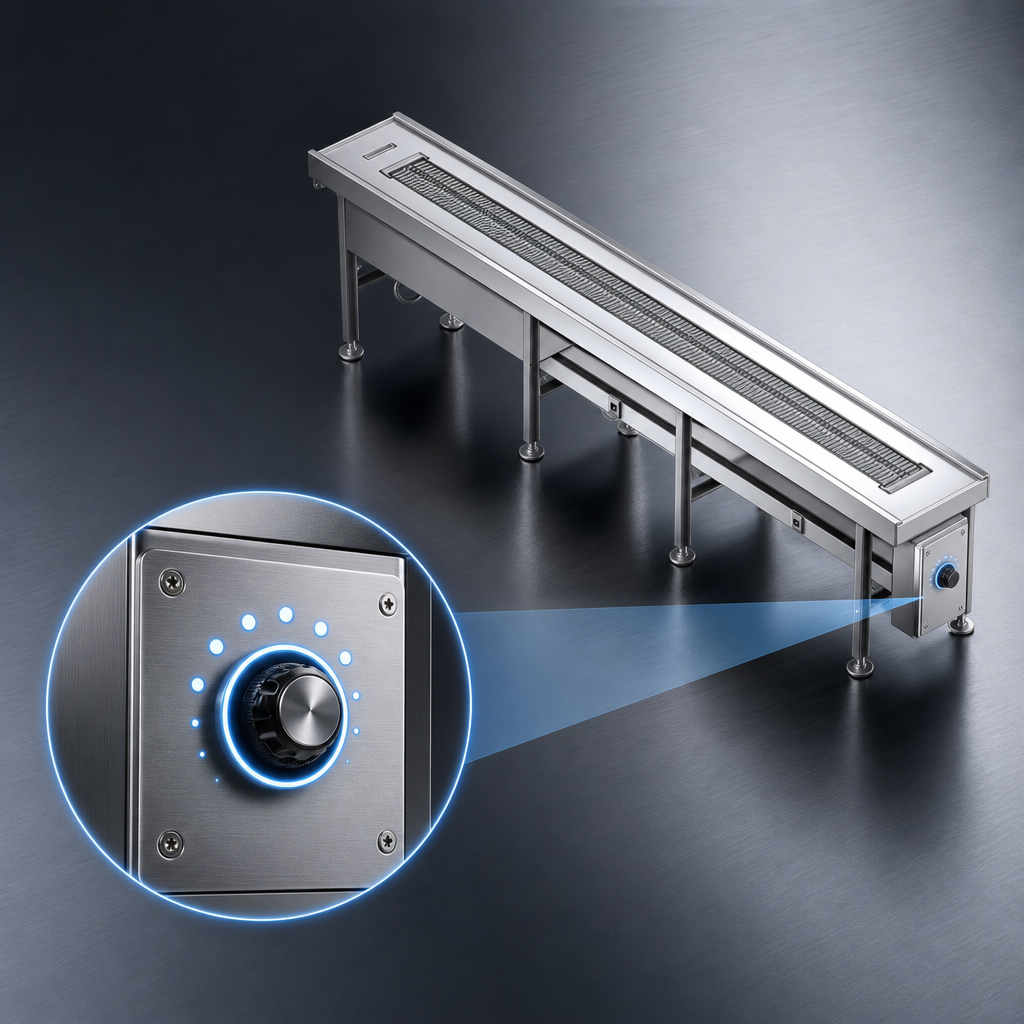

960.0 lbVariable Speed Control
Electronically adjustable belt speed ranging from approximately 0 to 40 FPM, controlled by an SCR power transmission group for precise operation.

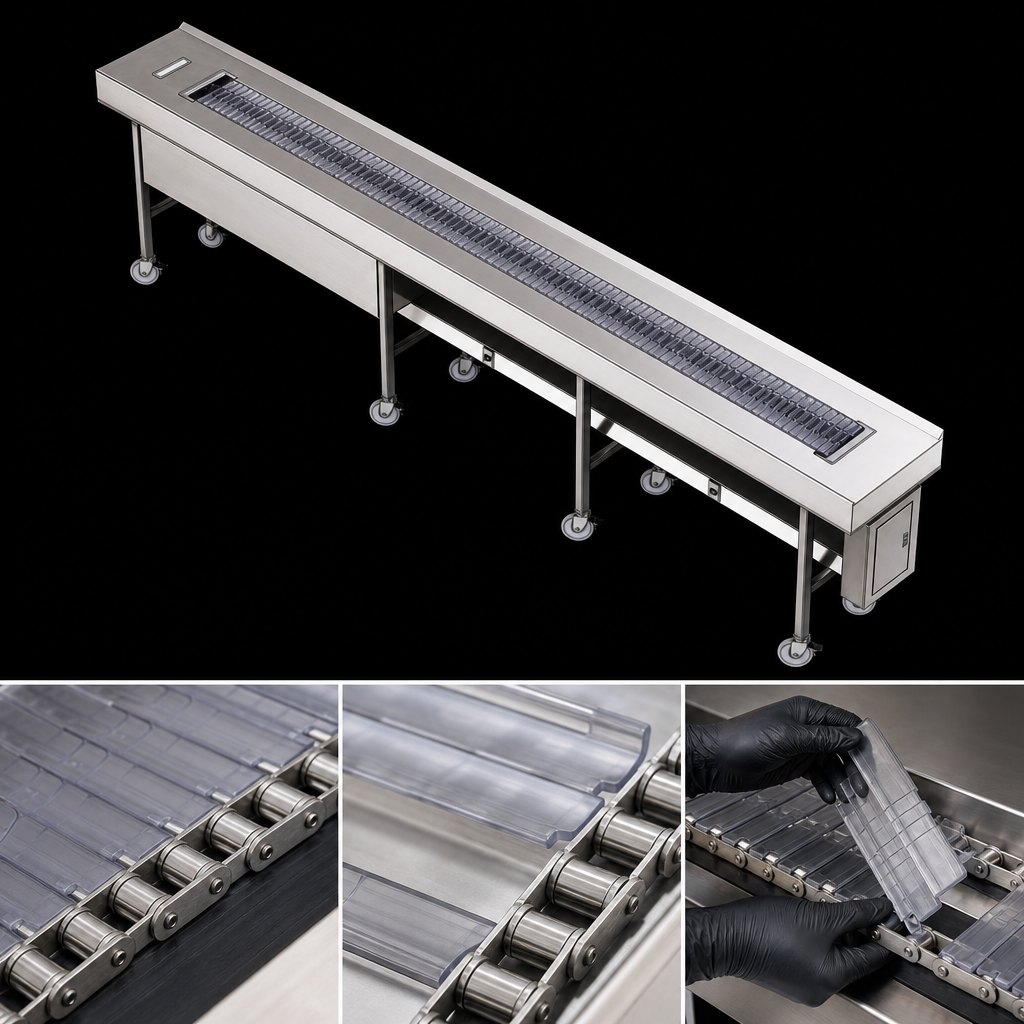

Durable Slat Belt
Lo-Friction Lexan plastic slats are carried by a stainless steel roller chain. Slats are snap-attached to the chain, allowing for easy removal without special tools for cleaning and maintenance.
Heavy-Duty Stainless Steel Frame
Constructed with a 2" x 2" x .1875" (1/8") stainless steel all-welded angle and channel framework, ensuring exceptional stability and long-term durability.
Watertight Control Panel
Main control panel is NEMA 4 watertight, featuring speed control, stop-start functions, and dynamic braking for reliable and safe operation.
Pan Limit Switch
Includes a standard pan limit switch for enhanced operational control and safety during tray make-up.
Easy Access for Maintenance
Removable panels are provided on the drive housing for convenient access, simplifying maintenance and service procedures.
Solid Stainless Steel Shafting
Equipped with solid stainless steel shafting and stainless steel sprockets, built for robust and consistent performance.
Self-Aligning Sealed Bearings
Features self-aligning ball bearings that are sealed for life, reducing maintenance requirements and ensuring smooth operation.
Dry Operation Design
Specifically designed for dry make-up operations with provisions for manual cleaning, suitable for various catering and healthcare applications.
Replaceable Wear Strips
Includes stainless steel replaceable wear strips that extend the life of the belt and reduce friction.
Replaceable Belt Return Rails
Features full-length replaceable synthetic guide rails for the belt return, ensuring smooth and quiet operation.
Flat Top Tray Space
The belt terminates at the drive end to provide a flat top space, accommodating one tray for convenient loading or unloading.
Warranty & Protection
1-year parts and labor warranty
