Dinex DXIESSB12 12' Lexan Slat Belt Tray Make-Up Conveyor
12 Foot Length, Variable Speed, Dry Operation
Streamline your tray assembly operations with the Dinex DXIESSB12 motorized slat belt conveyor, designed for efficiency and durability.
- Efficiently streamlines tray make-up operations in healthcare and catering settings.
- Features a durable Lo-Friction Lexan plastic slat belt with stainless steel carrier chain.
- Electronically adjustable belt speed from approximately 0 to 40 FPM for precise control.
- Constructed with a heavy-duty, all-welded stainless steel angle and channel frame for long life.
- Includes a NEMA 4 watertight control panel with speed control, stop-start, and dynamic braking.
- Designed for dry operation with easy manual cleaning and removable access panels.
Product Weight:

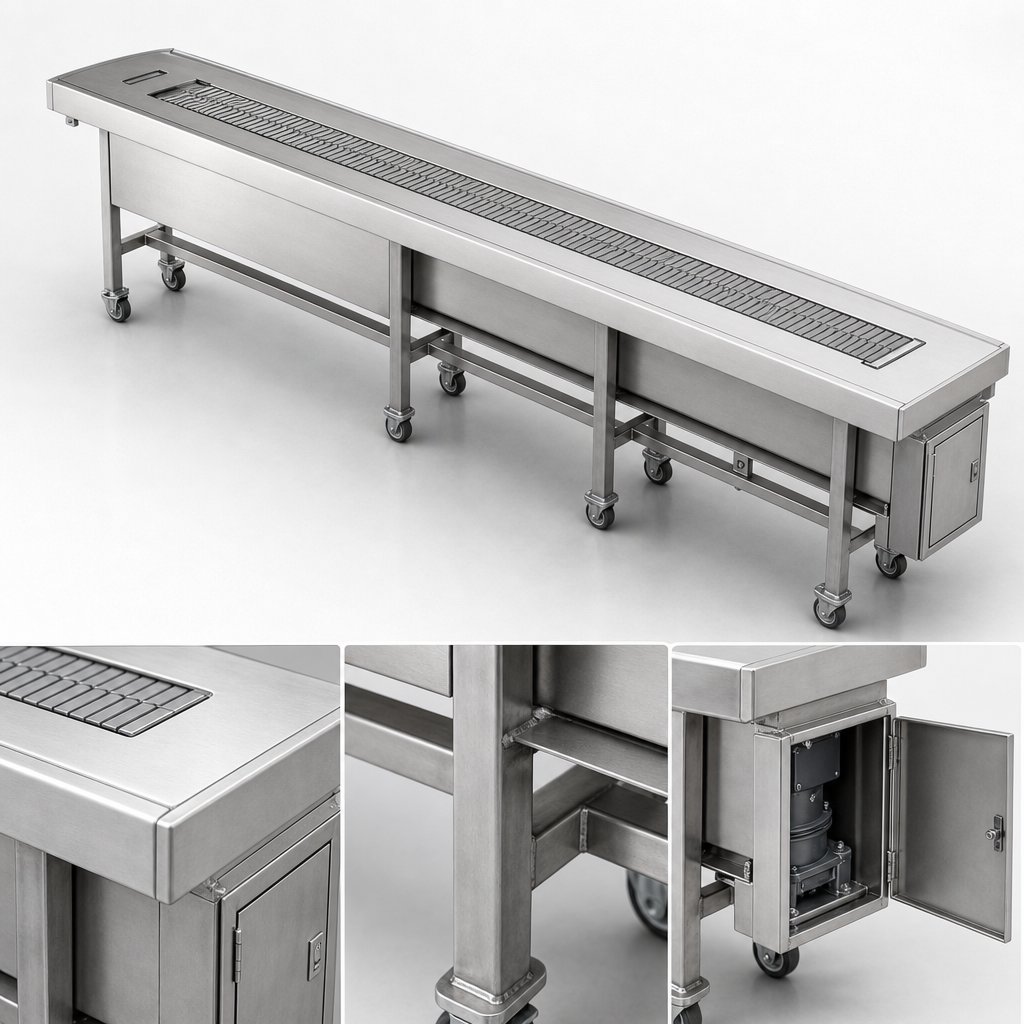

900.0 lbHeavy-Duty Stainless Steel Construction
Drive housing is 18-gauge stainless steel. The framework is 2" x 2" x .1875" all-welded stainless steel angle and channel, ensuring durability and stability. Removable panels provide easy access for maintenance.

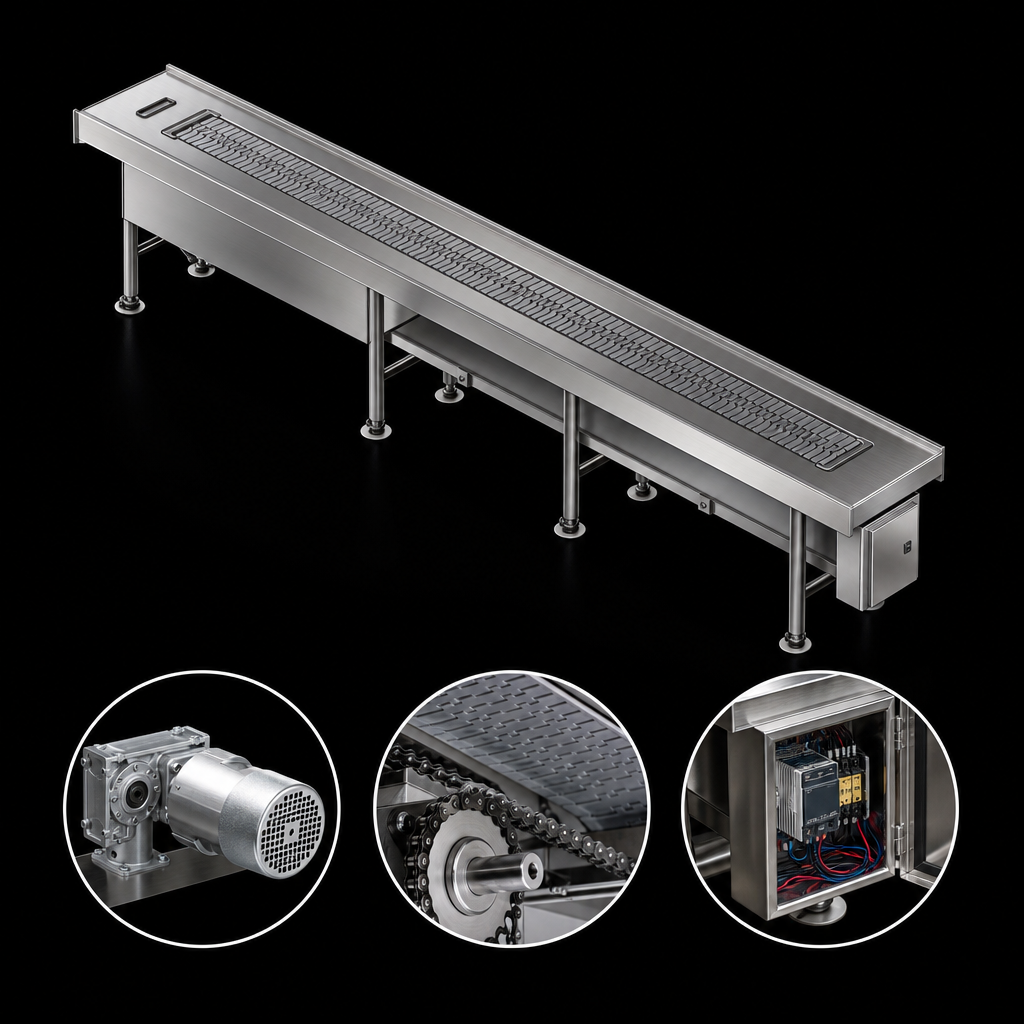

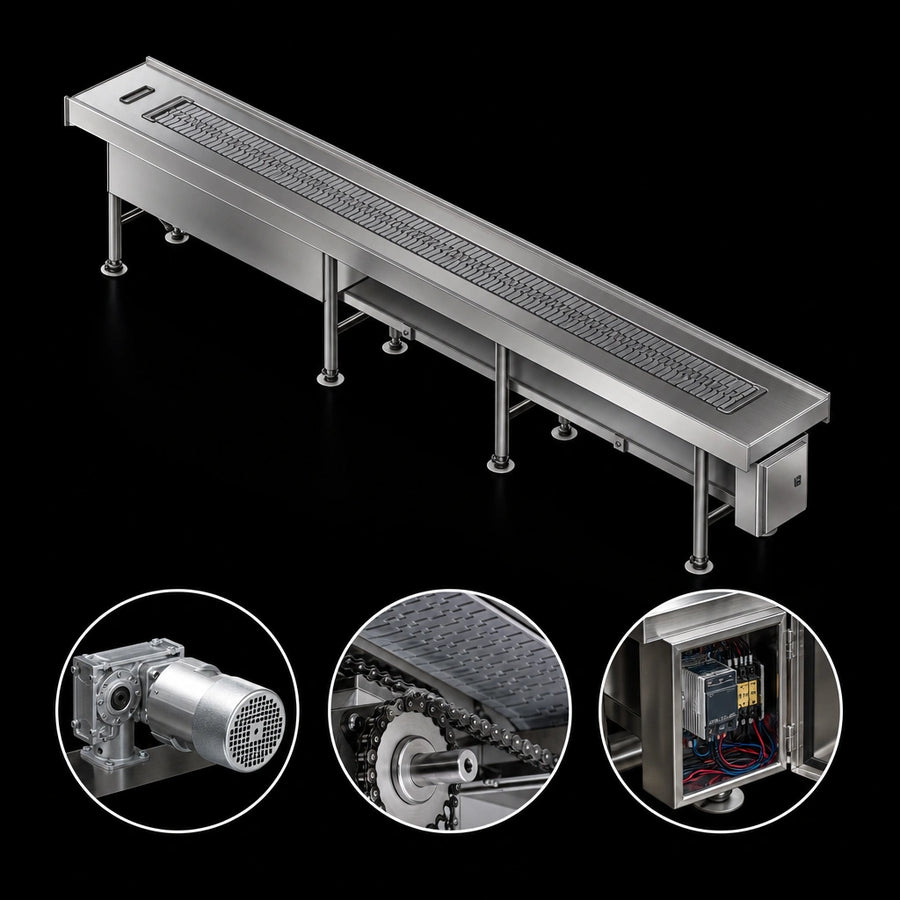

Variable Speed Motorized Belt
Conveyor is driven by a totally enclosed fan-cooled D.C. permanent magnet motor through a worm gear speed reducer, sprockets, and roller chain. Belt speed is electronically adjustable from approximately 0 to 40 FPM, controlled by an SCR power transmission group.
Watertight Control Panel
The main control panel features speed control, stop-start functions, dynamic braking, and is NEMA 4 watertight, ensuring safe and reliable operation in commercial environments. The panel box is NEMA 3R construction.
Lo-Friction Lexan Slat Belt
The belt is made of Lo-Friction Lexan plastic with tapered slats carried by a stainless steel roller chain. Slats are snap-attached to the chain, allowing for easy removal without special tools.
Pan Limit Switch
Equipped with a pan limit switch for enhanced operational control and safety.
Dry Operation with Easy Cleaning
Designed for dry operation with manual cleaning, making maintenance simple. Features replaceable wear strips and belt return rails.
Integrated Tray Space
The conveyor belt terminates at the drive end to provide flat top space suitable for one tray.
Robust Supports
Supports are 1.625" O.D. No.16-gauge stainless steel tubing "H" frames on 6' to 7' centers with interconnecting crossrails for stability.
Warranty & Protection
1-year parts and labor
