Dinex DXIESFB8 8-Foot Fabric Belt Tray Make-Up Conveyor

SKU: DXIESFB8
$23,986.62
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Toaster Conveyor Toaster Cooking Equipment Cooking Equipment Dinex Food Holding & Warming Equipment New Arrivals Restaurant Equipment Steam Tables & Food Wells

Dinex DXIESFB8 8-Foot Fabric Belt Tray Make-Up Conveyor

Fabric Belt, Variable Speed, Air Glide Slider Pan

Streamline your tray assembly process with the durable and efficient Dinex DXIESFB8 fabric belt conveyor, designed for high-volume healthcare and catering operations.

  • Designed for efficient straight-line tray make-up operations in commercial settings.
  • Features a durable, FDA-approved fabric belt for smooth and sanitary product movement.
  • Utilizes an "Air Glide" slider pan design to minimize friction and ensure a smooth tray ride.
  • Offers variable speed control, adjustable from approximately 0 to 40 FPM, to match operational needs.
  • Constructed with a heavy-duty, all-welded stainless steel frame for exceptional durability and ease of cleaning.
  • Equipped with a pan limit switch for automatic conveyor stop and restart upon tray removal.
  • Includes a removable crumb-collector pan for simplified maintenance and hygiene.

Product Weight:

680.0 lb

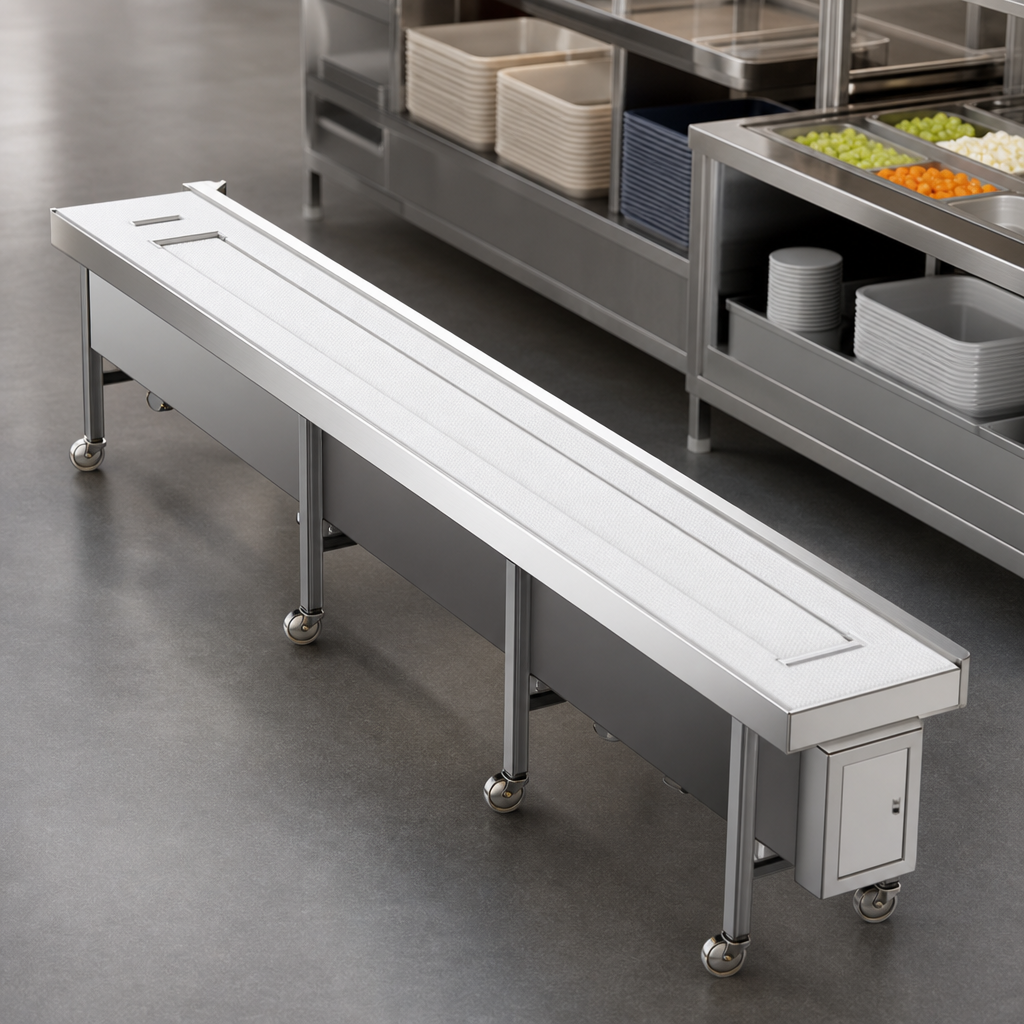

Fabric Belt Conveyor

Specifically engineered for tray make-up operations in healthcare and catering facilities, ensuring a smooth and continuous flow.

Fabric Belt Conveyor

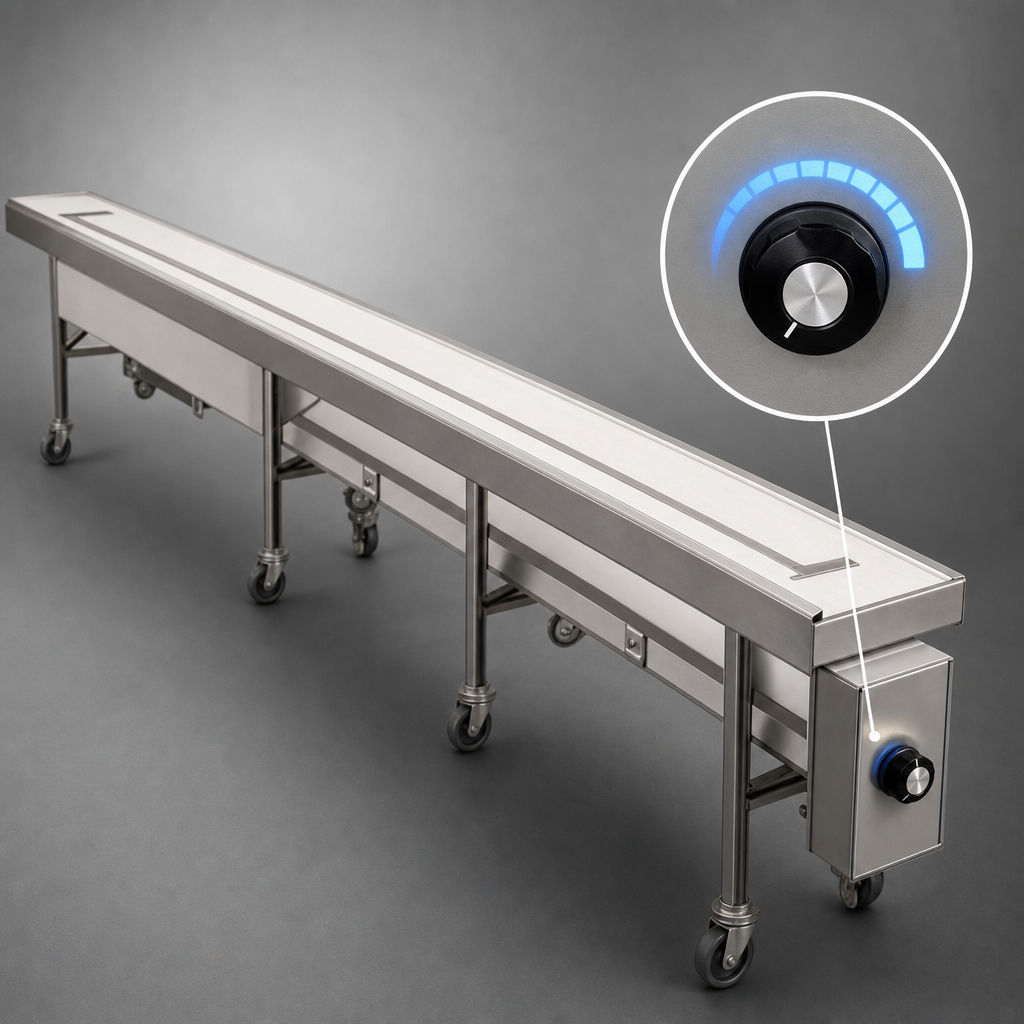

Variable Speed Control

Driven by a totally enclosed fan-cooled D.C. permanent magnet motor with a worm gear speed reducer, providing adjustable belt speeds from 0 to 40 FPM.

Variable Speed Control

"Air Glide" Slider Pan

Formed from stainless steel die-embossed discs, this feature provides an "air glide" ride that effectively prevents friction drag between the belt and trays.

Automatic Belt Tensioning Device

Ensures proper belt operation and extends the lifespan of the conveyor belt by maintaining optimal tension.

NEMA 4 Watertight Controls

The SCR main control panel features speed control and stop-start functions with dynamic braking, housed in a NEMA 4 watertight enclosure for durability in commercial environments.

FDA Approved Belt

The conveyor belt is made from Hycar Buena N. Rubber over a woven synthetic carcass, meeting FDA approval for safe food contact.

Heavy-Duty Stainless Steel Construction

Features a robust frame of 2" x 2" x 3/16" all-welded stainless steel angle and channel, complemented by an 18-gauge stainless steel drive housing for lasting performance.

Pan Limit Switch

Automatically stops the conveyor when a tray reaches a designated checkpoint and restarts when the tray is removed, optimizing workflow efficiency.

Removable Crumb-Collector Pan

Located in the head section, this pan slides out for easy collection and disposal of crumbs, simplifying cleaning and maintenance.

Stationary Design

Built for fixed installation, providing a stable and reliable platform for tray make-up operations. Mobile configurations are optional.

Dry Operation

Designed for dry use environments, though optional wash systems are available for enhanced cleaning capabilities.

Type Tray Make-Up Conveyor
Style Fabric Belt
Installation Type Floor Model (Stationary)
Length 8 Feet
Belt Speed 0 to 40 FPM
Controls SCR Speed Control with Stop-Start
Material Stainless Steel
Interior Finish Stainless Steel
Belt Material Hycar Buena N. Rubber
Conveyor Finish Stainless Steel
Frame Stainless Steel Angle & Channel
Shipping Weight 680 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

The Dinex DXIESFB8 fabric belt conveyor is specifically designed for straight-line tray make-up operations, ideal for healthcare facilities and catering businesses to streamline tray assembly.
The conveyor belt features variable speed control, allowing adjustment from approximately 0 to 40 feet per minute (FPM).
The belt is made from Hycar Buena N. Rubber over a woven synthetic carcass, and it is FDA approved for food contact.
The DXIESFB8 is primarily designed as a stationary unit with an all-welded heavy-duty frame. However, mobile configurations with casters are available as an optional add-on, but users should consult the factory for availability.
The 'Air Glide' slider pan, formed with stainless steel die-embossed discs, creates an air cushion effect that prevents friction drag between the belt and trays, ensuring a smoother ride and reducing wear.
The conveyor is controlled by an SCR power transmission group, featuring an SCR main control panel with speed control, stop-start controls, and dynamic braking, all housed in a NEMA 4 watertight enclosure.
