Dinex DXIESFB20 20 Foot Fabric Belt Tray Make-Up Conveyor
20 ft. Section, Variable Speed, "Air Glide" Slider Pan
Designed to streamline tray assembly operations, this heavy-duty stainless steel conveyor features a variable speed, FDA approved fabric belt and "Air Glide" technology for efficient, low-friction transport.
- Streamlines tray assembly in healthcare and catering operations with its straight-line design.
- Features a variable speed FDA approved fabric belt, adjustable from approximately 0 to 40 FPM.
- "Air Glide" slider pan design prevents friction drag between the belt and trays for smooth movement.
- Constructed with an all-welded stainless steel angle and channel frame for exceptional durability and long life.
- Equipped with a pan limit switch that automatically stops the conveyor when a tray reaches a checkpoint and restarts upon removal.
- Includes a removable crumb collector pan in the head section for easy cleaning and maintenance.
- Can be configured with optional UL approved raceways and breaker panels for on-line support equipment connections.

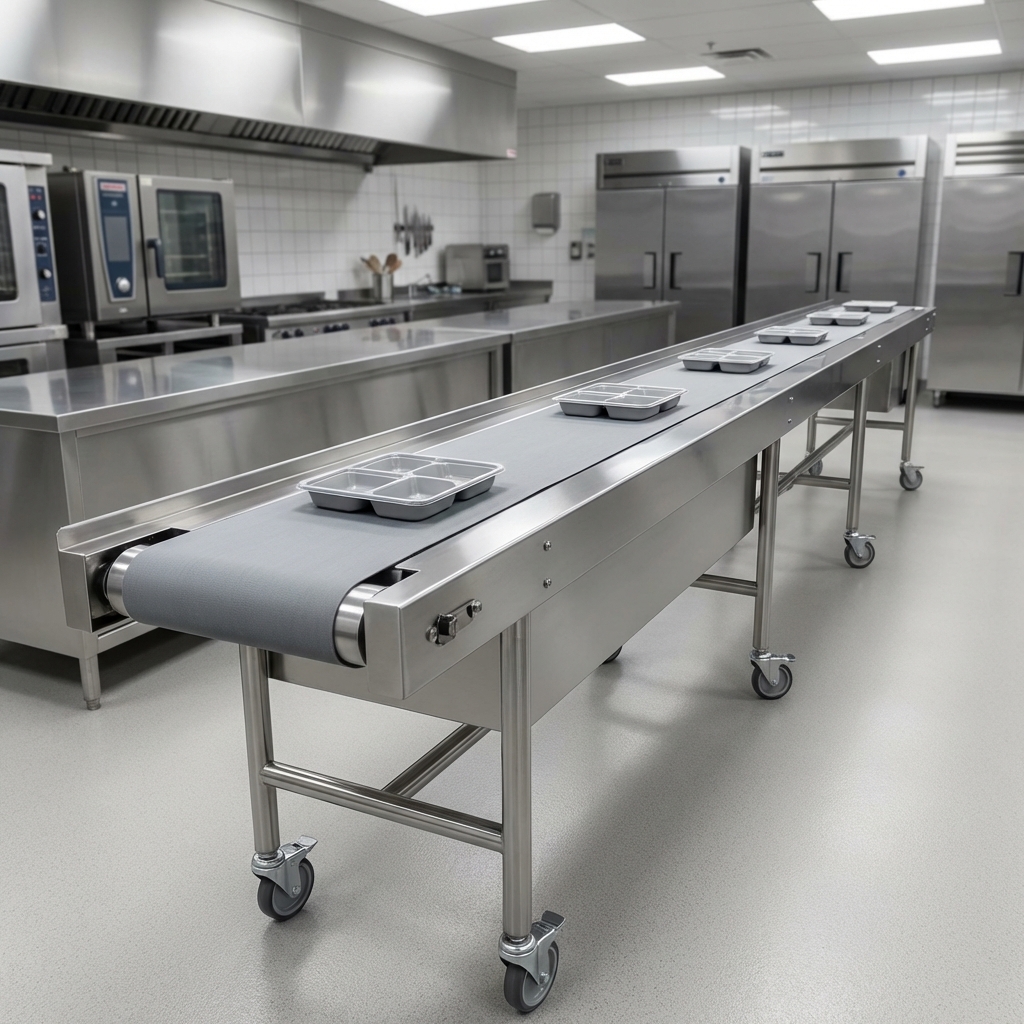

Fabric Belt Conveyor Design
Specifically engineered for efficient tray make-up operations, this straight-line conveyor streamlines assembly in high-volume healthcare and catering environments.

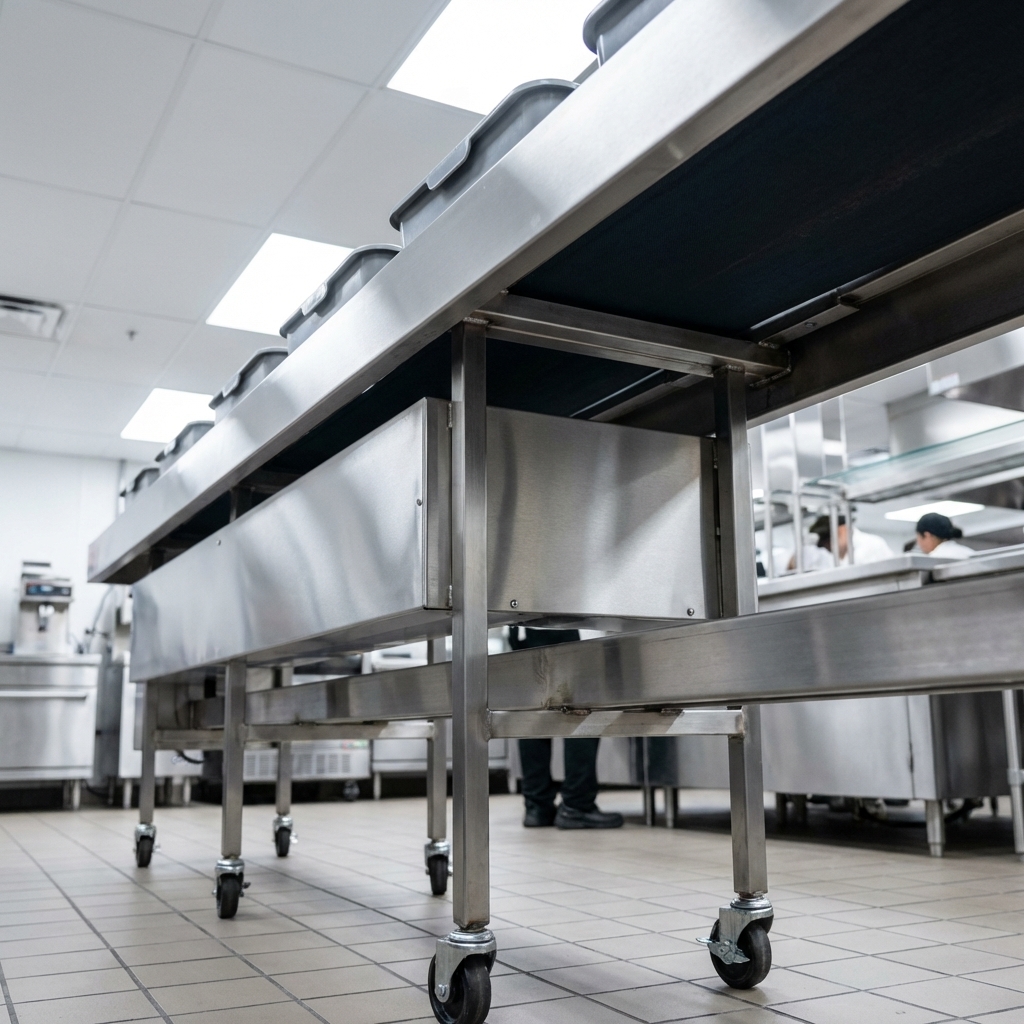

Heavy-Duty Stainless Steel Construction
Built with an 18-gauge stainless steel drive housing and a robust 2" x 2" x 3/16" all-welded angle and channel framework, ensuring durability and longevity.

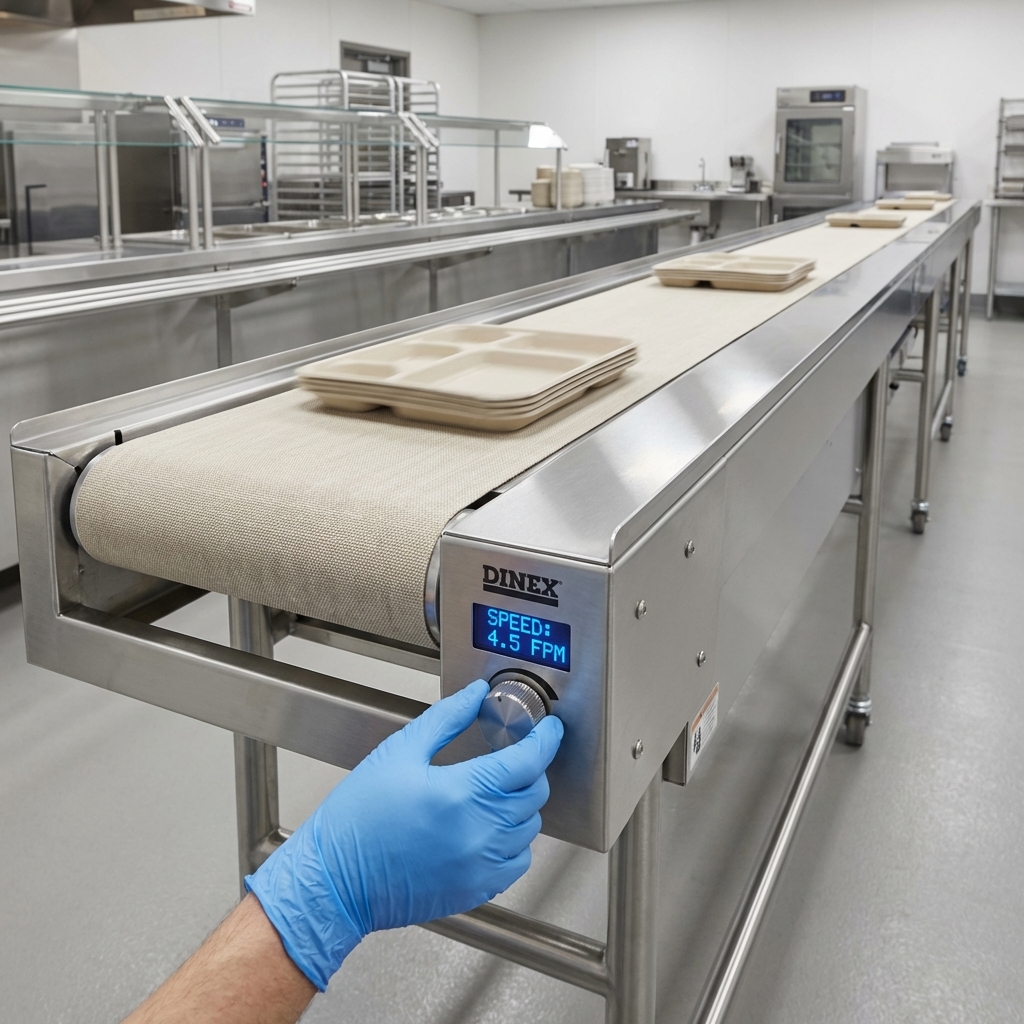

Variable Speed Control
Driven by a totally enclosed fan-cooled D.C. permanent magnet motor through a worm gear speed reducer, allowing belt speeds to be adjusted from approximately 0 to 40 FPM.
"Air Glide" Slider Pan
The conveyor slider pan is formed of stainless steel die embossed discs, providing an "air glide" ride that minimizes friction drag between the belt and trays.
Automatic Belt Tensioning
An integrated automatic belt tensioning device, along with crowned rollers, ensures proper belt tracking and consistent operation.
NEMA 4 Watertight Controls
The SCR main control panel features a speed control station with stop-start controls, dynamic braking, and a NEMA 4 watertight enclosure for reliable operation in commercial kitchens.
Pan Limit Switch
Automatically stops the conveyor as a tray reaches a designated check-point and restarts when the tray is removed, enhancing operational efficiency and safety.
Removable Crumb Collector Pan
The head section is fitted with a stainless steel slide-out crumb collector pan, facilitating easy and thorough manual cleaning.
FDA Approved Belt
The conveyor belt is made of Hycar Buena N. Rubber over a woven synthetic carcass, which is FDA approved for food contact applications.
Dry Operation
Designed for dry make-up operations, ensuring suitability for environments where wet washdown is not required for the conveyor system itself.
Specifications
| Type | Tray Make-Up Conveyor |
|---|---|
| Style | Fabric Belt |
| Installation Type | Stationary |
| Length | 20 Feet (6.1 meter) |
| Belt Speed | 0 to 40 FPM |
| Belt Material | Hycar Buena N. Rubber |
| Material | Stainless Steel |
| Interior Finish | Stainless Steel |
| Controls | SCR Power Transmission Group, NEMA 4 Watertight |
| Motor Type | D.C. Permanent Magnet |
| Pan Limit Switch | Yes |
| Operation | Dry |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Weight | 1,040 lb. |
| Country of Origin | USA |
Product Weight:
1040.0 lbCertifications & Compliance
Warranty & Protection
One year parts and labor.
