Dinex DXIESFB18 18-Foot Fabric Belt Tray Make-Up Conveyor
Variable Speed, Stationary, Air Glide Slider Pan
Designed to streamline tray assembly operations, this 18-foot fabric belt conveyor significantly enhances efficiency in healthcare and catering environments.
- Streamline tray make-up operations with a straight-line, motorized fabric belt conveyor.
- Features a variable speed control from 0 to 40 FPM for optimized assembly flow.
- "Air Glide" slider pan design minimizes friction for smooth, effortless tray movement.
- Constructed with a heavy-duty, all-welded stainless steel frame for exceptional durability.
- Equipped with a pan limit switch for automatic start/stop, improving workflow control.
- FDA approved belt material ensures hygiene and suitability for food contact applications.
Product Weight:

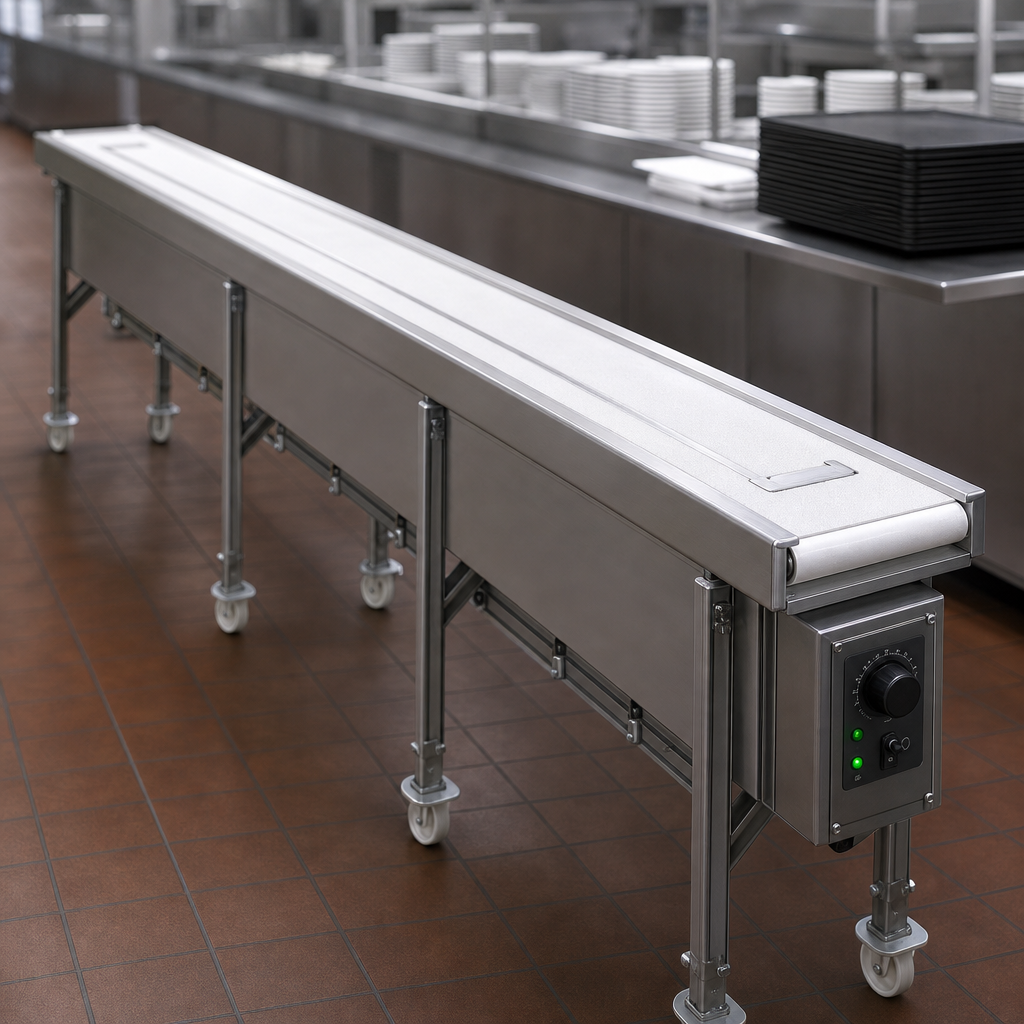

980.0 lbVariable Speed Control
Allows precise adjustment of the fabric belt speed, ranging from approximately 0 to 40 FPM, controlled by an SCR power transmission group for efficient and flexible tray make-up operations.

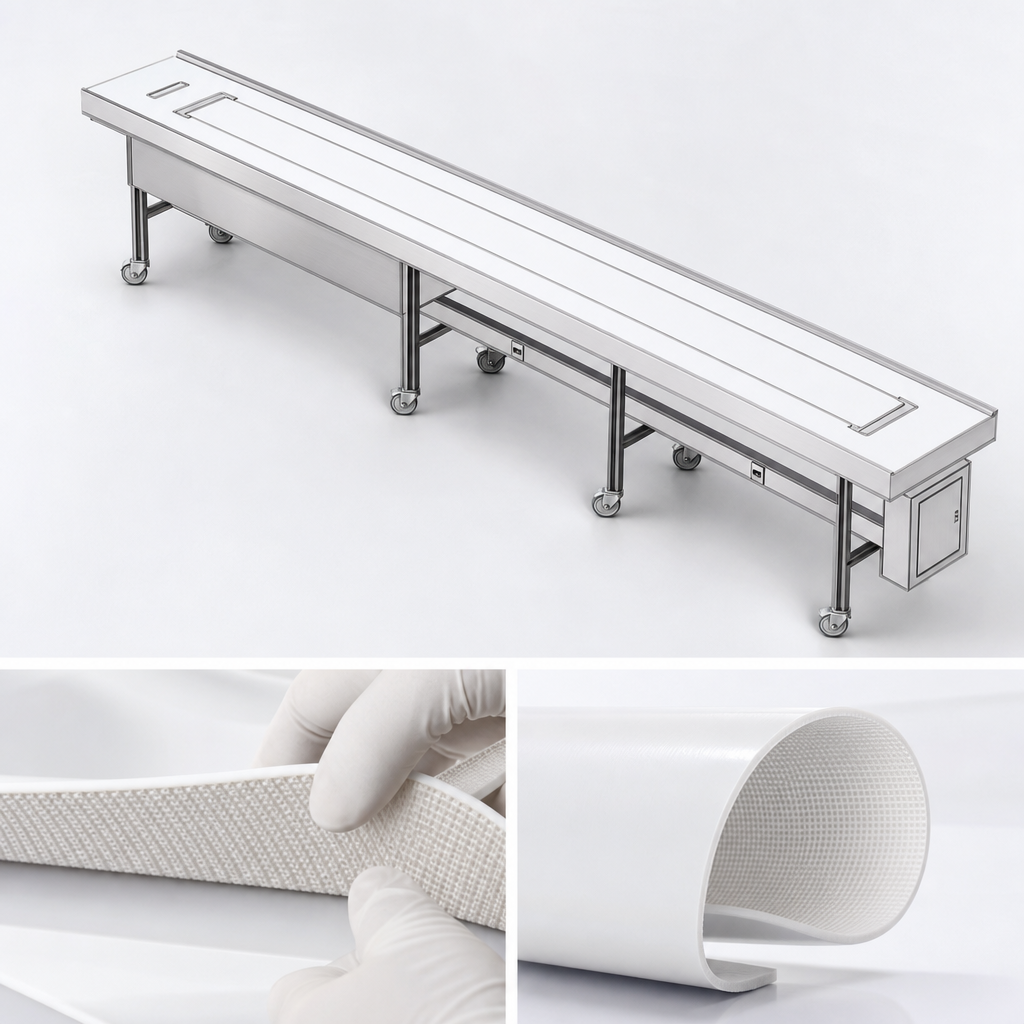

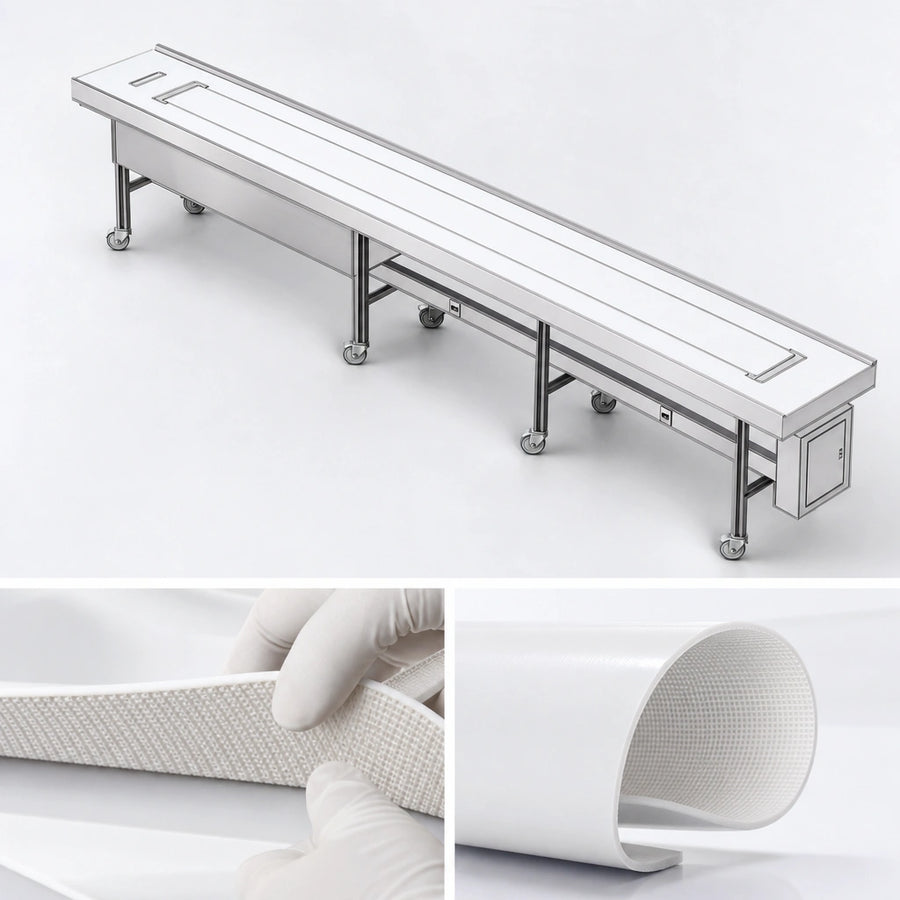

FDA Approved Fabric Belt
The conveyor belt is made of Hycar Buena N. Rubber over a woven synthetic carcass, compliant with FDA standards for direct food contact and ensuring hygienic operation.
"Air Glide" Slider Pan
Features a unique stainless steel die-embossed slider pan with discs designed to create an 'air glide' effect, significantly reducing friction and drag between the belt and pan for smooth tray movement.
Pan Limit Switch
A built-in pan limit switch automatically stops the conveyor when a tray reaches a designated checkpoint and restarts it once the tray is removed, facilitating controlled assembly and preventing bottlenecks.
Heavy-Duty Stainless Steel Construction
Built with a robust, all-welded 2" x 2" x 3/16" stainless steel angle and channel framework, an 18-gauge stainless steel drive housing, and solid stainless steel shafting for long-lasting commercial use.
Watertight Controls
The SCR main control panel, including speed control and stop-start functions, is housed in a NEMA 4 watertight enclosure, protecting components from moisture and ensuring reliable operation.
Easy Maintenance Design
Designed for dry operation with removable panels for easy access to internal components and a stainless steel slide-out crumb collector pan for convenient manual cleaning.
Certifications & Compliance
Warranty & Protection
1-year parts and labor warranty
