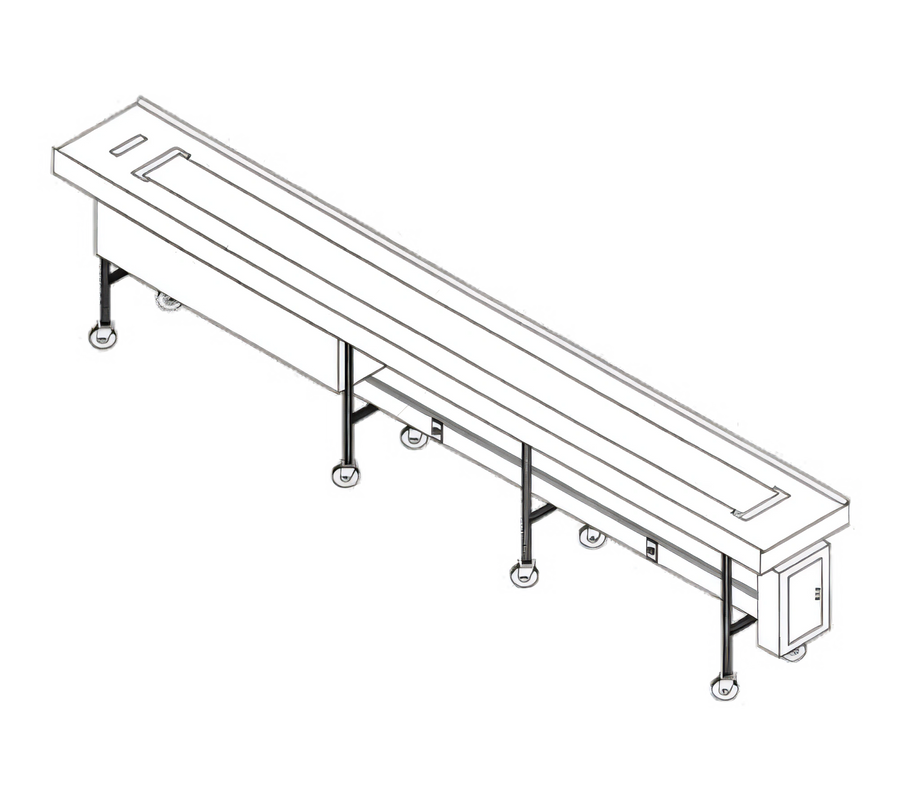

Dinex DXIESFB16 16-Foot Fabric Belt Tray Make-Up Conveyor
Variable Speed, Air Glide Slider Pan, Stationary
Streamline your tray assembly process with the durable and efficient Dinex DXIESFB16 fabric belt conveyor, designed for reliable, high-volume operations.
- Durable 16-foot fabric belt conveyor for efficient tray make-up operations in healthcare or catering.
- Features a variable speed control from 0 to 40 FPM for operational flexibility and precise tray movement.
- Equipped with an 'Air Glide' slider pan design to minimize friction and ensure smooth tray transport.
- Constructed with a heavy-duty, all-welded stainless steel angle and channel frame for long-lasting performance.
- Includes a pan limit switch that automatically stops and starts the conveyor as trays reach checkpoints.
- FDA approved fabric belt ensures hygiene and safety for food contact applications.
- Designed for dry operation and includes a removable crumb collector pan for effortless cleaning.
- Control panel is NEMA 4 watertight, providing protection in commercial kitchen environments.

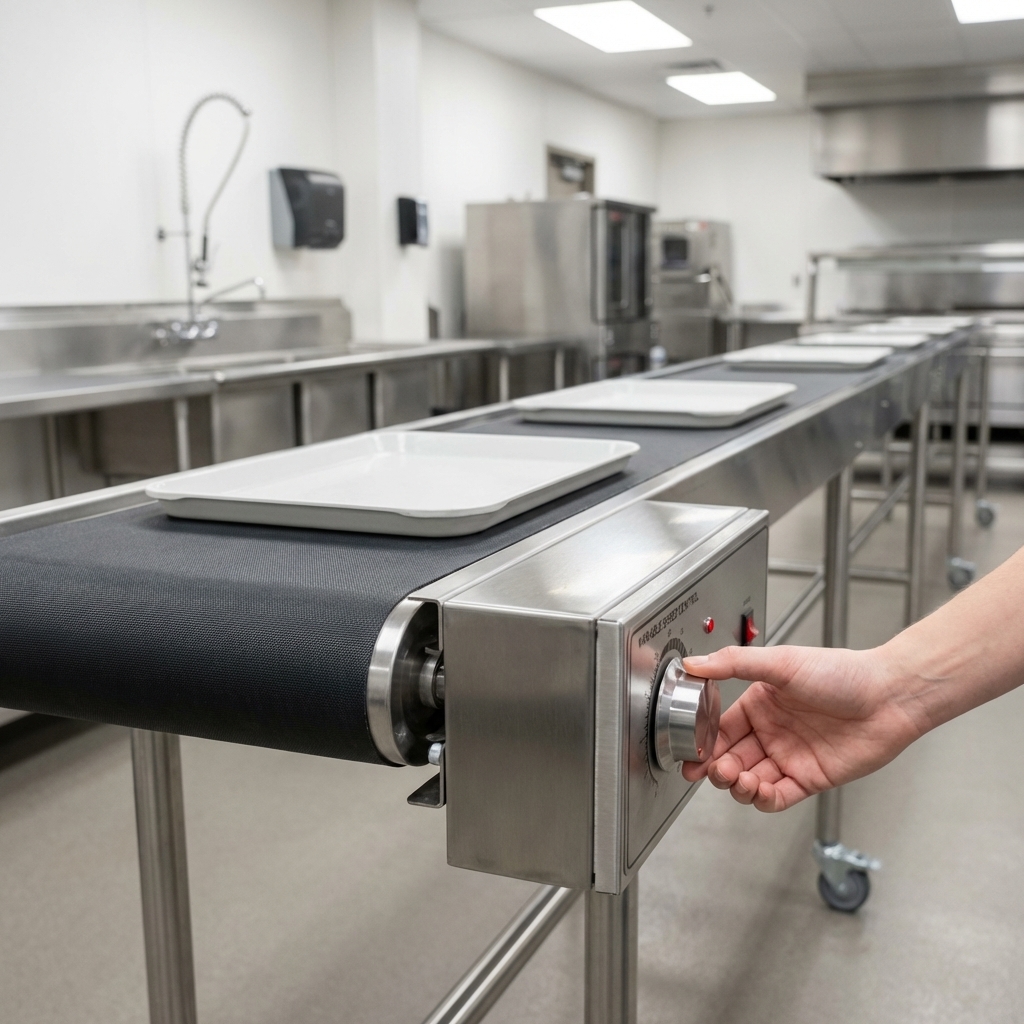

Variable Speed Control
Adjustable belt speeds ranging from approximately 0 to 40 FPM are managed by an SCR power transmission group, offering precise control over the tray assembly process.

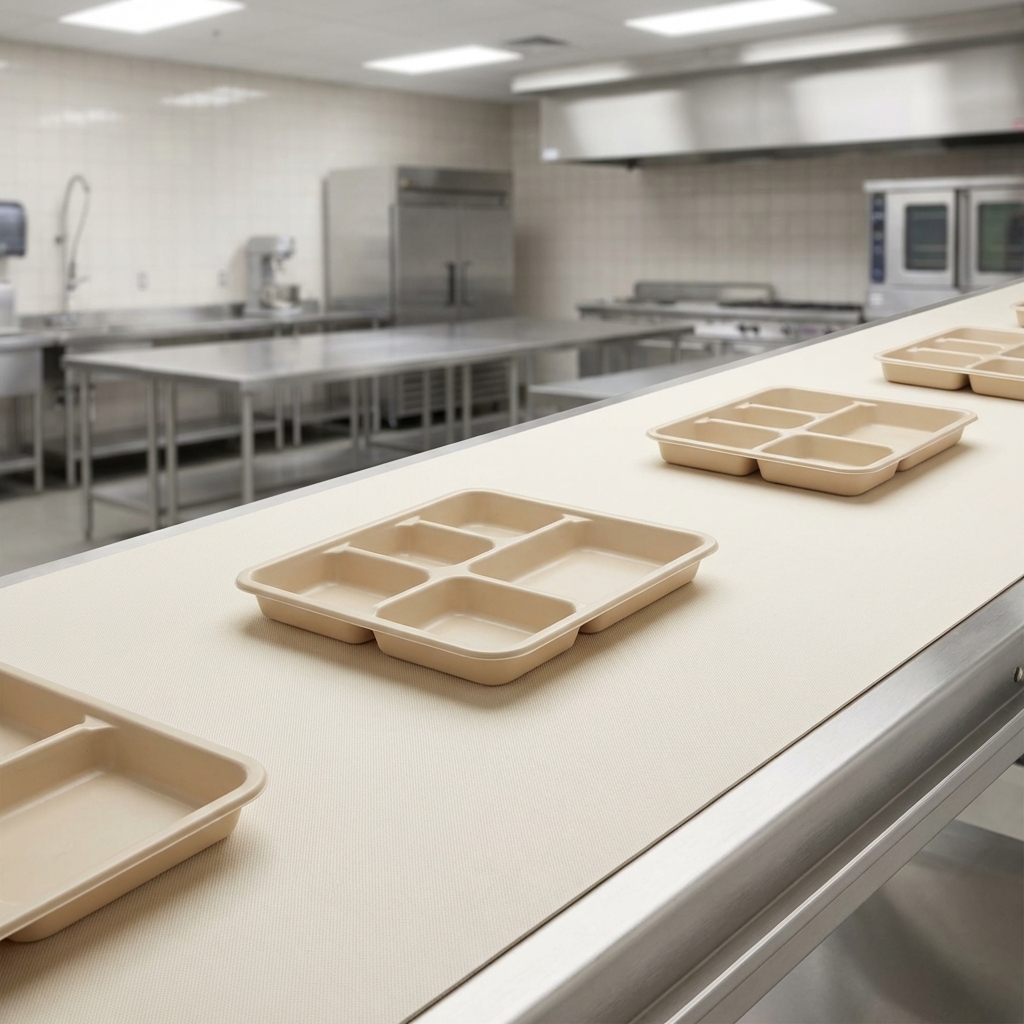

FDA Approved Fabric Belt
The conveyor belt is made of Hycar Buena N. Rubber over a woven synthetic carcass, approved by the FDA for safe and hygienic contact with food.

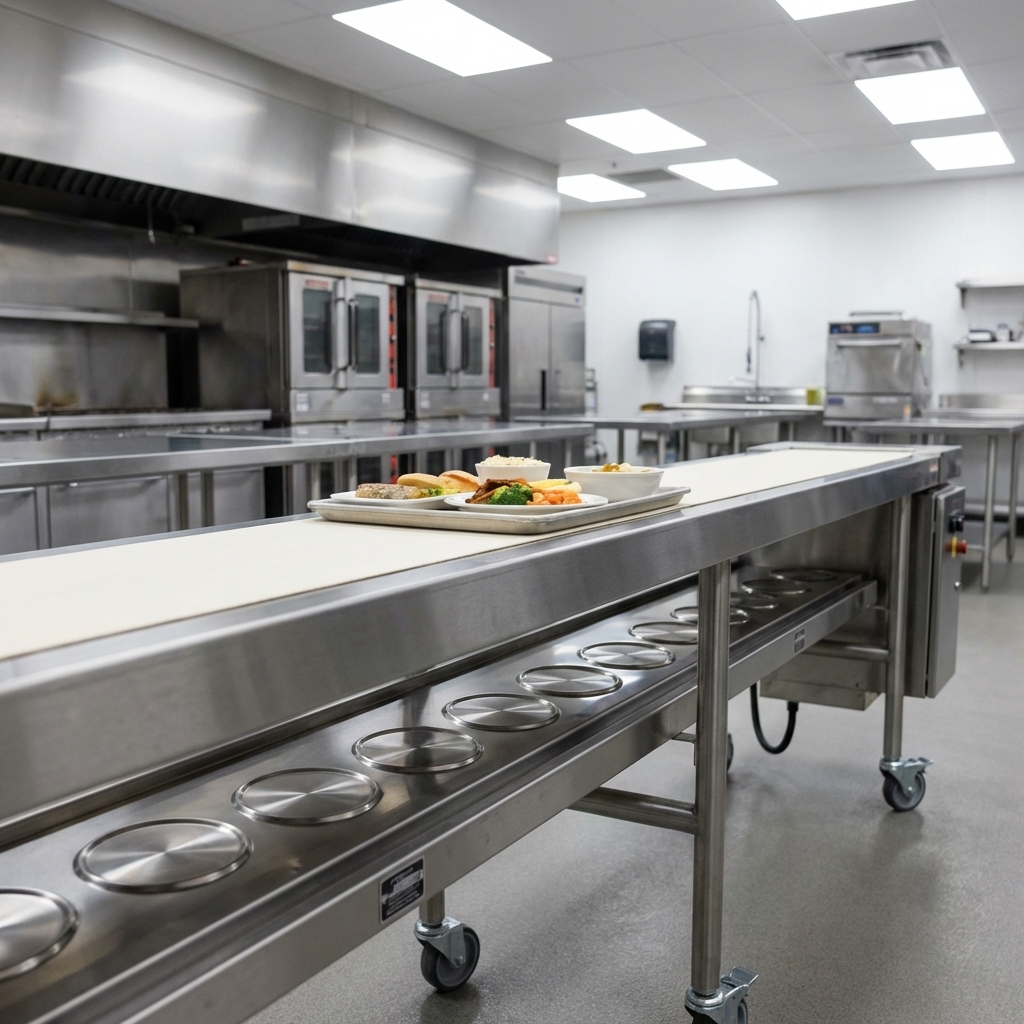

Air Glide Slider Pan
Formed from stainless steel die embossed discs, the slider pan creates an 'air glide' effect to reduce friction and ensure smooth, efficient movement of trays along the belt.
Pan Limit Switch
An integrated pan limit switch automatically stops the conveyor when a tray reaches a designated checkpoint and restarts it once the tray is removed, streamlining workflow.
Heavy-Duty Stainless Steel Construction
Built with an 18-gauge stainless steel drive housing and a robust 2" x 2" x 3/16" all-welded stainless steel angle and channel framework, ensuring exceptional durability and stability.
Removable Crumb Collector Pan
Located in the head section, this slide-out crumb collector pan facilitates easy and thorough manual cleaning, maintaining sanitation.
NEMA 4 Watertight Controls
The SCR main control panel, including speed control and stop-start functions, features NEMA 4 watertight construction for reliable operation and protection in demanding commercial settings.
Automatic Belt Tensioning Device
A built-in mechanism automatically maintains proper belt tension, contributing to longer belt life and consistent performance.
Crowned Rollers
Conveyor rollers are crowned to ensure accurate belt tracking and prevent misalignment during operation.
Easy Access Panels
Removable stainless steel panels on exposed sides and drive housing allow for convenient access for maintenance and cleaning.
Specifications
| Type | Tray Make-Up Conveyor |
|---|---|
| Style | Fabric Belt |
| Installation Type | Stationary |
| Length | 16 Feet |
| Conveyor Speed | 0 to 40 FPM |
| Material | Stainless Steel Frame |
| Interior Finish | Stainless Steel |
| Belt Material | FDA Approved Fabric |
| Controls | SCR Main Control Panel, NEMA 4 Watertight |
| Drive System | D.C. Permanent Magnet Motor |
| Slider Pan Type | Air Glide Stainless Steel Discs |
| Feature | Pan Limit Switch |
| Operation | Dry |
| Electrical | Configurable Voltage |
| Shipping Weight | 920 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Product Weight:
920.0 lbCertifications & Compliance
Warranty & Protection
1-year parts and labor
