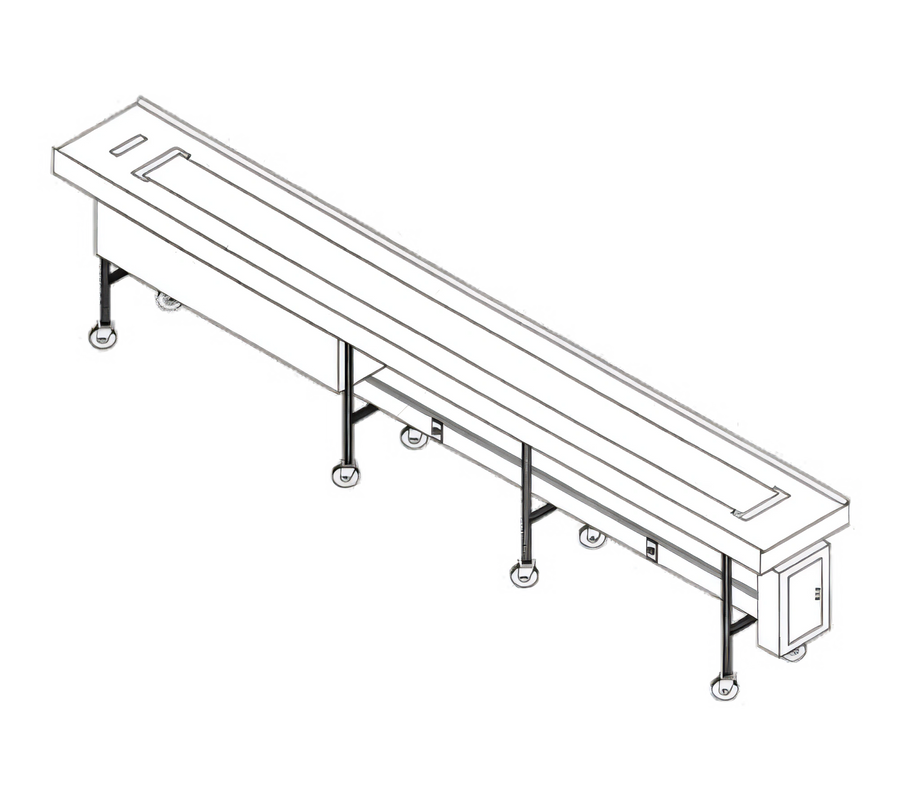

Dinex DXIESFB14 14 ft. Tray Make-Up Fabric Belt Conveyor
Floor Model, Variable Speed, Air Glide Slider Pan
Streamline your tray make-up operations with this durable 14-foot fabric belt conveyor, designed for efficient and hygienic assembly.
- Durable all-welded stainless steel angle and channel frame construction ensures long life.
- Features an FDA approved Hycar Buena N. Rubber fabric belt, ideal for healthcare and catering.
- Equipped with a variable speed D.C. motor, adjustable from 0 to 40 FPM, for optimized workflow.
- Unique "Air Glide" slider pan design minimizes friction and provides a smooth tray ride.
- Includes a pan limit switch and automatic tray restart for efficient single-tray handling.
- Designed for dry operation and easy cleaning with a removable crumb collector pan.
Product Weight:

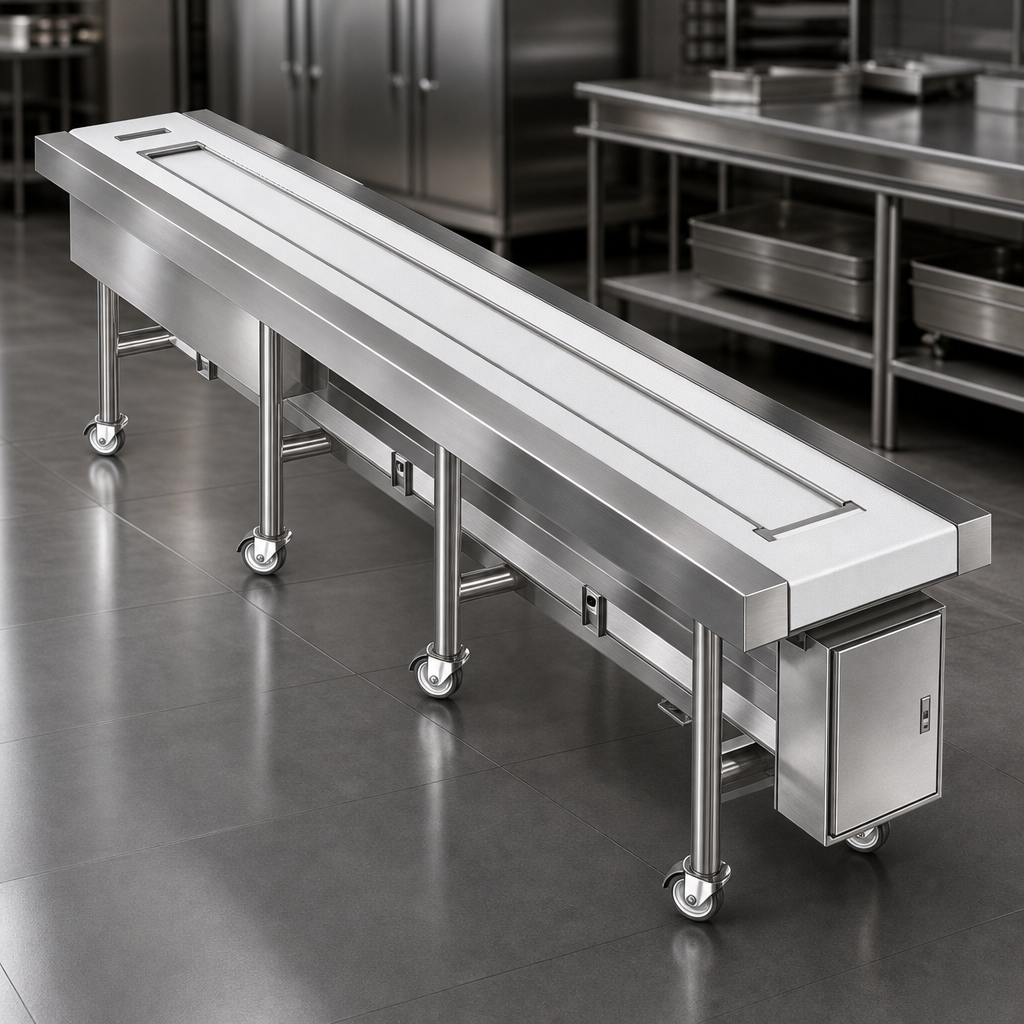

860.0 lbHeavy Duty Stainless Steel Construction
Drive housing is 18-gauge stainless steel, and the frame is 2" x 2" x 3/16" all-welded stainless steel angle and channel for superior durability. Supports are 1.625" O.D. No. 16-gauge stainless steel tubing "H" frames.

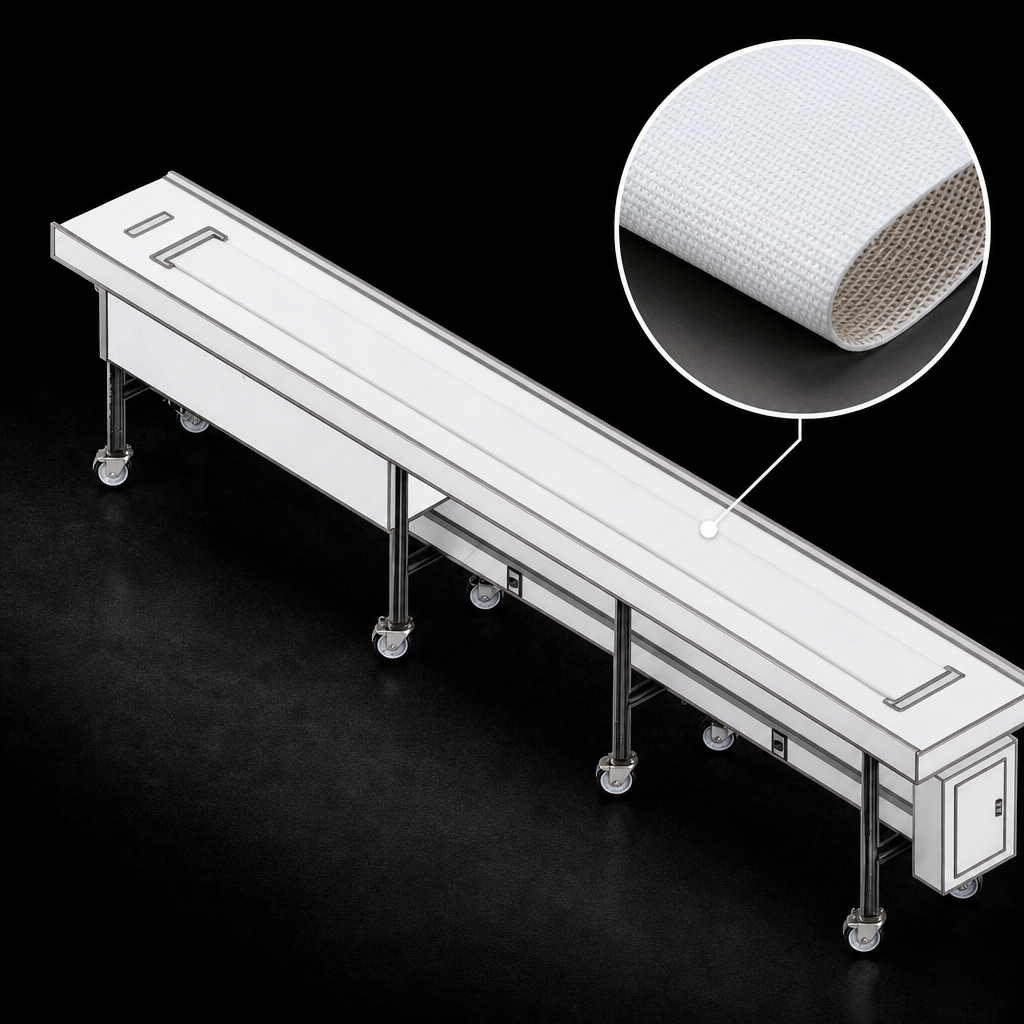

FDA Approved Fabric Belt
Features a Hycar Buena N. Rubber belt over a woven synthetic carcass, approved by the FDA for safe food contact.
Variable Speed Drive System
Driven by a totally enclosed fan-cooled D.C. permanent magnet motor through a worm gear speed reducer, offering adjustable speeds from approximately 0 to 40 FPM. Includes SCR power transmission group with dynamic braking.
"Air Glide" Slider Pan
Conveyor slider pan formed of stainless steel die-embossed discs to provide an "air glide" ride, preventing friction drag between the belt and pan.
Precision Belt Tracking and Tensioning
Fully lagged power roller with snubbed drive assembly provides 270° belt contact for positive drive. Crowned rollers ensure proper belt tracking, and an automatic belt tensioning device is included.
Watertight Controls and Panel
SCR main control panel features a speed control station with stop-start controls, all with NEMA 4 watertight protection. The panel box is NEMA 3R watertight construction for reliable operation in various environments.
Efficient Tray Handling
A pan limit switch stops the conveyor when a tray reaches a checkpoint and automatically restarts when the tray is removed, optimizing single-tray make-up.
Easy Maintenance
Designed for dry operation and includes a stainless steel slide-out crumb collector pan in the head section for simple cleaning.
Certifications & Compliance
Warranty & Protection
One year parts and labor
