Dinex DXIESFB12 12 ft. Variable Speed Fabric Belt Tray Make-Up Conveyor
12 ft. Section, Variable Speed, Stainless Steel Frame
Streamline your tray assembly operations with the durable and efficient Dinex DXIESFB12 fabric belt conveyor, designed for precise and quick service.
- 12 ft. section for comprehensive tray make-up lines in healthcare or catering operations.
- Variable speed control, adjustable from 0 to 40 FPM, for optimal workflow.
- FDA approved fabric belt ensures hygiene and safety for food service items.
- "Air Glide" slider pan minimizes friction and provides smooth tray movement.
- Robust all-welded stainless steel angle and channel frame for long-lasting durability.
- Equipped with a pan limit switch for automatic stop and restart functionality.
- Easy to clean design with removable crumb-collector pan and access panels.

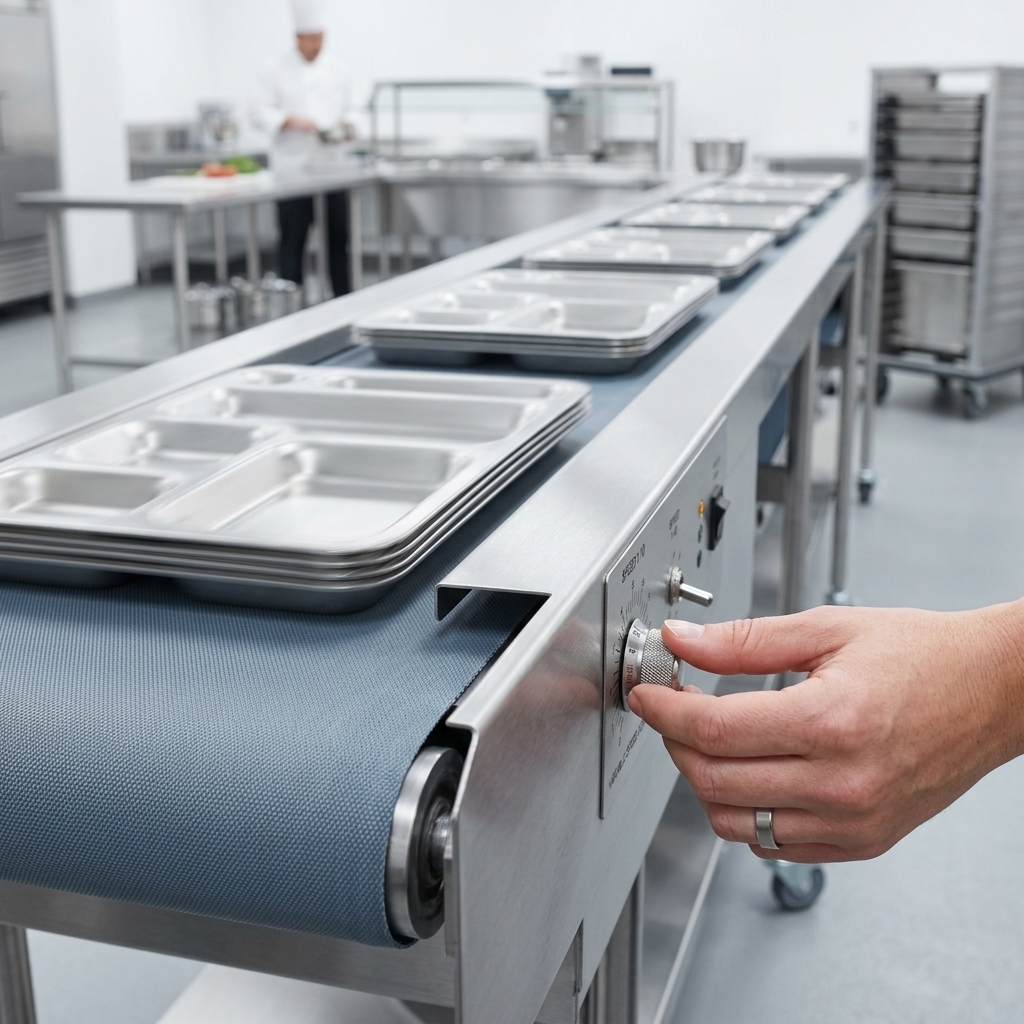

Variable Speed Control
Allows adjustment of belt speed from approximately 0 to 40 FPM to match operational needs for efficient tray make-up.

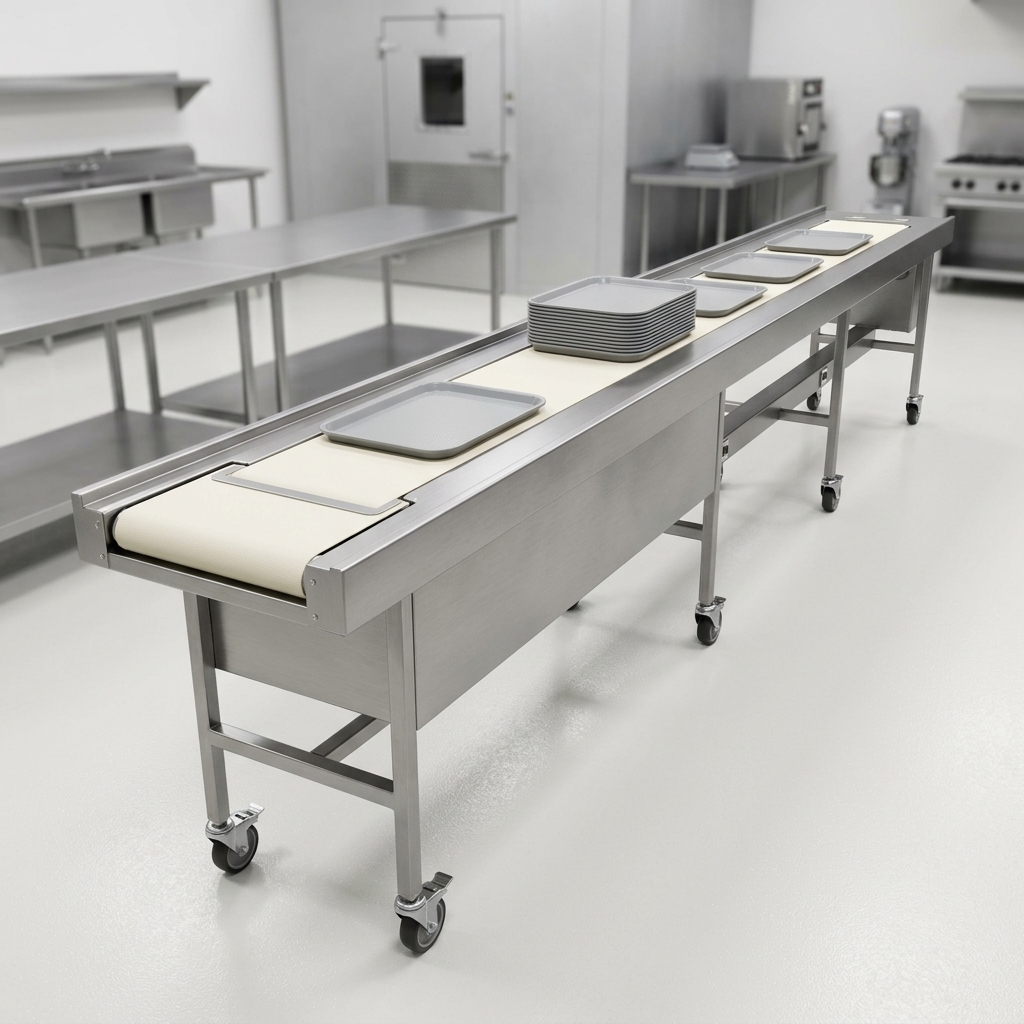

FDA Approved Fabric Belt
The belt is made from Hycar Buena N. Rubber over woven synthetic carcus, ensuring hygienic and safe contact for food service items, and is FDA approved.

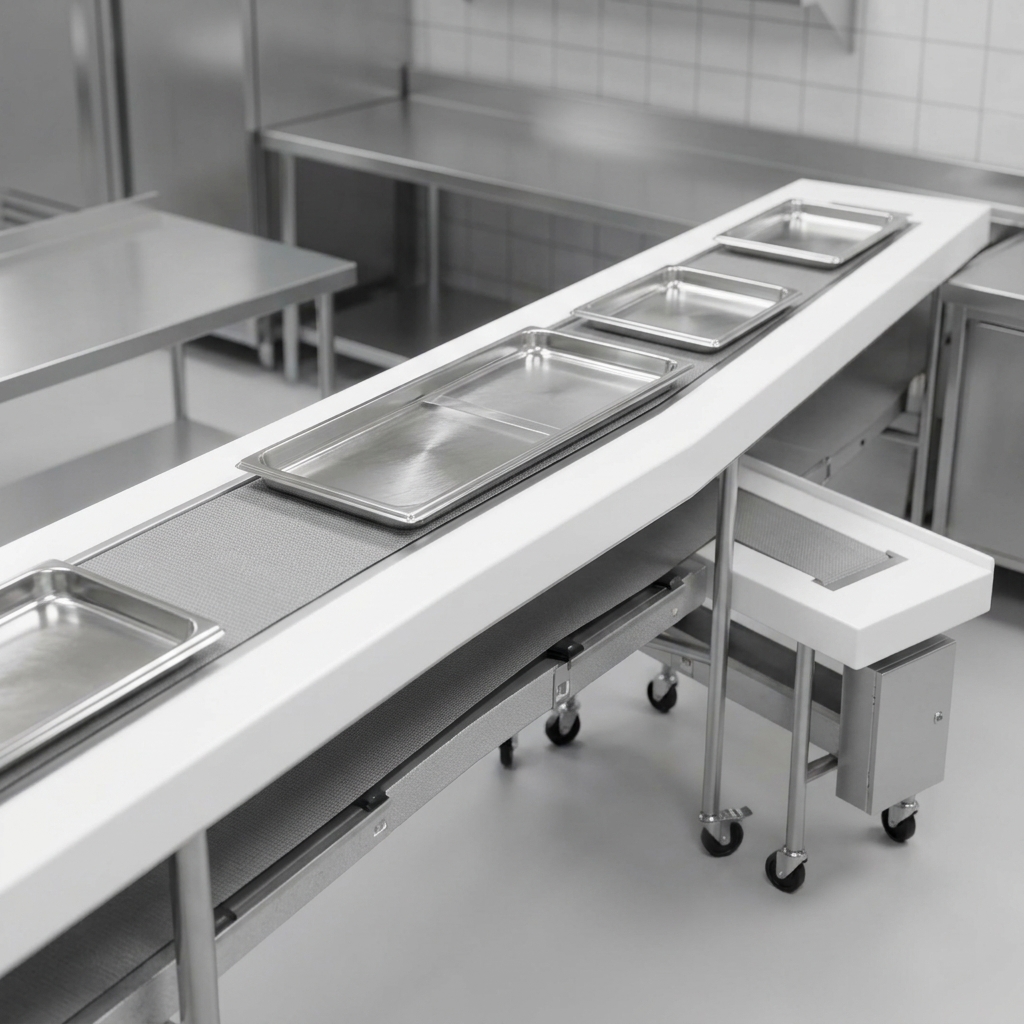

"Air Glide" Slider Pan
Features stainless steel die embossed discs to reduce friction drag between the belt and pan, providing a smooth, consistent ride for trays.
Pan Limit Switch
Automatically stops the conveyor when a tray reaches a checkpoint and restarts when the tray is removed, aiding in efficient and controlled tray assembly.
Heavy Duty Stainless Steel Frame
Constructed with 2" x 2" x 3/16" all-welded stainless steel angle and channel framework for superior durability and stability in demanding commercial environments.
Dry Operation
Specifically designed for dry make-up applications, ensuring reliable performance without requiring wet cleaning systems for the belt.
Removable Crumb-Collector Pan
Located in the head section, this pan slides out for easy collection and disposal of crumbs and debris, simplifying cleaning and maintenance.
Automatic Belt Tensioning Device
Ensures proper belt operation and extends the lifespan of the conveyor belt by maintaining optimal tension.
NEMA 4 Watertight Controls
The SCR main control panel features speed control, stop-start buttons, and dynamic braking, all housed in a NEMA 4 watertight enclosure for protection against water and dust.
Solid Stainless Steel Shafting
Equipped with solid stainless steel shafting, stainless sprockets, and sealed-for-life, self-aligning ball bearings for reliable and long-lasting mechanical operation.
Easy Access Panels
Removable panels are provided for convenient access to internal components, facilitating quick and easy maintenance.
Crowned Rollers
Rollers are crowned to assure proper tracking of the fabric belt, preventing misalignment and wear.
Specifications
| Type | Tray Make-Up Conveyor |
|---|---|
| Style | Fabric Belt |
| Installation Type | Stationary |
| Material | Stainless Steel |
| Interior Finish | Stainless Steel |
| Belt Material | Hycar Buena N. Rubber |
| Belt Speed Range | 0 to 40 FPM |
| Conveyor Base Length | 12 ft. (3.6 meter) |
| Conveyor Belt Width | 10 Inches (25 cm) |
| Conveyor Working Height | 36 Inches (91 cm) |
| Controls | Variable Speed, Stop-Start (NEMA 4 Watertight) |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Weight | 800 lb. (363 kg) |
| Country of Origin | USA |
Product Weight:
800.0 lbCertifications & Compliance
Warranty & Protection
1-year parts and labor
