Dinex DXIESFB10 10 Foot Fabric Belt Tray Make-Up Conveyor

10 ft. Section, Variable Speed, Stationary, Dry Operation

Designed to streamline tray assembly in healthcare and catering operations, this conveyor ensures efficient and smooth make-up processes.

  • Equipped with an FDA approved fabric belt and 'Air Glide' slider pan for smooth tray movement.
  • Features a variable speed control from 0 to 40 FPM, allowing precise adjustment for different operational needs.
  • Constructed with a heavy-duty, all-welded stainless steel angle and channel frame for durability and long life.
  • Includes a removable crumb collector pan and accessible panels for easy cleaning and maintenance.
  • Designed for stationary, dry operation, making it ideal for consistent, high-volume tray make-up lines.
  • UL approved raceways and breaker panels can be added for connecting on-line support equipment.

Product Weight:

740.0 lb

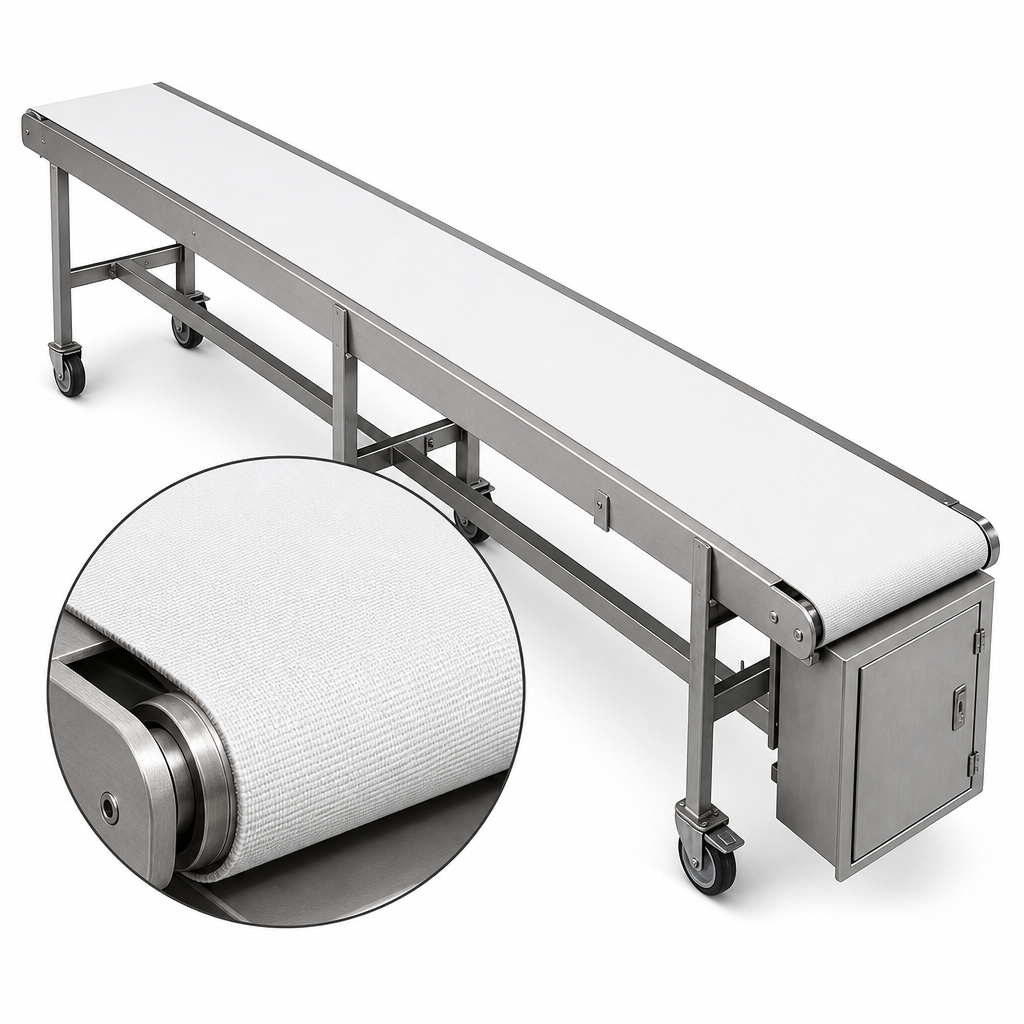

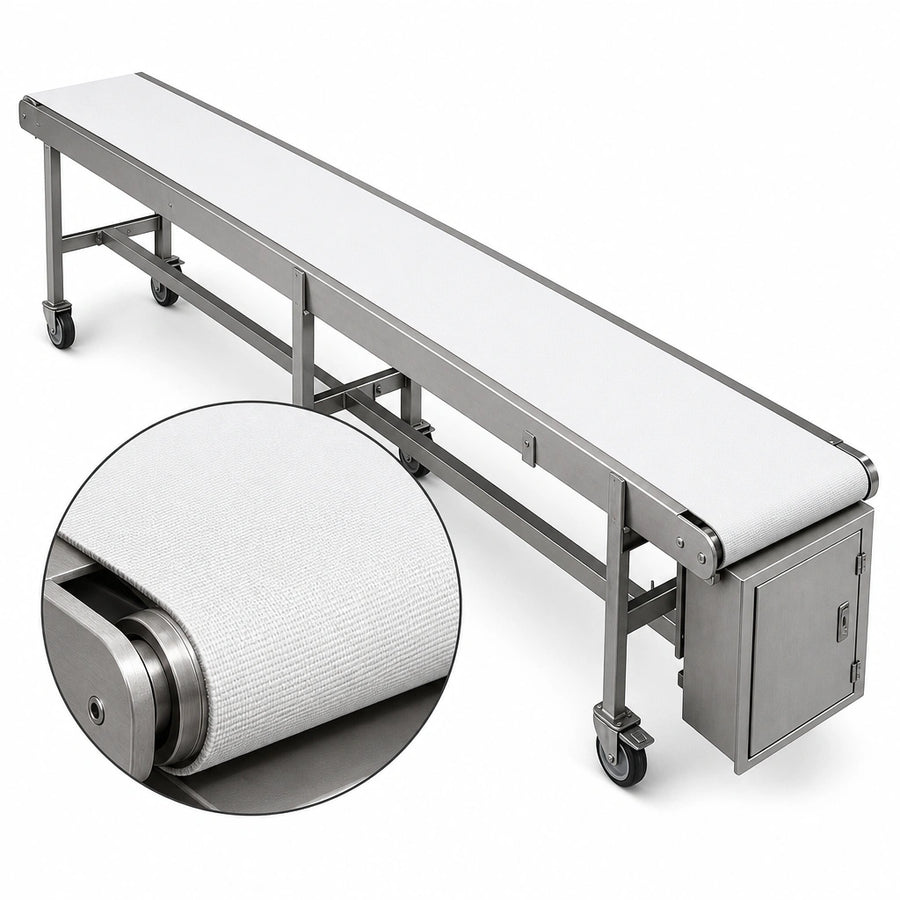

Fabric Belt Conveyor

Features a fabric type Hycar Buena N. Rubber belt over a woven synthetic carcass, which is FDA approved for safe food contact and efficient tray transport.

Fabric Belt Conveyor

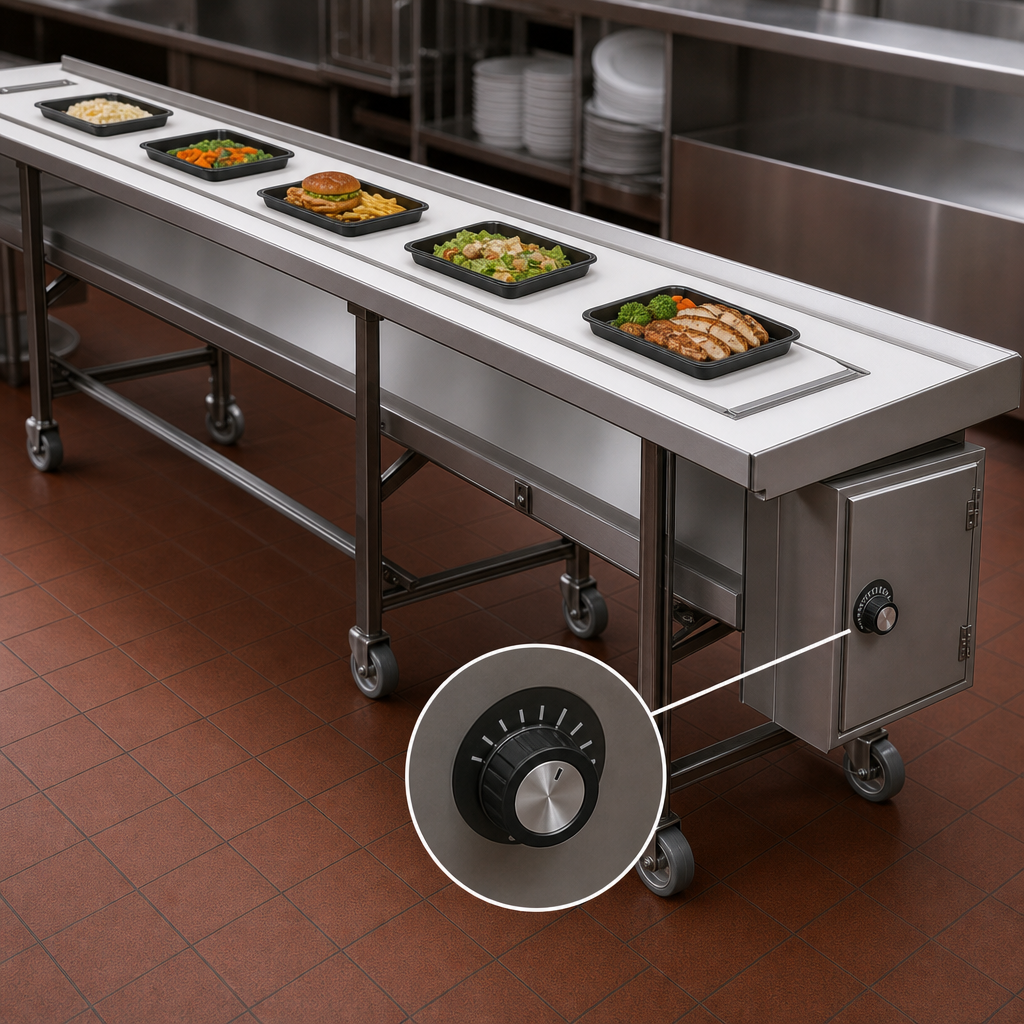

Variable Speed Control

Adjustable belt speed from approximately 0 to 40 FPM, controlled by an SCR power transmission group with stop-start functions and dynamic braking, suitable for various throughput requirements.

Variable Speed Control

Air Glide Slider Pan

Conveyor slider pan formed of stainless steel die embossed discs provides an 'air glide' ride, reducing friction drag between the belt and pan for smooth operation.

Heavy-Duty Stainless Steel Construction

Built with an 18-gauge stainless steel drive housing and a 2" x 2" x 3/16" all-welded stainless steel angle and channel framework for robust and long-lasting performance.

NEMA 4 Watertight Controls

The SCR main control panel and all associated controls are NEMA 4 watertight, protecting against dust and moisture.

NEMA 3R Watertight Panel Box

The panel box is NEMA 3R watertight construction, located in an easily accessible area on the conveyor for safety and convenience.

Removable Crumb Collector Pan

Includes a slide-out crumb collector pan in the head section for simplified cleaning and hygiene maintenance.

Pan Limit Switch

Equipped with a pan limit switch, which stops the conveyor when a tray reaches a checkpoint and automatically restarts when the tray is removed.

Automatic Belt Tensioning

Features an automatic belt tensioning device and crowned rollers to ensure proper belt tracking and consistent operation.

Type Tray Make-Up Conveyor
Style Fabric Belt
Installation Type Stationary
Belt Type Hycar Buena N. Rubber
Belt Speed 0-40 FPM
Controls SCR Variable Speed with Stop-Start
Material Stainless Steel
Interior Finish Stainless Steel
Shipping Weight 740 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

This conveyor uses an FDA approved fabric belt, specifically Hycar Buena N. Rubber over a woven synthetic carcass, designed for durability and hygiene in tray make-up operations.
Yes, the belt speed is variable and can be adjusted from approximately 0 to 40 FPM, controlled by an SCR power transmission group with stop-start controls and dynamic braking.
The conveyor features an 18-gauge stainless steel drive housing, a heavy-duty all-welded 2" x 2" x 3/16" stainless steel angle and channel framework, and a stainless steel slider pan with die-embossed discs.
The unit is designed for easy cleaning with removable panels for access to components and a slide-out crumb collector pan in the head section.
Yes, units can be equipped with optional UL approved raceways and breaker panels to provide on-line support equipment connections and individual circuits for various receptacles.
