Delfield STD4532NP Undercounter & Worktop Refrigeration
Description

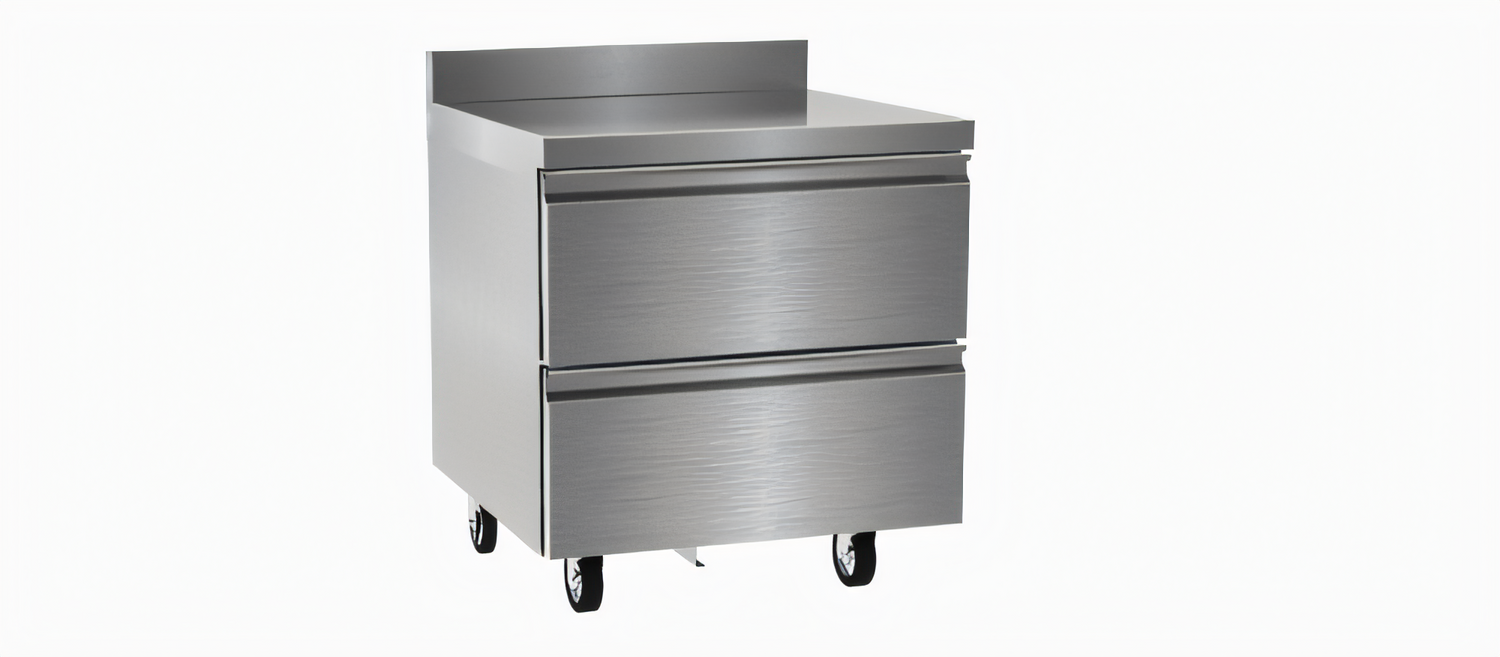

Delfield STD4532NP 32" Worktop Freezer w/ 4" Backsplash & 2 Drawers
Front-breathing • Self-contained • R290 refrigerantBuilt for the toughest kitchen lines, the Delfield STD4532NP combines a frost-free freezer base with a sturdy 32 inch stainless-steel work surface and integrated 4 inch backsplash. Its exclusive front-breathing design lets you slide the unit tight against walls or into existing cook-lines, saving precious floorspace without sacrificing performance.
Why you’ll love it
- 100 % front-breathing – no side or rear clearance required.

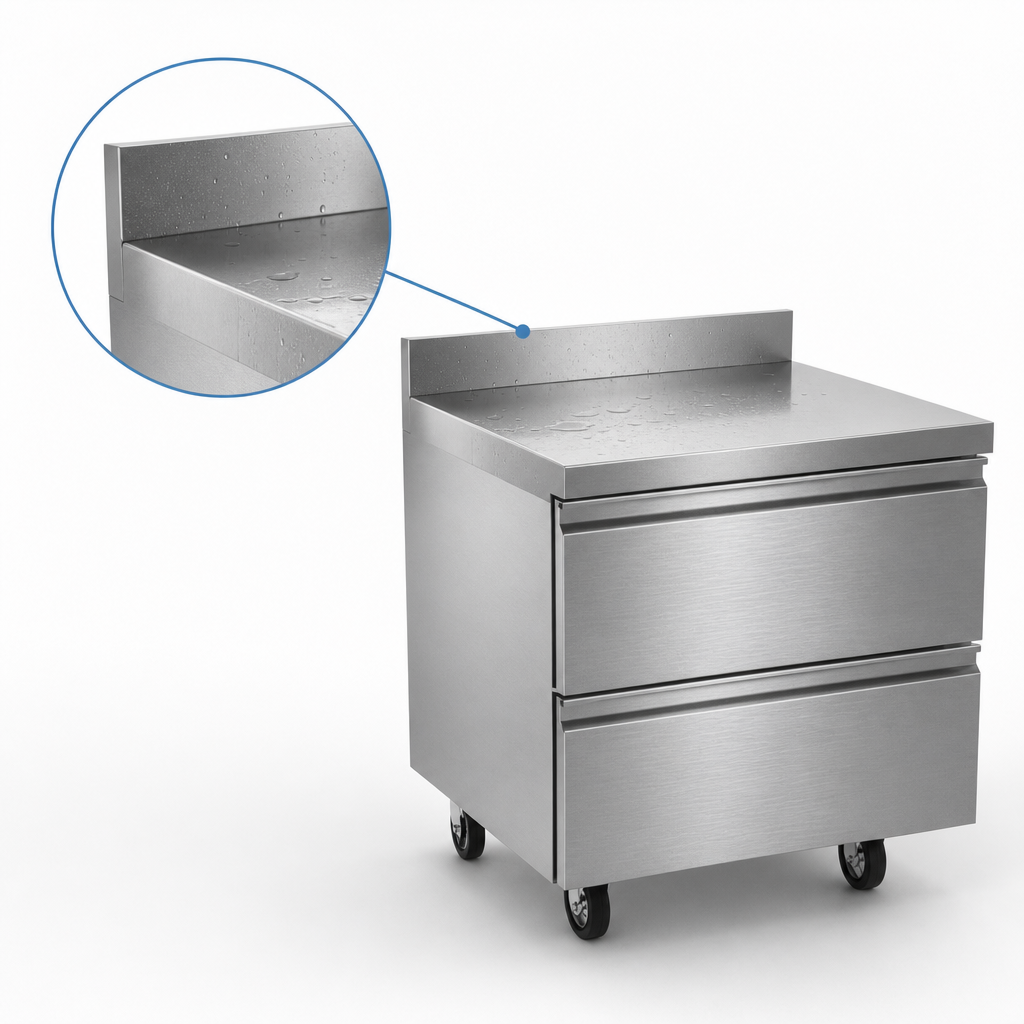

- Rugged 22-gauge stainless-steel top, front & sides with 4" high backsplash.
- Lifetime-warranted ABS interior sidewalls that won’t dent, chip or corrode.

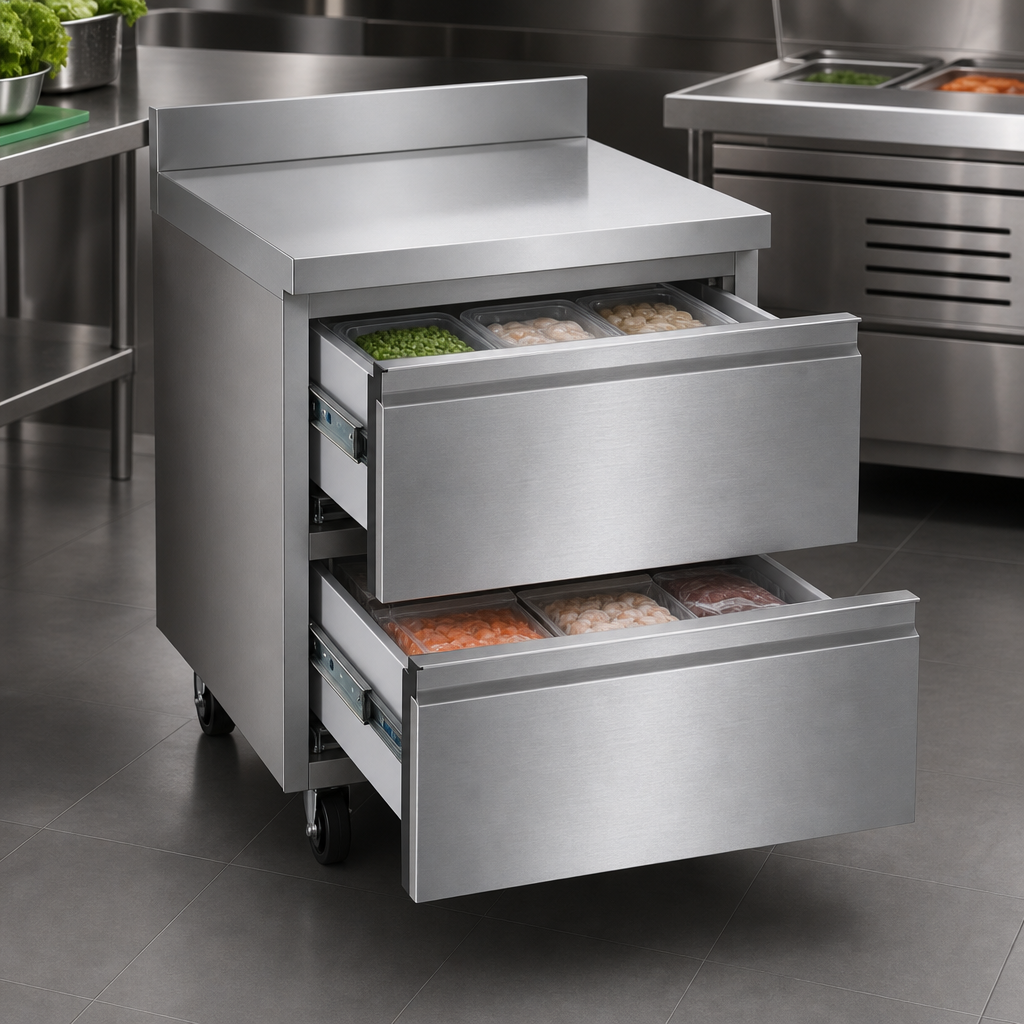

- (2) full-extension drawers on 11-gauge stainless slides with Delrin bearings (lifetime warranty on track assembly).
- Each drawer holds (2) full-size 12" × 20" pans (top 4–6" deep, bottom 4" deep – pans sold separately).
- ACT solid-state electronic control maintains 0 °F to 5 °F (-18 °C to -21 °C) in heavy-duty conditions.
- High-efficiency, natural R290 hydrocarbon refrigeration with foamed-in-place polyurethane insulation.
- Ships on 5" locking plate casters for effortless cleaning and positioning.
- Plug-and-play 115 V connection with 10 ft. cord & NEMA 5-15P plug.
Specifications at a glance
| Exterior width | 32.13" (81.6 cm) |
|---|---|
| Exterior depth | 31.13" (79.1 cm) |
| Cabinet height* | 31.5" (80.0 cm) | 35.5" (90.2 cm) to top of 4" backsplash |
| Usable capacity | 8.8 ft3 (249 L) |
| Horsepower | 0.35 hp |
| Voltage / Phase | 115 V / 60 Hz / 1-phase |
| Amperage | 5.2 A |
| Refrigerant | R290 (hydrocarbon) |
| Casters | (4) 5" plate casters, front two locking (2.5" floor clearance) |
| Shipping weight | 348 lb. (158 kg) |
| Warranty | 3 yr parts & labor • 7 yr compressor • Lifetime drawer tracks & ABS liner |
*Heights are with standard 5" casters. Low-profile 3" casters are available.
Factory options & accessories
- 18" single-tier overshelf
- Composite / poly cutting board
- Stainless-steel finished back
- 3" or low-height casters
- Door (drawer) lock
- Stacking collar for two-tier installation
- Additional full-size pan adapters
LED lighting and exterior thermometer are not available on drawer models.
Routine cleaning of the condenser coil is required to maintain optimal performance and to preserve your warranty coverage.
