Delfield STD4527NP Undercounter & Worktop Refrigeration
Description

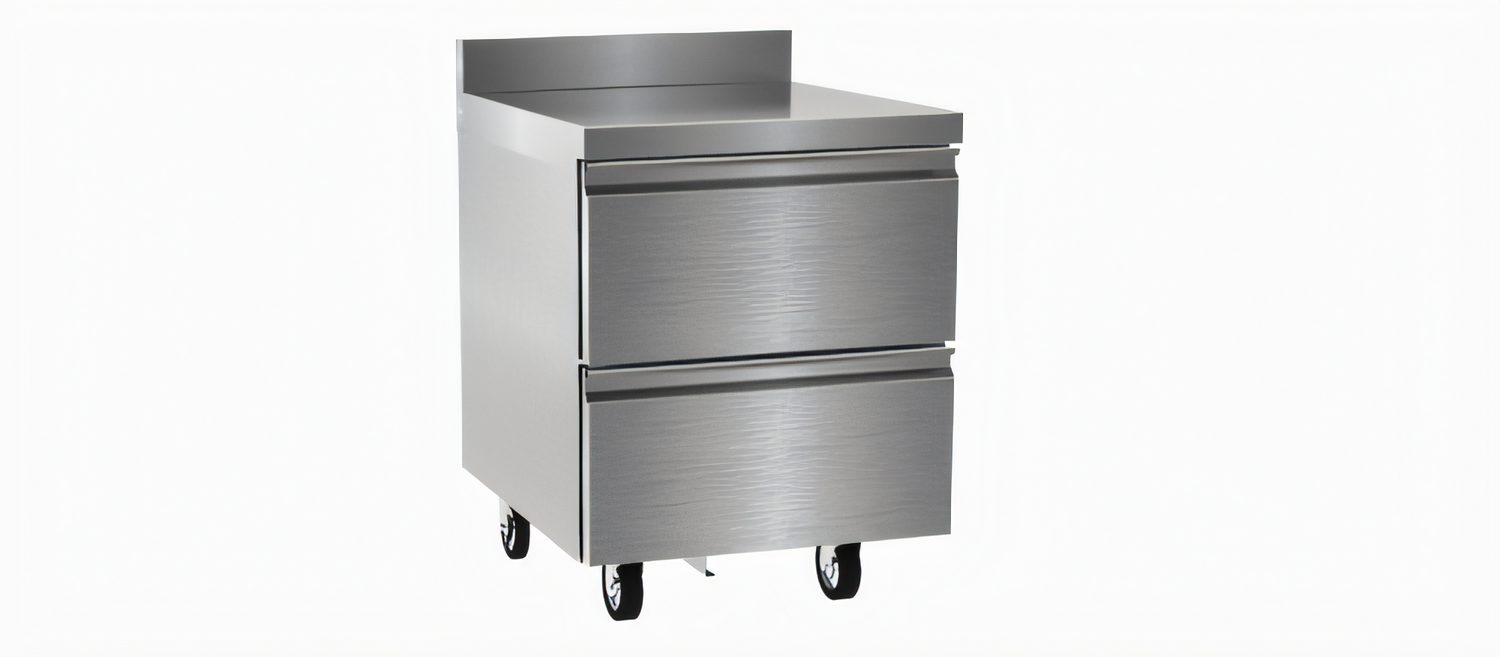

Delfield STD4527NP 27" Worktop Freezer – 2-Drawer w/ 4" Backsplash
Front-breathing, self-contained undercounter freezer baseBuilt for tight kitchen footprints and relentless commercial use, the Delfield STD4527NP delivers true zero-degree performance in a compact 27" platform that can roll right up to a wall or slide under an existing line-up. Two heavy-duty drawers, a full-width 4" stainless backsplash and a lifetime-backed drawer track system make this the last worktop freezer base you’ll need to buy.
Key benefits

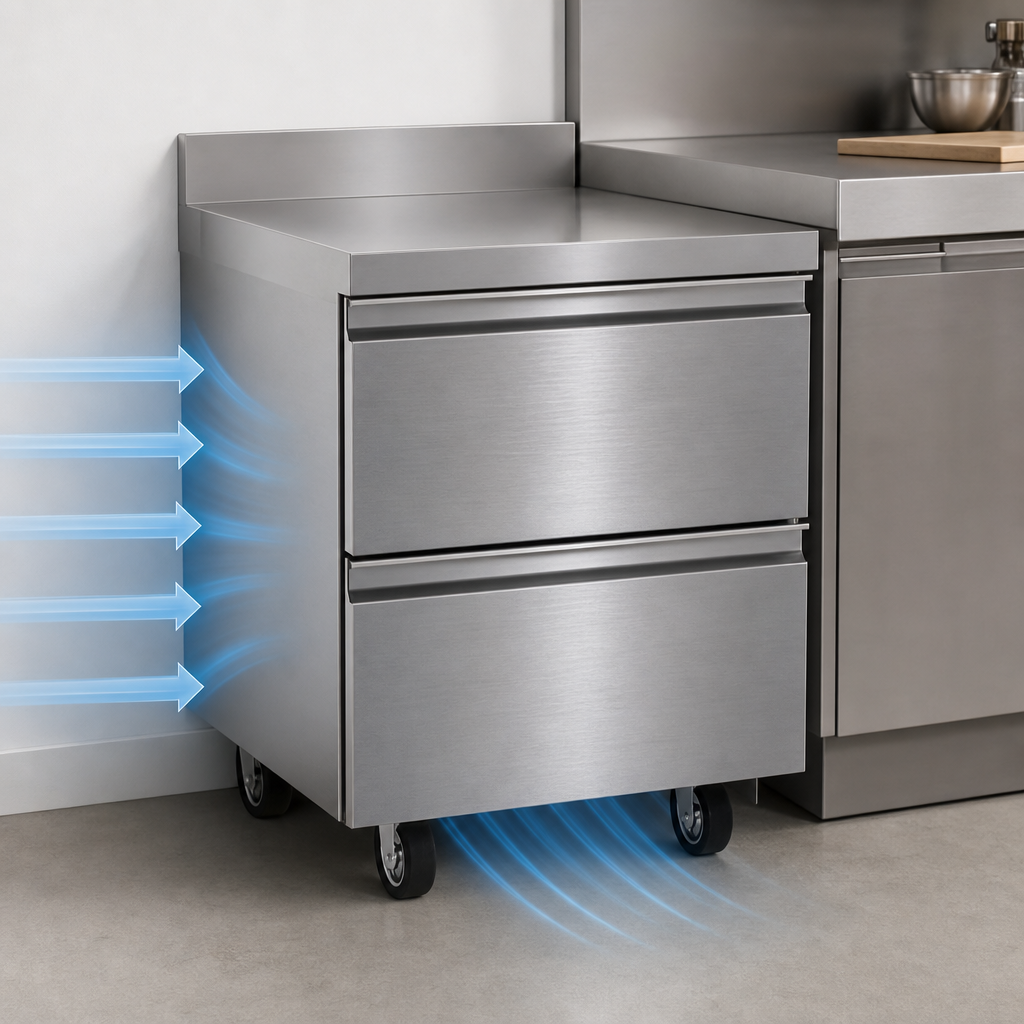

- Front-breathing design lets the unit sit flush against walls or inside casework—no side or rear clearance required.
- Rugged construction: 22-gauge stainless exterior, 12-gauge drawer frames and dent-proof ABS interior sidewalls (lifetime warranty).
-

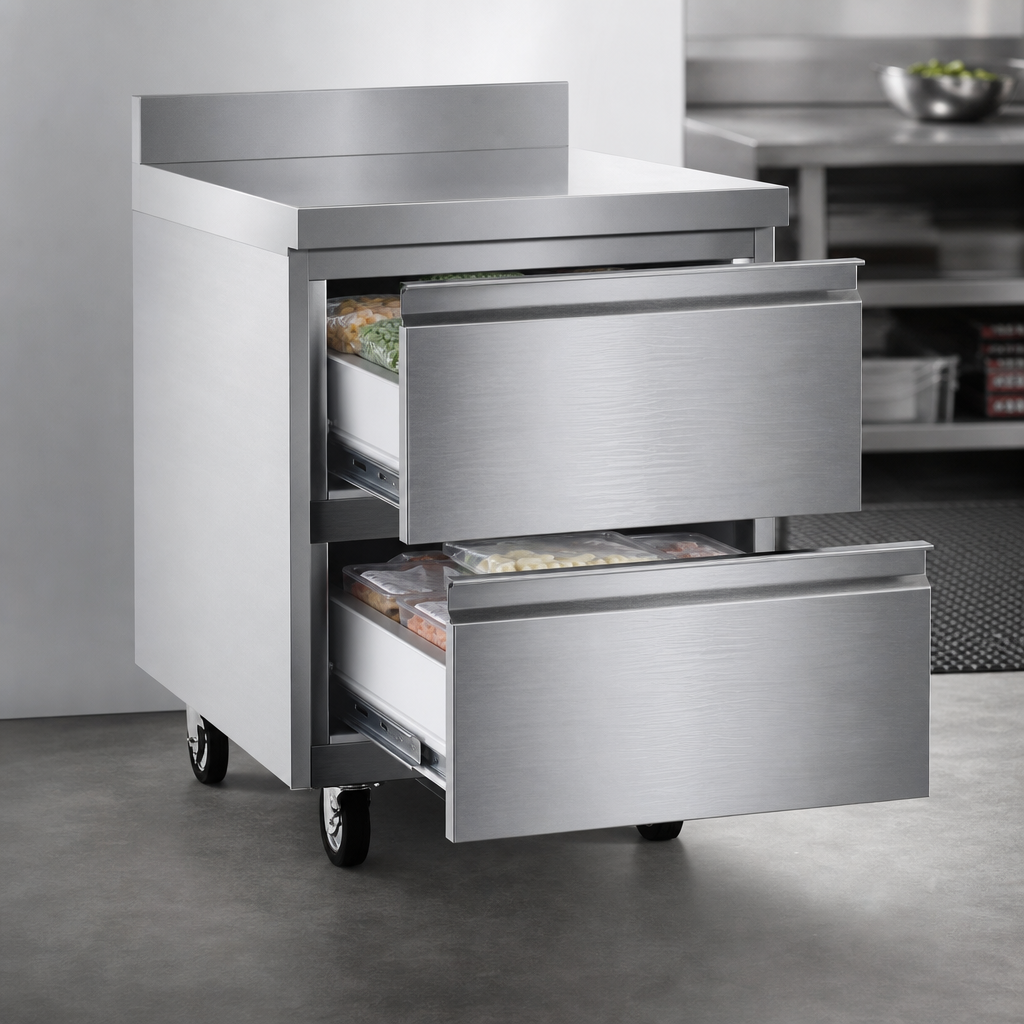

Two full-extension drawers (lifetime track warranty) each accepting
• (1) full-size 12" × 20" pan
• (3) 1/6-size pans — top drawer 4-6" deep, bottom drawer 4" deep (pans supplied by others). - ACT solid-state controller maintains a rock-solid 0 °F to 5 °F (-18 ° to -21 °C) cabinet temperature—even in punishing rush-hour conditions.
- Environmentally friendly R290 hydrocarbon refrigerant and high-density, foamed-in-place insulation reduce energy costs.
- 5" locking casters included for effortless cleaning and mobility.
- 10' factory-installed cord & NEMA 5-15P plug—just roll in and power up.
- Backed by a 3-year parts & labor warranty plus 7-year compressor coverage.
Technical specs
| Model | STD4527NP |
|---|---|
| Type | One-section worktop / undercounter freezer base with 4" backsplash |
| Exterior dimensions* | 27.13" W × 31.50" D × 40.00" H (incl. backsplash) |
| Interior volume | 7.14 ft³ (202 L) |
| Compressor | 0.35 HP, front-breathing, self-contained |
| Refrigerant | R290 (EPA SNAP compliant) |
| Electrical | 115 V / 60 Hz / 1-phase, 5.2 A, NEMA 5-15P, 10' cord |
| Pan capacity | (2) full-size 12" × 20" pans & (6) 1/6-size pans (pans not included) |
| Casters | (4) 5" plate casters, front two locking |
| Ship weight | 245 lb (111 kg) |
| Certifications | NSF 7, UL EPIQ, ENERGY STAR® (refrigerated base series) |
*Dimensions taken with standard 5" casters installed.
Popular factory options
- 18" single-tier overshelf
- Composite or poly cutting board
- Stainless steel back panel
- Lower-height casters or 3" casters (4" ride)
- Drawer/door lock kit
- Stacking collar for double-decker installations
