Delfield N8873 Steam Tables & Food Wells
Description

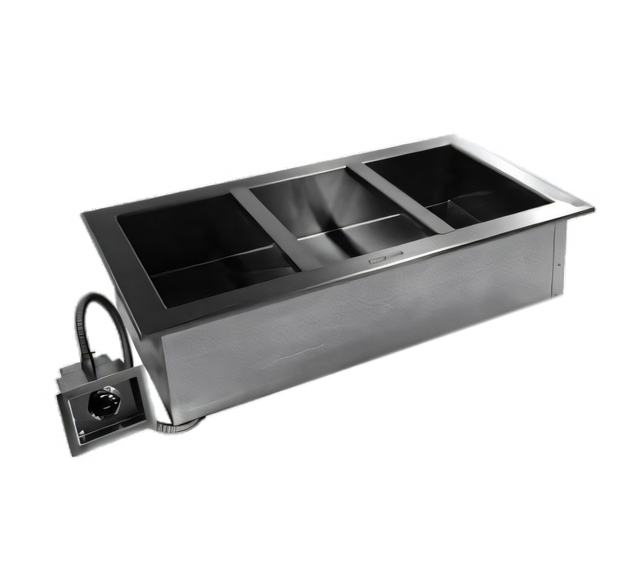

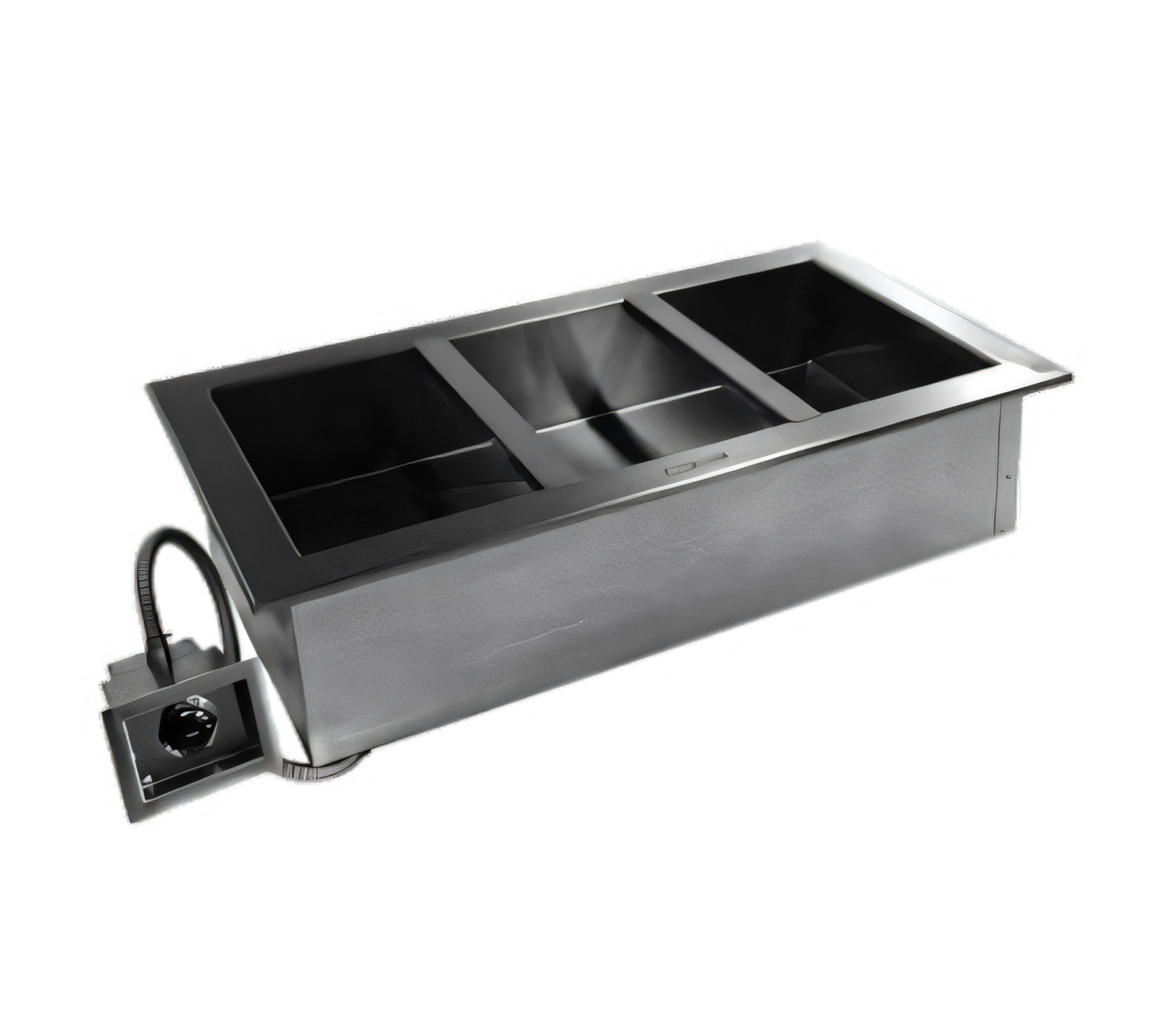

Delfield N8873 Drop-In Electric Hot Food Well – 5 Pan, Wet Operation
Single-Tank Open Well with Remote Thermostat ControlKeep entrées, sides and sauces at perfect serving temperature with the Delfield N8873 Hot Food Well. Designed to drop seamlessly into a 72-3/8" x 25" counter cutout, this 5-pan unit delivers reliable wet-heat performance in a rugged, stainless-steel package that’s built for high-volume commercial kitchens.
Key Features & Benefits
- Holds five standard 12" x 20" hotel pans in a single 8" deep stainless-steel tank.
- 1,000 W element under each pan position (5,000–6,000 W total) for fast, even heat.
- Wet-operation design maintains consistent humidity to reduce food shrinkage.
- Remote control panel with single mechanical thermostat – mount where it’s most convenient for staff (2 ft pre-wired flexible conduit included).
- Integral 1" NPT stainless-steel drain speeds end-of-day cleanup.
- Adapter bars included for secure pan placement straight out of the box.
- Heavy-gauge, one-piece stainless-steel top with a 2" perimeter flange for a clean, press-fit installation.
- High-temperature fiberglass insulation on sides and 2" blanket insulation on bottom reduce energy loss and protect surrounding cabinetry.
- Galvanized exterior housing adds corrosion-resistant durability below the counter line.
Technical Specifications
| Model | N8873 |
|---|---|
| Pan Capacity | 5 × 12" × 20" hotel pans (full-size) |
| Overall Length (A) | 73.38" (186 cm) |
| Counter Cutout Required | 72.38" L × 25.00" W (184 cm × 64 cm) |
| Well Depth | 8.00" (20 cm) |
| Electrical | 208–230 V / 60 Hz / 1-phase, 24–27 A |
| Total Wattage | 5,000 – 6,000 W |
| Drain Connection | 1" male NPT |
| Shipping Weight | 195 lb (88 kg) |
| Certifications | cUL, UL, NSF |
Cutout & Control Panel Dimensions
- Main counter cutout: 72-3/8" L × 25" W
- Control panel cutout: 12-1/4" L × 4-1/4" H × 7" D
- Allow 6" clearance at drain end for plumbing access.
Included & Optional Accessories
- Included: (4) stainless-steel adapter bars, press-fit perimeter gasket.
- Optional: additional adapter bars/plates, single- or double-service flip-up sneeze guards, telescoping covers.
Warranty & Support
Backed by Delfield’s 1-year parts and 90-day labor warranty. Extended coverage, start-up assistance and installation services are available – contact us for details.
