Delfield | SKU:
N8787-D
Delfield N8787-D Steam Tables & Food Wells
$7,794.50
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Delfield N8787-D Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Delfield N8787-D Steam Tables & Food Wells
$7,794.50
Unit price
/
Unavailable
Description

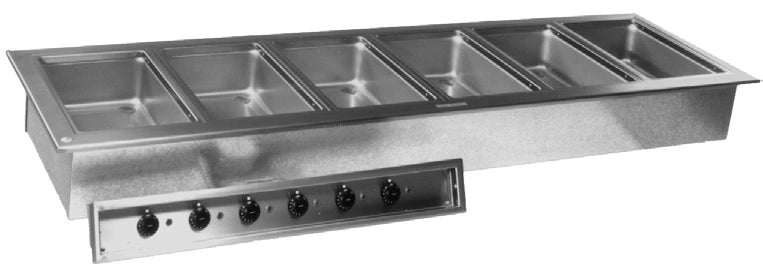

Delfield N8787-D Drop-In Hot Food Well – 6 Pan, Wet/Dry, Individually Controlled
86-1/4" cut-out • cUL | UL | NSFKeep entrées at perfect serving temperature across the busiest service periods. The Delfield N8787-D provides six individually controlled 12" × 20" wells that run wet or dry, each with its own drain, delivering the versatility and reliability demanded by commercial kitchens and self-serve lines.
Why You’ll Love It
- 6 x 1000 W heated wells – precise, independent infinite controls for each pan.
- Dual-mode operation – use with or without water to match menu needs.
- Integrated ½" NPT drains manifolded to a single gate valve for fast, mess-free emptying.
- Heavy-duty 18-ga stainless steel top & 20-ga drawn wells resist corrosion and simplify cleanup.
- Insulated on all sides (1" fiberglass) with 2" fiberfrax bottom blanket for energy efficiency.
- Remote control panel (4 ft conduit supplied) keeps counter surfaces clean and safe.
- Non-marring press-fit gasket delivers a flush, moisture-tight installation.
- Ships fast and arrives ready for hard-wire connection to your electrical feed.
At-a-Glance Specs
| Pan Capacity | 6 × full-size (12" × 20") hotel pans |
|---|---|
| Cut-out Required | 86.25" L × 25" W (219.1 cm × 63.5 cm) |
| Overall Length (A) | 87.25" (221.4 cm) |
| Well Depth | 6.25" (15.9 cm) |
| Electrical | 208-230 V / 60 Hz / 1 ph, 29-32 A, 7.2 kW (hard-wired) |
| Controls | 6 × individual infinite temperature dials (remote panel) |
| Drain Connection | ½" NPT per well, manifolded to single ½" gate valve (left end) |
| Construction | 18-ga stainless top & flange, 20-ga stainless wells, 20-ga galvanized exterior |
| Certifications | cUL, UL, NSF |
| Shipping Weight | 236 lb (107 kg) |
| Warranty | 1 year parts / 90 days labor |
Perfect For
- Buffet & cafeteria service lines
- Supermarket hot bars
- C-stores and delis
- Catering & banquet kitchens
Important: Provide a minimum 3" clearance between the unit’s exterior body and any combustible materials. Unit is supplied without cord or plug and must be field hard-wired by a qualified electrician.
Popular Accessories (sold separately)
- Adapter bars & plates for fractional pans
- Single- or double-service sneeze guards
- Telescoping stainless covers
- Thermostatic control package
Delfield reserves the right to modify design or specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Delfield
Certifications
NSF, UL
Height
9.5in
Width
87.25in
Depth
26.0in
Shipping Weight
236.0lbs
Controls
infinite controls
Pan Capacity
(6) full size (12" x 20")
Wet or Dry operation
wet or dry
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Drain
with drain
Specifications
Drop-In Hot Food Well Unit, Electric, individual pans, wet/dry type with drain & manifold, 6-pan size for 12" x 20" pans, individual infinite temperature controls, stainless steel top & wells, galvanized outer liner, (86-1/4" x 25" cutout required), cUL, UL, NSF
