Delfield N8773-D Steam Tables & Food Wells
Description

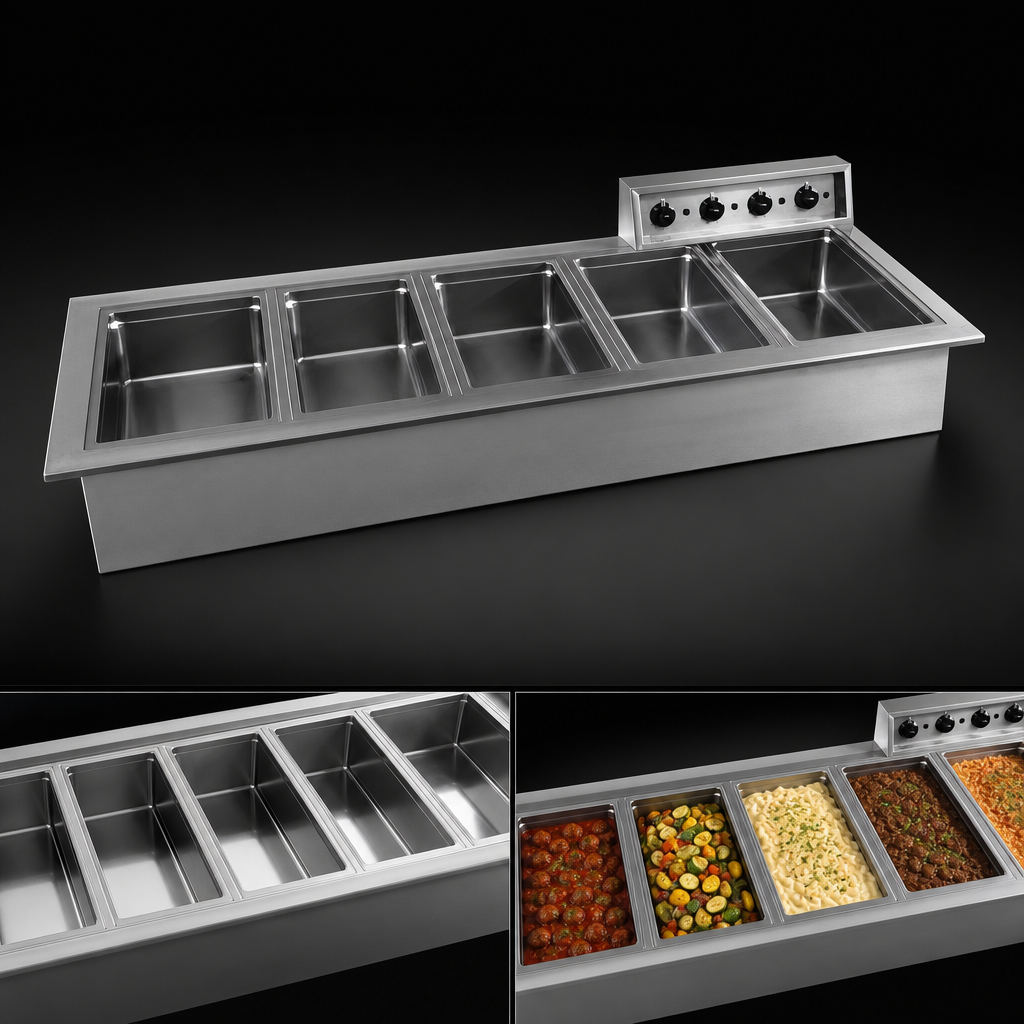

Delfield N8773-D 5-Pan Drop-In Hot Food Well
Individually controlled • Wet or dry operation • 72-3/8" counter cut-outKeep every entrée, side and sauce at the perfect serving temperature with Delfield’s N8773-D hot food well. Five independently heated 12" × 20" wells let you hold a variety of menu items simultaneously, while the integral drain manifold speeds up end-of-shift clean-up. Built for heavy commercial use, this drop-in installs fast and delivers reliable performance day after day.
Key features
- Five flush-mounted wells, each with a 1 kW element and infinite control knob.
- Designed for wet OR dry heating—ideal for soups, sauces, proteins and sides.
- 18-ga stainless steel top & 20-ga drawn wells resist corrosion and wipe clean.
- 1" fiberglass insulation around wells and 2" fiberfrax blanket beneath for energy efficiency.
- ½" stainless steel drains manifolded to a single gate valve for quick, mess-free emptying.
- Remote control panel (4' pre-wired conduit) mounts wherever staff can reach it best.
- Press-fit perimeter gasket comes installed—just drop in, hard-wire and you’re ready.
- Meets cULus & NSF standards; backed by a 1-year parts / 90-day labor warranty.
Specification highlights
| Model | N8773-D |
|---|---|
| Pan capacity | 5 full-size (12" × 20") pans |
| Overall length | 73.38" (186.4 cm) |
| Required cut-out | 72.37" L × 25" W (183.8 × 63.5 cm) |
| Well depth | 6.25" (15.9 cm) |
| Control panel cut-out | 4.62" H × 22.88" W × 7" D (11.7 × 58.1 × 17.8 cm) |
| Electrical | 208–230 V / 60 Hz / 1-ph |
| Amps | 24 A @ 208 V • 27 A @ 230 V |
| Total wattage | 5 kW @ 208 V • 6 kW @ 230 V |
| Drain connection | ½" NPT gate valve |
| Ship weight | Approx. 186 lb (84 kg) |
| Certifications | cULus, UL, NSF |
Perfect for
- Buffet & self-service lines
- Cafeteria or commissary hot bars
- Made-to-order stations
- Back-of-house holding & staging
Optional accessories
- Adapter plates & spacer bars
- Single- or double-service flip-up sneeze guards
- Telescoping covers
- 220 V / 50 Hz electrical configuration
- Omit drains & manifold (factory option)
Need a different size? Delfield’s N8700-D series is available in 1-, 2-, 3-, 4- and 6-well models.
