Delfield | SKU:
N8768ND
Delfield N8768ND Steam Tables & Food Wells
$4,087.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Delfield N8768ND Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Delfield N8768ND Steam Tables & Food Wells
$4,087.00
Unit price
/
Unavailable
Description
Delfield N8768ND Narrow Drop-In Hot Food Well – 3-Pan, Wet/Dry, Electric
Individually controlled | Integrated manifold drain | cUL, UL & NSF listedMaximize serving capacity without giving up valuable counter space. The Delfield N8768ND is a narrow, 66-1/4" drop-in hot food well that keeps three full-size 12" × 20" pans at safe, appetizing temperatures—wet or dry—each with its own infinite control.
Built for Busy Service Lines

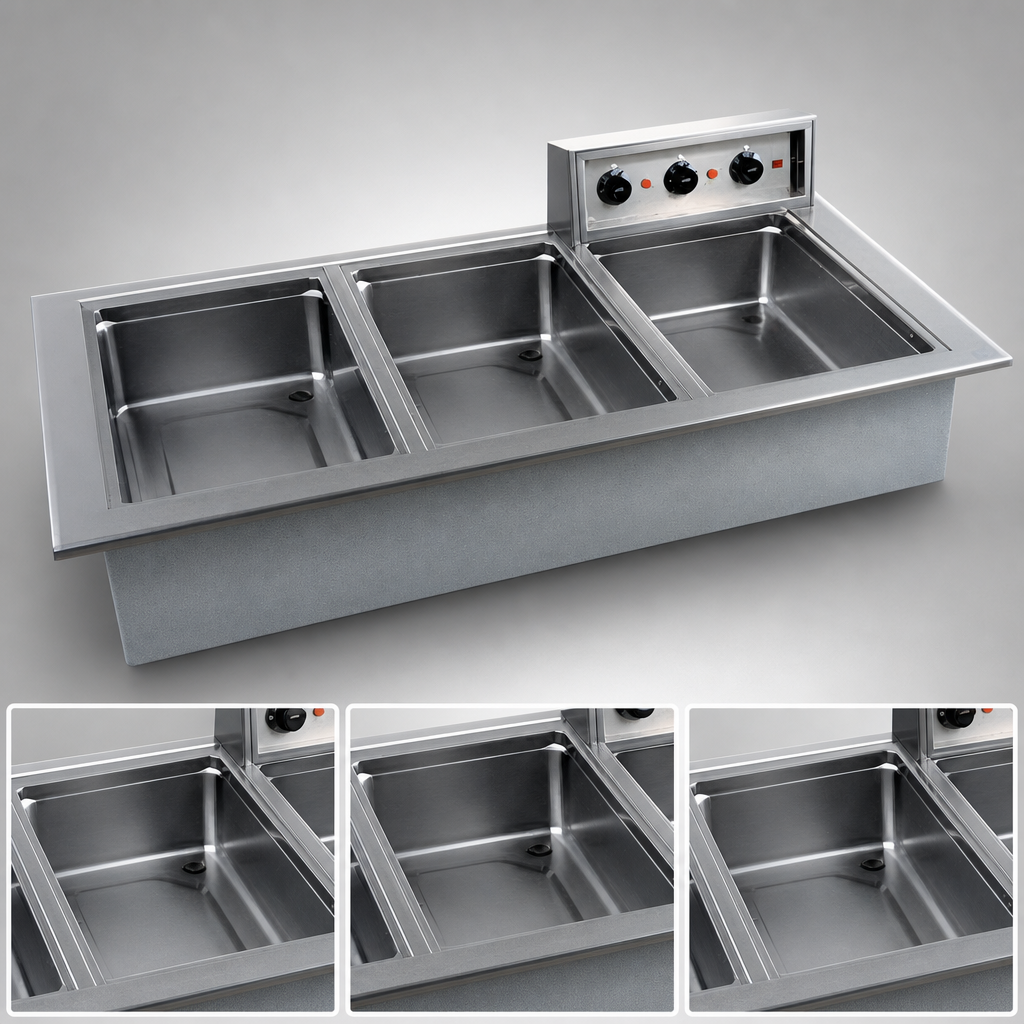

- Three independent 6.25"-deep wells, each heated by a 1,000 W element for pinpoint temperature control.
- Wet or dry operation lets you adapt to a wide range of menu items and holding times.
- 1/2" stainless-steel drains manifolded to a single gate valve for fast, mess-free cleanup.
- 18-gauge stainless-steel top with pressed-fit gasket sits flush with the counter for a clean, professional look.
- 20-gauge stainless wells are slightly recessed to capture condensation and maintain food quality.
- 1" high-density fiberglass insulation on all sides plus a 2" fiberfrax blanket beneath the wells reduces heat loss.
- Remote-mount control panel (4' pre-wired conduit included) keeps electronics away from heat and moisture.
- Galvanized steel exterior housing stands up to everyday kitchen traffic.
Technical Specifications
| Capacity | 3 × 12" × 20" full-size pans (not included) |
|---|---|
| Overall Dimensions (L × W) | 67.48" × 15.87" |
| Counter Cut-Out | 66.48" × 15" (recommended) (≈ 66-1/4" × 15") |
| Control Panel Cut-Out | 14.50" × 4.62" |
| Well Opening (each) | 19.87" × 11.87" | 6.25" deep |
| Power | 3,000 W total | 208-230 V, 60 Hz, 1-Ph, 16 A | hard-wire connection |
| Construction | 18-ga. stainless top & 20-ga. stainless wells, galvanized outer liner |
| Controls | 3 independent infinite switches, factory-wired to remote panel |
| Drainage | 1/2" NPT drains manifolded to single gate valve |
| Certifications | cUL, UL, NSF |
| Warranty | 1-year parts & 90-day labor |
| Shipping Weight | 130 lb / 59 kg (approx.) |
Installation Reminder: Unit ships ready for hard-wire connection only.
Remote control panel must be field-mounted, and pans are sold separately.
Need adapter plates, sneeze guards or telescoping covers? Ask our team about factory-approved accessories to complete your build-out.
Features & Specs
Features & Specs
Manufacturer
Delfield
Certifications
NSF, UL
Height
9.5in
Width
67.48in
Depth
15.87in
Shipping Weight
130.0lbs
Controls
infinite controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Pan Capacity
(3) full size (12" x 20")
Drain
with drain
Wet or Dry operation
wet or dry
Specifications
Narrow Drop-In Hot Food Well Unit, Electric, individual pan design, wet or dry type, 3-pan size for 12" x 20" pans, with drains, infinite controls, stainless steel top & inner liner, galvanized outer liner, (66-1/4" x 15" cutout required), cUL, UL, NSF
