Delfield

Narrow Drop-In Electric Hot Food Well, 3 Full-Size Pans, Wet/Dry, No Drain

SKU: N8768N
$3,968.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

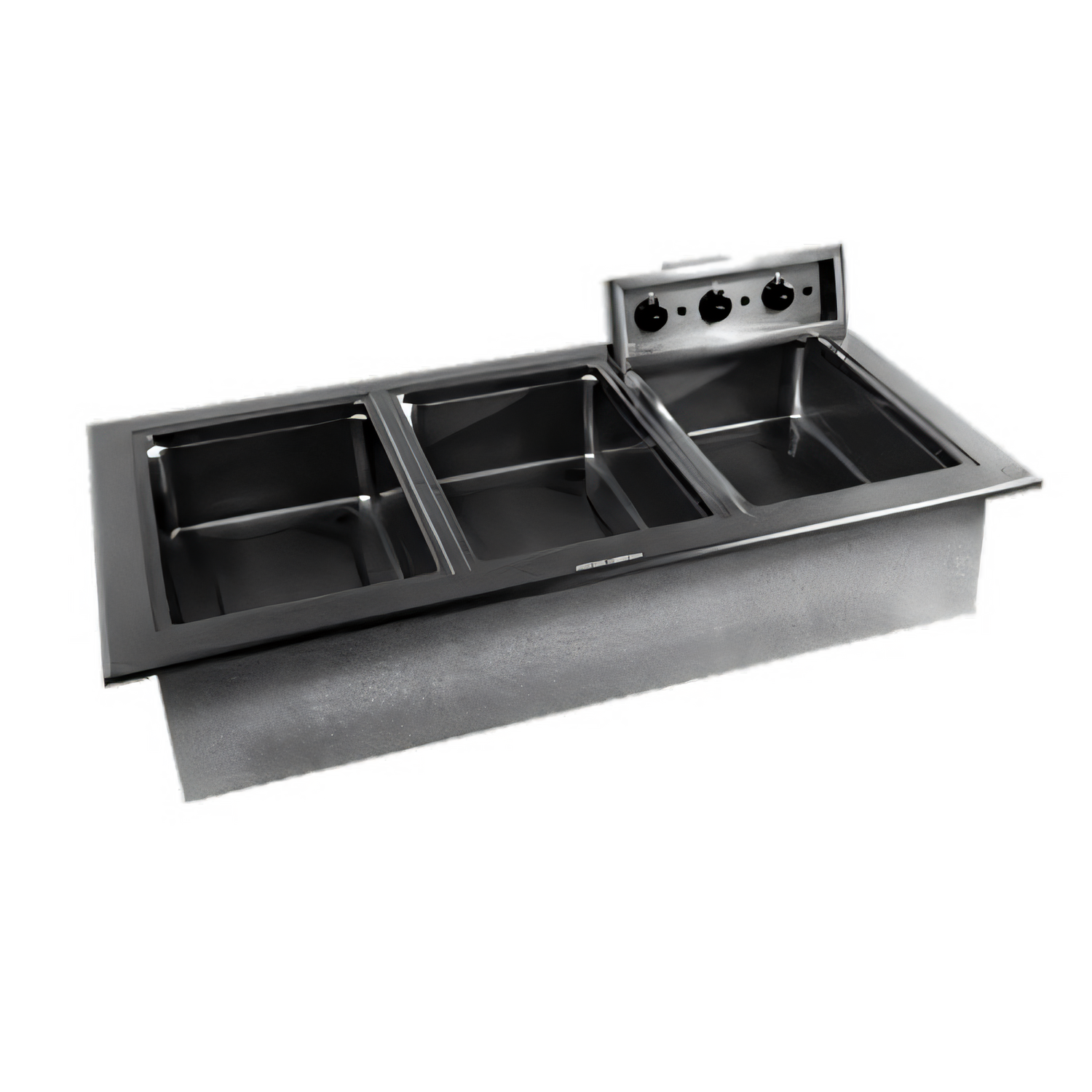

Narrow Drop-In Electric Hot Food Well, 3 Full-Size Pans, Wet/Dry, No Drain

Individual Pan Design with Infinite Controls

Built for flexible buffet service, this narrow drop-in hot food well holds three full-size pans, runs wet or dry, and lets you control each well independently.

  • Holds three full-size 12" x 20" pans for hot food service.
  • Wet or dry operation gives you serving flexibility.
  • Individual infinite controls let you manage each well separately.
  • Insulated construction helps retain heat and improve efficiency.
  • Stainless steel top and galvanized exterior are built for durability.
  • No-drain design is ideal for simpler, low-maintenance installations.

Overall Dimensions:

67.48"W x 15.87"D x 9.5"H

Product Weight:

130.0 lb

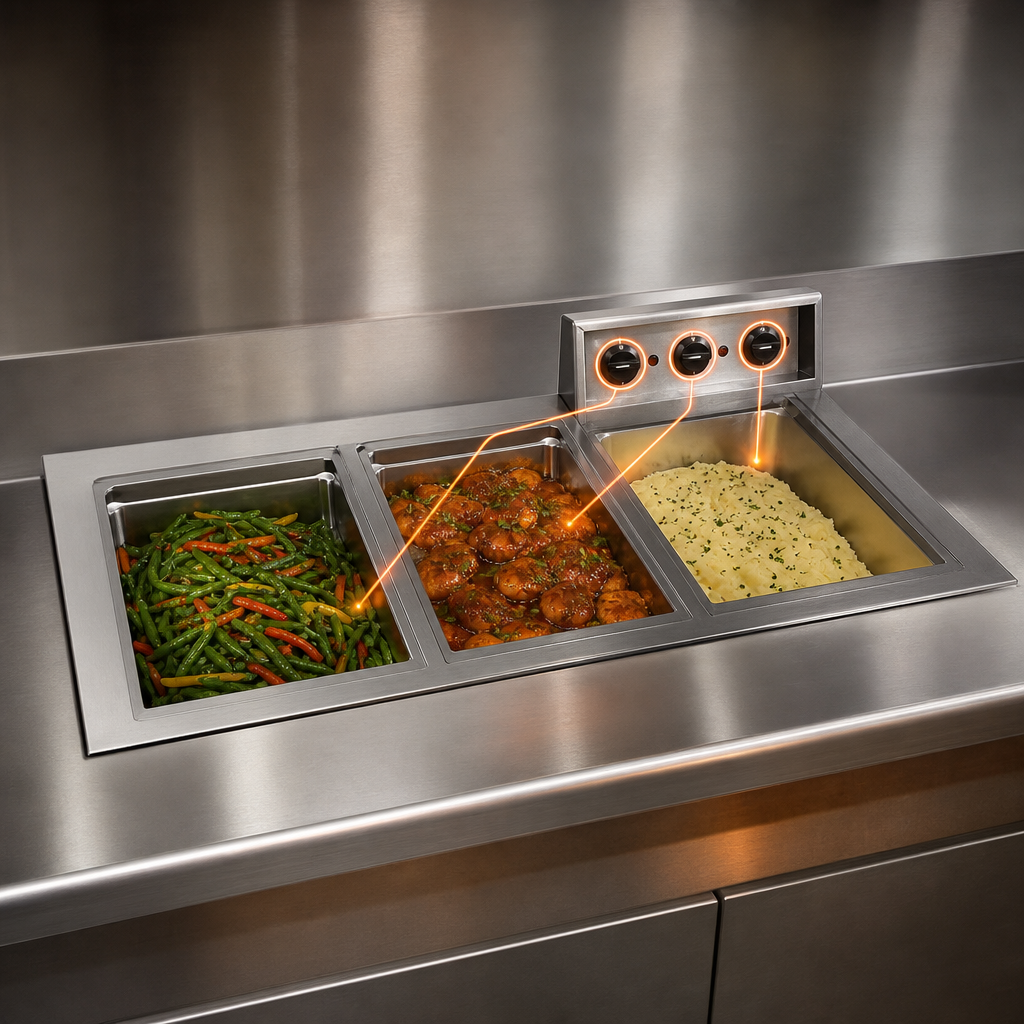

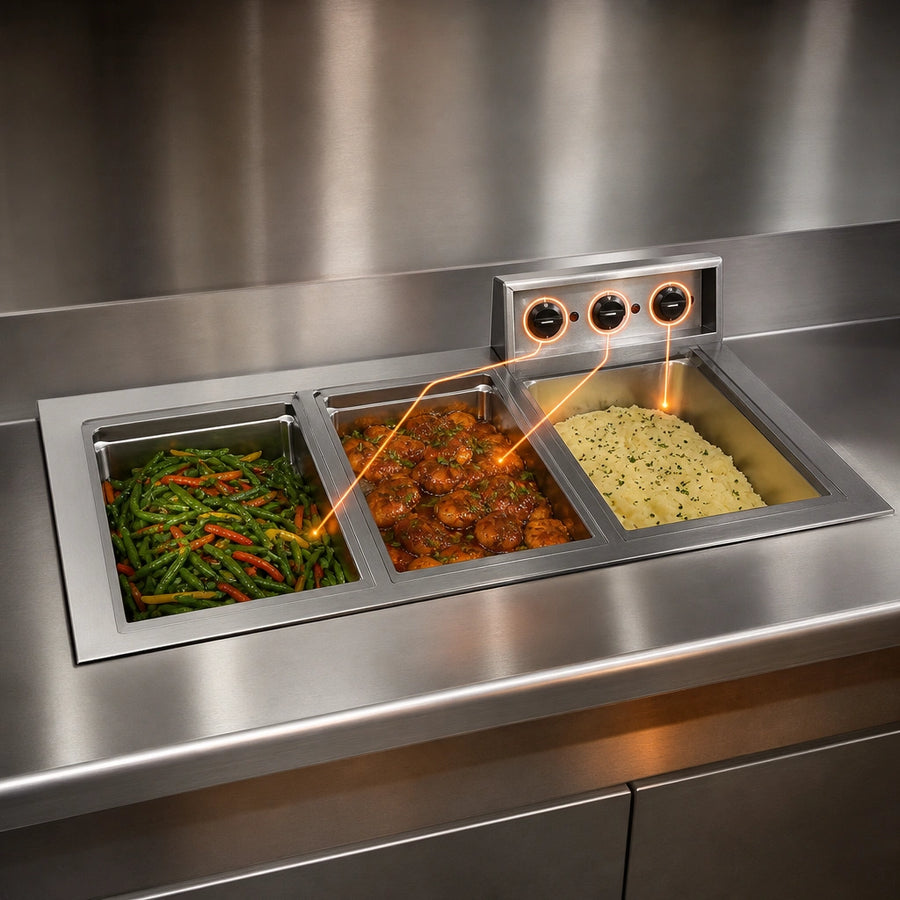

Individual Infinite Controls

Each food well has its own infinite temperature control for precise heat management.

Wet or Dry Operation

Designed to operate with water or without water, depending on service needs.

No-Drain Configuration

This N8768N model is supplied without drains.

Insulated Cabinet

Fiberglass insulation on the sides and bottom helps retain heat.

Stainless Steel Top

One-piece stainless steel top with die-stamped 12" x 20" openings.

Galvanized Exterior Body

Corrosion-resistant galvanized steel exterior housing.

Hard-Wired Electrical Connection

Unit is intended for field hard-wiring with a three-wire junction box and supplied conduit.

Required Cutout

Requires a 66-1/2 inch x 15 inch counter cutout for installation.

Type Hot Food Well
Installation Type Drop-In
Style Individual Pans
Controls Infinite
Compartments 3
Pan Capacity 3 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Watts 3 kW
Voltage 208-230 Volts
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Hard Wired
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized
Shipping Width 68 Inches
Shipping Depth 16 Inches
Shipping Height 10 Inches
Shipping Weight 130 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year limited warranty

Frequently Asked Questions

It is sized for three full-size 12" x 20" pans.
No. The N8768N is the no-drain version.
Yes. It is designed for wet or dry operation.
It uses 208-230 volts, 60 Hz, single-phase power and must be hard-wired.
Yes. Each well has its own infinite temperature control.
The unit requires a 66-1/2 inch by 15 inch cutout.
