Delfield N8745-D Steam Tables & Food Wells
$3,967.50
Unit price
/
Unavailable
Description

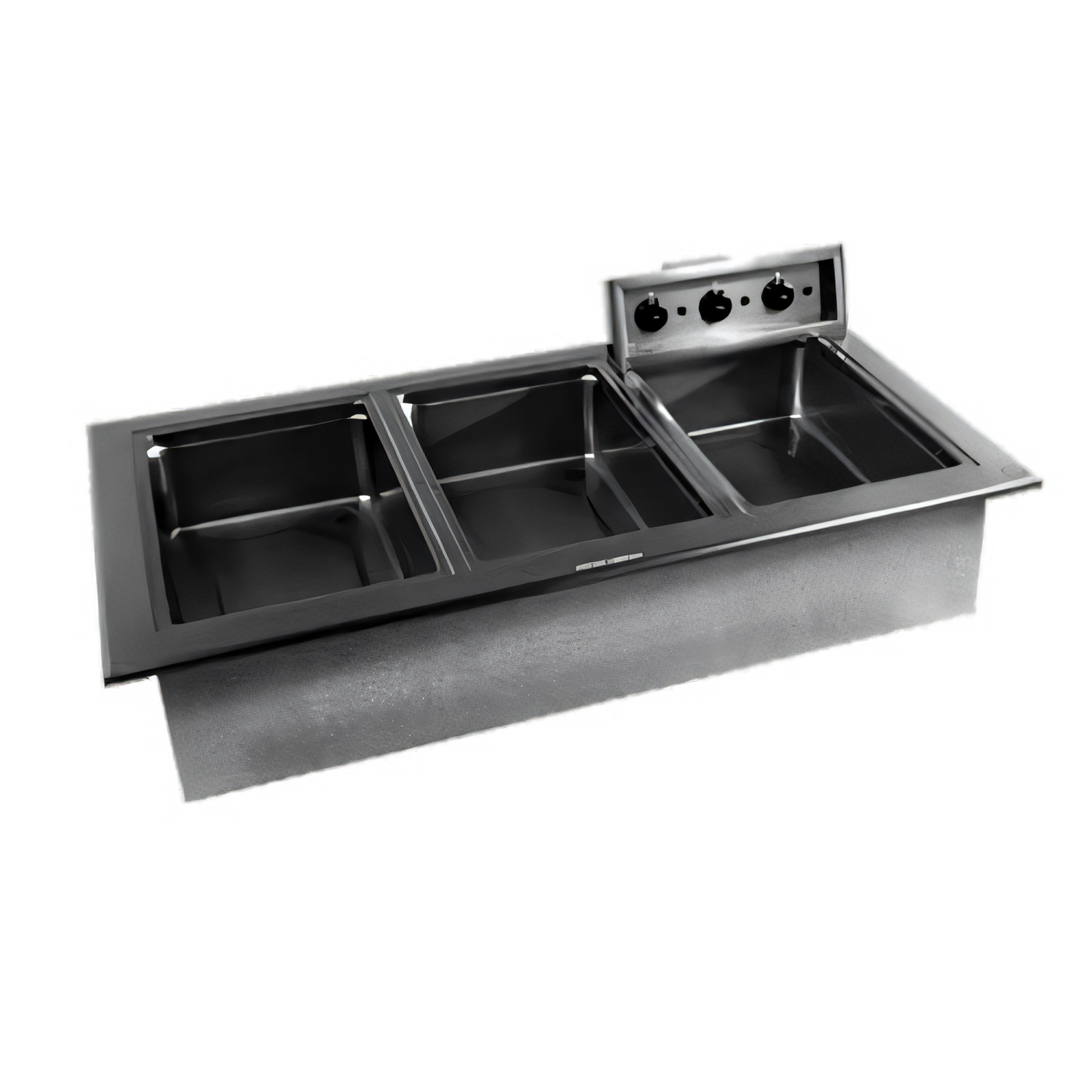

Delfield N8745-D Drop-In 3-Pan Hot Food Well
Individually controlled, wet/dry operation — fits three 12″ × 20″ pansServe every item at its ideal temperature without giving up counter space. The Delfield N8745-D drops into a 44-5/8″ × 25″ cutout and puts an independent 1 kW heater beneath each well, so you can hold soups, sides or entrées exactly the way guests expect them.
Key advantages

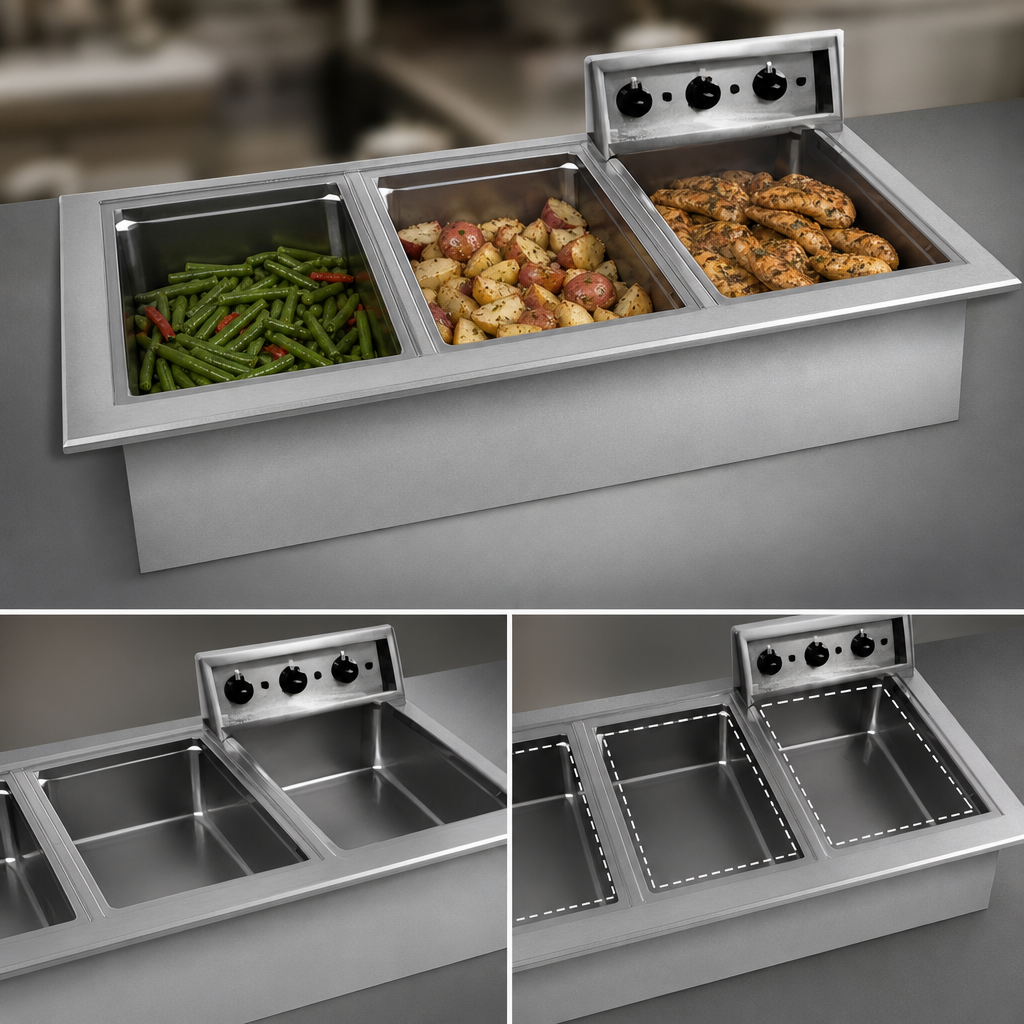

- Three individually heated 12″ × 20″ wells with 1000 W element & infinite control each.
- Wet or dry holding lets you switch from moist foods to crispy favorites in seconds.
- ½″ NPT drains on every well, factory-manifolded to a single left-hand gate valve for quick clean-up.
- 18-ga stainless steel top and 20-ga drawn wells are flush mounted and recessed to catch condensation.
- Pre-installed press-fit gasket for a true “drop-in and go” installation.
- 1″ fiberglass insulation on sides, 2″ fiberfrax blanket below to reduce heat loss and protect cabinetry.
- Remote control panel (4′ conduit & wiring included) keeps wiring hidden and gives staff easy access.
- Galvanized exterior liner, cULus & NSF listings and a 1-year parts / 90-day labor warranty.
Technical specifications
| Model | N8745-D |
|---|---|
| Well capacity | 3 × full-size 12″ × 20″ pans |
| Required cutout | 44.62″ W × 25″ D (113.3 cm × 63.5 cm) |
| Overall top length | 45.63″ (115.9 cm) |
| Well interior (each) | 19.87″ L × 11.87″ W × 6.25″ D |
| Heating elements | 3 × 1000 W strip elements (mounted to well bottom) |
| Total wattage | 3000 W @ 208 V / 4000 W @ 230 V |
| Electrical | 208–230 V, 60 Hz, 1-phase, 15–16 A, hard-wired |
| Drain connection | ½″ NPT female (manifolded) |
| Control panel cutout | 4.62″ H × 14.5″ W × 7″ D |
| Ship weight | Approx. 134 lb (61 kg) |
| Certifications | cULus, UL, NSF |
Popular accessories
- Adapter bars & plates for fractional pans
- Single- or double-service sneezeguards
- Telescoping stainless steel covers
- 220 V / 50 Hz export configuration
Installation note: Unit must be hard-wired by a qualified electrician.
Allow at least 3″ clearance between the drop-in body and combustible materials.
Steam-table pans and food pictured are for demonstration only and are sold separately.
Features & Specs
Features & Specs
Manufacturer
Delfield
Certifications
NSF, UL
Height
9.5in
Width
45.63in
Depth
26.0in
Shipping Weight
134.0lbs
Controls
infinite controls
Construction
stainless steel top, corrosion resistant steel exterior
Wet or Dry operation
wet or dry
Style
individual pans
Insulated or Non-Insulated
insulated
Pan Capacity
(3) full size (12" x 20")
Drain
with drain
Specifications
Drop-In Hot Food Well Unit, Electric, individual pans, wet/dry type with drain & manifold, 3-pan size for 12" x 20" pans, individual infinite temperature controls, stainless steel top & wells, galvanized outer liner, (44-5/8" x 25" cutout required), cUL, UL, NSF
