Description

Delfield N8717-D Drop-In Hot Food Well – 1 Pan

Individually controlled • Wet or dry operation • 12" × 20" pan capacity

Keep soups, sides and entrées at safe-serve temperatures without sacrificing counter space. The Delfield N8717-D is a heavy-duty, electrically heated food well that drops straight into a 16-7/8" × 25" cut-out for a clean, flush-mount finish. Built for demanding food-service environments, it pairs an 18-gauge stainless top with a fully insulated galvanized body and gives operators precise holding control via a dedicated infinite switch.

Key Features

  • Accommodates one standard 12" × 20" full-size steam-table pan (6.25" deep well).
  • 1000 W concealed element heats wet or dry—ideal for buffet, cafeteria or à-la-carte service.
  • Remote panel with individual infinite temperature dial; 4 ft (1.2 m) flexible conduit supplied for field mounting.
  • Factory-installed, non-marring press-fit gasket ensures a tight, wobble-free fit the moment it’s dropped in.
  • ½" NPT stainless-steel drain with manifold and left-side gate valve streamlines water removal and cleanup.
  • 1" fiberglass insulation on sides plus 2" fiberfrax blanket on bottom boosts efficiency and operator comfort.
  • Rugged 18-ga stainless top & 20-ga die-stamped well for long-term corrosion resistance.
  • UL & NSF listed for sanitation and safety; available for quick shipment.
  • Backed by Delfield’s 1-year parts / 90-day labor warranty.

Specifications

Model N8717-D
Capacity 1 full-size 12" × 20" pan
Counter cut-out 16-7/8" × 25" (42.8 cm × 63.5 cm)
Overall length (flange) 17-7/8" (45.4 cm)
Well depth 6-1/4" (15.9 cm)
Electrical 115 V / 60 Hz / 1-phase – hard-wired
Power / Amps 1000 W | 8.3 A
Heat control Infinite switch (remote panel)
Drain ½" NPT female, manifolded to gate valve
Construction 18-ga stainless top & 20-ga well, galvanized outer liner
Insulation 1" fiberglass (sides) & 2" fiberfrax blanket (bottom)
Certifications UL, cUL, NSF
Shipping weight ≈41 lb (19 kg)
Warranty 1-year parts / 90-day labor

Optional Accessories (sold separately)

  • Adapter bars & plates for fractional pans
  • Single- or double-service flip-up sneeze guards
  • Telescoping stainless-steel covers
  • 220 V / 50 Hz electrical configuration
  • Omission of drains & manifold for dry-only applications
Installation note: This unit must be hard-wired by a qualified electrician. Maintain at least 3" (7.6 cm) clearance between the outside body and any combustible material.

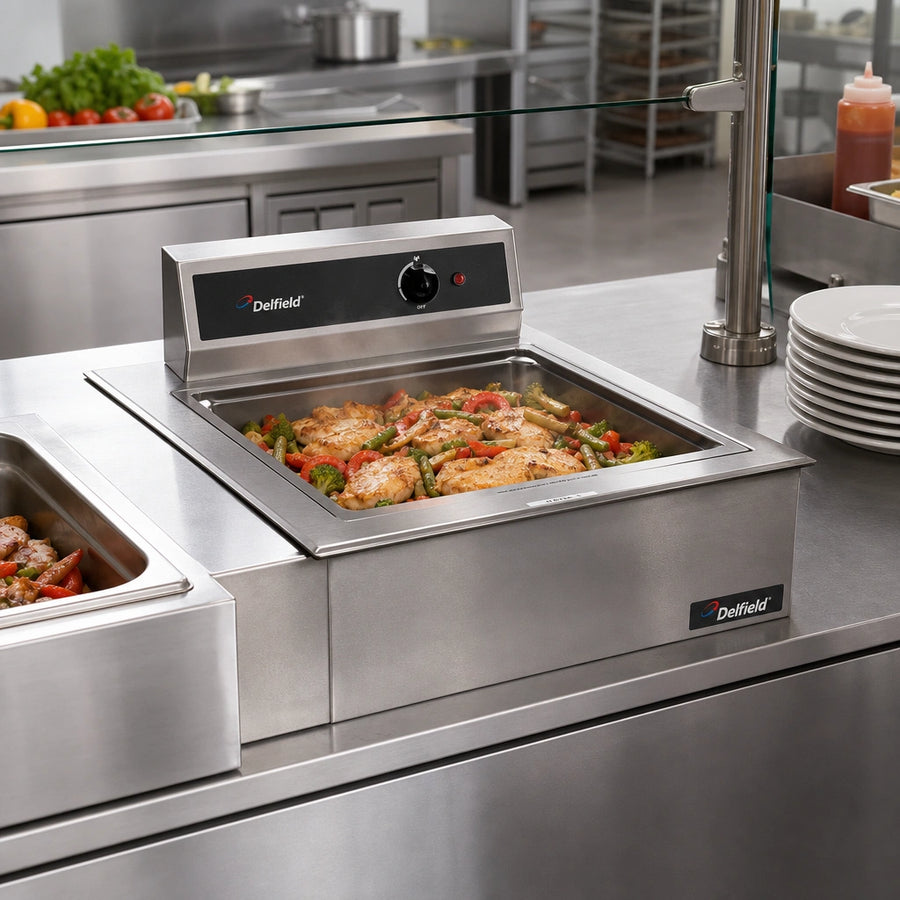

Pans, food and countertop shown in lifestyle images are for display purposes only and are not included.

Features & Specs

Manufacturer

Delfield

Height

9.5in

Width

17.88in

Depth

26.0in

Shipping Weight

41.0lbs

Wet or Dry operation

wet or dry

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

infinite controls

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Specifications

Drop-In Hot Food Well Unit, Electric, individual pans, wet/dry type with drain & manifold, 1-pan size for 12" x 20" pan, individual infinite temperature controls, stainless steel top & wells, galvanized outer liner (16-7/8" x 25" cutout required)
