Delfield | SKU:
N8630P
Delfield N8630P Steam Tables & Food Wells
$8,994.50
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Delfield N8630P Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Delfield N8630P Steam Tables & Food Wells
$8,994.50
Unit price
/
Unavailable
Description

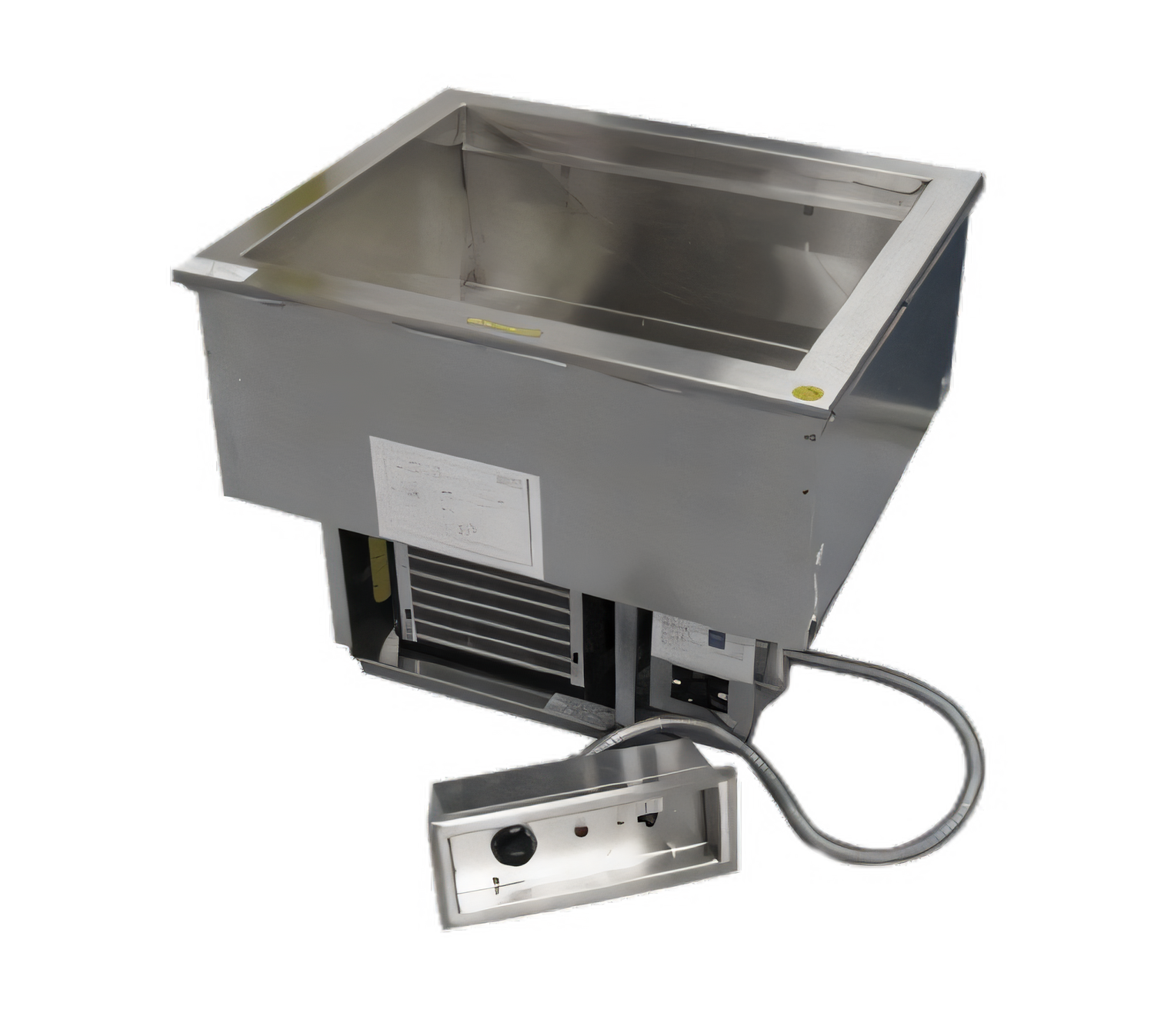

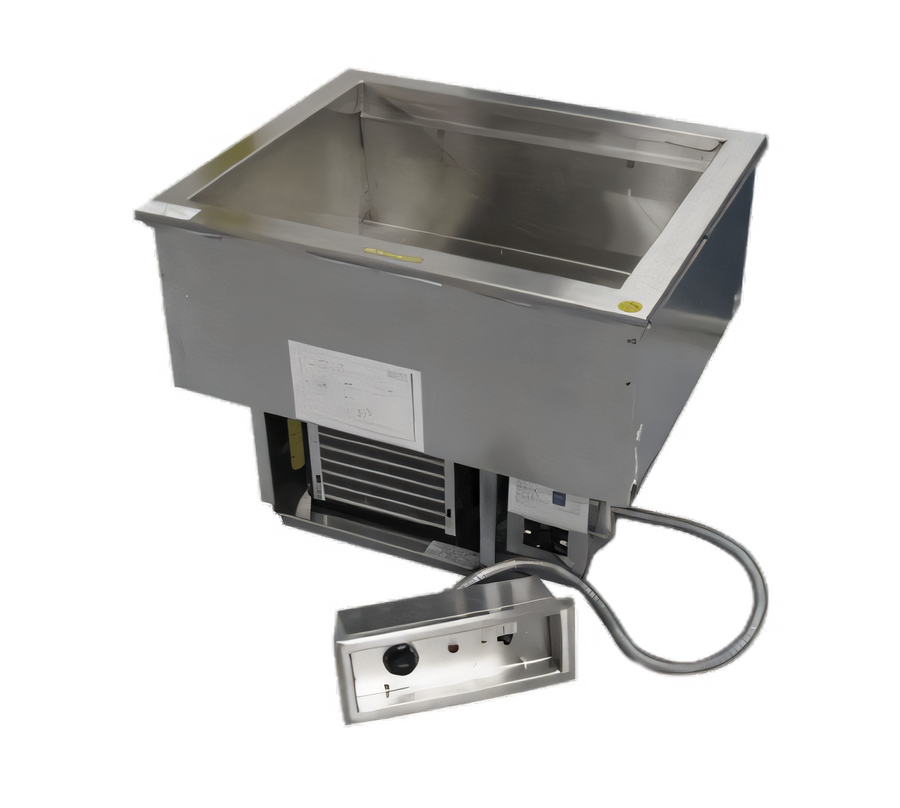

Delfield N8630P Drop-In Hot & Cold Combination Well – 30 in (2-Pan)
Flip the switch from chilled salads to steamy entrées in seconds.The N8630P is two units in one—a fully self-contained refrigerator and a wet-bath hot well packed into a single 30 inch drop-in. Perfect for buffets, cafeterias and catering lines where menu flexibility and counter space are equally critical.
Why you’ll love it
- NSF-4 & NSF-7 listed for safe hot and cold food holding
- Remote control panel with 3-way HOT / COLD / OFF toggle & temperature dial
- Holds two standard 12 × 20 in pans (adapter bars included)
- Stainless steel immersion heater with high-limit safety—wet operation only
- GreenGenius™ R290 refrigeration, 1/5 HP compressor, 465 BTU load
- Adjustable pan support: flush mount for hot service or 2 in recess for cold
- 8 in deep single-tank well with 1 in drain & screen for fast clean-up
- One-piece stainless steel top & liner, galvanized exterior, foamed-in insulation

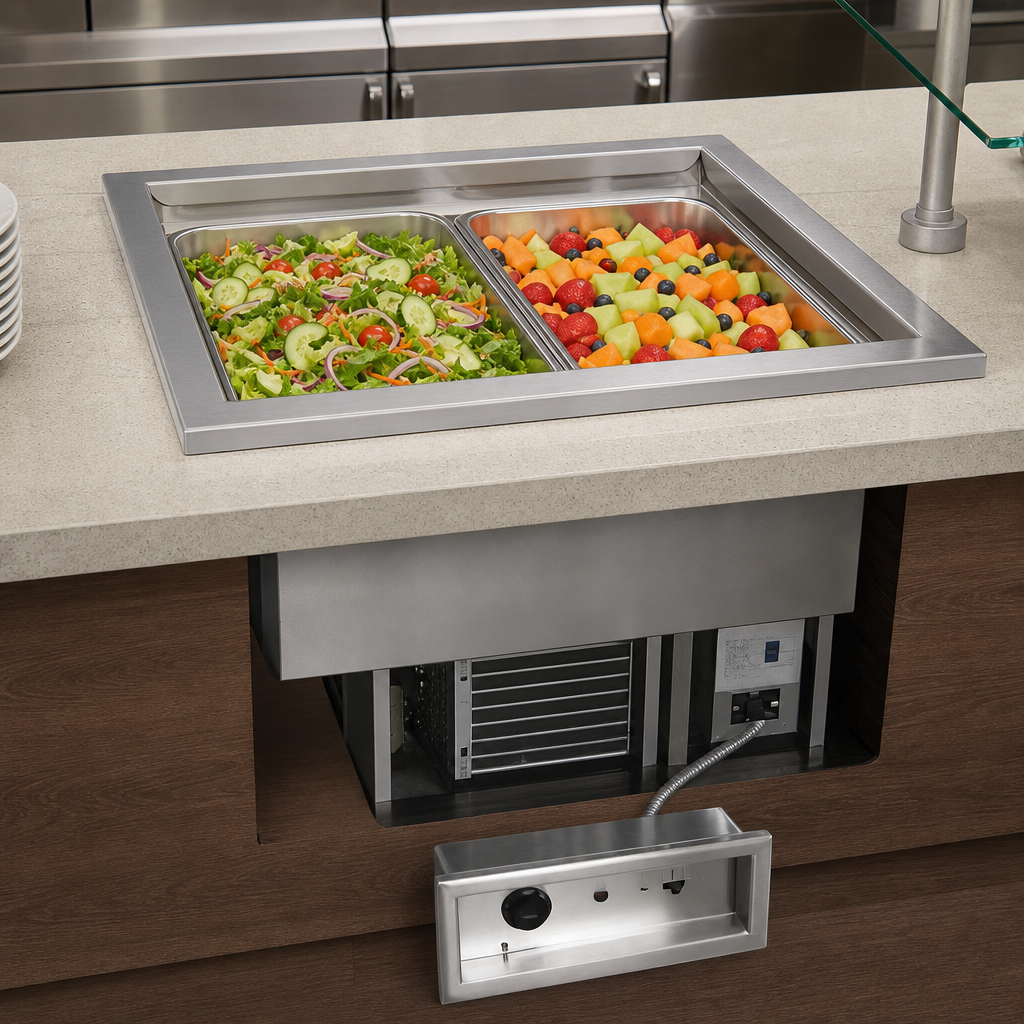

- Factory-installed press-fit flange gasket—just drop it in and seal
- cULus, UL & NSF certified for peace of mind
Technical specifications
| Model | N8630P |
|---|---|
| Pan capacity | 2 × 12 in × 20 in pans (up to 6 in deep) |
| Well inside depth | 8 in (203 mm) |
| Countertop cutout | 29-3/4 in × 25 in (756 mm × 635 mm) |
| Drain | 1 in NPT stainless steel with screen |
| Refrigeration | Self-contained, R290, 1/5 HP (465 BTU) |
| Electrical | 120 V / 60 Hz / 1 Ph, 25 A (hard-wired; no plug) |
| Ship weight | Approx. 164 lb / 74 kg |
| Included items | Adapter bars, stainless steel louver, remote control panel, flange gasket |
| Certifications | cULus, NSF-4, NSF-7 |
Popular options & accessories
- Automatic water-fill kit
- Compressor relocation for remote refrigeration
- Additional adapter bars or plate rests
- Sneeze guards & counter protectors
- Extended warranty packages
Installation notice: Unit must be hard-wired by a qualified electrician and connected to a floor drain.
Fill well with water for hot operation. Pans not included.
† Hot mode is designed for wet (water-bath) use only. Operating dry can damage the heater and void the warranty.
Features & Specs
Features & Specs
Manufacturer
Delfield
Certifications
NSF, UL
Height
25.75in
Width
30.75in
Depth
26.0in
Shipping Weight
164.0lbs
Pan Qty
2-pan
Cooling Style
mechanically cooled
Controls
single controls
Finish
stainless steel top & well, galvanized exterior
Type
hot/cold
Specifications
Drop-In Hot/Cold Food Well, 30-3/4", 2-pan size for 12" x 20" pans, 8" deep single tank with drain, remote control panel with single temperature control & three-way toggle switch, stainless steel top & well, galvanized steel exterior housing, self-contained refrigeration, R290 refrigerant, 1/5 HP, (29-3/4" x 25" cutout required), cUL, UL, NSF
