Delfield

Delfield 73-Inch Drop-In Self-Contained Frost Top with Stainless Steel Top and R290 Refrigeration

SKU: N8273P
$6,578.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Delfield Frost Tops New Arrivals Refrigerated Prep Tables Restaurant Equipment

Delfield 73-Inch Drop-In Self-Contained Frost Top with Stainless Steel Top and R290 Refrigeration

115V, 1-Phase, 1/4 HP, 72.38" x 25.00" Cutout

Keep chilled items presentation-ready with a spacious drop-in frost top built with self-contained R290 refrigeration and a durable stainless steel work surface.

  • 73-inch drop-in frost top for chilled beverage and food presentation.
  • Self-contained refrigeration system with R290 refrigerant and a 1/4 HP compressor.
  • One-piece heavy-gauge stainless steel top with full perimeter drain trough and 2-inch overhang.
  • Heavy-gauge galvanized steel exterior housing with insulated, sealed construction.
  • 115V, 1-phase operation with on/off toggle switch, 8-foot cord, and NEMA 5-15P plug.
  • Fits a 72.38" x 25.00" counter cutout for drop-in installation.

Overall Dimensions:

73.38"W x 26.0"D x 15.75"H

Product Weight:

209.0 lb

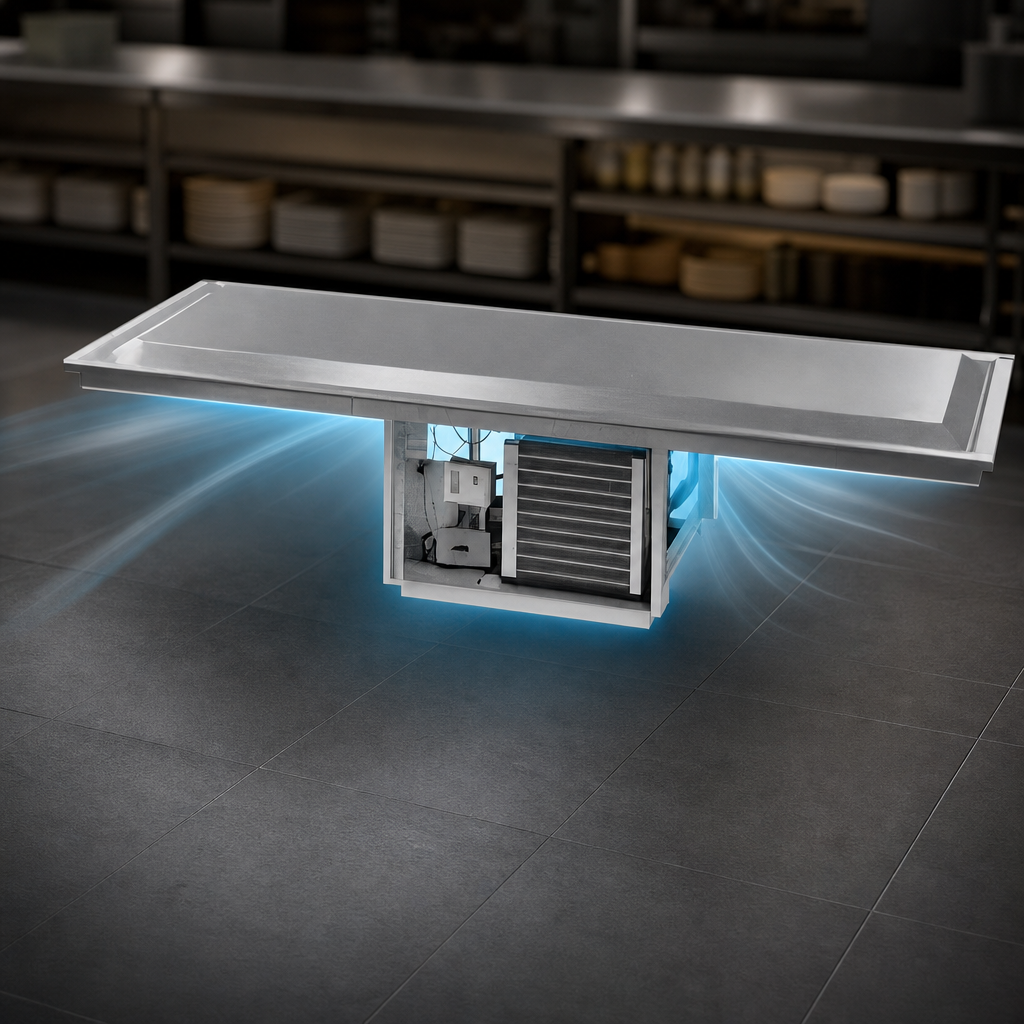

Self-Contained Refrigeration

The condensing unit is suspended below the frost top for independent cooling without a separate remote system.

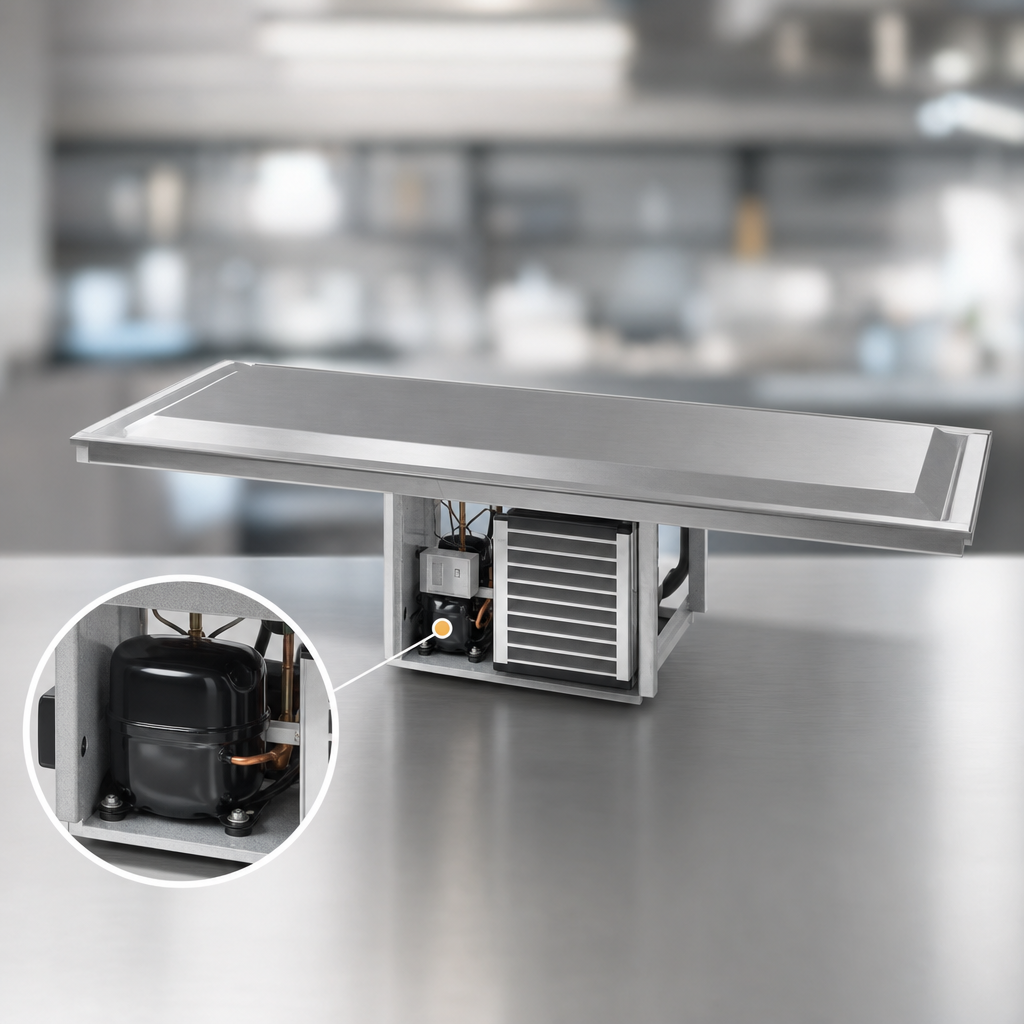

1/4 HP Compressor

Model-specific compressor size provides the refrigeration power for the frost top system.

R290 Refrigerant

Uses environmentally friendlier R290 refrigerant.

Stainless Steel Top

One-piece, heavy-gauge stainless steel top includes a full perimeter drain trough and 2-inch overhang.

Galvanized Steel Exterior Housing

Heavy-gauge galvanized steel construction adds durability to the exterior cabinet.

Insulated and Sealed Construction

High-density polyurethane foam insulation and a push-in perimeter gasket help maintain cold performance.

Simple Operation and Power Connection

Features an on/off toggle switch, 8-foot cord, and NEMA 5-15P plug.

Included Stainless Steel Louver

A stainless steel louver is provided for field installation.

Type Frost Top
Style Drop-In
Installation Type Drop-In
Refrigeration Type Self-Contained
Refrigerant Type R290
Material Stainless Steel
Controls Toggle Switch
Voltage 115 Volts
Amps 3.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
BTU 1437 BTU
Shipping Width 74 Inches
Shipping Depth 26 Inches
Shipping Height 16 Inches
Shipping Weight 209 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

A 72.38" x 25.00" counter cutout is required.
Yes. It uses self-contained refrigeration with the condensing unit suspended below the frost top.
It uses R290 refrigerant.
The unit operates on 115V, 60 Hz, single-phase power and uses a NEMA 5-15P plug with an 8-foot cord.
It features a one-piece heavy-gauge stainless steel top with a full perimeter drain trough and 2-inch overhang.
The unit includes a standard one-year parts and labor warranty.
