Delfield N8273GP Drop-In Self-Contained Granite Cold Slab Frost Top

SKU: N8273GP
$11,186.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Delfield Frost Tops New Arrivals Refrigerated Prep Tables Restaurant Equipment

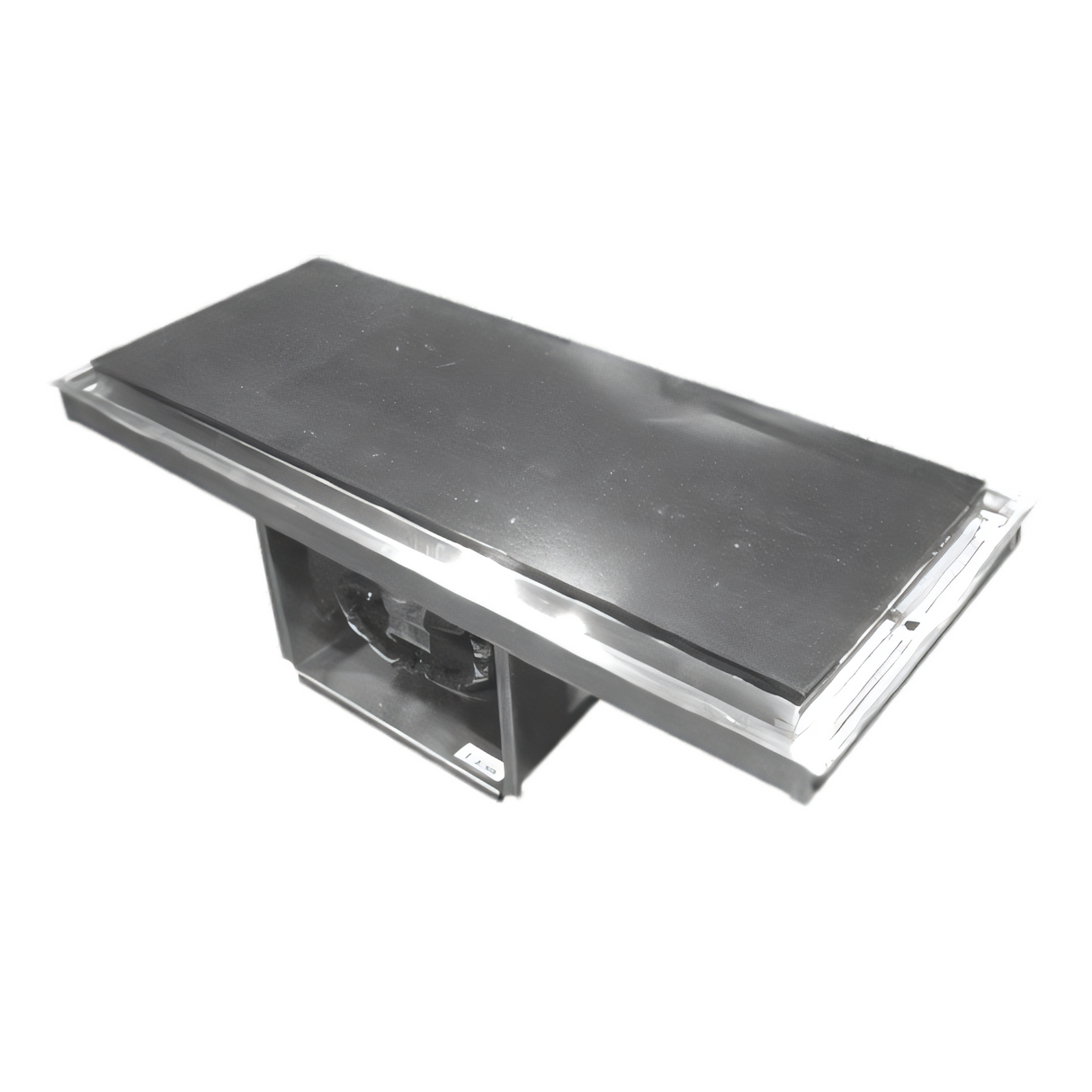

Delfield N8273GP Drop-In Self-Contained Granite Cold Slab Frost Top

73-Inch, R290 Self-Contained Refrigeration, 115V Single-Phase

This drop-in granite frost top combines a premium chilled display surface with self-contained R290 refrigeration for reliable merchandising.

  • Drop-in, self-contained refrigerated frost top for chilled food presentation.
  • 3/4-inch Absolute Black granite top mounted on 14-gauge stainless steel.
  • Thermal mastic and high-density foam insulation help maintain cold surface performance.
  • 1.5-inch perimeter trough with 3/4-inch stainless steel drain manages condensation and meltwater.
  • 115V, 60Hz, single-phase operation with 8-foot cord and NEMA 5-15P plug.
  • Requires a 72-3/8-inch x 25-inch cutout and includes a compressor-mounted on/off switch.

Overall Dimensions:

73.38"W x 25.87"D x 19.0"H

Product Weight:

536.0 lb

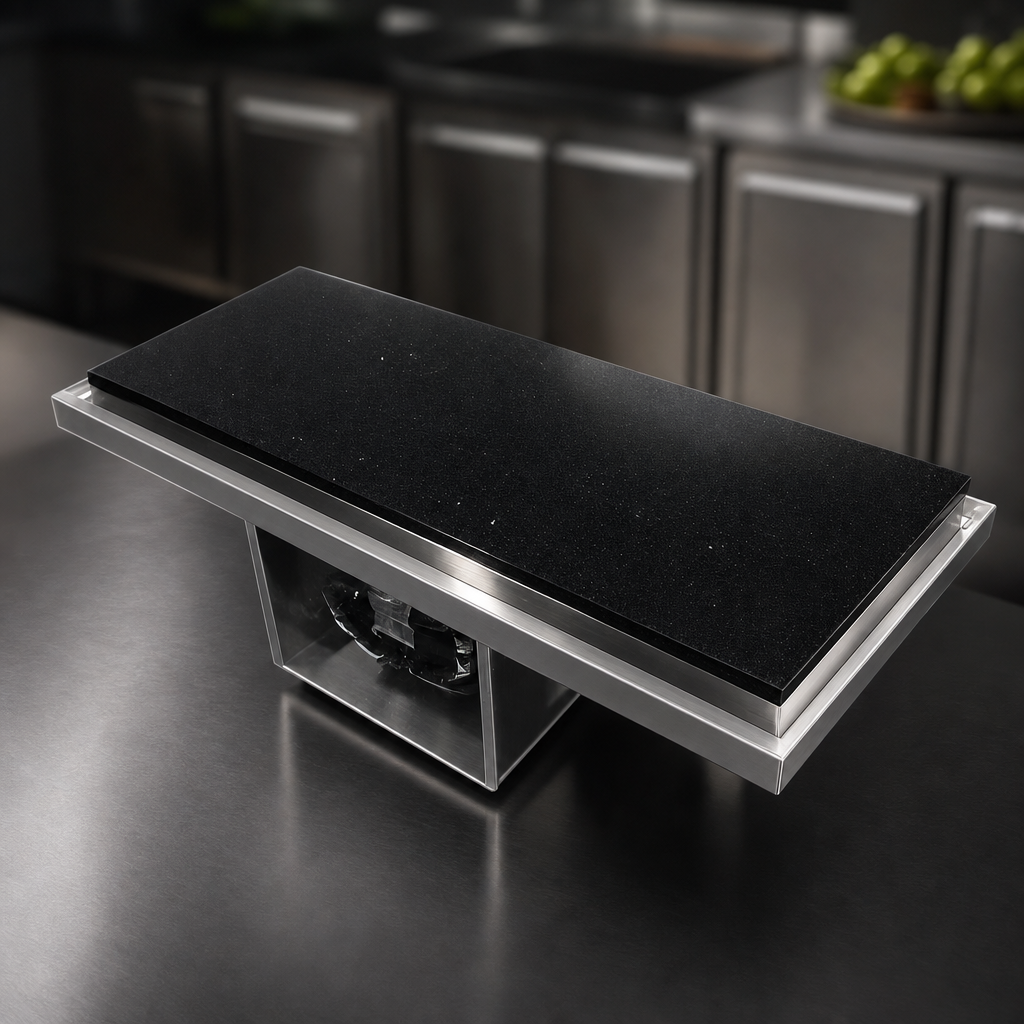

Absolute Black Granite Top

3/4-inch Absolute Black granite top is mounted on 14-gauge stainless steel for a durable, upscale display surface.

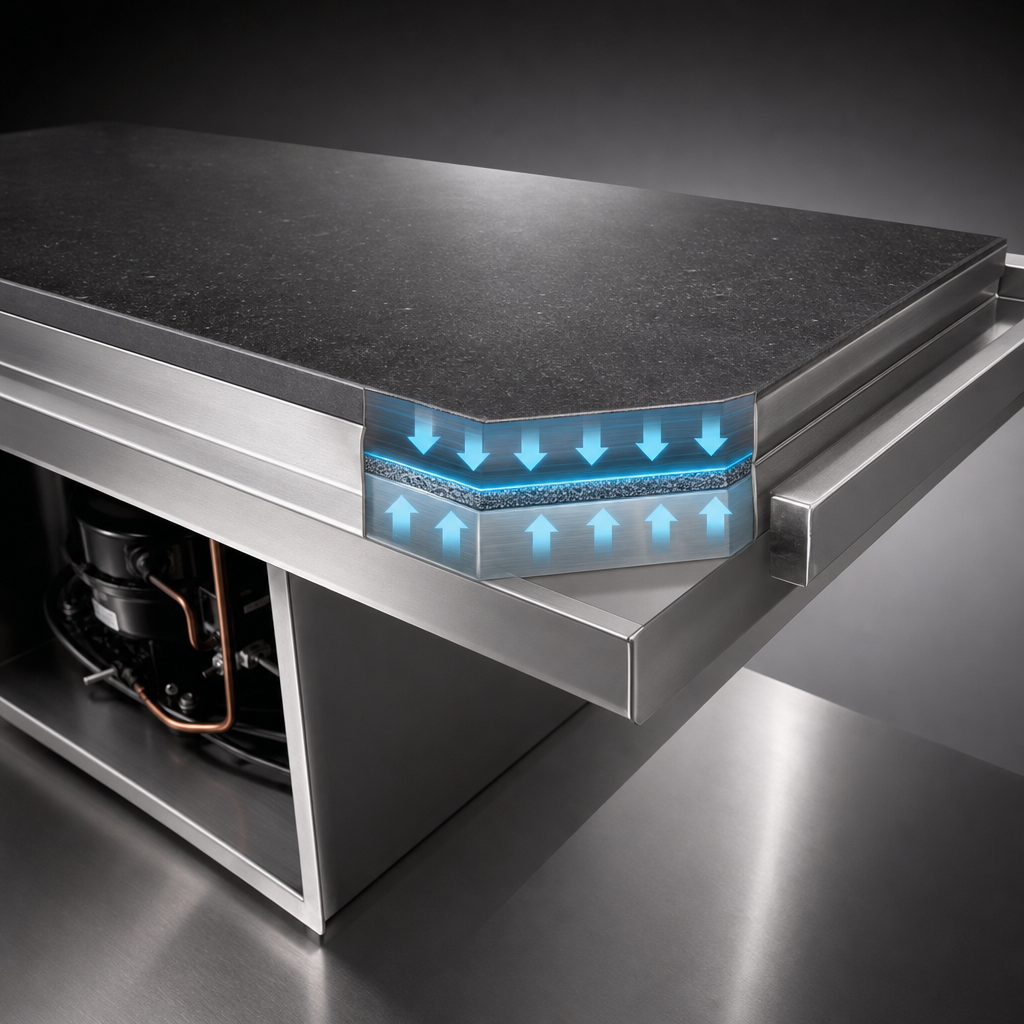

Thermal Mastic Heat Transfer

Thermal mastic compound is applied between the granite and stainless steel for efficient cold transfer.

High-Density Foam Insulation

Environmentally friendly polyurethane foam insulation helps stabilize cold temperatures.

Self-Contained R290 Refrigeration

Built-in refrigeration system uses environmentally friendly R290 refrigerant.

Perimeter Drain Trough

1.5-inch deep trough around the perimeter includes a 3/4-inch stainless steel drain.

On/Off Compressor Switch

Compressor-mounted switch makes the unit easy to operate.

1/3 HP Compressor

The self-contained compressor is rated at 1/3 horsepower.

Standard Power Cord and Plug

Includes an 8-foot grounded cord and plug.

Rapid Pull-Down Performance

At 75°F ambient, the unit reaches operating temperature of 0°F to 20°F in about 2 hours.

Type Frost Top
Style Cold Slab
Installation Type Drop-In
Material Stainless Steel
Finish Black Granite
Refrigeration Type Self-Contained
Refrigerant Type R290
Temperature Range 0°F to 20°F
BTU 1,876 BTU
Voltage 115 Volts
Amps 4.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls On/Off Switch
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The required cutout is 72-3/8 inches by 25 inches.
It operates on 115V, 60Hz, single-phase power and includes an 8-foot cord with a NEMA 5-15P plug.
The refrigeration system uses R290 refrigerant.
Yes. It has a 1.5-inch deep perimeter trough with a 3/4-inch stainless steel drain.
The unit includes a standard one-year parts and labor warranty.
Yes. An option is available to relocate the compressor to the left or right side.
