Delfield

Delfield 59-Inch Drop-In Self-Contained Frost Top with Stainless Steel Raised Top

SKU: N8259P
$6,150.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Delfield Frost Tops New Arrivals Refrigerated Prep Tables Restaurant Equipment

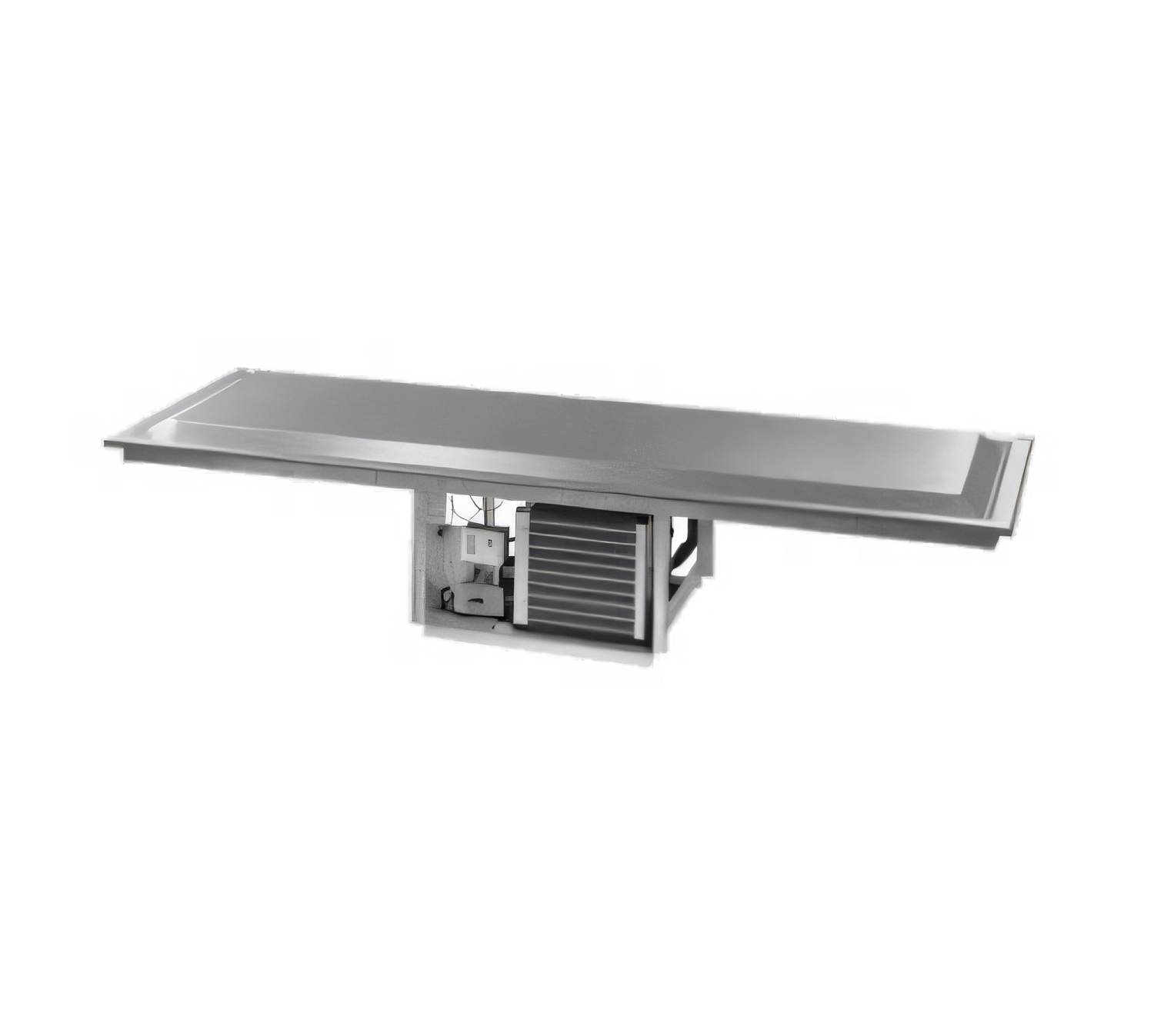

Delfield 59-Inch Drop-In Self-Contained Frost Top with Stainless Steel Raised Top

R290 Refrigerant, 115 Volts, 1/4 HP

Keep your service line cold and presentation-ready with a durable, self-contained drop-in frost top built for reliable everyday use.

  • 59-inch drop-in frost top for refrigerated display and service applications.
  • Self-contained refrigeration system uses R290 refrigerant and a 1/4 HP compressor.
  • Raised stainless steel top includes a full-perimeter drain trough and 2-inch overhang.
  • Polyurethane insulation, a push-in perimeter gasket, and galvanized steel housing support dependable performance.
  • On/off toggle switch, 8-foot cord, and NEMA 5-15P plug simplify installation.

Overall Dimensions:

59.5"W x 26.0"D x 15.75"H

Product Weight:

193.0 lb

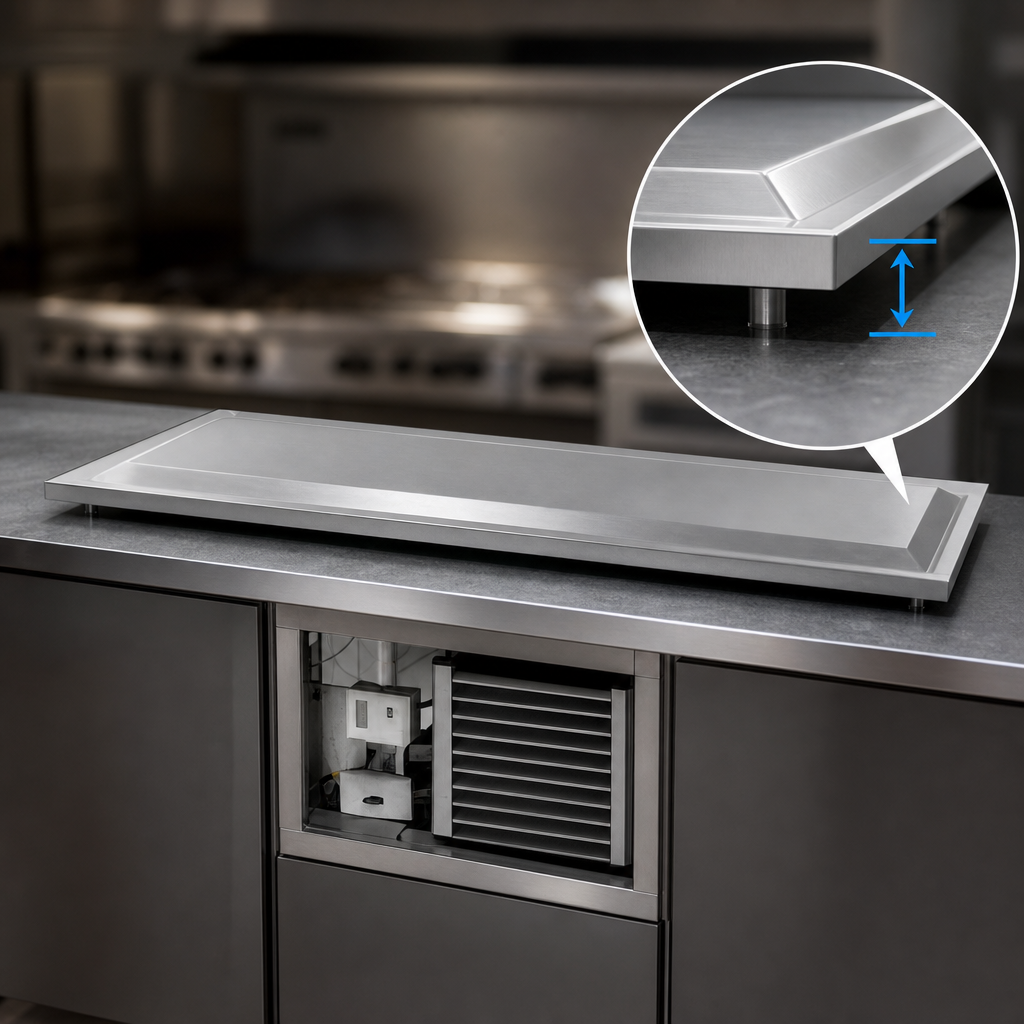

Raised Stainless Steel Top

One-piece stainless steel top sits 1.68 inches above the counter surface for attractive chilled presentation.

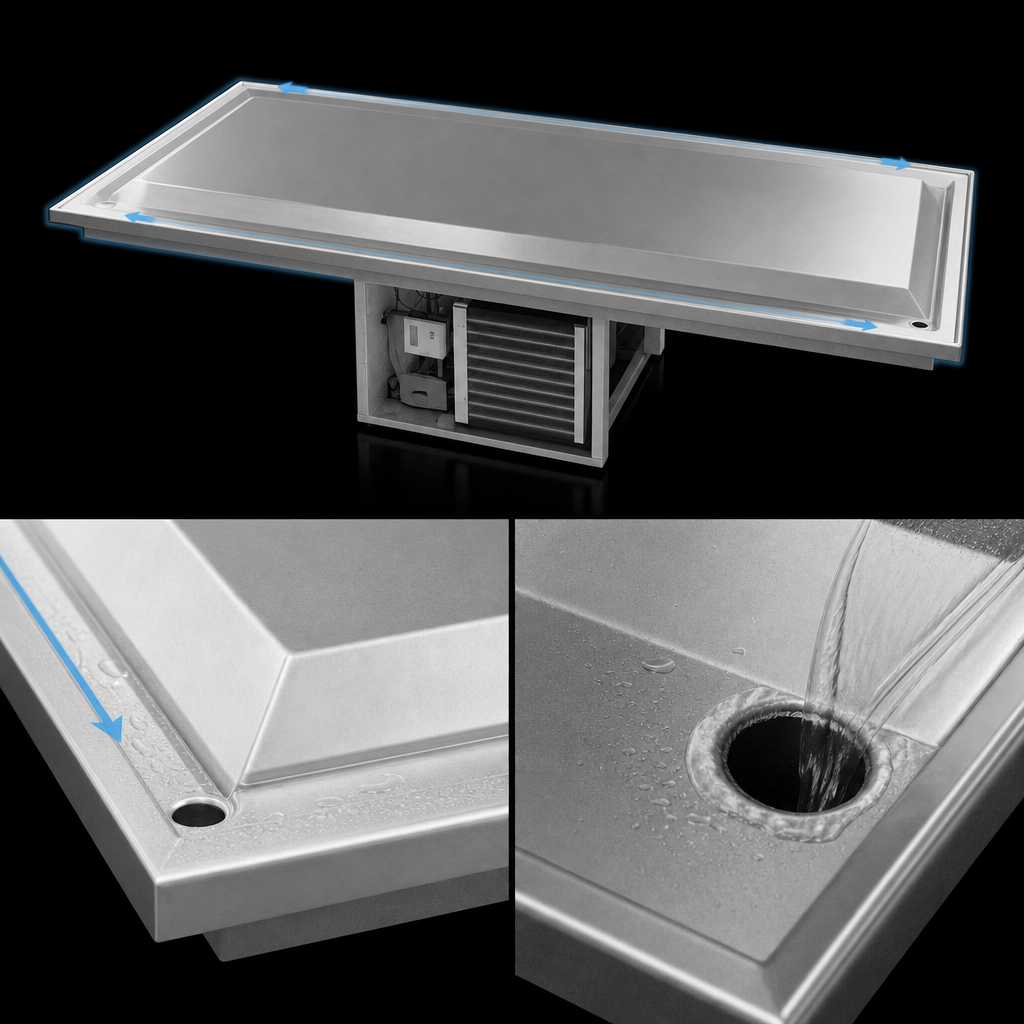

Perimeter Drain Trough

Full-perimeter drain trough with a 1/2-inch drain helps manage meltwater.

R290 Refrigeration

Environmentally friendly R290 refrigerant is used in the self-contained refrigeration system.

1/4 HP Condensing Unit

The condensing unit is suspended below the top on a heavy-gauge steel frame.

Insulated Construction

Closed-cell polyurethane foam insulation helps maintain cold temperatures.

Push-In Perimeter Gasket

Perimeter gasket helps seal the top and support cooling efficiency.

Electrical Connection

Includes an on/off toggle switch, 8-foot cord, and NEMA 5-15P plug for standard hookup.

Galvanized Steel Exterior Housing

Heavy-gauge galvanized steel exterior housing adds durability.

Type Frost Top
Style Drop-In
Installation Type Drop-In
Refrigeration Type Self-Contained
Refrigerant Type R290
Horsepower 1/4 HP
BTU 1237 BTU
Voltage 115 Volts
Amps 3.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls On/Off Toggle Switch
Material Stainless Steel
Shipping Width 60 Inches
Shipping Depth 26 Inches
Shipping Height 16 Inches
Shipping Weight 193 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor standard warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It requires a 58.50-inch by 25.00-inch cutout.
It uses R290 refrigerant in a self-contained refrigeration system.
The unit operates on 115 Volts, 60 Hz, 1-phase power and draws 3.7 amps. It includes an 8-foot cord and a NEMA 5-15P plug.
The standard warranty is 1 year parts and labor.
Yes. The stainless steel top includes a full-perimeter drain trough with a 1/2-inch drain.
