Delfield N8259GP 59-Inch Drop-In Self-Contained Granite Frost Top, R290, 1/3 HP

59-Inch Display Area, 115V, 25-Inch Cutout Required

Keep chilled foods and beverages presented at the counter with a 59-inch granite frost top built on self-contained R290 refrigeration.

  • 59-inch drop-in frost top/cold slab designed for recessed countertop installation.
  • "Absolute Black" granite surface over 14-gauge stainless steel for a durable, attractive presentation.
  • Self-contained refrigeration with eco-friendly R290 refrigerant and a 1/3 HP compressor.
  • 1.5-inch perimeter trough with a 3/4-inch stainless steel drain helps manage meltwater.
  • Standard 115V single-phase power with 8-foot cord and plug simplifies setup.
  • Compressor on/off switch and optional left/right compressor relocation support service access.

Overall Dimensions:

59.5"W x 25.87"D x 19.0"H

Product Weight:

433.0 lb

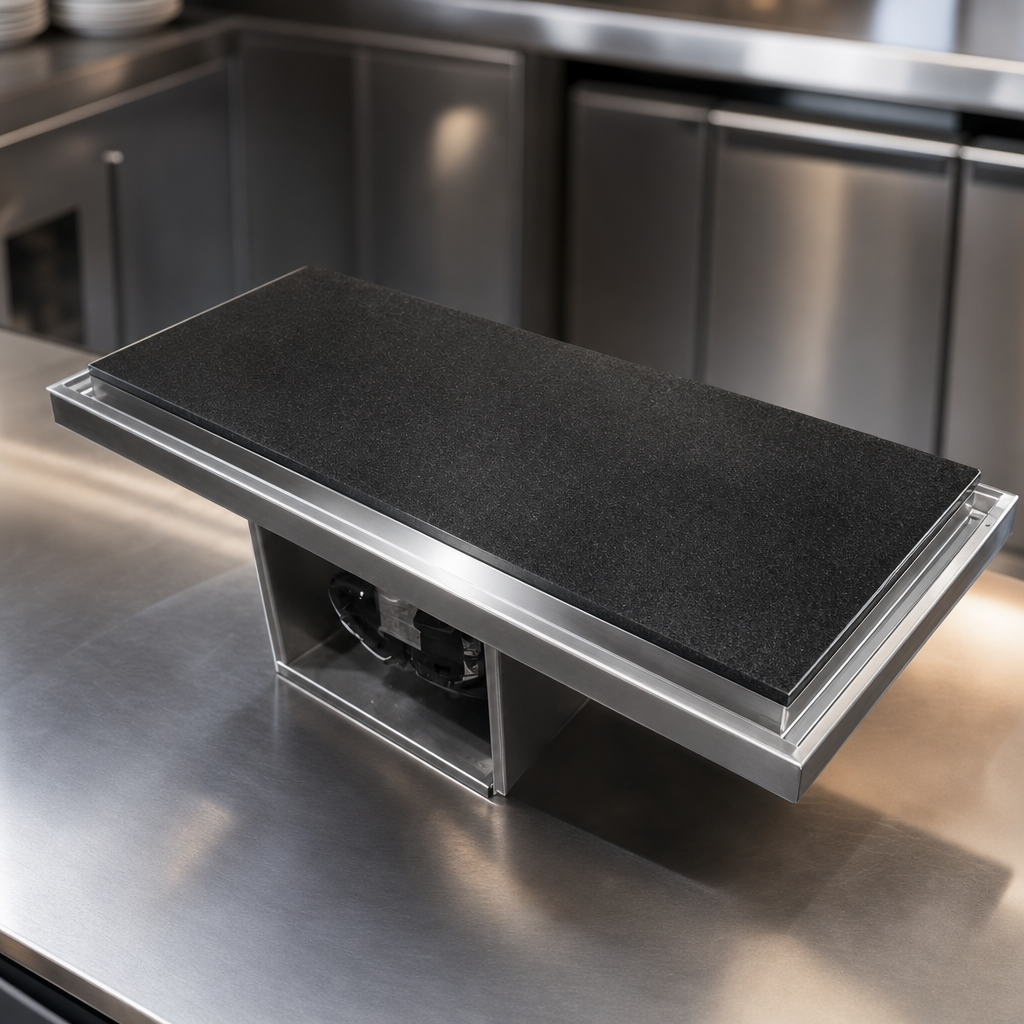

Granite Top Surface

Features 3/4-inch "Absolute Black" granite installed on a 14-gauge stainless steel top.

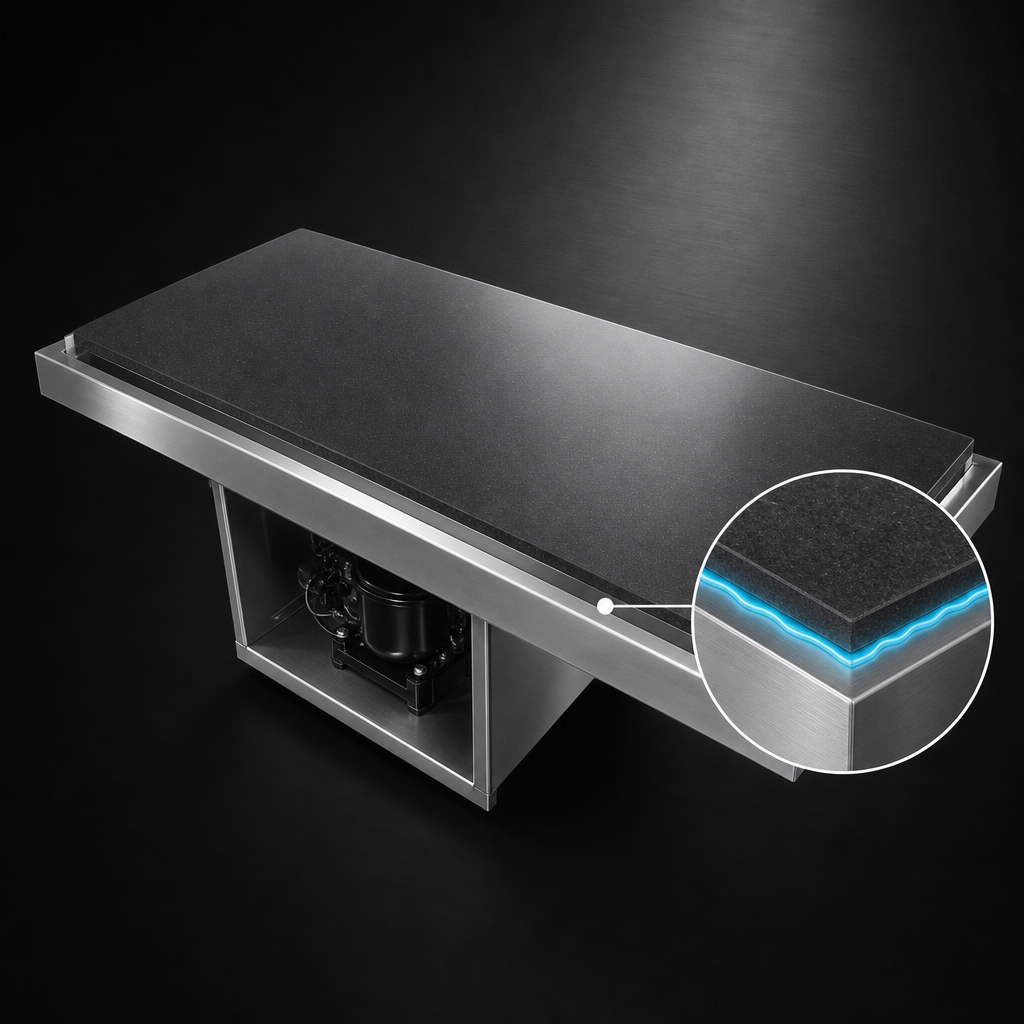

Thermal Mastic Heat Transfer

Thermal mastic is applied between the granite and stainless steel to improve cold transfer.

Self-Contained R290 Refrigeration

Built-in refrigeration system uses environmentally friendly R290 refrigerant.

Perimeter Drain Trough

Includes a 1.5-inch deep trough around the perimeter with a 3/4-inch stainless steel drain.

Compressor Controls

On/off switch is located on the compressor for convenient operation.

Standard Power Cord

Supplied with an 8-foot electrical cord and plug.

Insulated Cabinet Construction

Uses high-density polyurethane foam insulation and a galvanized steel body for cold retention and structure.

Stainless Steel Louver

Standard stainless steel louver is provided.

Type Frost Top
Style Self-Contained
Installation Type Drop-In
Material Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Compressor Horsepower 1/3 HP
BTU 1,622 BTU
Voltage 115 Volts
Amps 4.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-15P
Cord Length 8 Feet
Counter Cutout Width 58.5 Inches
Counter Cutout Depth 25 Inches
Shipping Width 60 Inches
Shipping Depth 26 Inches
Shipping Height 19 Inches
Shipping Weight 433 Lbs.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The required counter cutout is 58.50 inches by 25.00 inches.
It operates on 115V, 60Hz, single-phase power and includes an 8-foot cord with a 5-15P plug.
This unit uses environmentally friendly R290 refrigerant.
It has a 1.5-inch deep perimeter trough and a 3/4-inch stainless steel drain.
Yes, the compressor can be relocated to the left or right, and single or double service sneeze guards are available.
It includes a standard one-year parts and labor warranty.
