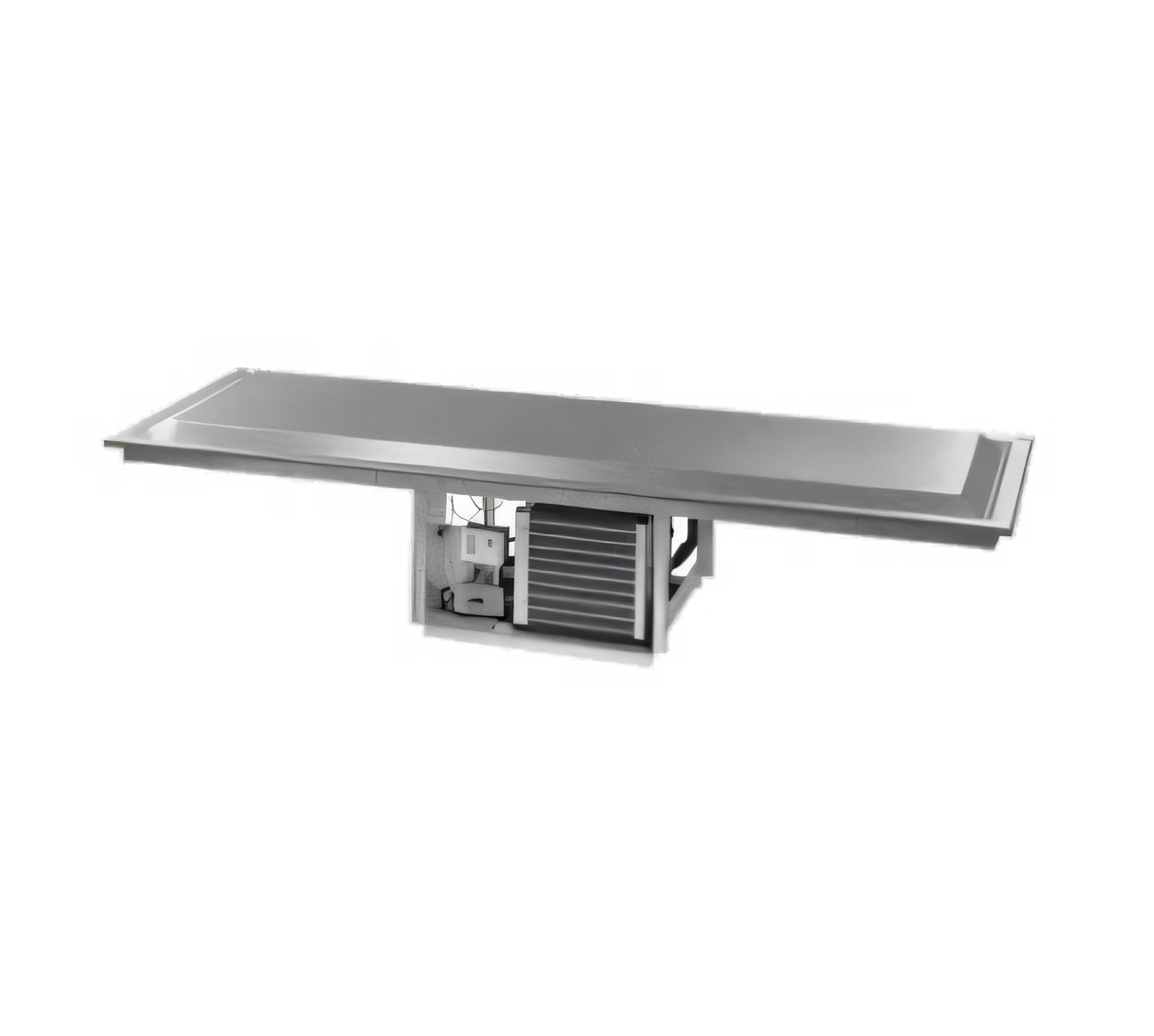

Delfield 45-Inch Drop-In Self-Contained Frost Top with Raised Stainless Steel Top, R290 Refrigeration, 1/5 HP

115V, 60 Hz, 1-Phase, 44.63" x 25" Cutout Required

Keep chilled garnishes and beverages ready to serve with a self-contained drop-in frost top built for easy installation and reliable display cooling.

  • 45-inch drop-in frost top with self-contained refrigeration for streamlined installation.
  • Raised one-piece stainless steel top with full-perimeter drain trough and 2-inch overhang.
  • R290 refrigerant and polyurethane foam insulation support efficient cooling performance.
  • On/off toggle switch, 8-foot cord, and NEMA 5-15P plug simplify electrical hookup.
  • Stainless steel louver included; heavy-gauge galvanized steel exterior housing adds durability.
  • 44.63" x 25" counter cutout required.
  • Standard one-year parts and labor warranty.

Overall Dimensions:

45.63"W x 26.0"D x 15.75"H

Product Weight:

168.0 lb

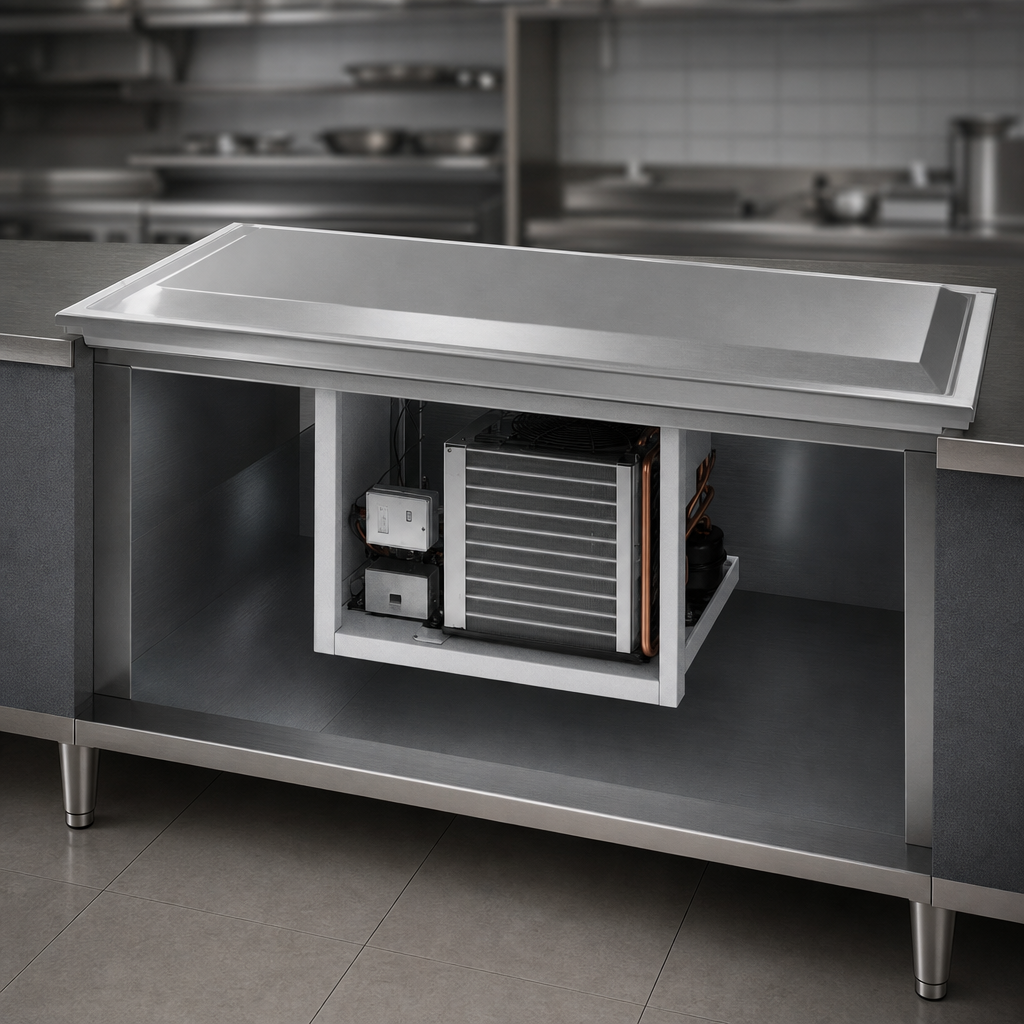

Self-Contained Refrigeration

Condensing unit is suspended below the frost top for an all-in-one drop-in installation.

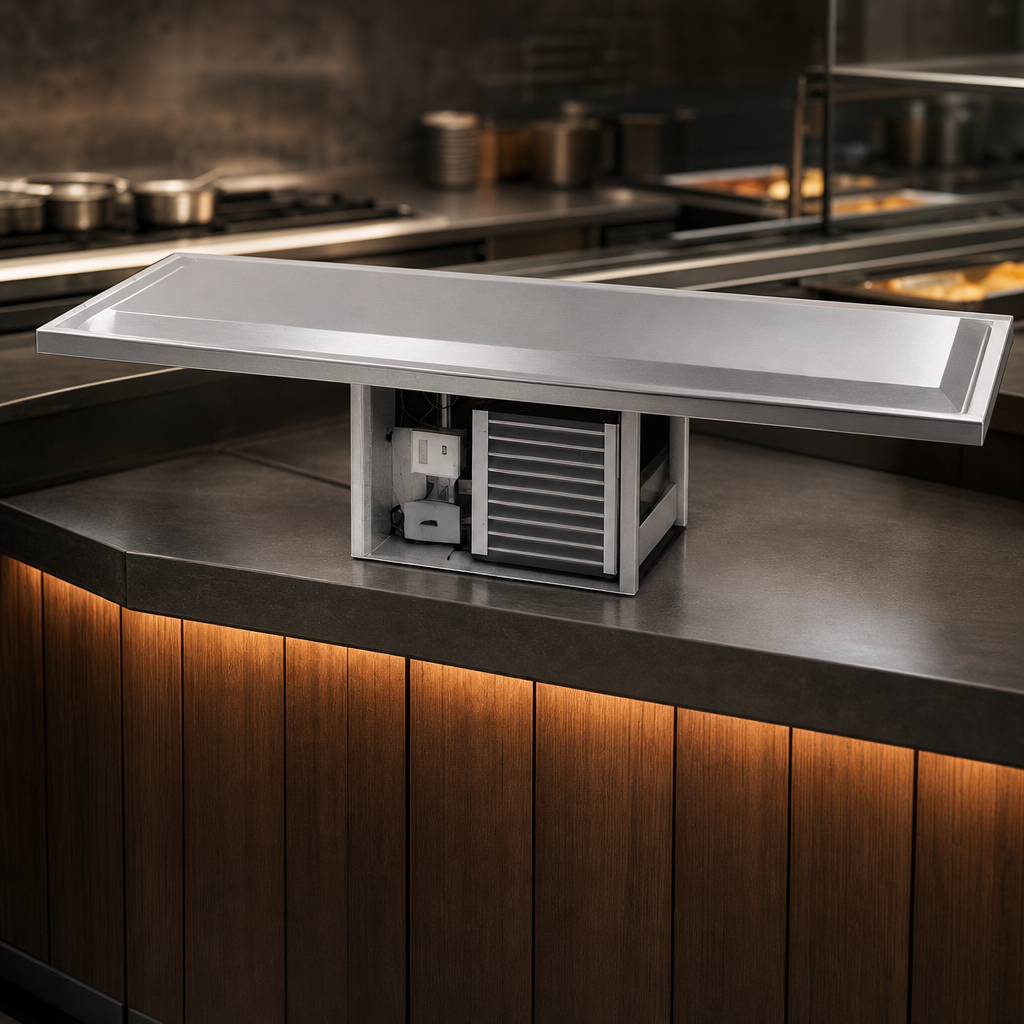

Raised Stainless Steel Top

One-piece, heavy-gauge stainless steel top sits above the counter surface for a clean serving area.

Full-Perimeter Drain Trough

Built-in drain trough with a 1/2" drain helps manage meltwater.

R290 Refrigerant

Uses environmentally friendly R290 refrigerant.

Polyurethane Foam Insulation

High-density closed-cell insulation helps maintain operating performance.

On/Off Toggle Switch

Simple toggle switch provides easy start and stop control.

Push-In Perimeter Gasket

Helps seal the unit at the counter opening.

8-Foot Cord with NEMA 5-15P Plug

Supplied with a standard power cord and plug for straightforward electrical connection.

Stainless Steel Louver Included

One louver is provided for field installation.

Galvanized Steel Exterior Housing

Heavy-gauge galvanized steel exterior housing adds strength and durability.

Type Frost Top
Style Self-Contained Frost Top
Installation Type Drop-In
Refrigeration Type Self-Contained
Material Stainless Steel
Refrigerant Type R290
Voltage 115 Volts
Amps 2.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Horsepower 1/5 HP
BTU 878 BTU
Controls On/Off Toggle Switch
Drain Connection Required
Drain Connection Size 1/2 Inch
Counter Cutout 44.63 Inches x 25 Inches
Shipping Width 46 Inches
Shipping Depth 26 Inches
Shipping Height 16 Inches
Shipping Weight 168 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

A 44.63" x 25" counter cutout is required.
It operates on 115V, 60 Hz, 1-phase power and draws 2.4 amps. It includes an 8-foot cord with a NEMA 5-15P plug.
Yes. The condensing unit is suspended below the frost top for a self-contained installation.
This unit uses R290 refrigerant.
It includes a standard one-year parts and labor warranty.
The documentation lists single- or double-service flip-up sneeze guards and compressor relocation as available options/accessories.
