Delfield N8245GP Refrigerated Prep Tables
Description
Delfield N8245G Drop-In Granite Frost Top
45" mechanically-cooled cold slab with self-contained R290 refrigerationGive customers a dazzling, frost-kissed presentation while keeping foods safely chilled. The Delfield N8245G pairs a striking “Absolute Black” granite surface with efficient, eco-friendly refrigeration—perfect for buffets, salad bars, dessert displays and more.
Key features

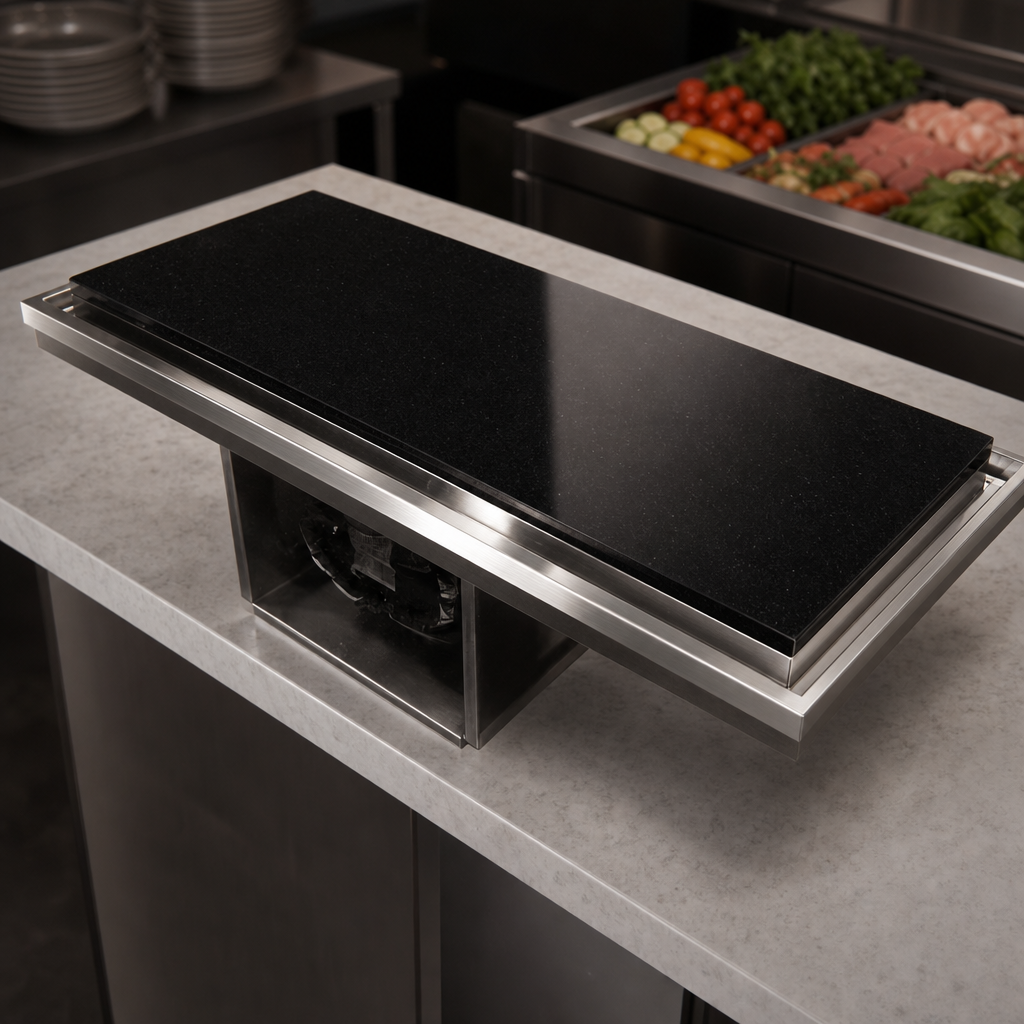

- 3/4" Absolute Black granite bonded to rugged 14-gauge stainless steel.

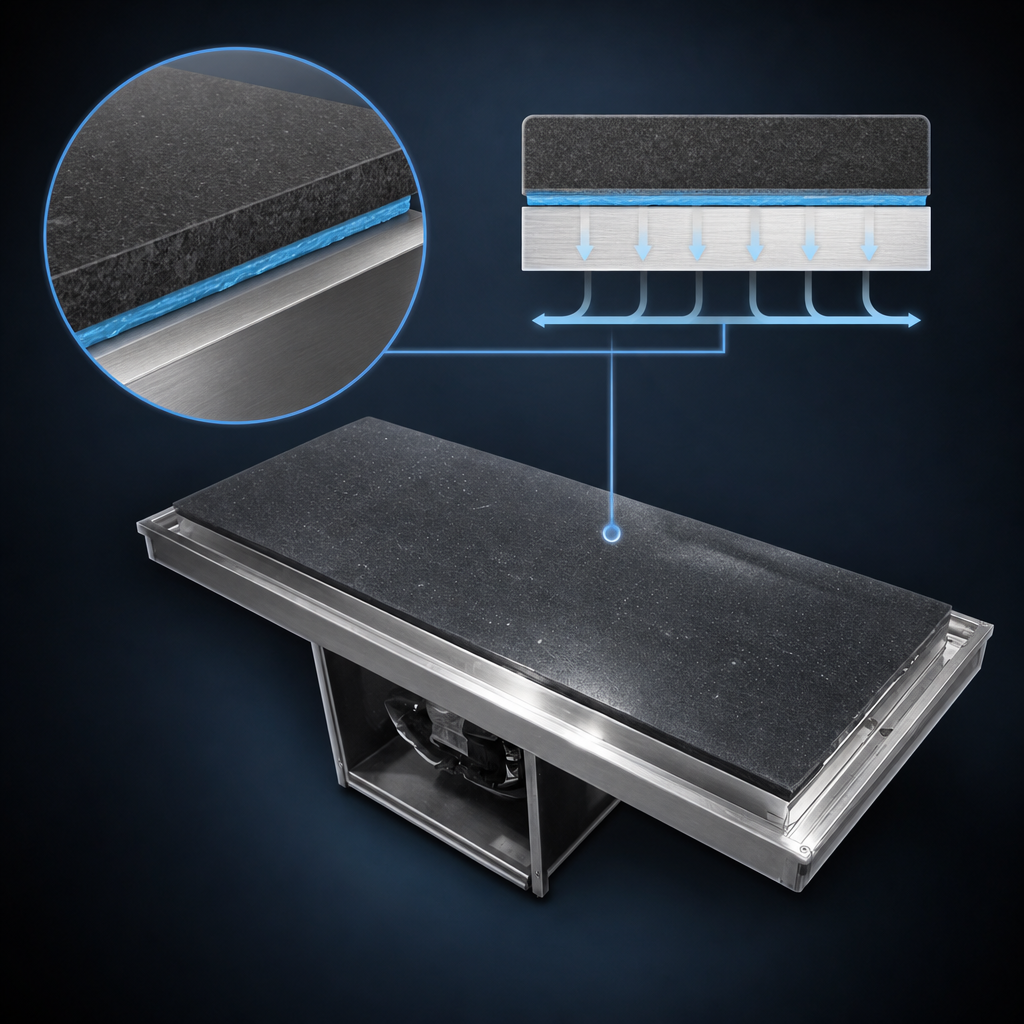

- Thermal mastic compound for fast, even temperature pull-down across the entire top.
- Self-contained system charged with natural R290 refrigerant.
- 1.5" (38 mm) deep perimeter trough with 3/4" stainless-steel drain catches melt-water & spills.
- Simple on/off rocker switch mounted on the compressor housing.
- High-density, CFC-free polyurethane insulation (non-ODP, non-GWP).
- Factory-installed stainless steel louver for proper airflow.
- 8' (2.4 m) power cord with NEMA 5-15P plug—no hard-wiring required.
- cULus, UL & NSF listed for sanitation and electrical safety.
Specifications
| Model | N8245G |
|---|---|
| Required cut-out | 44-5/8" W × 25" D (1133 × 635 mm) |
| Overall top size | 45.63" W × 25.87" D (1160 × 658 mm) |
| Horsepower | 1/4 hp |
| Temperature range | 0 °F – 20 °F (-18 °C – -6 °C) @ 75 °F ambient |
| Refrigerant | R290 (hydrocarbon) |
| Voltage / Phase | 115 V / 60 Hz / 1-Ph |
| Amps | 7.0 A |
| Plug | NEMA 5-15P |
| Ship weight | 330 lb (150 kg) |
| Certifications | cULus, UL, NSF |
Ideal applications
- Self-service salad bars & buffets
- Hotel breakfast lines
- Dessert or pastry displays
- Seafood & sushi counters
- Grab-and-go merchandising
Installation notes
- Create the countertop cut-out shown above and ensure level, solid support.
- Maintain at least 6" (152 mm) clearance below for ventilation and service access.
- Connect the 3/4" drain to an appropriate floor or waste line—do not seal over the trough.
- Unit reaches operating temperature within approximately 2 hours of start-up.
Optional accessories: remote toggle switch, single/double-service sneeze guards, and left- or right-side compressor relocation—ask us for details before ordering.
Covered by Delfield’s standard 1-year parts & labor warranty.
