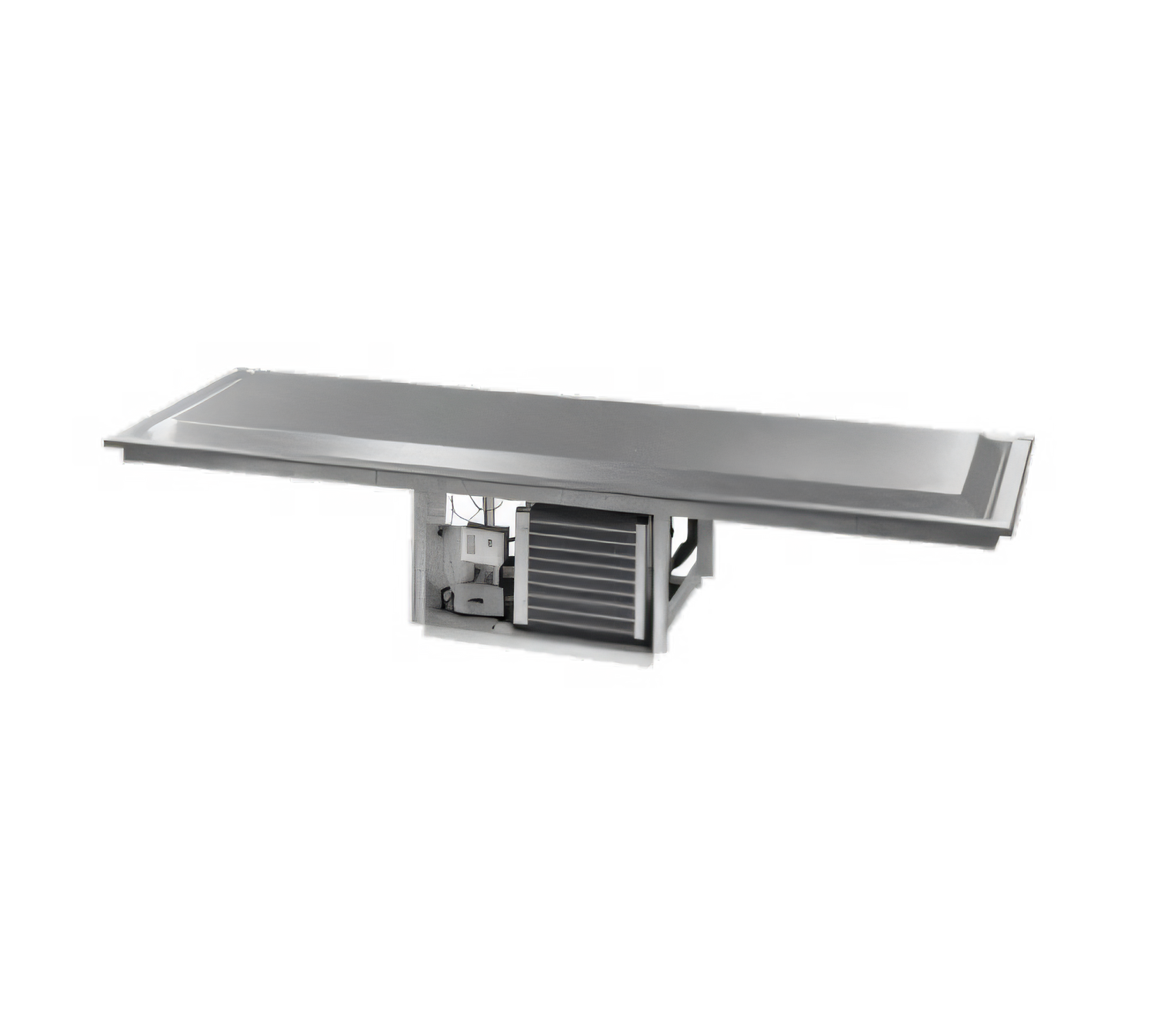

Delfield N8231P 31-Inch Drop-In Self-Contained Frost Top

Stainless Steel Top, R290 Refrigerant, 115V

This compact drop-in frost top delivers a stainless display surface and self-contained R290 refrigeration for reliable cold presentation.

  • Drop-in design creates a clean built-in presentation for cold service.
  • Self-contained refrigeration uses R290 refrigerant and a 1/5 HP compressor.
  • Raised stainless steel top includes a full perimeter drain trough and 2-inch overhang.
  • Heavy-gauge galvanized steel housing, foam insulation, and a perimeter gasket support durability and cold retention.
  • On/off toggle switch, 8-foot cord, and NEMA 5-15P plug simplify installation.
  • Requires a 30.75-inch x 25.00-inch counter cutout; stainless steel louver is provided for field installation.

Overall Dimensions:

31.75"W x 26.0"D x 15.75"H

Product Weight:

142.0 lb

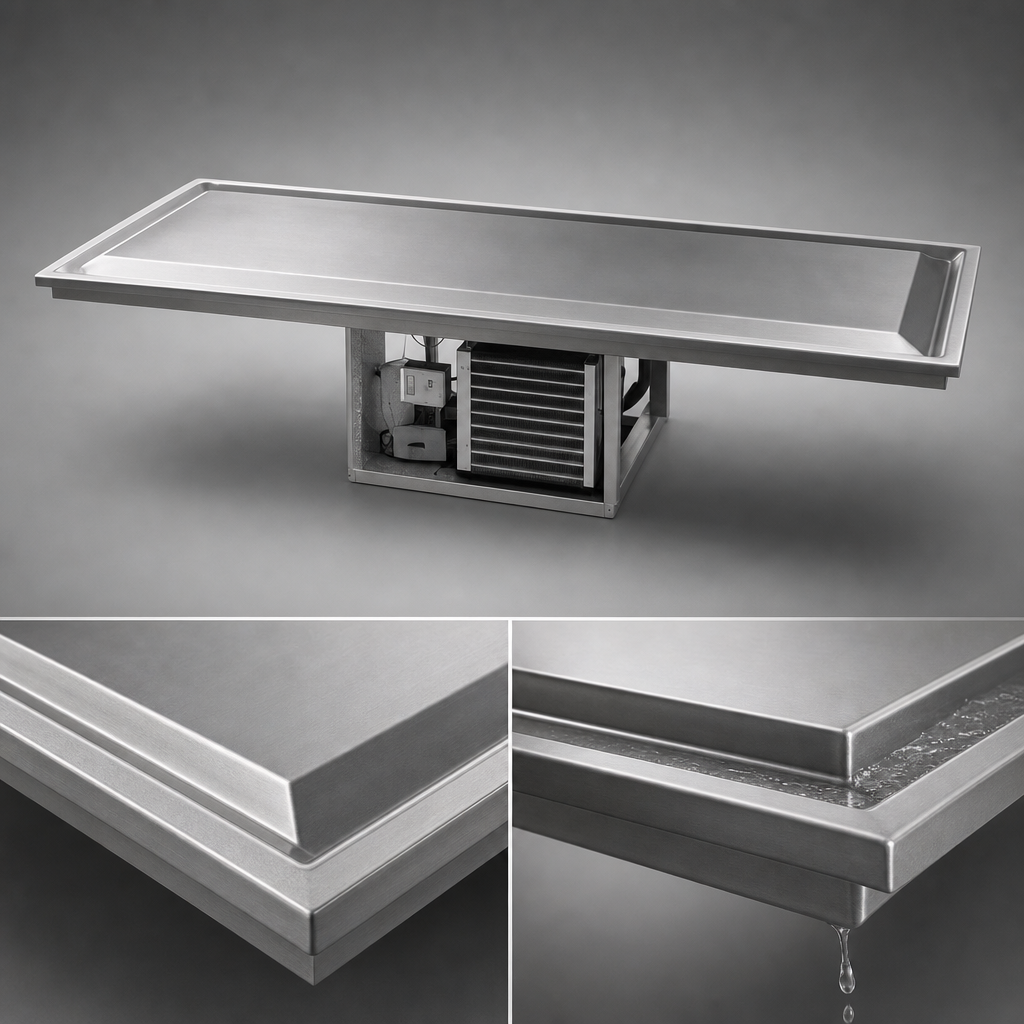

Raised Stainless Steel Top

One-piece heavy-gauge stainless steel top with a full perimeter drain trough and 2-inch overhang.

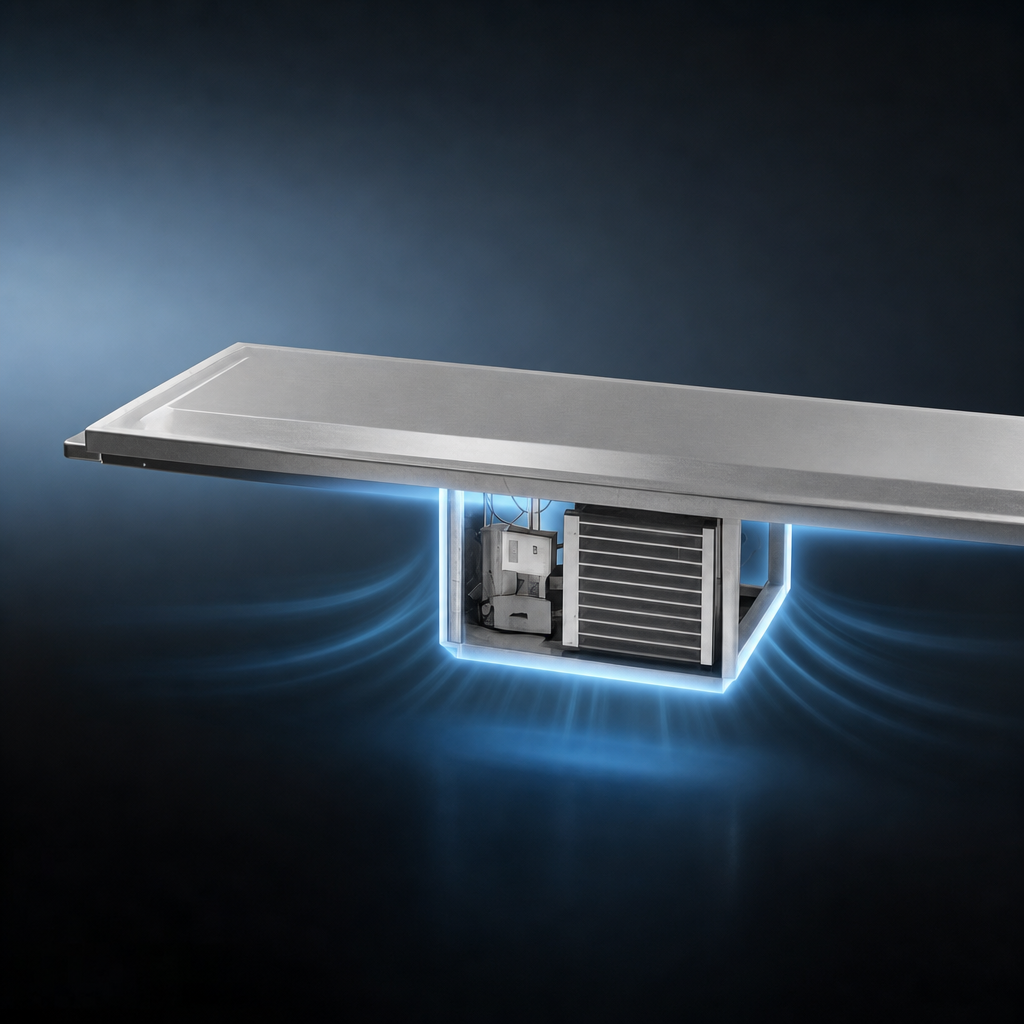

Self-Contained Refrigeration

Condensing unit is suspended below the frost top for an all-in-one refrigerated design.

R290 Refrigerant

Uses environmentally friendly R290 refrigerant.

Toggle Switch Control

Simple on/off toggle switch for easy operation.

Foam Insulation and Perimeter Gasket

Closed-cell polyurethane foam insulation and push-in perimeter gasket help maintain temperature.

Galvanized Steel Exterior Housing

Heavy-gauge galvanized steel exterior housing adds durability.

Included Stainless Steel Louver

Stainless steel louver is provided for field installation.

Type Frost Top
Style Self-Contained
Installation Type Drop-In
Material Stainless Steel
Exterior Housing Material Galvanized Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Controls Toggle Switch
Voltage 115 Volts
Amps 2.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
BTU 635 BTU
Horsepower 1/5 HP
Cutout Size 30.75 Inches x 25 Inches
Shipping Width 32 Inches
Shipping Depth 26 Inches
Shipping Height 16 Inches
Shipping Weight 142 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It requires a 30.75-inch x 25.00-inch counter cutout.
Yes. The condensing unit is suspended below the frost top in a self-contained design.
It uses R290 refrigerant.
It operates on 115/60/1 power, draws 2.4 amps, and includes an 8-foot cord with a NEMA 5-15P plug.
Yes. Optional single- and double-service flip-up sneezeguards and compressor relocation are offered.
