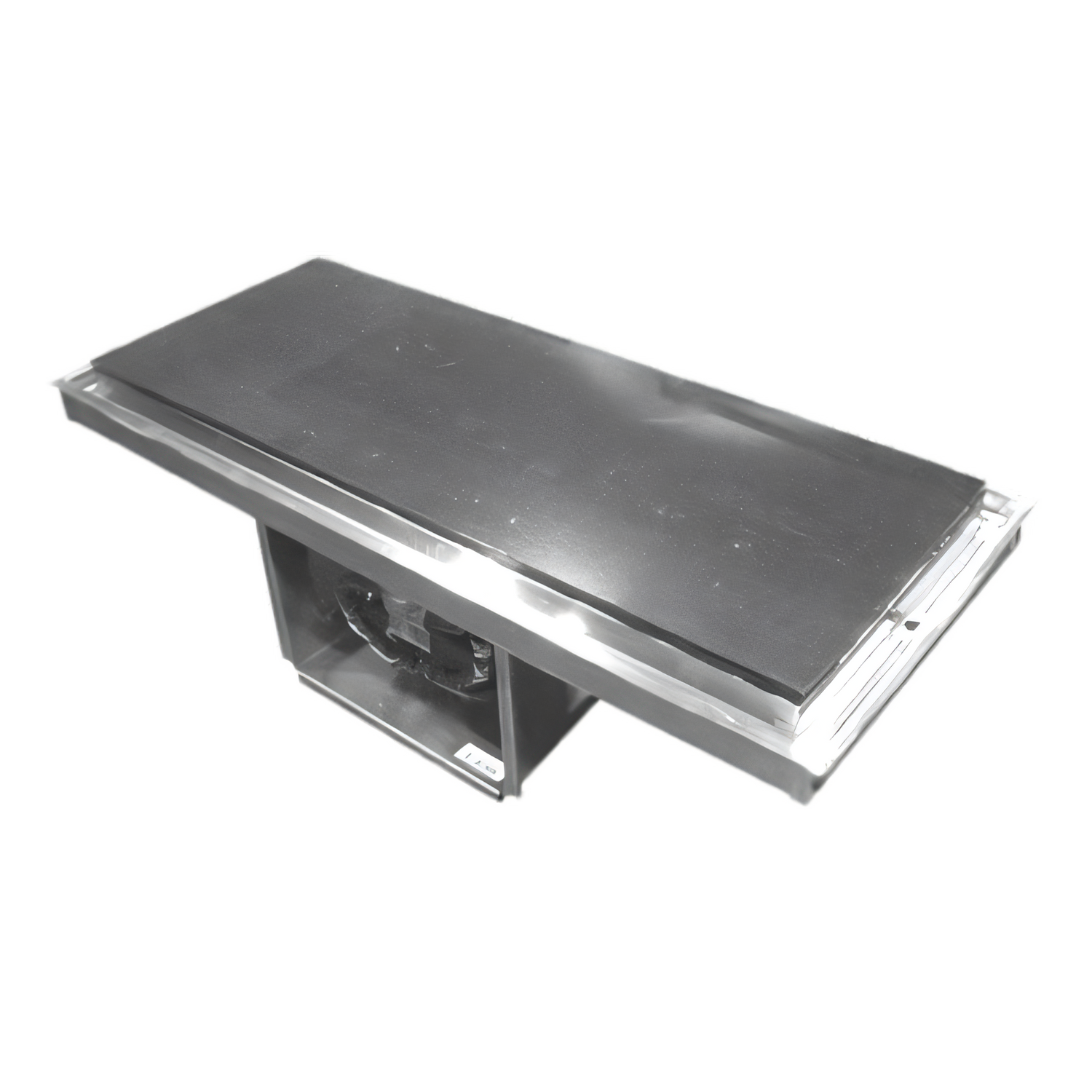

Delfield N8231GP 31-Inch Drop-In Self-Contained Granite Frost Top

Cold Slab Design, R290 Refrigeration, 115V

Keep cold foods displayed attractively on a granite frost top that combines durable construction with self-contained R290 refrigeration.

  • 31-inch drop-in frost top designed for refrigerated cold display applications.
  • Absolute Black granite top over stainless steel helps deliver a durable, attractive presentation surface.
  • Self-contained R290 refrigeration keeps the cooling system built into the unit.
  • Perimeter trough and stainless steel drain help manage condensation and meltwater.
  • Standard 115V, 60Hz, single-phase operation with 8-foot cord and 5-15P plug.
  • Sized for a 30.75" x 25" counter cutout.

Overall Dimensions:

31.75"W x 25.87"D x 19.0"H

Product Weight:

227.0 lb

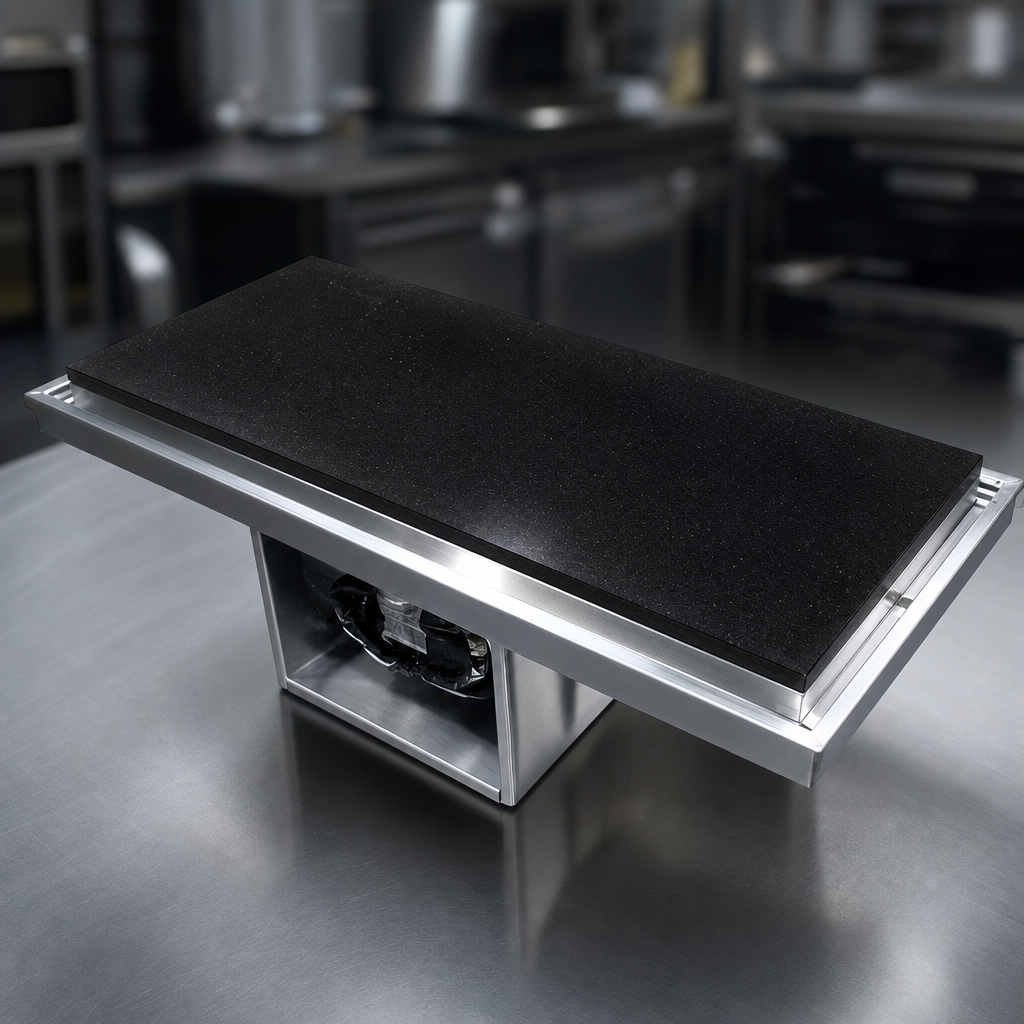

Absolute Black Granite Top

Features 3/4-inch Absolute Black granite installed on a 14-gauge stainless steel top.

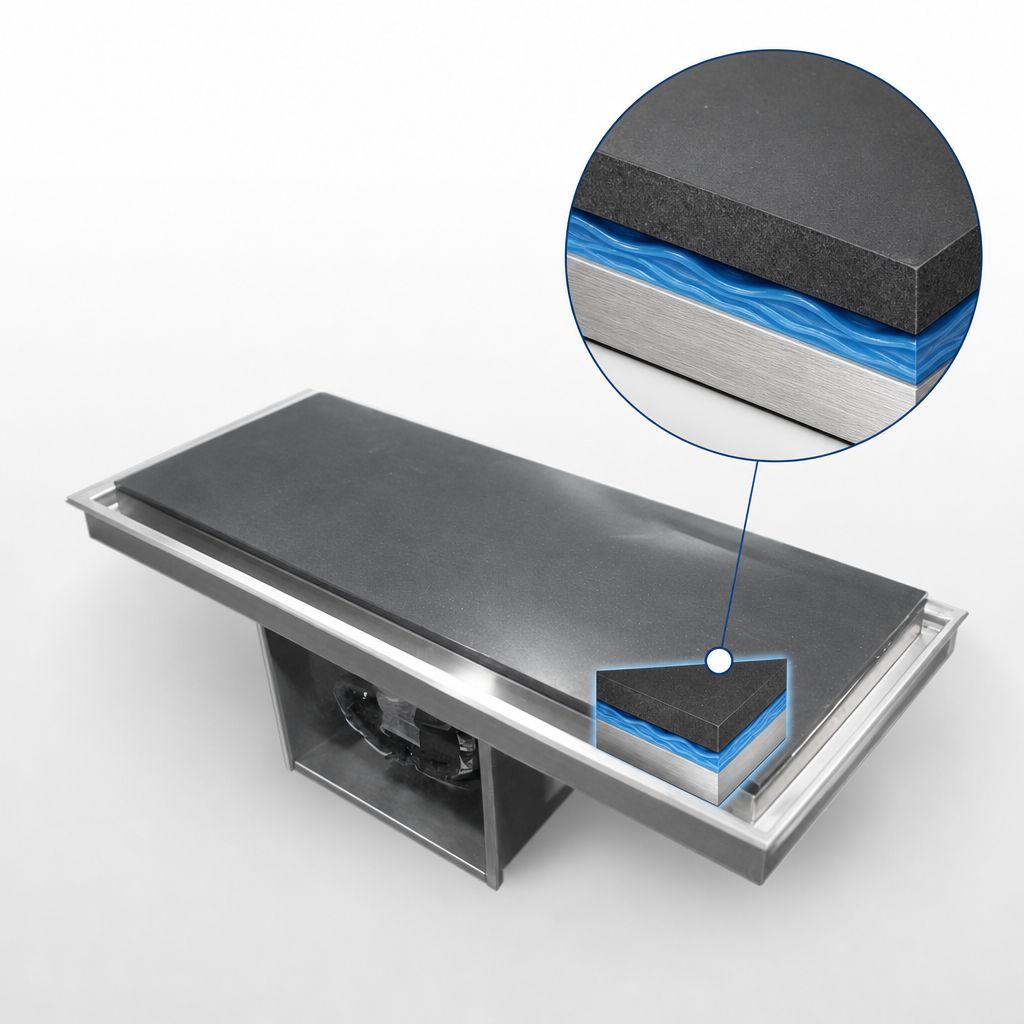

Thermal Mastic Heat Transfer

Thermal mastic compound is used between the granite and stainless steel to improve cold transfer.

Self-Contained R290 Refrigeration

Built-in refrigeration system uses environmentally friendly R290 refrigerant.

Perimeter Trough And Drain

Includes a 1.5-inch deep trough around the perimeter with a 3/4-inch stainless steel drain.

Compressor On/Off Switch

An on/off switch is located on the compressor for simple operation.

Standard 8-Foot Cord

Supplied with an 8-foot electrical cord as standard.

High-Density Foam Insulation

High-density polyurethane foam insulation is non-ODP and non-GWP.

Type Frost Top
Style Granite Cold Slab
Installation Type Drop-In
Refrigeration Type Self-Contained
Material Stainless Steel
Color Absolute Black
Compressor Horsepower 1/5 HP
BTU 800 BTU
Refrigerant Type R290
Voltage 115 Volts
Amps 2.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-15P
Cord Length 8 Feet
Cutout Size 30.75 Inches x 25 Inches
Shipping Width 32 Inches
Shipping Depth 26 Inches
Shipping Height 19 Inches
Shipping Weight 227 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

A 30.75" x 25.00" counter cutout is required.
It operates on 115V, 60Hz, single-phase power and includes a 5-15P plug with an 8-foot cord.
The unit uses R290 refrigerant.
It has a 1.5-inch deep perimeter trough and a 3/4-inch stainless steel drain.
The standard warranty is one year parts and labor.
