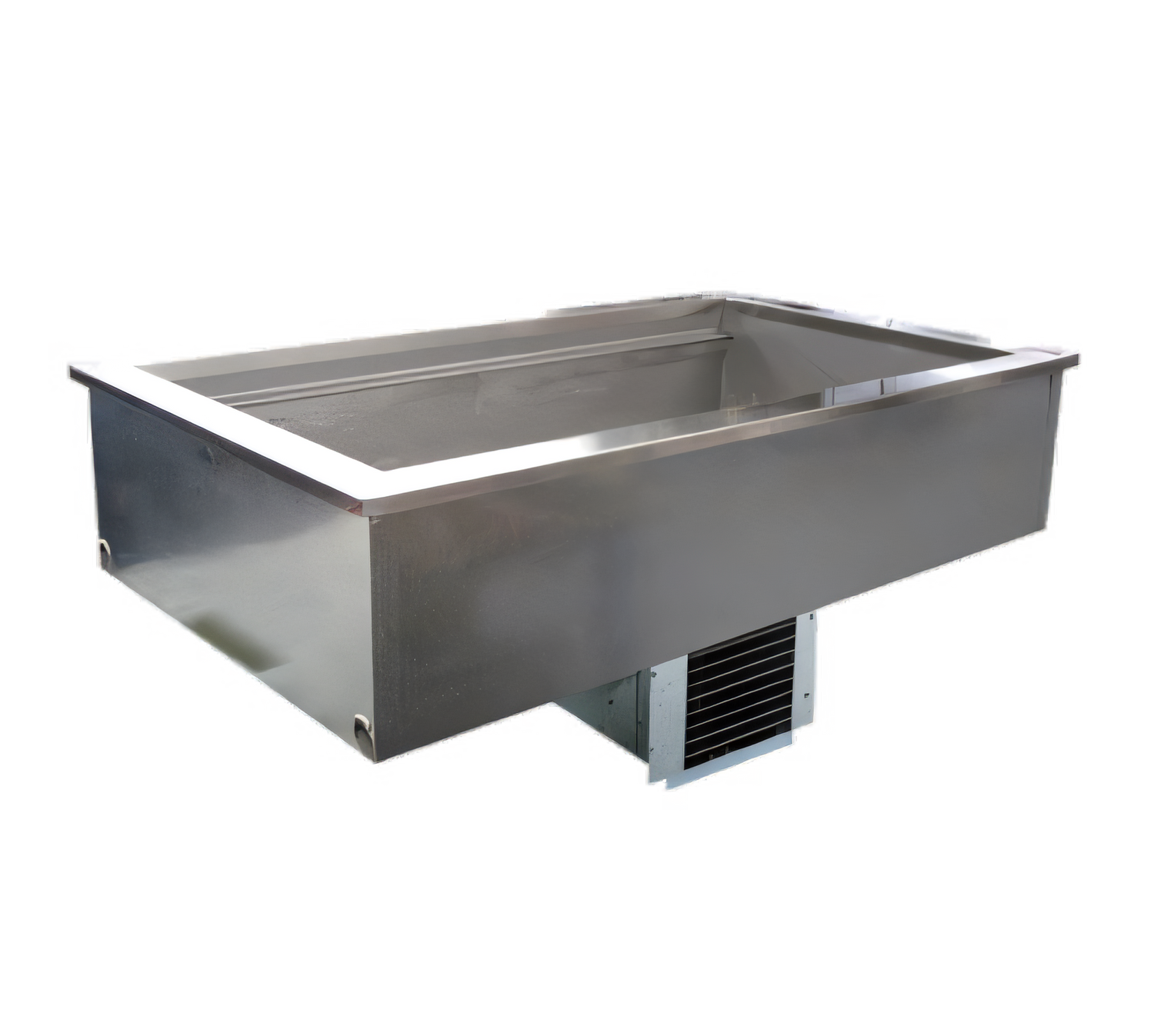

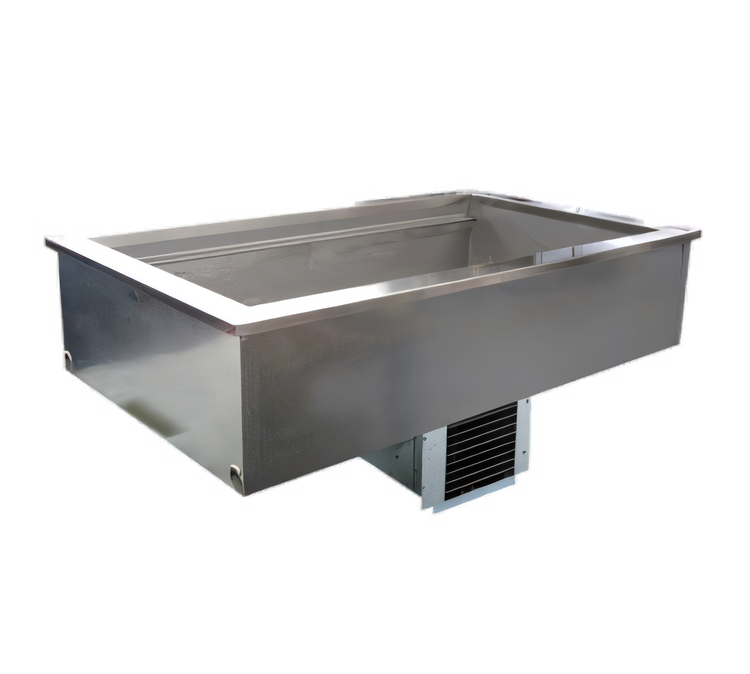

Delfield N8181BP Drop-In Mechanically Cooled Cold Pan
81-3/4" W • 6-pan • Self-Contained R290 RefrigerationEasily hold, display and serve chilled menu items with Delfield’s largest N8100BP model. The N8181BP drop-in cold pan delivers NSF-7 food-safe temperatures—even in 86 °F kitchens—while fitting seamlessly into an 80-3/4" × 25" counter cut-out. Just “drop it in”, plug it in and start merchandising six full-size 12" × 20" pans of cold product.
Why You’ll Love It
- Integral V-stamped pan rest – no thumb-screws or clips to lose
- Holds six 12" × 20" pans (4" or 6" deep – pans supplied by others)
- Eco-friendly GreenGenius™ R290 hydrocarbon refrigeration
- Factory-installed electronic temperature control maintains 33–41 °F
- Fully insulated with high-density, zero-ODP/GWP polyurethane foam
- Durable 20-ga. stainless steel top & 22-ga. stainless steel inner liner
- Galvanized steel outer body with 16-ga. compressor frame
- 1" diameter plastic drain (left side when facing service)
- Includes adapter bars for each pan opening & stainless steel louver for field install
- Pre-installed press-fit gasket for a fast, non-marring countertop seal
- Ships with 8' cord & NEMA 5-15P plug – no hardwiring required
Technical Specifications
| Model | N8181BP |
|---|---|
| Exterior width | 81 3⁄4" (207.5 cm) |
| Exterior depth | 26" (66 cm) |
| Required cut-out | 80 3⁄4" W × 25" D |
| Pan capacity | 6 × 12" × 20" |
| Pan recess | 2" below top flange |
| Well depth | 8" |
| Refrigerant | R290 Hydrocarbon |
| Compressor | 1/3 hp, self-contained |
| Electrical | 115 V / 60 Hz / 1 Ø, 4.6 A, NEMA 5-15P |
| BTU load / system capacity | 1,631 BTU / 1,831 BTU |
| Shipping weight | ≈ 260 lb (118 kg) |
| Drain | 1" I.D. plastic drain with hose barb |
| Certifications | cUL, UL, NSF 7 |
| Warranty | 1-year parts & labor |

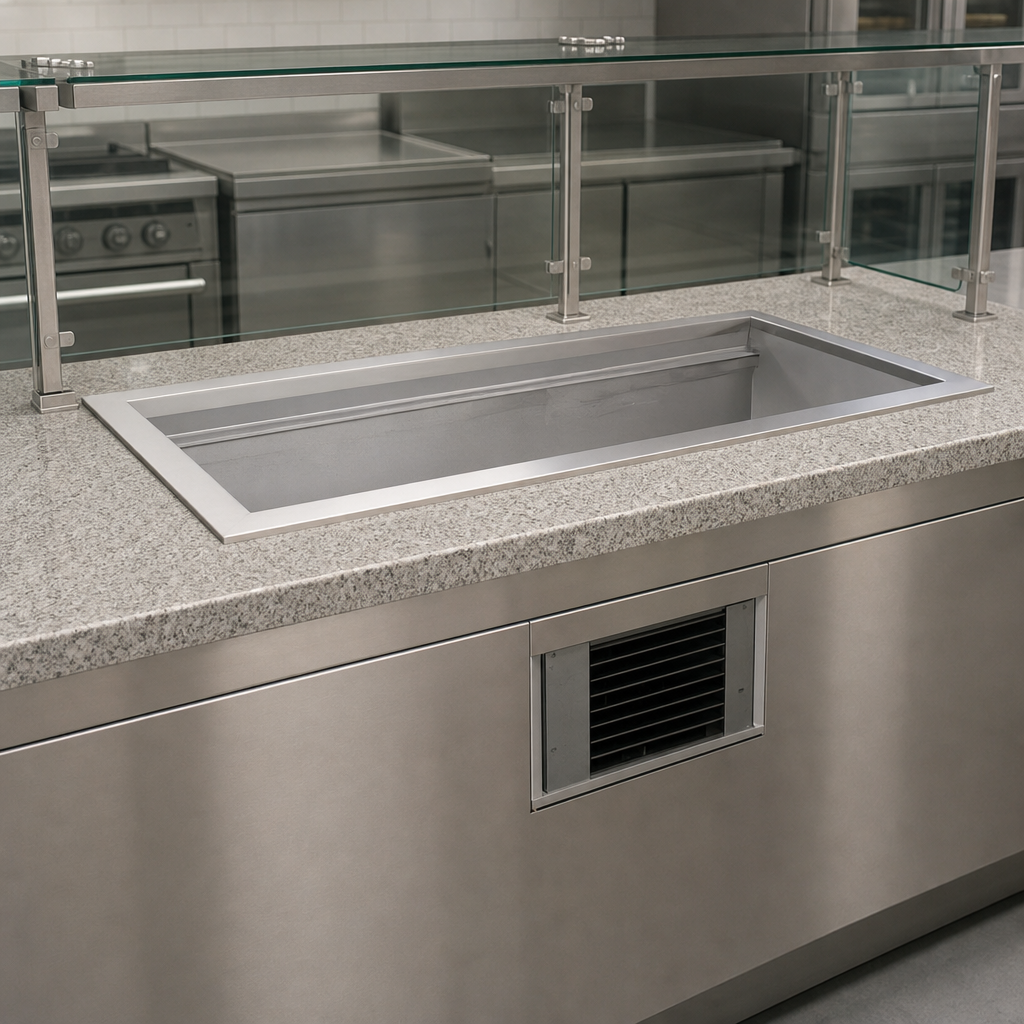

Quick Installation Notes
- Cut and reinforce counter opening to 80-3/4" × 25" before placing unit.
- Lower pan until the pre-installed gasket rests flush on the counter surface.
- Install included stainless louver for condenser air flow.
- Connect 1" drain to floor sink or waste line.
- Plug into a dedicated, grounded 15 A receptacle and allow unit to pull down to temp before loading food.
Delfield drop-ins are proudly made in the USA and built to last. Register your unit upon installation to activate the full warranty coverage.
$6,876.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield N8181BP drop-in steam table: 81¾" 6-pan mechanically cooled unit with insulated stainless pan, self-contained R290 refrigeration, NSF/UL listed.
Manufacturer
Delfield
Certifications
NSF, UL
Height
21.87in
Width
81.75in
Depth
26.0in
Shipping Weight
260.0lbs
Finish
galvanized steel outer liner
Pan Qty
6-pan
Pan Size
full-size (12" x 20")
Style
self-contained refrigeration
Width (side - side)
79 - 84 inches
Layout
deep
Insulation
insulated
Specifications
Drop-In Mechanically Cooled Pan, 81-3/4" W x 26" D, 6-pan size, 8" deep, 1" dia. drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 hp, (80-3/4" x 25" cutout required), cUL, UL, NSF
