Delfield N8169BP Steam Tables & Food Wells
Description

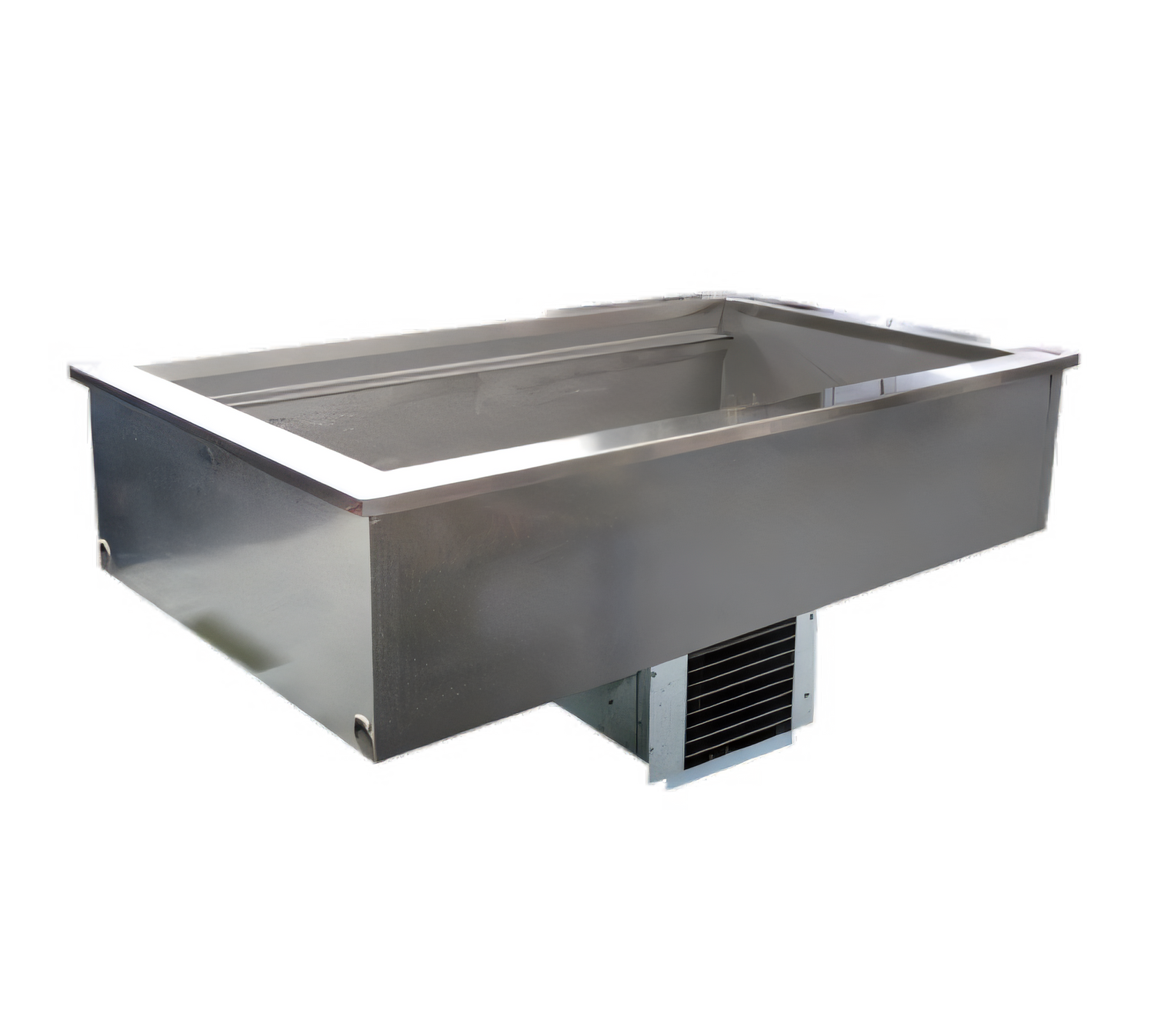

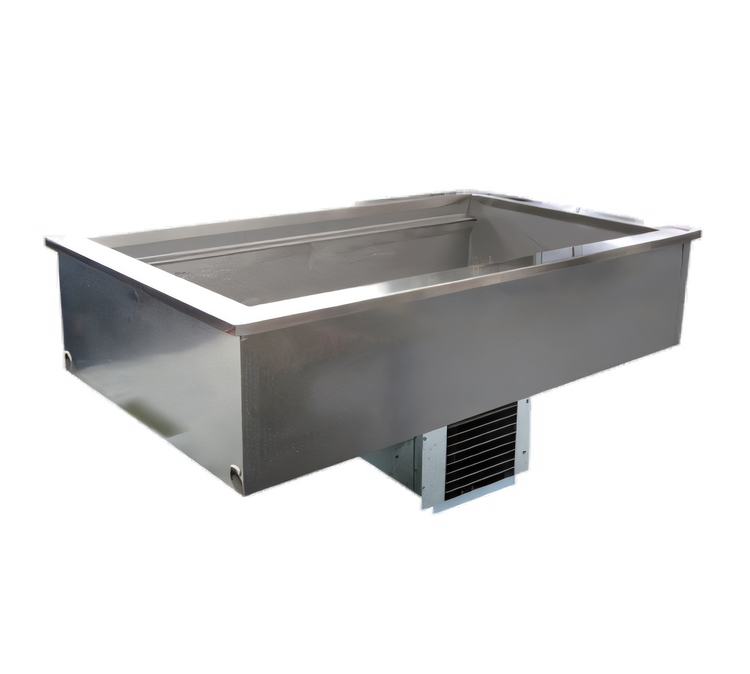

Delfield N8169BP 69" Drop-In Self-Contained Mechanically Cooled Cold Pan
5-Pan | R290 GreenGenius™ Refrigeration | NSF-7Keep salads, toppings and grab-&-go favorites safely chilled and perfectly displayed with Delfield’s N8169BP mechanically cooled cold pan. Built for quick “drop-in” installation, this 69-inch unit delivers reliable 33 – 41 °F holding temperatures—even in 86 °F kitchens—while its eco-friendly R290 refrigeration system lowers energy use and environmental impact.
Key Features
- Five (5) 12" × 20" pan capacity – adapter bars included
- 8" deep, fully insulated well with integral V-stamped pan rest (no thumb screws or clips)
- 20-gauge stainless steel top and 22-gauge stainless steel interior liner
- High-density, CFC-free polyurethane foam insulation – Non-ODP & Non-GWP

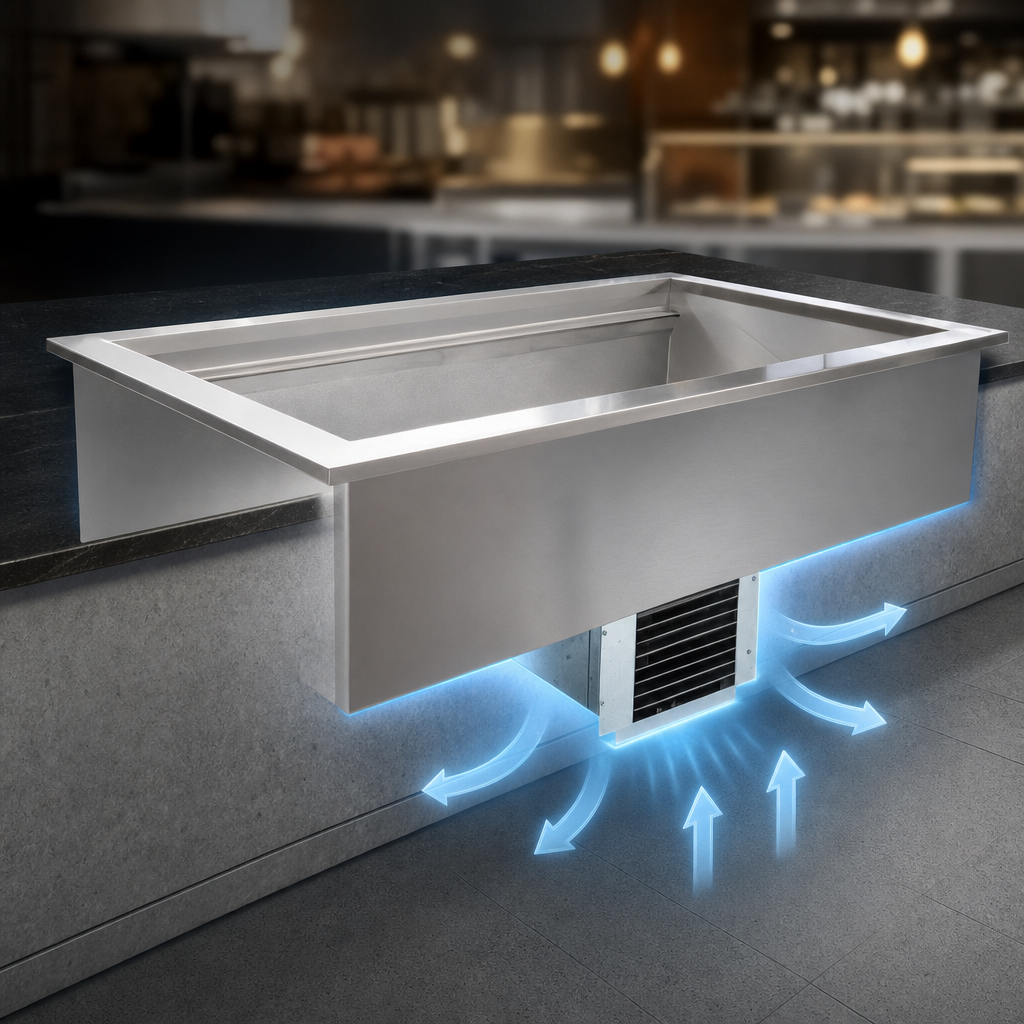

- Self-contained 2/7 hp GreenGenius™ refrigeration with natural R290 hydrocarbon refrigerant
- Electronic temperature control for consistent NSF-7 product safety
- 1" diameter PVC drain for fast cleanup
- Non-marring press-fit gasket speeds installation and seals against the counter
- Galvanized steel exterior body with 16-gauge galvanized compressor frame
- 8' cord & NEMA 5-15P plug – simply plug in and go
- Stainless steel louver supplied for field installation
- cULus & NSF certified; 1-year parts & labor warranty
Technical Specifications
| Model | N8169BP |
|---|---|
| Overall Size (W × D) | 69" × 26" (175 cm × 66 cm) |
| Required Counter Cutout | 68" × 25" (173 cm × 64 cm) |
| Pan Capacity | Five 12" × 20" pans (4" or 6" deep – pans not included) |
| Well Depth | 8" (20 cm) |
| Refrigerant / HP | R290 / 2 / 7 hp |
| Voltage / Phase | 115 V / 60 Hz / 1-phase |
| Amps | 3.1 A |
| BTU Load | 1,092 BTU/hr |
| Plug Type | NEMA 5-15P |
| Shipping Weight | 243 lb (109 kg) |
| Certifications | cULus, NSF 7, Hydrocarbon-Ready |
Installation Notes
- Provide a 68" × 25" counter cutout and mount the supplied press-fit gasket flush to the countertop.
- Install the included stainless steel louver to ensure proper condenser airflow.
- Plumb 1" drain line to local code requirements.
- Unit ships with 8' cord; connect to a dedicated 15-amp, 115 V receptacle.
Looking for sneeze guards, custom pan configurations or remote refrigeration? Contact our team for factory-approved options and accessories.
