Delfield

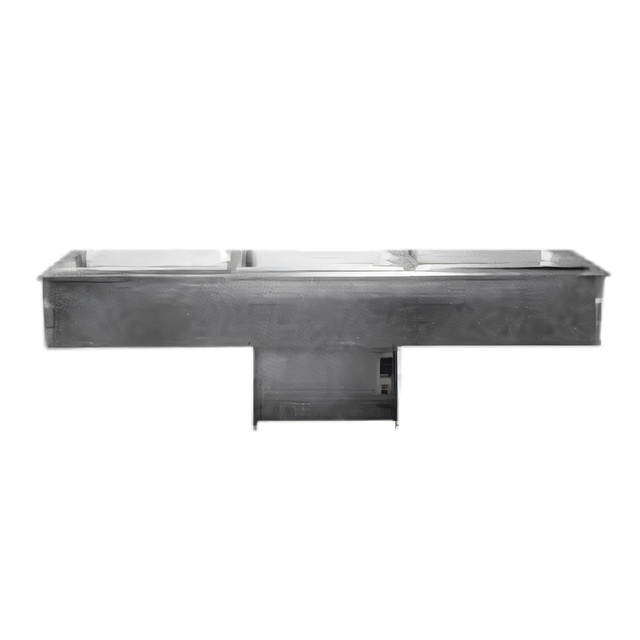

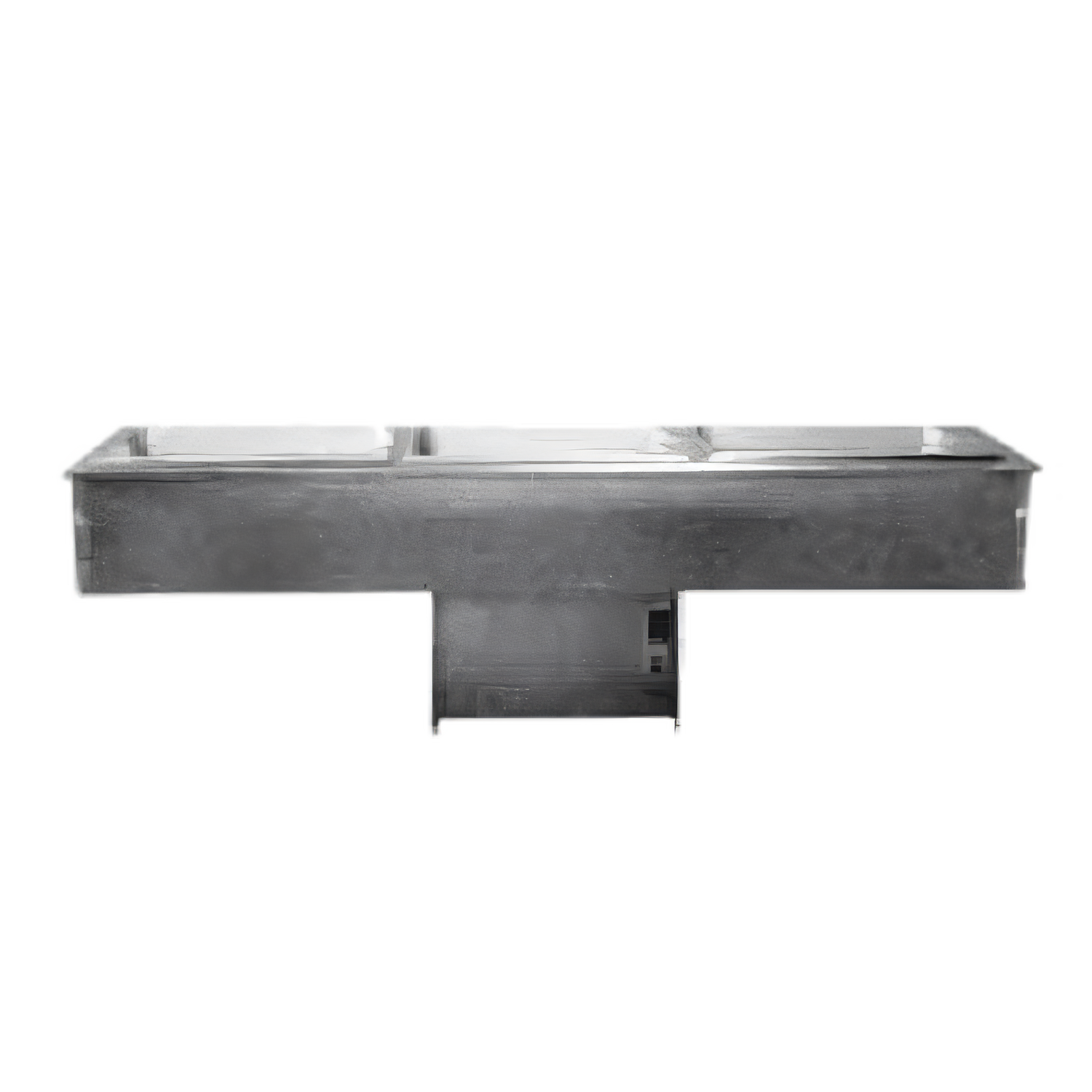

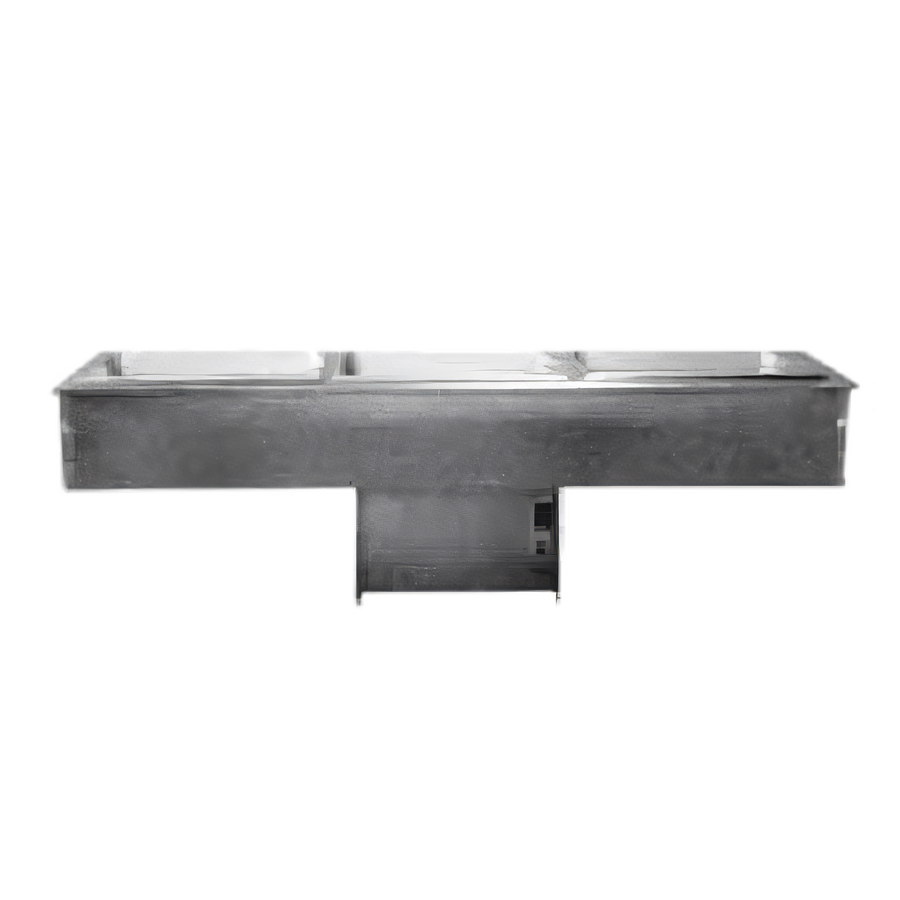

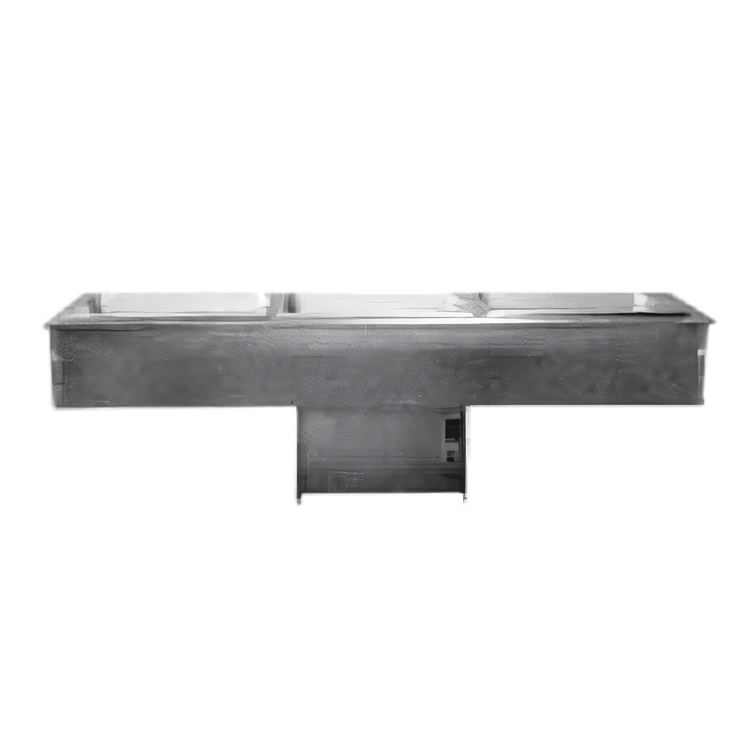

Delfield Narrow Drop-In Self-Contained Refrigerated Cold Pan, 3-Pan Capacity

SKU: N8168NBP
$5,728.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Delfield Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

Delfield Narrow Drop-In Self-Contained Refrigerated Cold Pan, 3-Pan Capacity

Fits 12" x 20" Pans, 4" or 6" Deep

Keep three full-size pans chilled in a compact, self-contained drop-in unit built for buffet and serving-line applications.

  • Narrow drop-in design fits a compact 66-1/2" x 17" cutout for tight line layouts.
  • Holds three 12" x 20" pans and accommodates 4" or 6" deep pans.
  • Self-contained refrigeration with R290 refrigerant simplifies installation.
  • Stainless steel top and interior liner provide durable food-contact surfaces.
  • Galvanized steel exterior body and insulated construction help support reliable cold holding.
  • Standard 8-foot cord with NEMA 5-15P plug and 1" drain streamline setup.

Overall Dimensions:

67.5"W x 18.0"D x 21.81"H

Product Weight:

240.0 lb

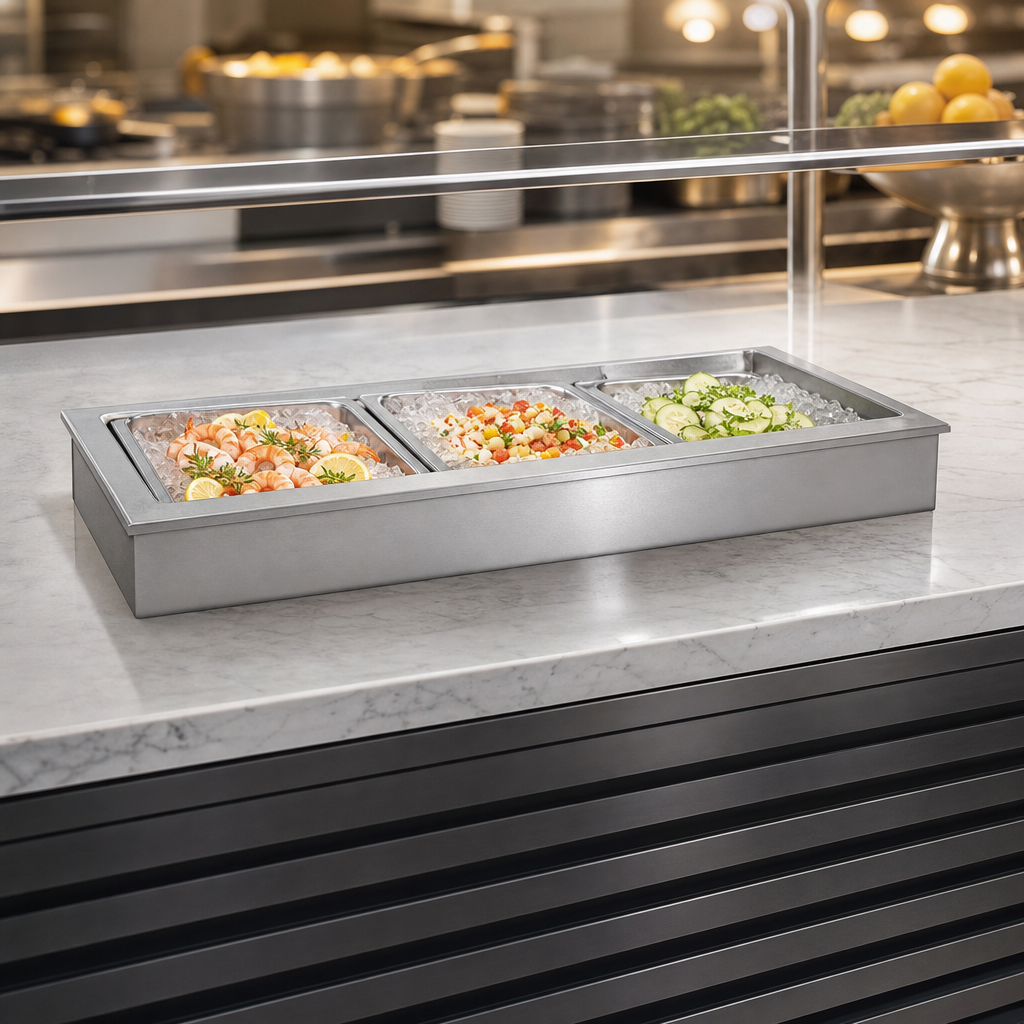

Narrow Drop-In Design

Compact drop-in footprint is designed for narrow serving lines and buffet applications.

Three-Pan Capacity

Configured to hold three 12" x 20" pans, with adapter bars included for proper fit.

Stainless Steel Food Zone

One-piece stainless steel top and stainless steel interior liner offer durable, easy-to-clean food-contact surfaces.

Self-Contained R290 Refrigeration

Built-in mechanically cooled refrigeration uses R290 refrigerant, eliminating the need for remote refrigeration components.

Electronic Temperature Control

Electronic controls include a standby mode to power down the cold pan when not in use.

Insulated Cabinet Construction

High-density polyurethane insulation helps maintain cold-holding performance.

Standard Drain and Power Connection

Includes a 1" plastic drain, 8-foot cord, and NEMA 5-15P plug.

Field-Install Louver

A stainless steel louver is provided for field installation on the front of the cabinet.

Type Refrigerated Cold Pan
Style Narrow
Installation Type Drop-In
Refrigeration Type Self-Contained
Pan Capacity 3
Pan Size 12 Inches x 20 Inches
Temperature Range 33°F to 41°F
Controls Electronic
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized Steel
Refrigerant Type R290 Hydrocarbon
Voltage 115 Volts
Amps 2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Drain Connection Required
BTU 522 BTU
Shipping Width 68 Inches
Shipping Depth 18 Inches
Shipping Height 22 Inches
Shipping Weight 240 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a three-pan capacity for 12" x 20" pans.
It accommodates 4" or 6" deep pans supplied by others.
It operates on 115V, 60 Hz, single-phase power and includes a NEMA 5-15P plug with an 8-foot cord.
The required counter cutout is 17.00" x 66.50".
This unit uses R290 refrigerant.
