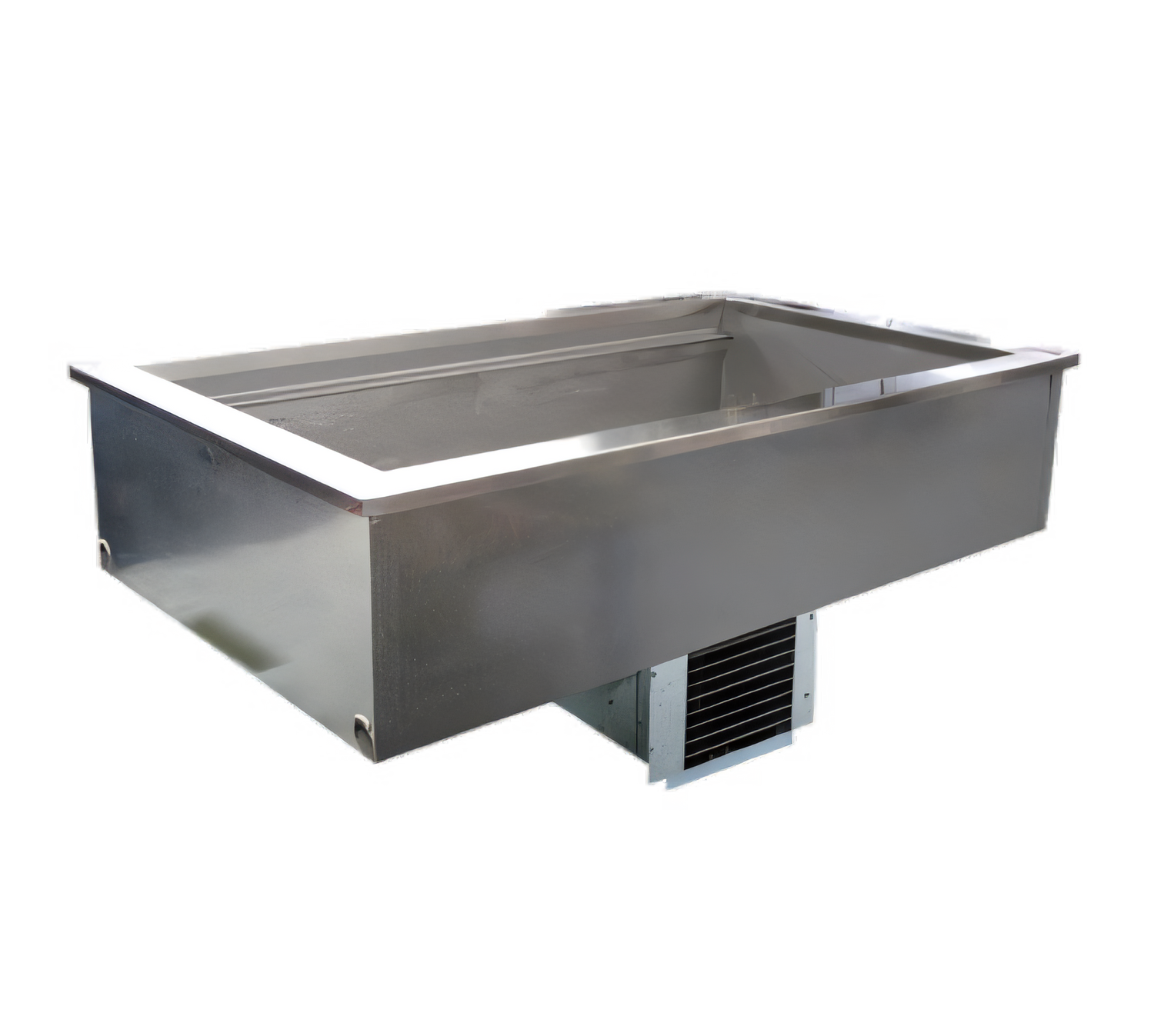

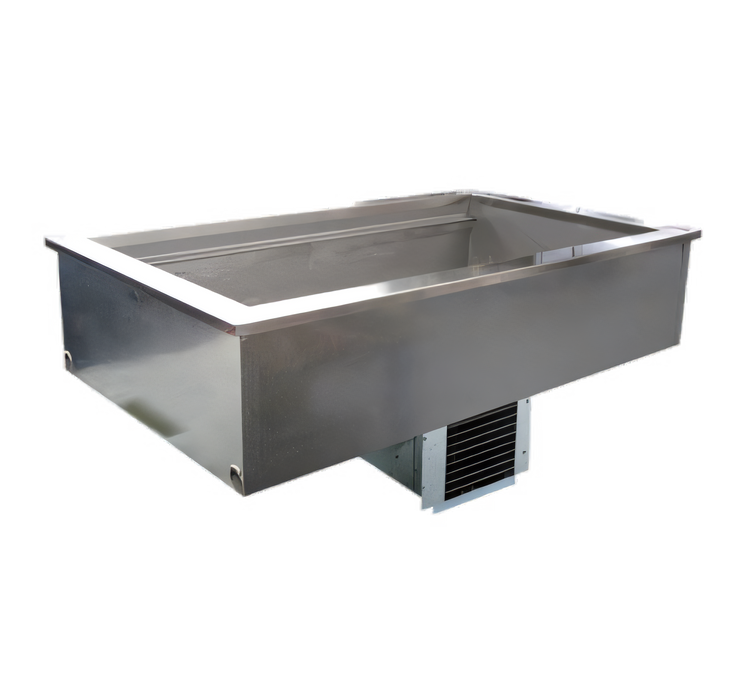

Delfield N8143BP Drop-In Mechanically Cooled Cold Pan
43 1/2" W × 26" D • 3 Full-Size Pan Capacity • Self-Contained R290 RefrigerationKeep salads, toppings and grab-and-go ingredients perfectly chilled with the GreenGenius™-equipped Delfield N8143BP. Engineered for fast “drop-in” installation, this heavy-duty stainless-steel cold well maintains NSF-7 food-safe temperatures even in 86 °F kitchens, delivering reliability and peace of mind service after service.
Key Features
- Accommodates three standard 12" × 20" pans (4" or 6" deep); integral V-stamped pan rest—no loose clips
- One-piece 20-ga stainless-steel top with factory-installed press-fit gasket for a clean, leak-free drop-in
- 22-ga stainless interior liner; refrigeration lines spot-clipped and embedded in thermal compound for rapid, even cooling

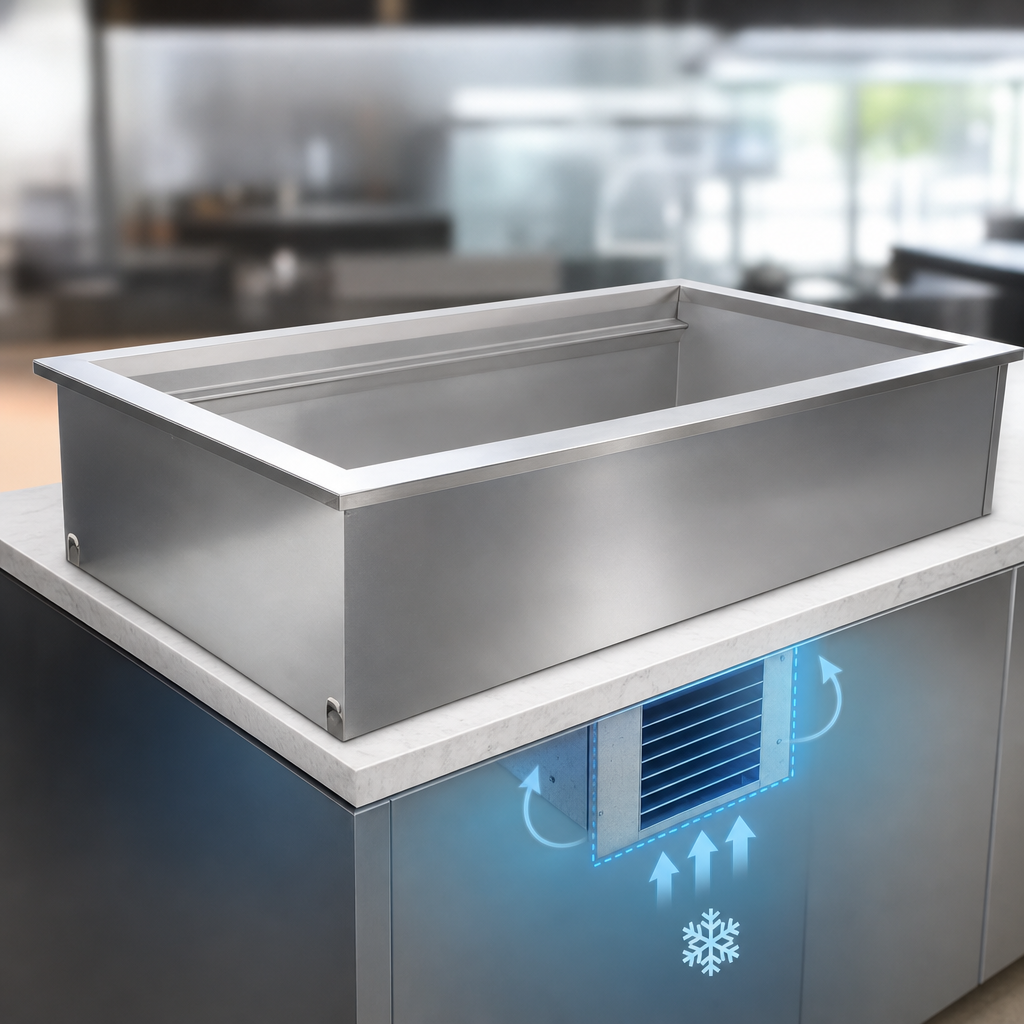

- Eco-friendly GreenGenius R290 hydrocarbon system with 2/7 hp compressor & electronic temperature control
- 33 °F – 41 °F holding range at 86 °F ambient; NSF-7 compliant
- High-density, non-ODP/non-GWP polyurethane foam insulation reduces energy use
- 1" diameter plastic drain (left side when facing service) speeds clean-up
- Includes adapter bars, stainless-steel louver & 8' cord with NEMA 5-15P plug—everything you need to install
- UL, cUL & NSF certified; backed by Delfield’s 1-year parts & labor warranty
Technical Specifications
| Model | N8143BP |
|---|---|
| Pan Capacity | 3 × 12" × 20" full-size food pans |
| Overall Dimensions | 43.5" W × 26" D |
| Counter Cutout Required | 42.5" W × 25" D |
| Recess Below Counter | 2" pan recess |
| Compressor | 2/7 hp, self-contained |
| Refrigerant | R290 (hydrocarbon) |
| Operating Temperature | 33 °F – 41 °F |
| Electrical | 115 V / 60 Hz / 1 ph • 3.1 A • NEMA 5-15P |
| BTU Load | 661 BTU/hr |
| Drain | 1" diameter plastic drain |
| Construction | 20-ga SS top • 22-ga SS liner • 24-ga galvanized exterior |
| Insulation | High-density polyurethane foam (Non-ODP / Non-GWP) |
| Shipping Weight | Approx. 184 lb |
| Certifications | UL • cUL • NSF 7 |
| Warranty | 1-year parts & labor |
Installation Note: Counter must be cut to 42 1/2" W × 25" D and support approximately 184 lb,
including clearance for the under-counter refrigeration package.

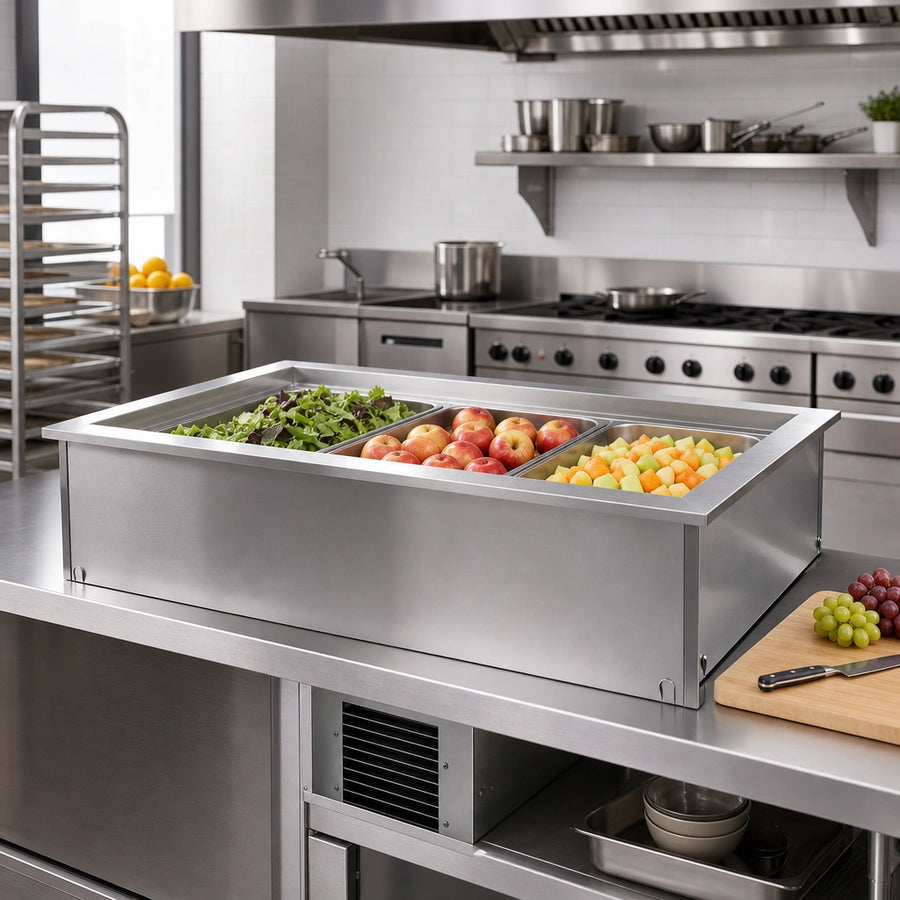

Food pans shown in images are for illustration only and are not included.
$5,295.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield N8143BP 3-pan mechanically cooled drop-in steam table—insulated stainless steel pan, self-contained R290 refrigeration, NSF/UL certified.
Manufacturer
Delfield
Certifications
NSF, UL
Height
21.87in
Width
43.5in
Depth
26.0in
Shipping Weight
184.0lbs
Finish
galvanized steel outer liner
Style
self-contained refrigeration
Insulation
insulated
Width (side - side)
43 - 48 inches
Layout
deep
Pan Size
full-size (12" x 20")
Pan Qty
3-pan
Specifications
Drop-In Mechanically Cooled Pan, 43-1/2"W x 26" D, 3-pan size, 1" dia. drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 Hydrocarbon refrigerant, 2/7 hp, (42-1/2" x 25" cutout required), cUL, UL, NSF
