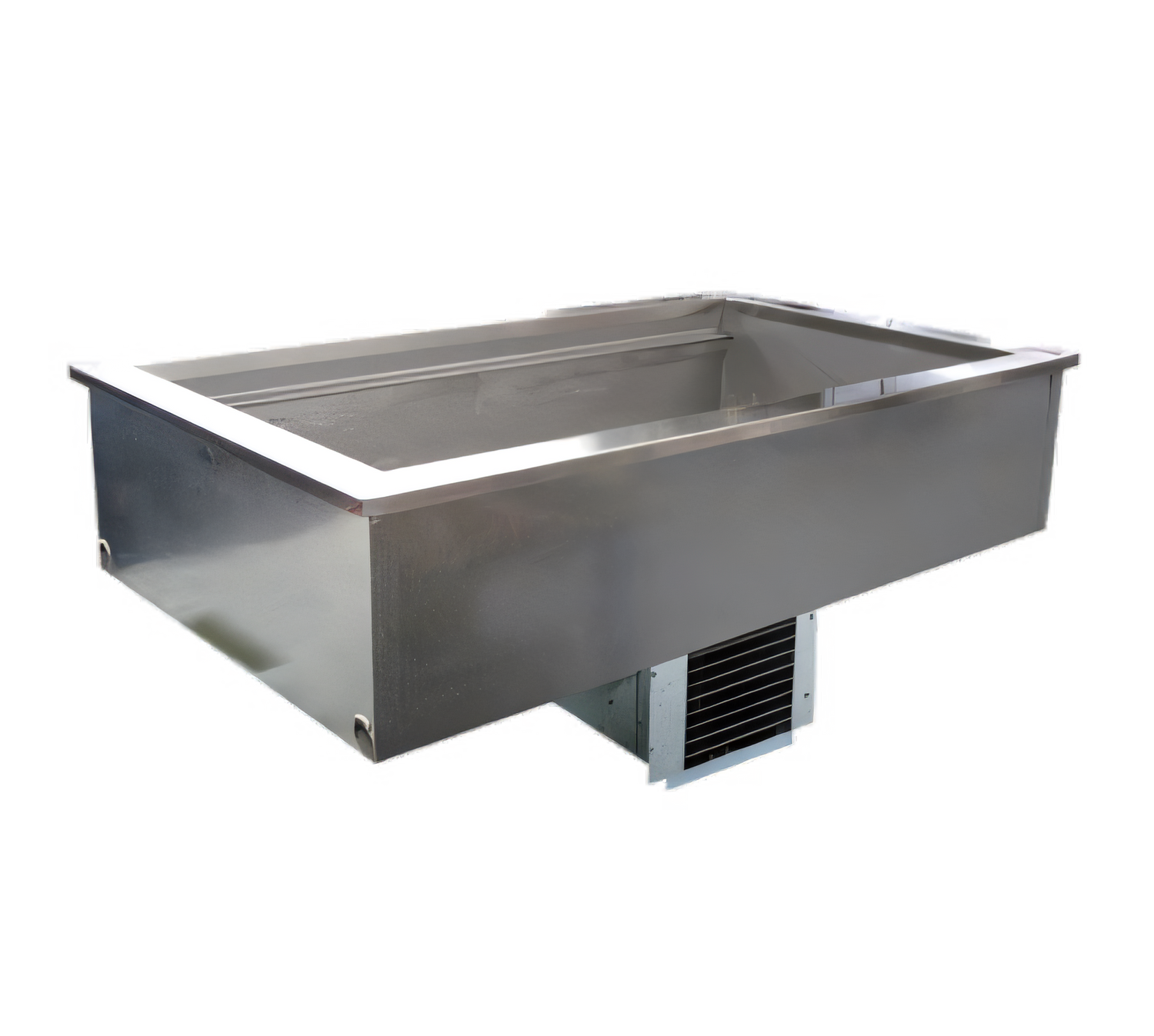

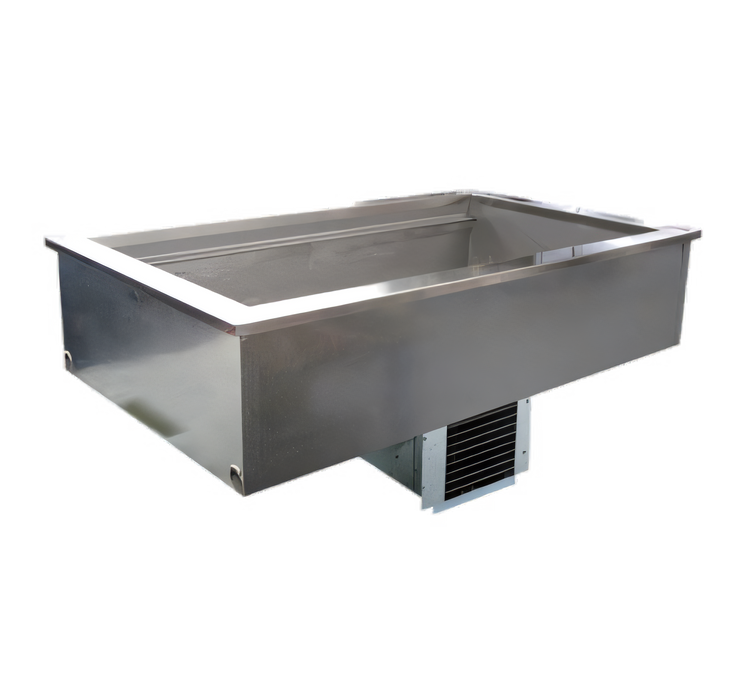

Delfield N8130BP Drop-In Mechanically Cooled Cold Pan
30-3/4" W × 26" D • 2-Pan • Self-Contained R290 RefrigerationKeep ingredients safely chilled and brilliantly displayed with Delfield’s N8130BP. This 30" mechanically cooled drop-in holds two full-size 12" × 20" pans between 33 °F and 41 °F—even in 86 °F ambient conditions—meeting NSF-7 cold-food standards without the need for ice.
Key Features
- Press-fit perimeter gasket and included stainless steel louver for quick, no-hassle installation.
- Integral V-stamped pan rest—no thumb screws or clips to lose.
- 20-gauge stainless steel top and 22-gauge stainless inner liner for superior durability and easy sanitation.
- High-density, CFC-free polyurethane insulation keeps cold where it belongs and lowers energy use.

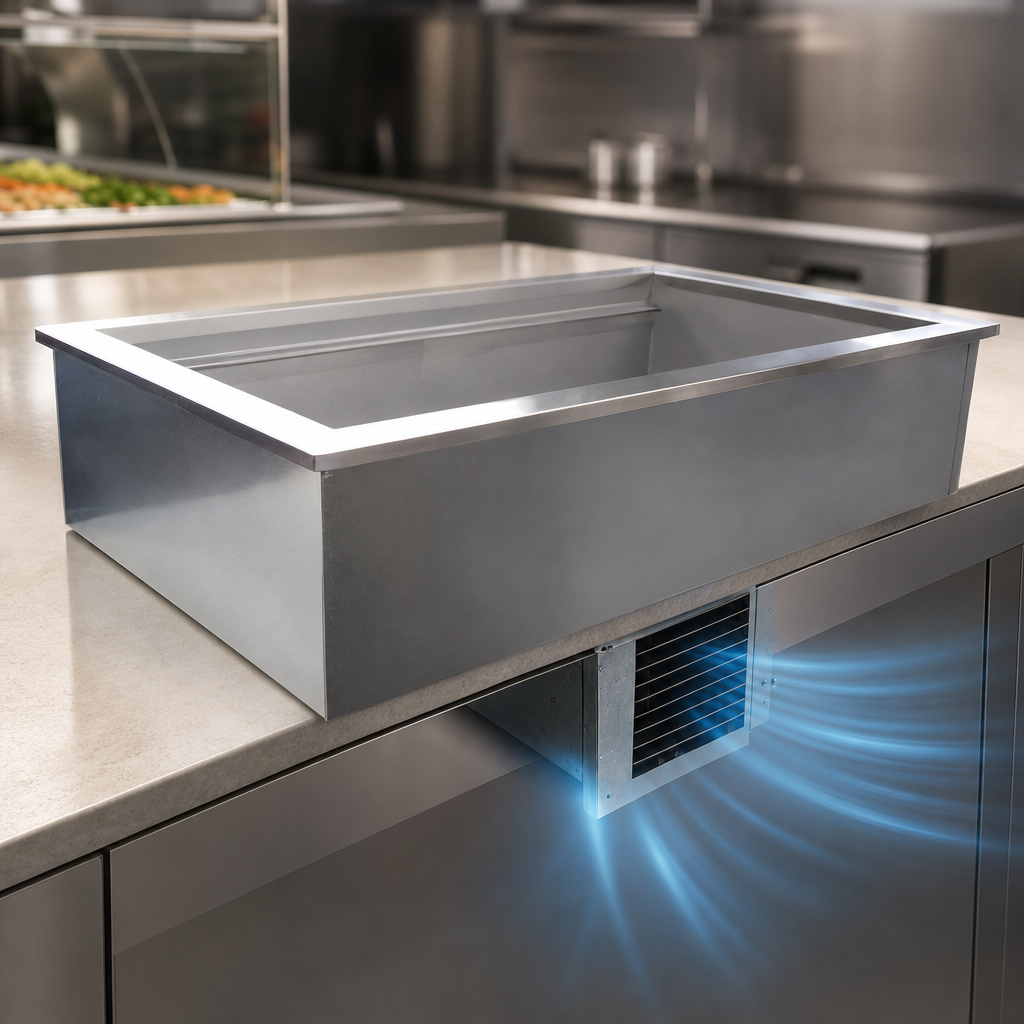

- Self-contained GreenGenius™ refrigeration system with eco-friendly R290 hydrocarbon refrigerant.
- 1" diameter drain for fast clean-outs at the end of service.
- Electronic temperature control for precise, reliable holding.
- Adapter bars for two 12" × 20" pans supplied standard.
- 8' power cord with NEMA 5-15P plug—simply drop in, plug in, and chill.
- cULus & NSF certified for open-food use.
Specifications
| Pan capacity | 2 × 12" × 20" pans (4" or 6" deep, by others) |
|---|---|
| Overall dimensions (W × D) | 30-3/4" × 26" (78 × 66 cm) |
| Required counter cut-out | 29-3/4" × 25" (76 × 64 cm) |
| Depth below counter | 8-3/4" (22 cm) |
| Compressor | 1/6 hp, self-contained |
| Refrigerant | R290 Hydrocarbon |
| Electrical | 115 V / 60 Hz / 1 Ph • 2 A • NEMA 5-15P |
| BTU load / system capacity | 346 BTU/h • 741 BTU/h |
| Drain | 1" diameter, left side (service-side orientation) |
| Shipping weight | 161 lb (72 kg) |
| Certifications | cULus, NSF-7 |
| Warranty | 1-year parts & labor |
Perfect For
- Salad & sandwich make lines
- Buffets and cafeteria serving counters
- Convenience stores & delis
- Catering and banquet setups
Hydrocarbon Refrigerant Notice:
This unit utilizes R290 (propane) refrigerant and must be installed and serviced by technicians trained for hydrocarbon systems.
Need accessories? Optional adaptor bars, food shields, compressor relocation kits, and extended warranties are available—ask your sales rep for details.
$4,872.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield N8130BP 2-pan mechanically cooled drop-in steam table: insulated stainless steel wells, R290 refrigeration, compact 30.75" W, NSF/UL listed.
Manufacturer
Delfield
Certifications
NSF, UL
Height
21.87in
Width
30.75in
Depth
26.0in
Shipping Weight
161.0lbs
Pan Qty
2-pan
Style
self-contained refrigeration
Finish
galvanized steel outer liner
Pan Size
full-size (12" x 20")
Width (side - side)
25 - 30 inches
Layout
deep
Insulation
insulated
Specifications
Drop-In Mechanically Cooled Pan, 30-3/4"W x 26" D, 2-pan size, 1" dia. drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/6 hp, (29-3/4" x 25" cutout required), cUL, UL, NSF
