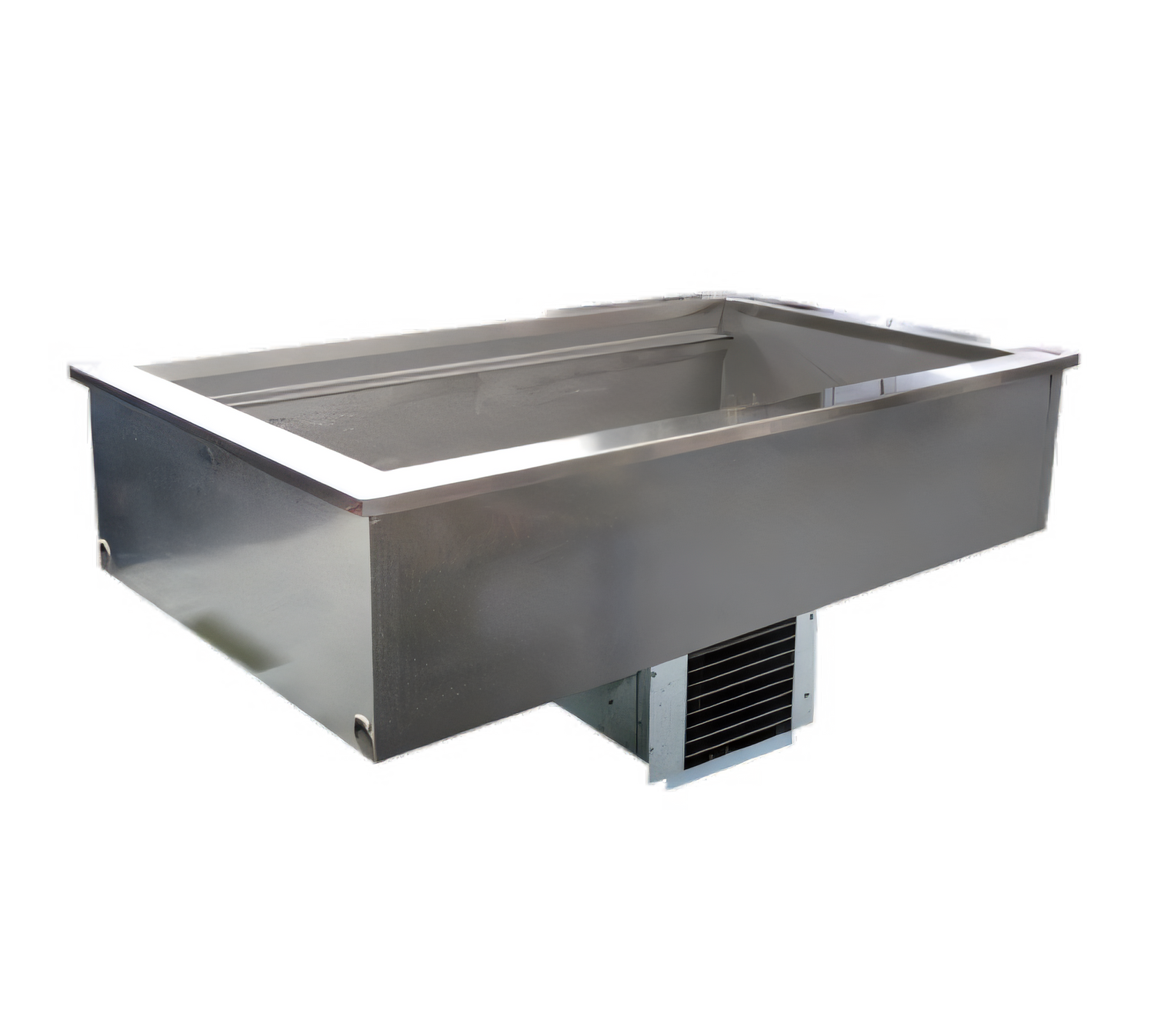

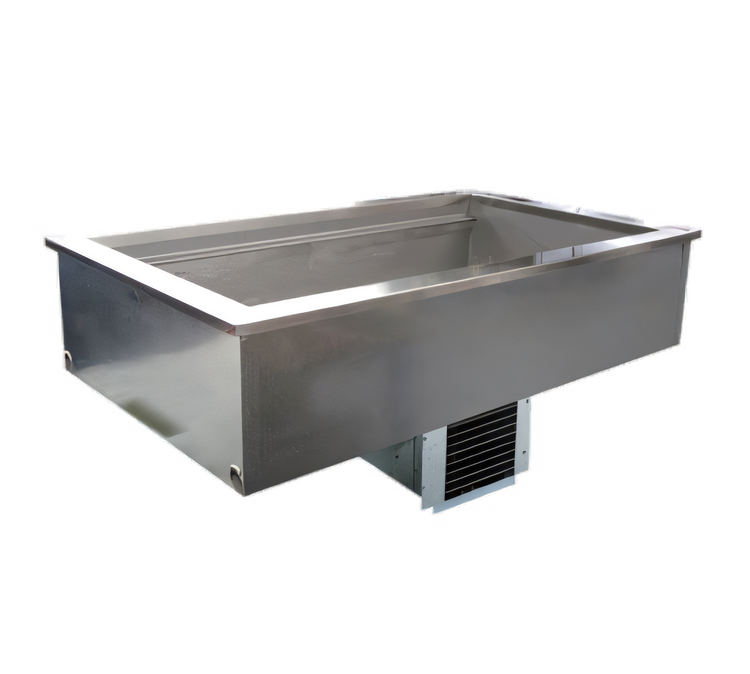

Delfield N8118BP Drop-In Mechanically Cooled Cold Pan
18" W x 26" D • 1-Pan • Self-Contained R290 RefrigerationKeep ingredients perfectly chilled and easy to access with Delfield’s compact N8118BP cold pan. Designed for quick “drop-in” installation, this mechanically cooled unit delivers reliable NSF-7 product temperatures in even the busiest kitchens or serving lines.
- Self-contained GreenGenius™ refrigeration with eco-friendly R290 hydrocarbon refrigerant.
- Maintains 33 °F – 41 °F (0.5 °C – 5 °C) at 86 °F ambient for food-safe holding.
- Integral V-stamped pan rest plus adapter bars—fits one full-size 12" x 20" pan, 4" or 6" deep (pan not included).
- Rugged 20-ga stainless steel top and 22-ga stainless liner; galvanized steel exterior body.
- High-density, CFC-free polyurethane insulation maximizes cold retention and efficiency.
- 1" diameter rear drain for quick cleanup; press-fit perimeter gasket speeds installation.
- Compact 1/6 HP compressor suspended on a 16-ga galvanized frame; electronic temperature control.
- 8' cord & NEMA 5-15P plug—just drop it in, plug it in, and start serving.
- Shipped with stainless steel louver for field installation and a 1-year parts & labor warranty.
- cULus & NSF certified for safety and sanitation.
Technical Specifications
| Model | N8118BP |
|---|---|
| Pan Capacity | (1) 12" x 20" full-size pan, 4" or 6" deep |
| Overall Dimensions | 18" W x 26" D x 13.62" H |
| Required Counter Cutout | 17" W x 25" D |
| Pan Recess | 2" |
| Drain | 1" dia. plastic (rear when facing service side) |
| Refrigerant | R290 (Hydrocarbon) |
| Compressor | 1/6 HP, 675 BTU/hr |
| Electrical | 115 V / 60 Hz / 1-Ph, 2 A, NEMA 5-15P |
| Cord Length | 8' (2.4 m) |
| Ship Weight | Approx. 103 lb (46 kg) |
| Certifications | cULus, UL, NSF |
| Warranty | 1 year parts & labor |
Perfect For
- Salad, sandwich & deli stations
- Cafeterias & buffet lines
- Concession stands and kiosks
- Custom or retrofit counter installations
Looking for additional wells, remote refrigeration, or sneeze-guard solutions? Ask about Delfield’s full line of drop-in options and accessories.
$4,565.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield N8118BP drop-in mechanically cooled 1-pan steam table; stainless steel insulated pan, self-contained R290 refrigeration, NSF/UL listed.
Manufacturer
Delfield
Certifications
NSF, UL
Height
21.87in
Width
18.0in
Depth
26.0in
Shipping Weight
103.0lbs
Width (side - side)
13 - 18 inches
Finish
galvanized steel outer liner
Insulation
insulated
Style
self-contained refrigeration
Pan Qty
1-pan
Layout
deep
Pan Size
full-size (12" x 20")
Specifications
Drop-In Mechanically Cooled Pan, 18"W x 26" D, 1-pan size, 1" dia. drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/6 hp, (17" x 25" cutout required), cUL, UL, NSF
