Description

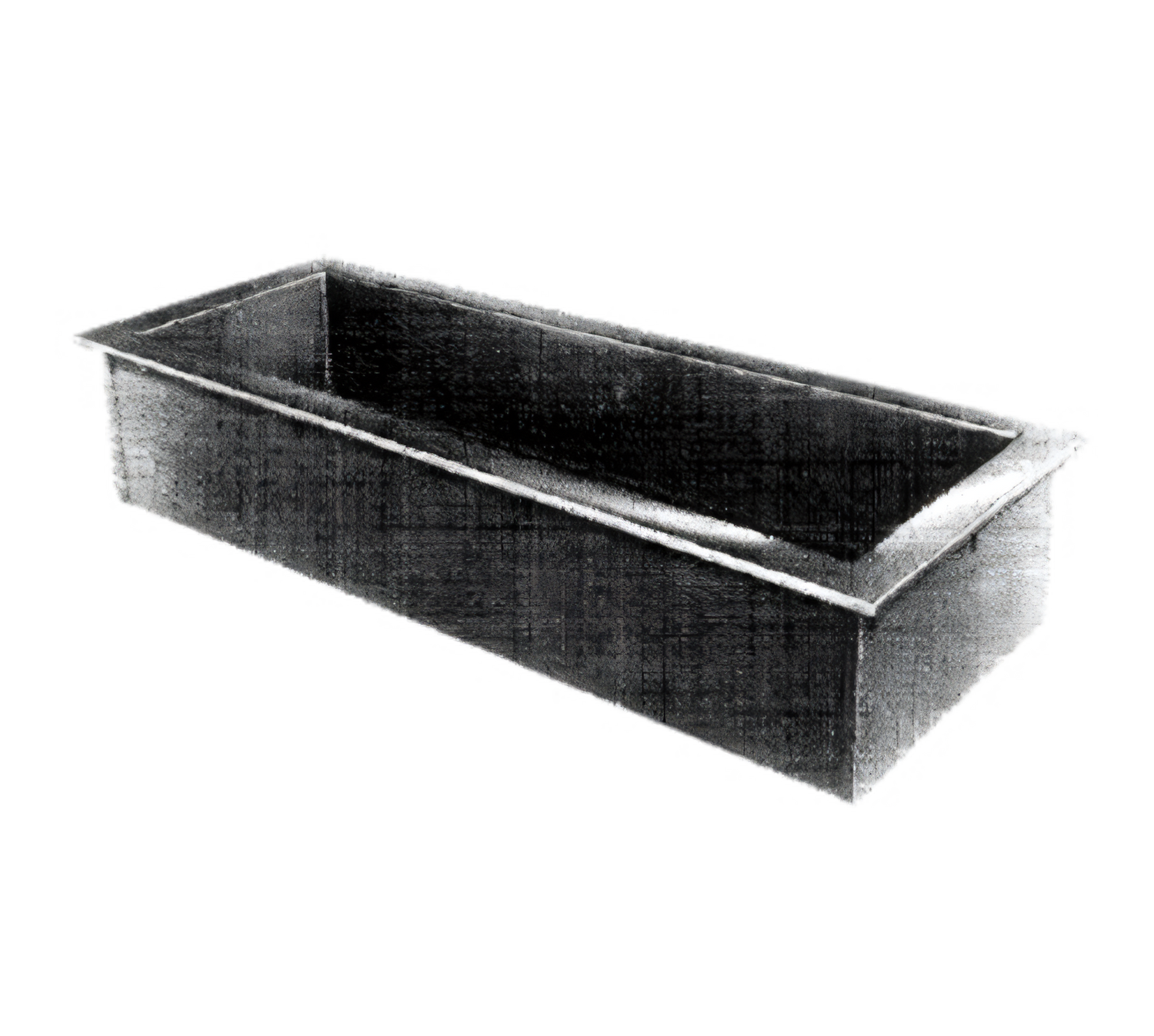

Delfield N8046N Narrow Drop-In Ice-Cooled Cold Pan – 46-3/4" W

2-Pan Capacity | NSF-2 Certified | Ice-Cooled – No Electricity Required

Bring effortless cold holding to salad bars, buffets and concessions without adding any refrigeration heat or energy costs. Simply fill the well with ice, drop in your food pans, and the N8046N keeps product safely chilled and ready to serve throughout service.

Key Features & Benefits

  • Holds two standard 12" × 20" full-size pans (adapter bars included).
  • Ice-cooled design – zero compressors, wiring or running costs.
  • One-piece 20-gauge stainless-steel top with non-marring press-fit gasket for a snug, sanitary drop-in fit.
  • 22-gauge stainless-steel interior liner with integral V-stamped pan rest for superior cold transfer.
  • Sectional, removable perforated false bottom keeps pans above melt-water for consistent temperatures.
  • High-density, closed-cell polyurethane insulation – Non-ODP & Non-GWP, Kyoto-Protocol compliant.
  • Convenient 1" I.D. plastic drain (field connection) quickly removes melt-water.
  • Durable 24-gauge galvanized exterior stands up to demanding commercial environments.
  • NSF-2 certified for open food storage.
  • Backed by Delfield’s 1-year parts & 90-day labor warranty.

Technical Specifications

Model N8046N
Pan Capacity 2 × 12" × 20" full-size
Overall Dimensions (W × D) 46.75" × 18.00" (119 cm × 46 cm)
Required Counter Cutout (W × D) 45.75" × 17.00" (116 cm × 43 cm)
Well Depth Approx. 10.74" (27 cm) to pan rest
Drain Size 1" (2.54 cm) I.D. plastic drain
Shipping Weight 100 lb (46 kg)
Construction 20-ga. stainless top / 22-ga. stainless liner / 24-ga. galvanized exterior
Insulation High-density polyurethane foam
Certifications NSF-2
Standard Warranty 1-year parts • 90-day labor

Perfect For

  • Self-serve salad & toppings bars
  • Buffets and catered events with limited electricity
  • Outdoor concessions, stadium kiosks & food trucks
  • Backup cold holding on busy prep lines
Installation note: Unit ships with an open 1" drain. A qualified plumber must connect the drain line in accordance with local codes. Counter cutout must be prepared to the exact dimensions listed above before drop-in installation.

Looking for a different length or multi-well configuration? Custom sizes are available from Delfield — contact us for details.

Features & Specs

Manufacturer

Delfield

Certifications

NSF

Height

10.75in

Width

46.75in

Depth

18.0in

Shipping Weight

100.0lbs

Depth (front-to-back) OA

13- 18 inches

Pan Qty

2-pan

Layout

straight

Width (side - side) OA

43 - 48 inches

Exterior Liner

galvanized steel

Interior Liner

stainless steel

Specifications

Drop-In Narrow Ice Cooled Cold Pan, 46-3/4" W x 18" D, (2) 12" x 20" pan size, fit top gasket, removable perforated false bottom, insulated, 1" drain, stainless steel top & interior, galvanized exterior, (45-3/4" x 17" cutout required), NSF
