Delfield N227P-LK 12 Gallon Self-Contained Drop-In Ice Cream Dipping Freezer with Stainless Steel Lid and Lock

SKU: N227P-LK
$7,276.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Delfield Frozen Dessert & Ice Cream Equipment Ice Cream Freezers New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment

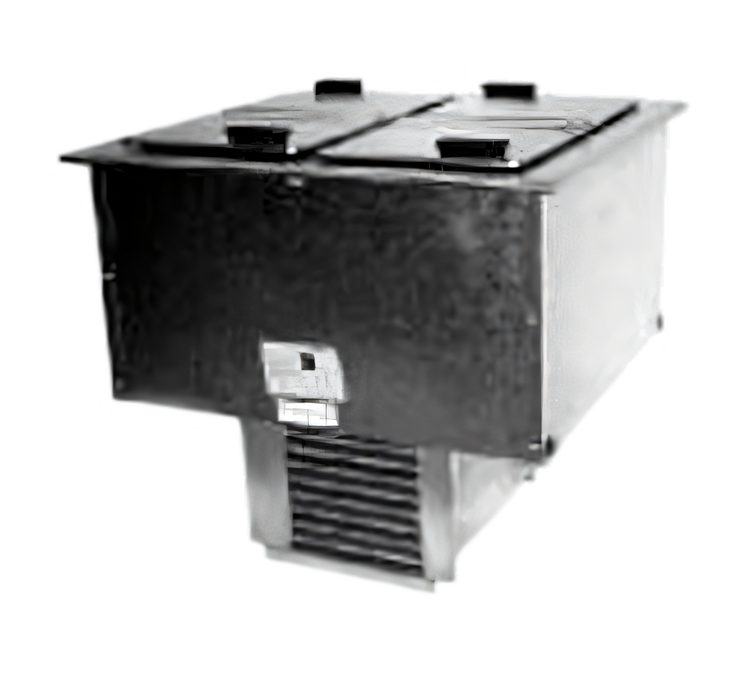

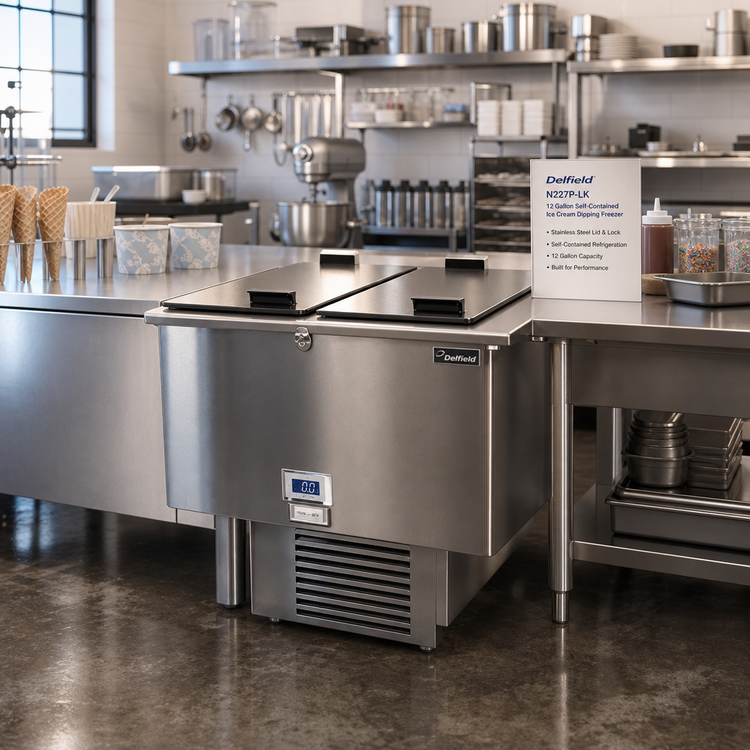

Delfield N227P-LK 12 Gallon Self-Contained Drop-In Ice Cream Dipping Freezer with Stainless Steel Lid and Lock

115 Volts, R290 Hydrocarbon Refrigerant

Built for ice cream service, this self-contained drop-in freezer offers 12 gallons of frozen storage in a durable stainless steel design.

  • 12-gallon capacity is ideal for ice cream dipping service.
  • Self-contained refrigeration simplifies installation in a drop-in opening.
  • Stainless steel top and lid with removable folding cover and external handle.
  • Maintains a -5°F to 40°F tank range for frozen product storage.
  • Includes a stainless steel louver for field installation and an 8-foot cord with plug.
  • R290 refrigerant and a 0.25 HP condensing unit support efficient operation.

Overall Dimensions:

30.5"W x 27.41"D x 26.58"H

Product Weight:

191.0 lb

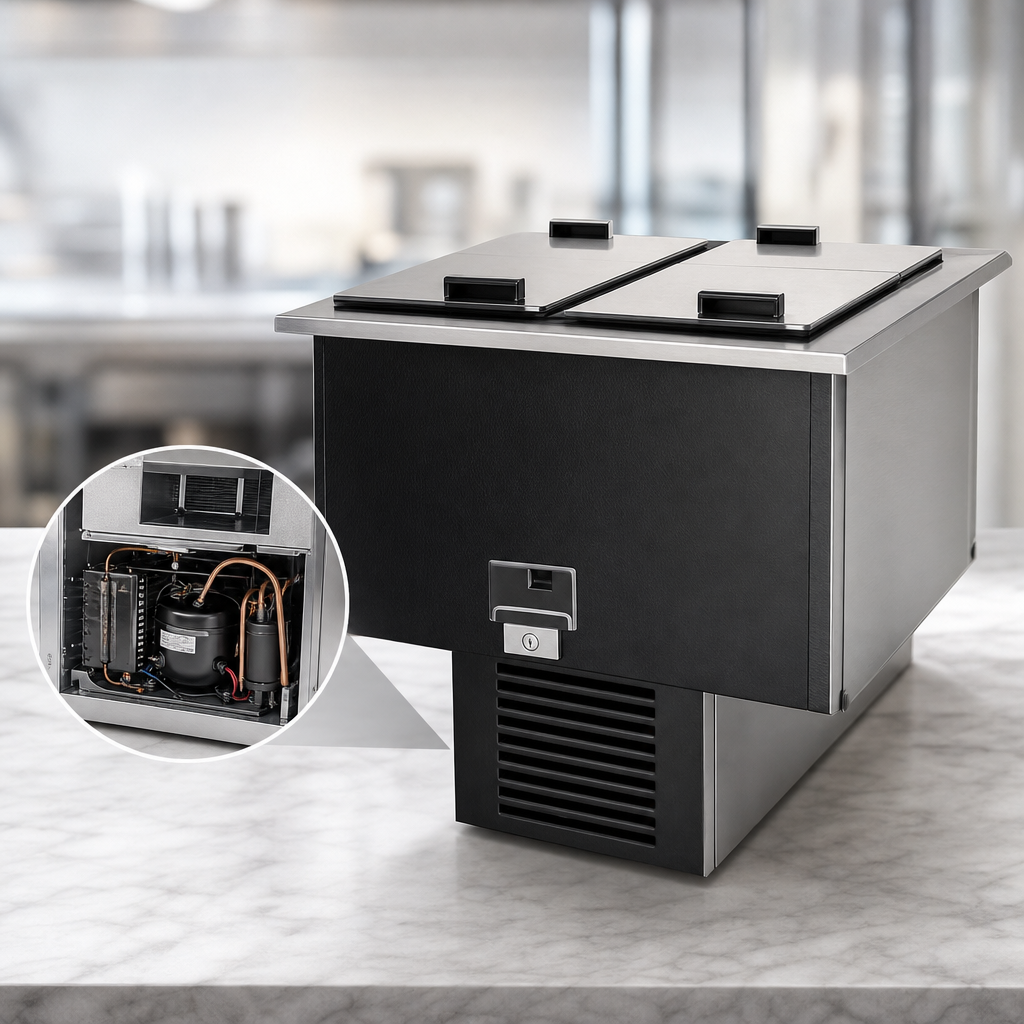

Self-Contained Refrigeration

No remote refrigeration hookup is required, simplifying installation.

Self-Contained Refrigeration

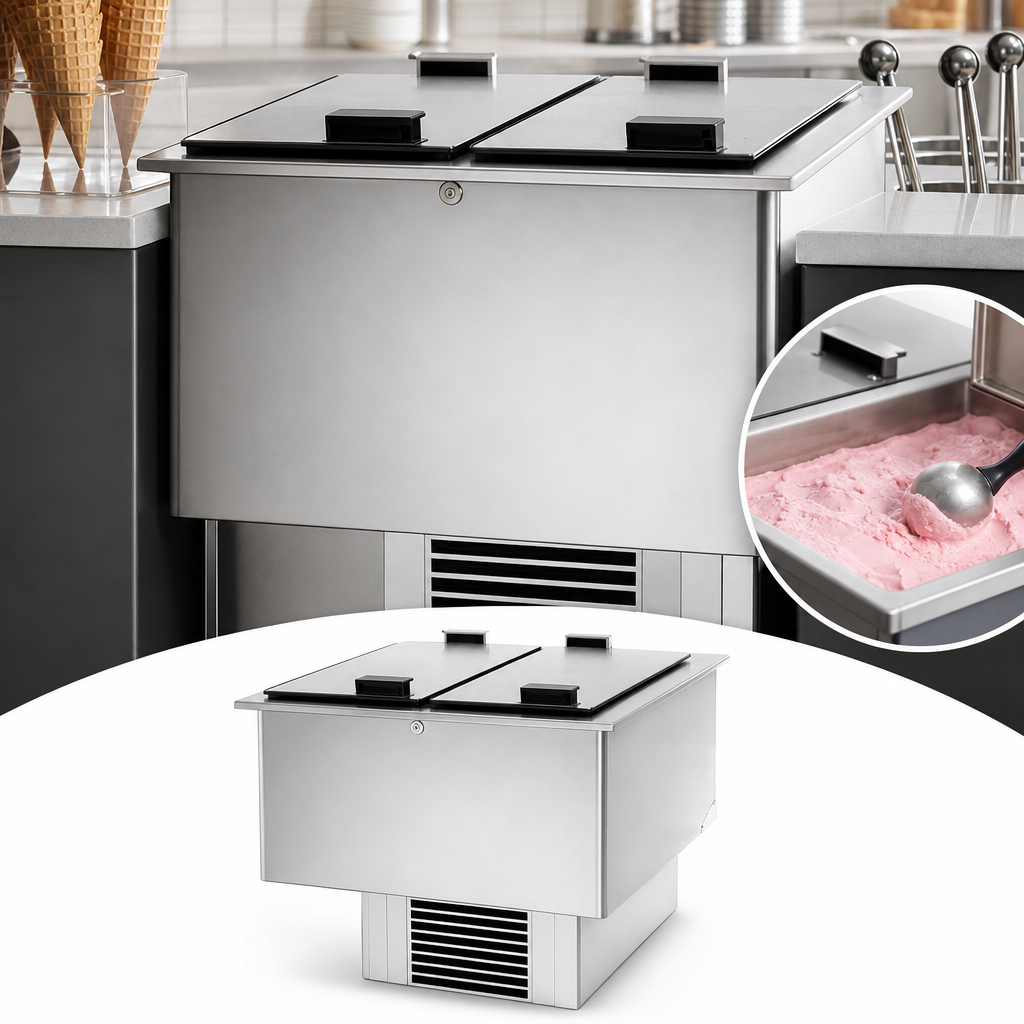

12-Gallon Capacity

Designed for ice cream storage and dipping service.

12-Gallon Capacity

Stainless Steel Top and Lid

Durable stainless steel construction helps withstand daily commercial use.

Removable Folding Cover

External handle makes the cover easier to open, remove, and clean.

Bar Lock Lid Assembly

Built-in lock helps secure the lid assembly when the unit is not in use.

-5°F to 40°F Tank Range

Mechanically cooled tank is designed to maintain frozen product temperatures.

R290 Hydrocarbon Refrigerant

Uses an environmentally friendly refrigerant for operation.

Field-Installed Stainless Steel Louver

Includes a 13" x 25" stainless steel louver for installation.

8-Foot Cord and Plug

Factory-supplied cord and plug support electrical connection.

Required Cutout Size

Requires a 29.62" x 26.62" opening for installation.

Capacity 12 Gallons
Temperature Range -5°F to 40°F
Refrigeration Type Self-Contained
Type Ice Cream Dipping Freezer
Style Dipping
Installation Type Drop-In
Material Stainless Steel
Interior Finish Stainless Steel
Refrigerant Type R290 Hydrocarbon
Horsepower 0.25 HP
Voltage 115 Volts
Amps 2.9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Cutout Size 29.62 x 26.62 Inches
Shipping Width 31 Inches
Shipping Depth 28 Inches
Shipping Height 27 Inches
Shipping Weight 191 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and 90-day labor standard warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit has a 12-gallon capacity.
It operates on 115 volts, 60 Hz, 1-phase power and draws 2.9 amps with a NEMA 5-15P plug.
The required cutout is 29.62 inches by 26.62 inches.
The mechanically cooled tank is designed to maintain temperatures from -5°F to 40°F.
The unit includes a 13" x 25" stainless steel louver for field installation, plus an 8-foot cord and plug.
It uses R290 hydrocarbon refrigerant.
