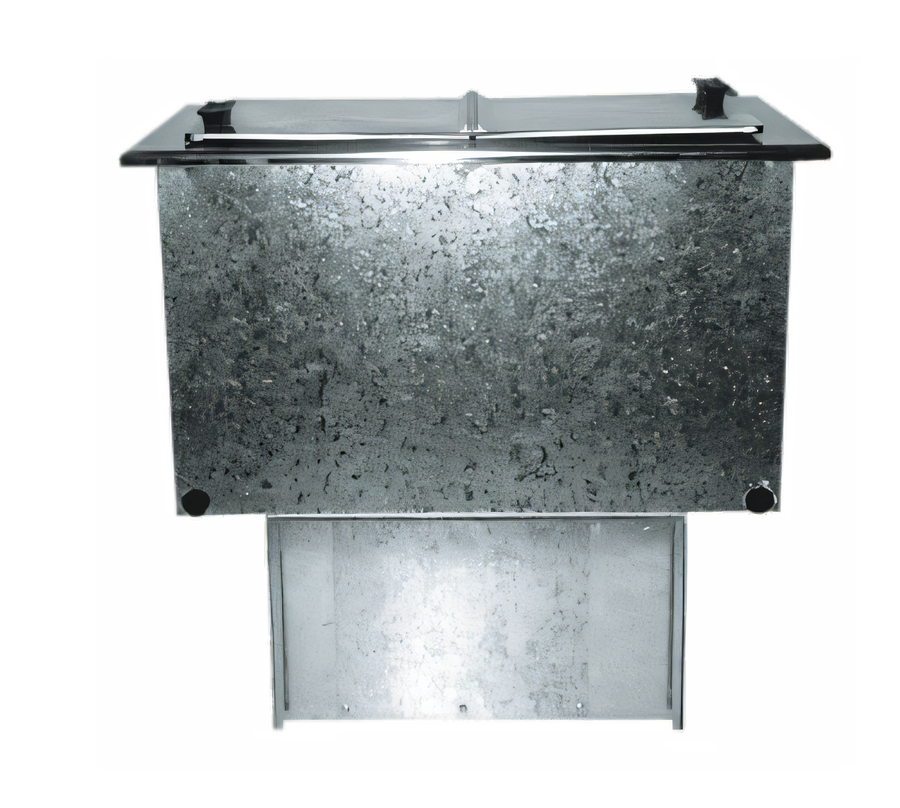

Delfield N225P-LK Self-Contained Drop-In Ice Cream Dipping Freezer, 6-Gallon, Stainless Steel Lid

Bar Lock Lid, R290 Refrigerant, 115V, 1-Phase

This compact drop-in freezer keeps ice cream at serving-ready temperatures while simplifying installation with self-contained refrigeration and a stainless steel build.

  • Holds two 3-gallon tubs for 6 gallons total, making it ideal for ice cream dipping service.
  • Self-contained refrigeration simplifies installation in a 26.62 x 16.12-inch cutout.
  • Maintains a -5°F to 40°F temperature range for dependable cold holding.
  • Stainless steel top and lid with a removable cover are built for daily commercial use.
  • Includes a 13 x 25-inch stainless steel louver plus an 8-foot cord and NEMA 5-15P plug.

Overall Dimensions:

17.06"W x 27.41"D x 26.58"H

Product Weight:

115.0 lb

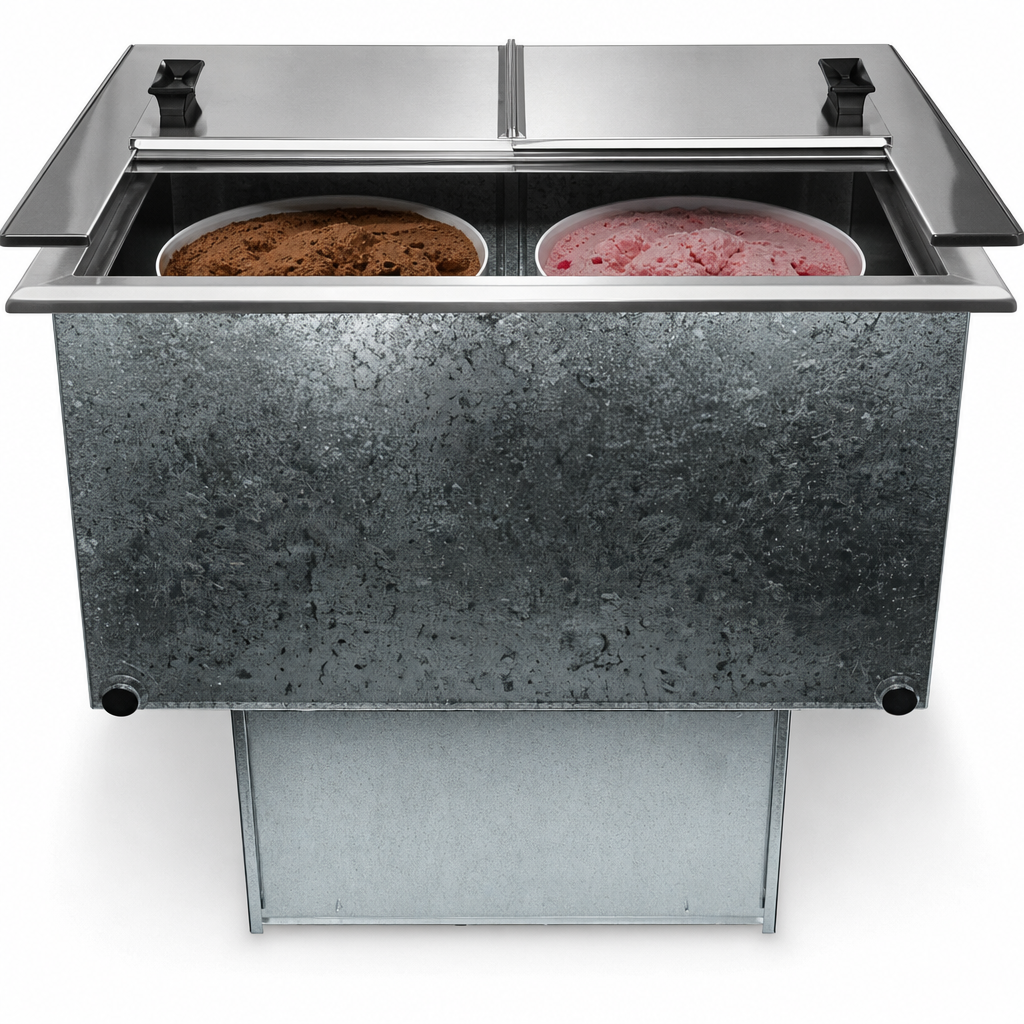

6-Gallon Capacity

Sized to hold two 3-gallon tubs for ice cream service.

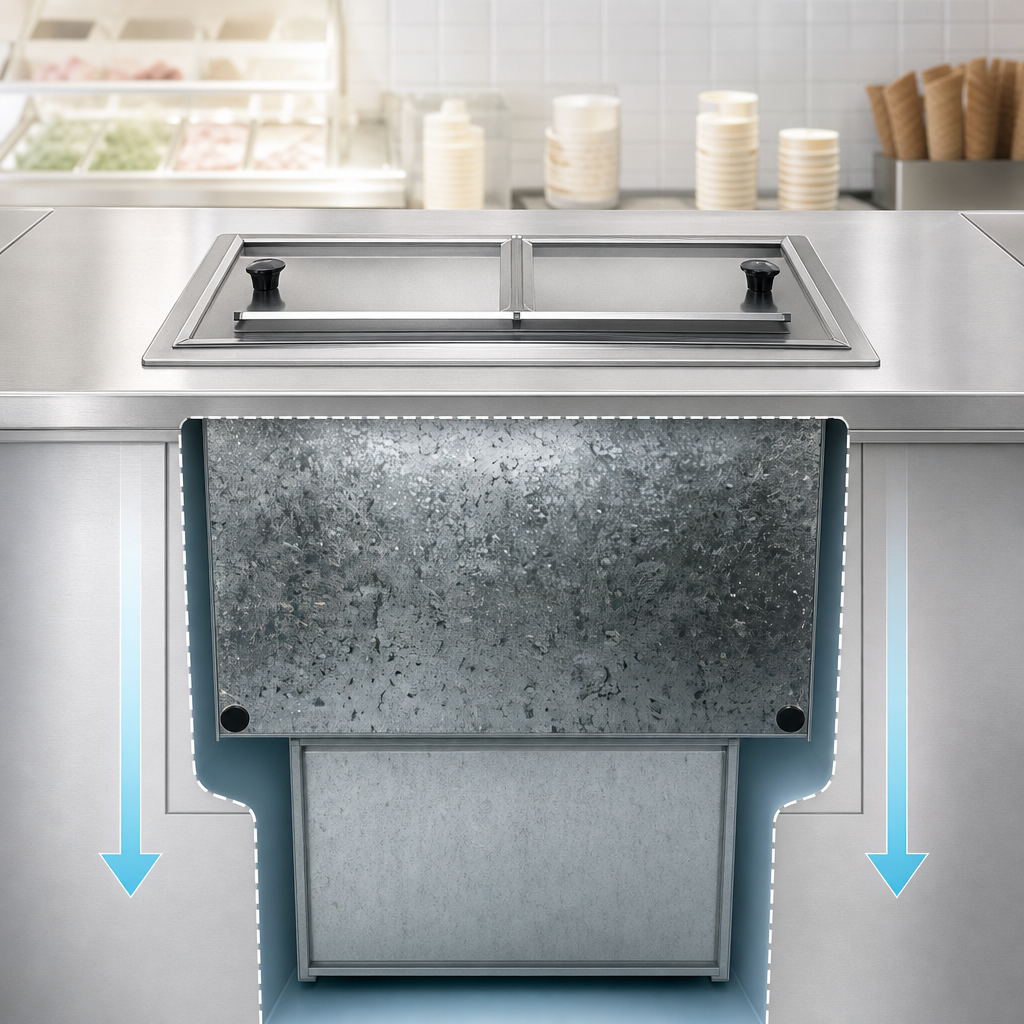

Self-Contained Drop-In Design

Condensing unit is mounted below the freezer compartment to simplify installation.

Stainless Steel Construction

Features an 18-gauge stainless steel top and stainless steel interior for durability.

Removable Folding Cover

Folding cover includes an external handle for easier access and cleanup.

Bar Lock Lid Security

Bar lock helps secure the lid assembly.

Cold-Holding Temperature Range

Mechanically cooled tank is designed to maintain -5°F to 40°F.

R290 Refrigerant

Uses environmentally friendly R290 hydrocarbon refrigerant.

Installation Hardware Included

Ships with an 8-foot cord and plug plus a 13 x 25-inch stainless steel louver for field installation.

Type Ice Cream Freezer
Style Dipping
Installation Type Drop-In
Capacity 6 Gallons
Horsepower 0.20 HP
Refrigeration Type Self-Contained
Refrigerant Type R290
Temperature Range -5°F to 40°F
Voltage 115 Volts
Amps 1.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Material Stainless Steel
Interior Finish Stainless Steel
Cutout Required 26.62 Inches x 16.12 Inches
Shipping Width 18 Inches
Shipping Depth 28 Inches
Shipping Height 27 Inches
Shipping Weight 115 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and 90-day labor standard warranty.

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 6-gallon capacity and holds two 3-gallon tubs.
The unit is designed to maintain -5°F to 40°F.
It operates on 115 Volts, 60 Hz, 1-Phase and uses 1.8 Amps with a NEMA 5-15P plug.
Yes, a 13 x 25-inch stainless steel louver is supplied for field installation.
Yes, it includes a folding removable cover with an external handle.
It comes with a standard 1-year parts and 90-day labor warranty.
