Delfield

Delfield 6-Gallon Self-Contained Drop-In Ice Cream Dipping Freezer with Stainless Steel Lid

SKU: N225P
$5,247.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Delfield Ice Cream Freezers New Arrivals Restaurant Equipment

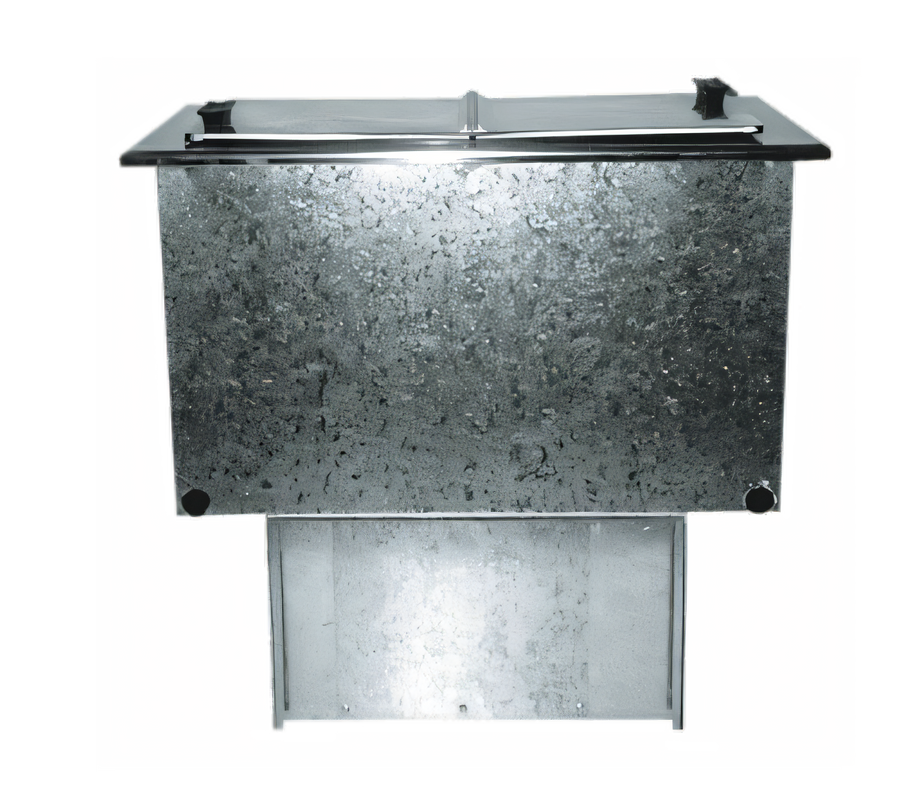

Delfield 6-Gallon Self-Contained Drop-In Ice Cream Dipping Freezer with Stainless Steel Lid

Stainless Steel Top, R290 Refrigerant, 115V, 1-Phase

A compact, self-contained drop-in freezer built to keep ice cream ready for service with durable stainless steel construction and dependable R290 cooling.

  • Self-contained drop-in freezer designed for ice cream storage and dipping service.
  • 6-gallon capacity accommodates two 3-gallon tubs.
  • Mechanically cooled system maintains temperatures from -5°F to +40°F.
  • 18-gauge stainless steel top with stainless steel interior and removable lid.
  • Uses eco-friendly R290 hydrocarbon refrigerant.
  • Includes a 13" x 25" stainless steel louver for field installation and an 8-foot cord and plug.

Overall Dimensions:

17.06"W x 27.41"D x 26.58"H

Product Weight:

115.0 lb

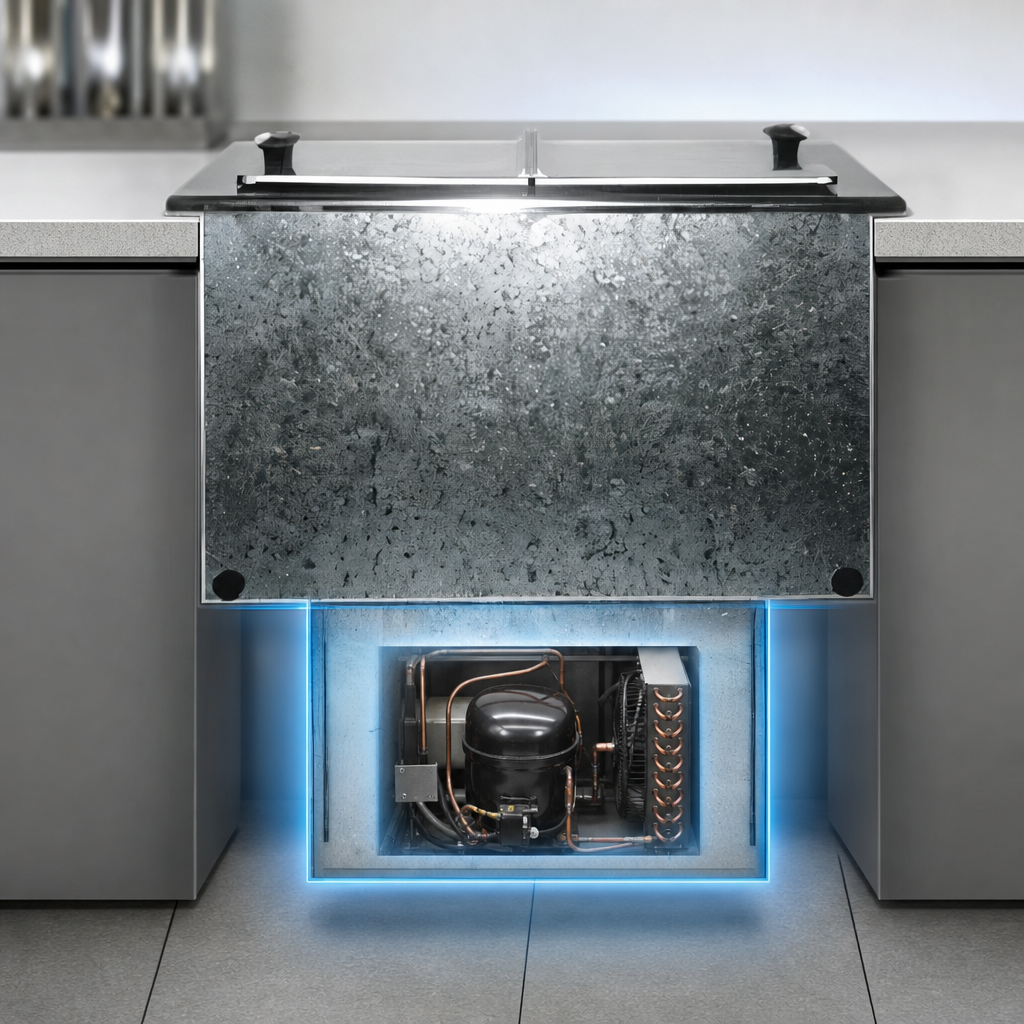

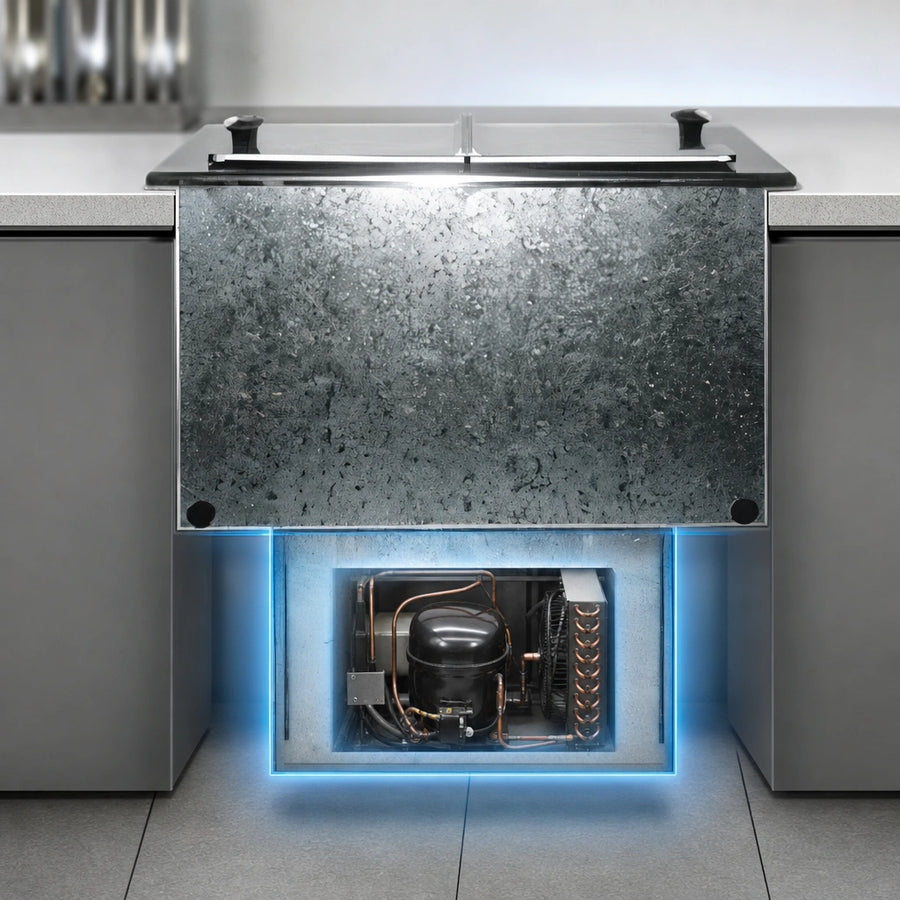

Self-Contained Refrigeration

Built-in condensing unit is mounted below the freezer compartment for a simple drop-in installation.

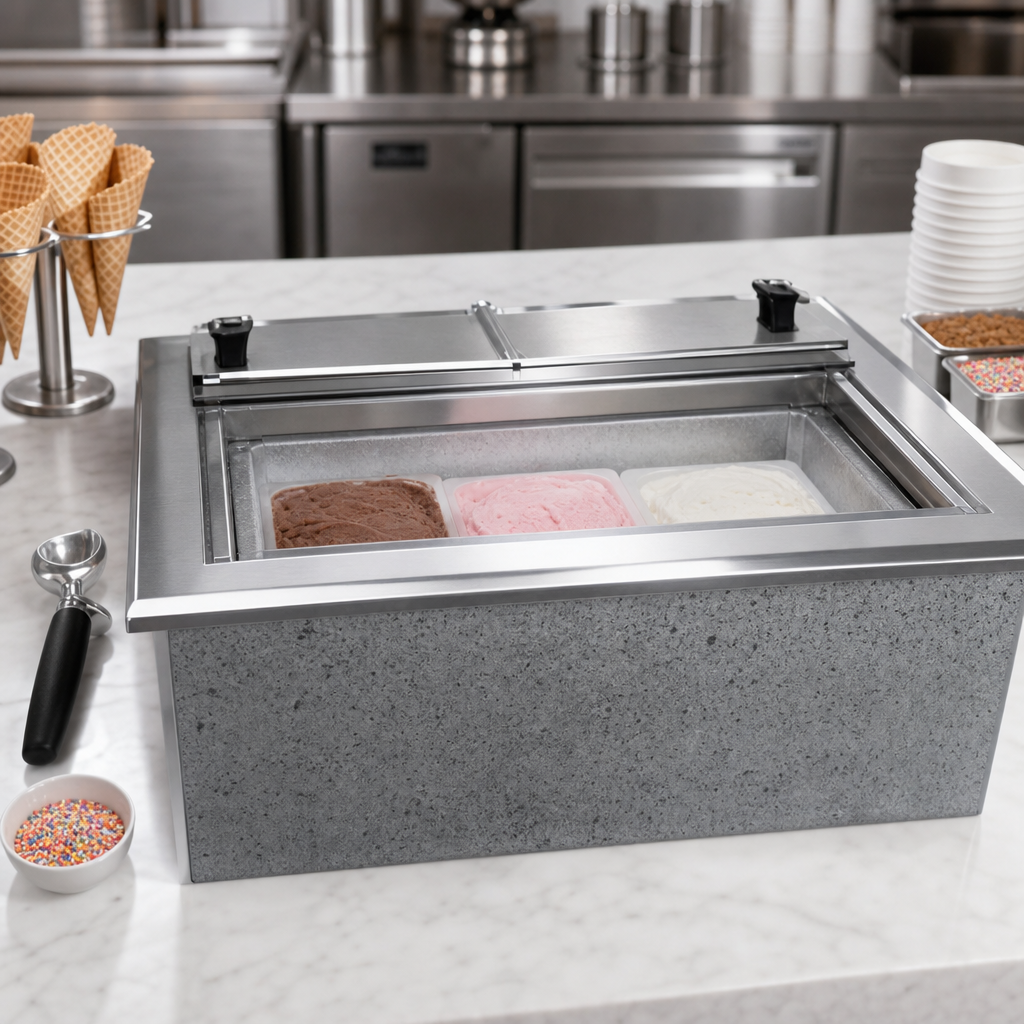

Ice Cream Storage Application

Designed for ice cream storage and dipping service in commercial settings.

6-Gallon Capacity

Provides 6 gallons of storage capacity, suitable for two 3-gallon tubs.

Temperature Range

Mechanically cooled tank maintains product temperatures from -5°F to +40°F.

Stainless Steel Construction

Features an 18-gauge stainless steel top and stainless steel interior for durability and easy cleaning.

Removable Solid Cover

Folding cover lifts off for access and includes an external handle.

R290 Hydrocarbon Refrigerant

Uses environmentally friendly R290 refrigerant.

Field-Install Louver Included

Includes a 13" x 25" stainless steel louver for field installation.

Electrical Connection

Supplied with an 8-foot cord and plug for installation flexibility.

Cutout Requirement

Requires a 26.62" x 16.12" cutout for installation.

Type Ice Cream Freezer
Style Dipping
Installation Type Drop-In
Capacity 6 Gallons
Material Stainless Steel
Interior Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Horsepower 0.2 HP
Temperature Range -5°F to +40°F
Voltage 115 Volts
Amps 1.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 18 Inches
Shipping Depth 28 Inches
Shipping Height 27 Inches
Shipping Weight 115 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts, 90-day labor standard warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 6-gallon capacity, suitable for two 3-gallon tubs.
The unit is designed to maintain temperatures from -5°F to +40°F.
It operates on 115 Volts, 60 Hz, single phase and draws 1.8 amps with a NEMA 5-15P plug.
Yes. A 13" x 25" stainless steel louver is supplied for field installation.
Optional accessories include a locking device, a clear acrylic lid, and a remote toggle switch assembly (AS000-473-003W).
