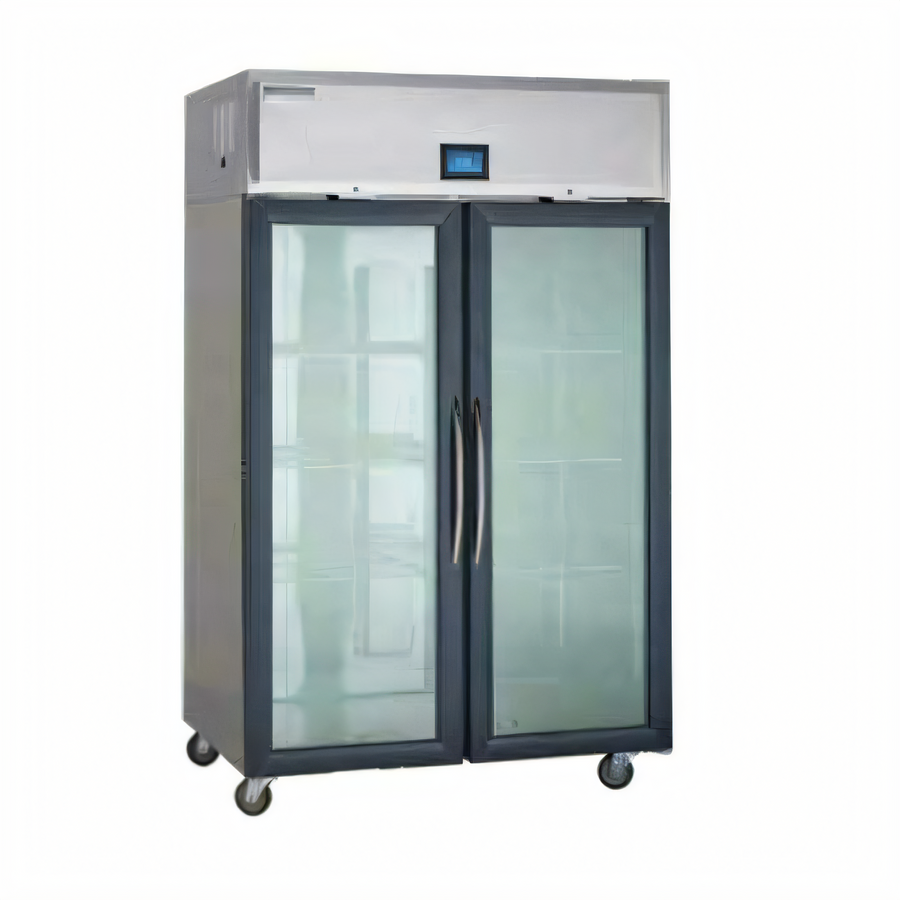

Delfield GAHPT2-G Heated Cabinets & Holding Shelves

SKU: GAHPT2-G
$20,095.99
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Delfield New Arrivals

Delfield Specification Line® Pass-Thru Heated Cabinet – 50 cu ft (Model GAHPT2-G)

Two-section • 4 full-height locking glass doors • easyTouch® connected control

Hold plated meals, sheet pans or hotel pans at precise serving temperatures without slowing kitchen flow. The GAHPT2-G delivers 50 cubic feet of heated storage that you can access from both sides of the line, all managed by Delfield’s brilliant 4.3" easyTouch® touchscreen with 24/7 remote monitoring.

Why you’ll love it

  • Pass-thru productivity – load from the kitchen, pull from the service side, cut down on steps & ticket times.
  • Smart easyTouch® control – color touchscreen, passcode protection and real-time data you can view on a phone or tablet.
  • Temperature you can trust – electronic control maintains 120–200 °F with high/low visual alarms.
  • Field-proven durability – all-stainless exterior & interior, removable louver and tool-free door gaskets.
  • Energy-efficient glass doors – lockable, self-closing to 90° and stay-open past 90° for safe loading.
  • 50 ft³ of organized space – six adjustable chrome shelves on stainless pilasters accommodate full-size sheet pans.
  • Ready to roll – four 5" locking casters (shipped loose) and a factory-installed 10' cord & NEMA 6-20P plug.
  • Peace of mind – NSF & cULus listed and backed by a 3-year parts & labor warranty.

Technical specifications

Capacity 50.0 cu ft (1.42 m³)
Sections / Doors 2 sections / 4 full-height, hinged glass doors (locking, field-rehingeable)
Shelves 6 adjustable chrome wire shelves (3 per section)
Temperature Range 120 °F – 200 °F (49 °C – 93 °C)
Controller easyTouch® 4.3" color touchscreen with remote monitoring & data logging
Interior Lighting 40 W incandescent lamp
Construction Stainless steel front, sides & interior; high-density polyurethane insulation
Mobility (4) 5" locking casters, field-installed
Electrical 208-240 V / 60 Hz / 1-phase, 10.5 A, NEMA 6-20P cord & plug (10 ft)
Certifications NSF, cULus
Shipping Weight Approx. 640 lb (290 kg)
Warranty 3-year parts & labor (see warranty statement for details)

What’s in the box

  • GAHPT2-G heated pass-thru cabinet
  • (6) chrome wire shelves with clips
  • (4) 5" locking casters (loose)
  • 10' factory-installed power cord with NEMA 6-20P plug
  • Installation & operation manual

Popular factory options (sold separately)

  • 6" stainless steel or flanged feet
  • All-locking 6" casters
  • Additional chrome or stainless shelves
  • Tray / pan slides
  • Utility base or kick plate
  • Heat-shield end panels (400 °F rated)
Electrical notice: This unit ships with a NEMA 6-20P plug and requires a dedicated 208-240 V, 20-amp, single-phase circuit. Always verify site power prior to installation.

Delfield’s standard 3-year parts & labor warranty applies when the unit is installed and maintained in accordance with the supplied manual.

Overall Dimensions:

27.4"W x 32.44"D x 79.38"H

Product Weight:

640.0 lb
Manufacturer Delfield
Brand name Specification Line
Certifications ["NSF", "cULus"]
Height 79.38in
Width 27.4in
Depth 32.44in
Shipping Weight 640.0lbs
Interior Finish stainless steel interior
Size 2 section
Depth (front - back) standard
Doors hinged glass
Exterior Finish stainless steel front & sides
Interior configuration shelves
Thermometer exterior digital
Specifications Specification Line® Heated Cabinet, Pass-Thru, two-section, 50.0 cubic feet capacity, (4) full-height hinged glass doors (locking), (6) adjustable chrome wire shelves, 4.3" easyTouch® screen temperature display/control with remote monitoring, incandescent interior lighting, stainless steel exterior front, sides & interior, (4) 5" locking casters, 208-240v/60/1-ph, 10.5 amps, NEMA 6-20P, NSF, cULus

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Flyer PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download
