Delfield

Delfield GAFPT1P-S Reach-In Refrigerators & Freezers

SKU: GAFPT1P-S
$12,373.98
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Delfield New Arrivals

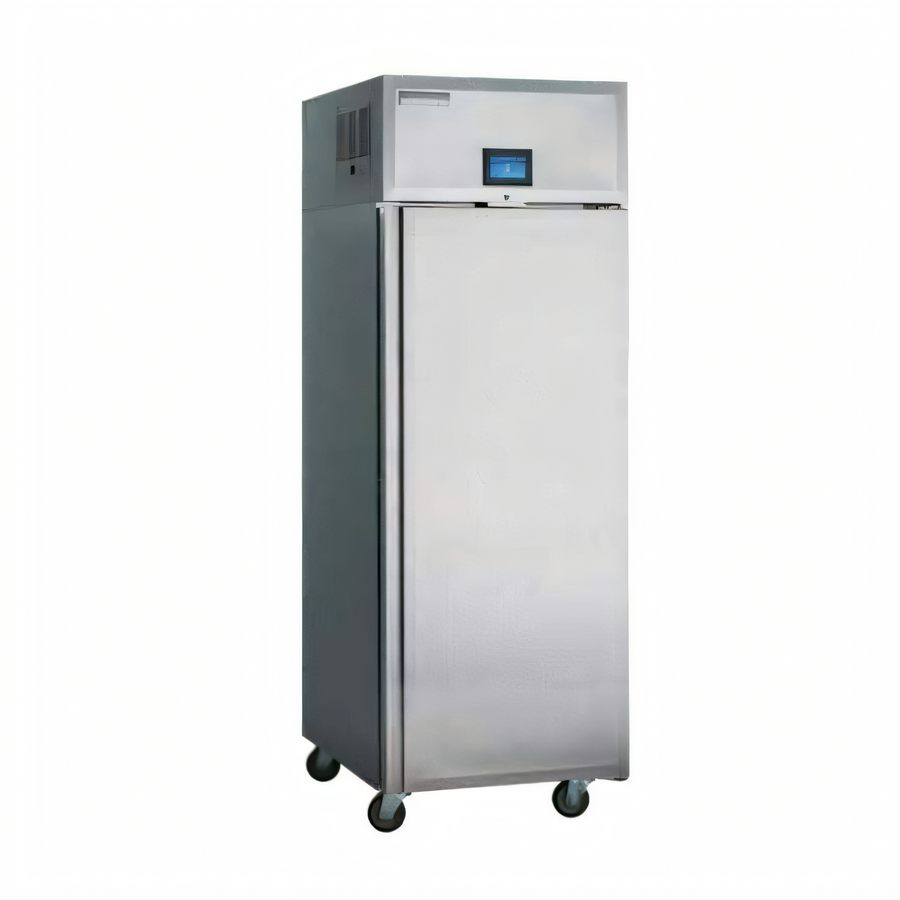

Delfield Specification Line® Pass-Thru Freezer – 1 Section, 23 cu. ft. (Model GAFPT1P-S)

Top-mount, ENERGY STAR® certified, easyTouch® enabled

Built for busy commercial kitchens, this 23 cu. ft. pass-thru freezer offers seamless front- and rear-line access, intuitive 4.3" touchscreen control with 24/7 remote monitoring, and industry-leading energy performance powered by GreenGenius™ R290 refrigeration.

Key features

  • easyTouch® 4.3" color touchscreen with pass-code protection, data logging & smartphone alerts.
  • GreenGenius™ natural R290 hydrocarbon system with TXV and hot-gas condensate removal—maintains −5 °F to 0 °F while earning ENERGY STAR® status.
  • True pass-thru convenience: two full-height, lockable solid doors that auto-close to 90° and stay open past 90°.
  • Stainless steel exterior & interior plus raised ABS door liners for maximum durability and easy sanitation.
  • Three adjustable chrome wire shelves on stainless pilasters; accommodates full-size sheet pans.
  • Panoramic LED cabinet lighting for clear product visibility without extra heat load.
  • Top-mounted, self-contained refrigeration frees interior space and simplifies service access.
  • Tool-less removable magnetic gaskets & side louver speed routine cleaning.
  • Ships with four 5" locking casters and a 10' cord with NEMA 5-15P plug—roll in, plug in, done.
  • Comprehensive coverage: 3-year parts & labor warranty plus 2 additional years on the compressor.

Specifications

Capacity 23 cu. ft. (12.12 sq. ft. shelf area)
Doors 2 hinged solid, lockable, field-rehingeable
Shelves (standard) 3 adjustable chrome wire
Temperature range −5 °F to 0 °F
Refrigerant GreenGenius™ R290 (natural hydrocarbon)
Compressor 0.55 HP top-mount  |  1,968 Btu/hr
Electrical 115 V / 60 Hz / 1-ph  |  7.2 A  |  NEMA 5-15P
Cabinet construction Stainless steel front, sides & interior
Mobility 4 × 5" locking casters (shipped loose)
Certifications NSF, cULus, ENERGY STAR®
Ship weight 452 lb

Perfect for

  • High-volume restaurants & hotels needing front-/back-line transfer
  • Institutional kitchens—schools, hospitals, commissaries
  • Catering operations requiring secure, reliable frozen storage

Images may show optional accessories such as 6" legs or pan slides, sold separately.

Overall Dimensions:

27.4"W x 32.44"D x 79.38"H

Product Weight:

452.0 lb
Manufacturer Delfield
Brand name Specification Line
Certifications ["NSF", "cULus", "ENERGY STAR"]
Height 79.38in
Width 27.4in
Depth 32.44in
Shipping Weight 452.0lbs
Exterior Finish stainless steel front & sides
Refrigeration self-contained, top mounted
Door Type solid
Capacity 10 - 23 cu. ft.
Door Style hinged / swing
Size 1 section
Compressor HP 1/2 HP
Energy Efficiency ENERGY STAR®
Specifications Specification Line® Freezer, Pass-Thru, one-section, 23.0 cubic feet capacity, top-mounted self-contained refrigeration system, (2) full-height hinged solid doors (locking), (3) adjustable chrome wire shelves, 4.3" easyTouch® screen temperature display/control with remote monitoring, LED interior lighting, pilaster with shelf clips, stainless steel exterior front, sides & interior, (4) 5" locking casters, GreenGenius™ R290 Hydrocarbon refrigerant, 0.55 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, NSF, cULus, ENERGY STAR®

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Flyer PDF Download PDF Warranty sheet PDF Download
