Delfield F2996CP Low Profile Undercounter & Worktop Refrigeration
Description

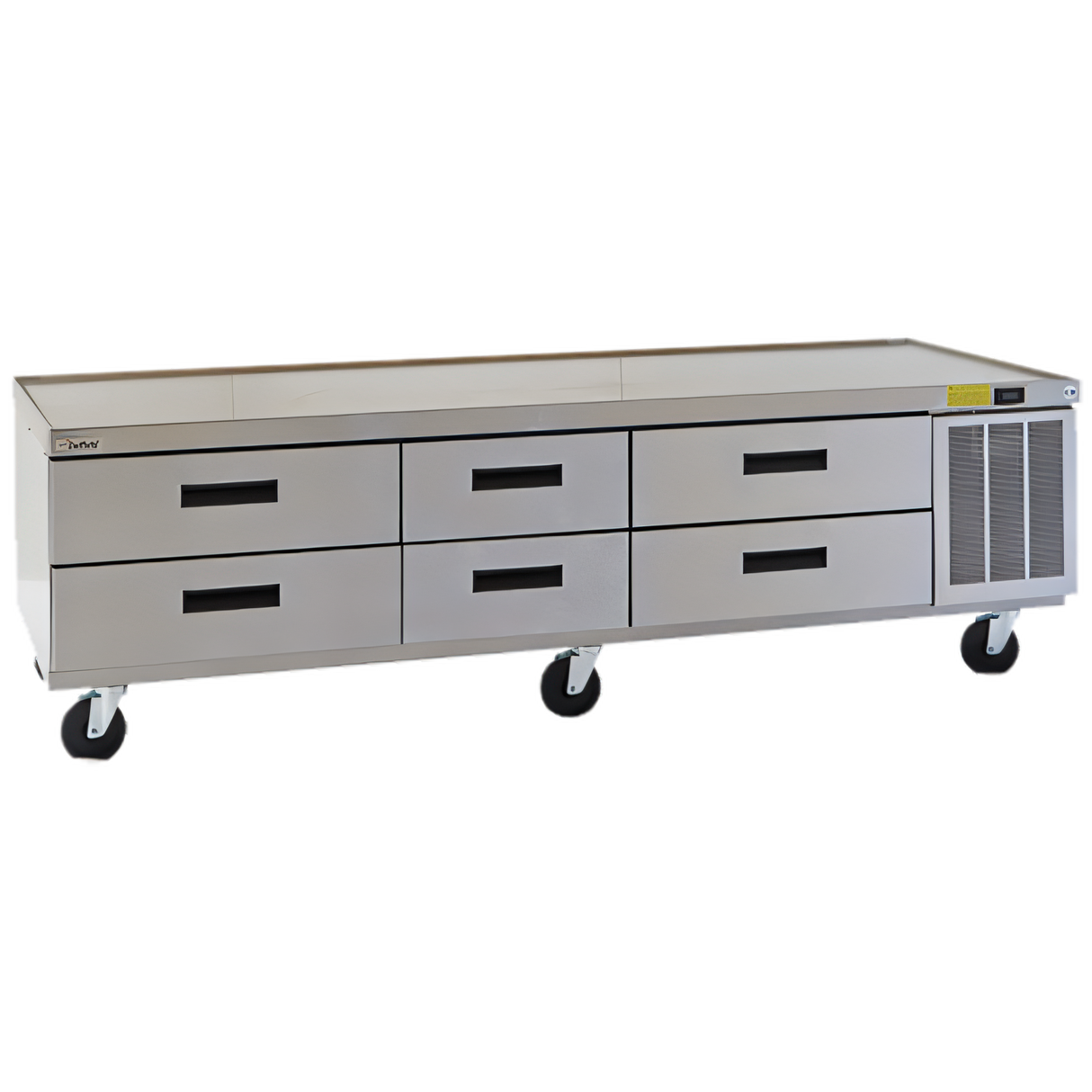

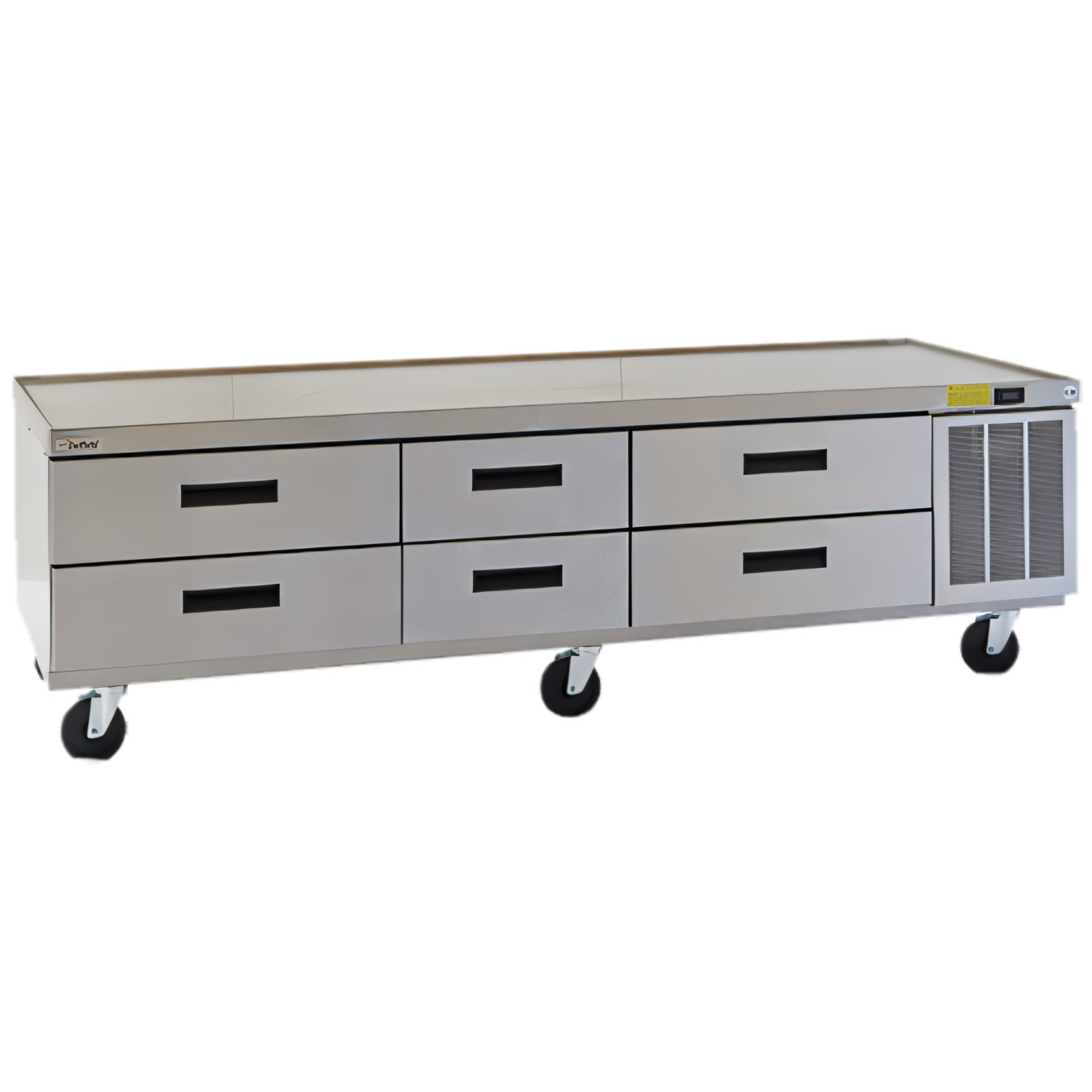

Delfield 96" Low-Profile Refrigerated Equipment Stand – Model F2996CP
Self-contained | 6 stainless drawers | R290 hydrocarbon refrigerantKeep your hottest cooking equipment right on the coldest storage—without compromising either. The Delfield F2996CP low-profile stand combines rugged 18-gauge stainless construction, a proven drawer system, and an energy-efficient refrigeration package that maintains 36–40 °F in 100 °F kitchens. Built to shoulder heavy charbroilers, griddles and more, it puts pre-portioned proteins, sides or garnishes exactly where your cooks need them—at arm’s reach and at safe holding temperature.
Top reasons operators choose the F2996CP

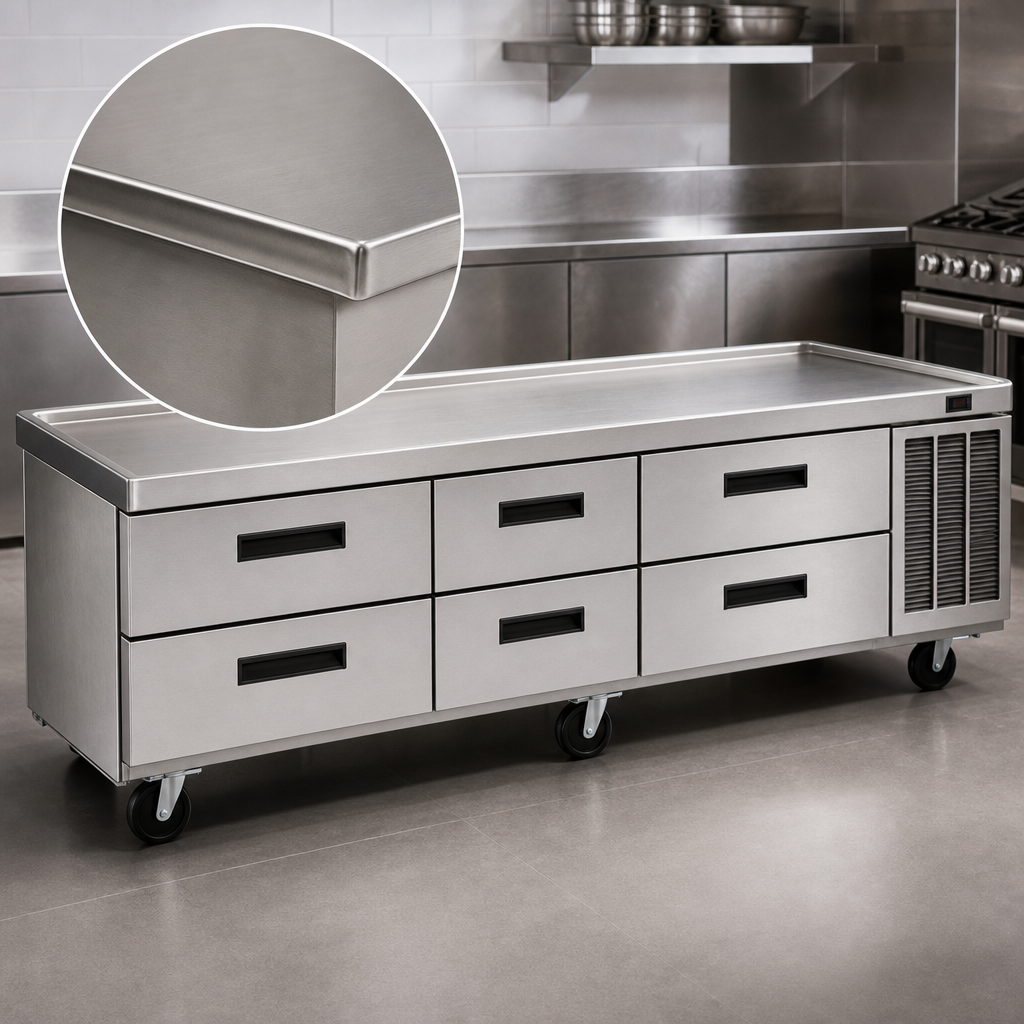

- Heavy-duty marine-edge stainless top prevents spills and supports countertop equipment.
- Six Full-Extension Plus™ drawers (10-year track warranty) accept up to eight 12" × 20" × 4" hotel pans (sold separately).
- Side-mounted, self-contained refrigeration with R290 natural refrigerant and TXV metering for rapid recovery.
- Mullion-style dual-fan coils deliver even airflow to every drawer section.
- High-density, zero-ODP / zero-GWP polyurethane foam adds strength and insulation.
- Snap-in Santoprene gaskets and tool-free removable tracks simplify cleaning.
- Factory-installed 4" swivel casters (front locking) and a wall-mount anti-tip bracket.
- cULus • NSF 7 listed for open food storage.
- Backed by a 3-year parts & labor + 5-year compressor warranty.
At-a-glance specs
| Exterior dimensions (W × D × H) | 96.25" × 31.94" × 24" (244 cm × 81 cm × 61 cm) |
|---|---|
| Work-surface height | 25.5" (with marine edge) |
| Sections / drawers | 3 sections / 6 drawers |
| Pan capacity* | Up to 8 full-size 12" × 20" × 4" hotel pans |
| Temperature holding | 36 – 40 °F (2 – 4 °C) at 100 °F ambient |
| Refrigeration system | Side-mounted, self-contained, hot-gas condensate evaporator |
| Compressor / refrigerant | ¼ HP, R290 hydrocarbon |
| Electrical | 115 V / 60 Hz / 1 Ph, 4.8 A, 8' cord & NEMA 5-15P plug |
| Construction | 18-ga stainless top & drawer fronts, ABS interior sides, stainless ends |
| Mobility | (4) 4" casters, front two locking |
| Certifications | cULus, NSF 7 |
| Ship weight | ≈ 600 lb (272 kg) |
| Warranty | 3 yr parts & labor, 5 yr compressor; 10 yr drawer track parts |
*Pan capacities are for reference only; pans are not included.
Perfect for
- Grills, griddles & charbroilers on the cook line
- High-volume QSR or fast-casual kitchens
- Banquet & catering operations needing quick protein access
- Any operation looking to maximize production space without sacrificing cold storage
Upgrade your cook line with the strength, efficiency and reliability that only Delfield delivers. Add the F2996CP to your cart today or chat with us for expert assistance.
